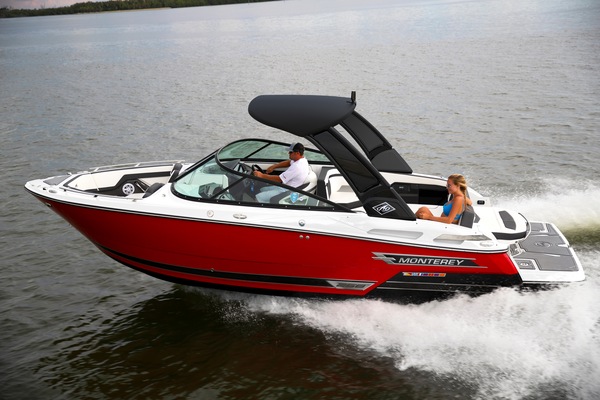

The 258 Super Sport blends the very best attributes of our Super Sport series line to create the perfect vessel for you and your crew to enjoy endless days of on the water activities. From destination boating to cruising to enjoying your recreational sports, the 258SS has everything you need. Handcrafted with some of the most innovative design features seen on the water today, and loaded with standard features and amenities, the 258SS will satisfy everything your heart desires.
LOA W/SWIM PLATFORM 25'1"
BEAM 8'6"
FUEL CAPACITY 65GAL
MAX HORSEPOWER 430HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA w/Swim Platform | 25'1" | 7.65M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| Beam | 8'6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 24" | 61CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 37" | 94CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance w/Tower | 7'6" | 2.3M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 65GAL | 246.1L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 10GAL | 37.9L | Capacity of water tank in gallons/liters |
| Waste Capacity | 11GAL | 41.6L | Capacity of waste tank in gallons/liters |
| Dry Weight | 5100LBS | 2313KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 15 (US) | 13 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 2475LBS | 975KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Maximum Persons w/ Gear Weight | 2660LBS | 1170KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 430HP | 321KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Canvas |
Bimini Top w/Embroidered Boot |  |
Cockpit |
Cooler, 48 Qt Carry-On | |
Cockpit |
Courtesy Lighting, Blue/White, LED 12 V | |
Cockpit |
Dock Line Straps (2) & Dry Deck | |
Cockpit |
Drink Holders, Stainless Steel (8) | |
Cockpit |
Fiberglass Cockpit Liner w/Non-Skid and Drainage | |
Cockpit |
Grab Handles, Black Urethane w/Stainless Steel Inserts | |
Cockpit |
Hatch, Engine Compartment, Gas Assisted | |
Cockpit |
Outlet, 12 V | |
Cockpit |
Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & 4 JL Audio 6.5" Speakers with LED Lights & Dash Remote | |
Cockpit |
Storage, In-Floor Ski w/Gas Assisted Hatch Cover, & Dry Deck | |
Cockpit |
Storage, Side Panels | |
Cockpit |
Storage, Starboard Helm w/Hanging Rod, & Trash Receptacle | |
Electrical Systems |
Battery Switch, Dual w/Additional Battery Tray | |
Electrical Systems |
Weatherproof Electrical System w/Individual Circuit Protection | |
Electrical Systems |
Transom Tilt Switch | |
Engine Compartment |
Automatic Bilge Pump | |
Engine Compartment |
Bilge Blower | |
Engine Compartment |
Fire Port | |
Engine Compartment |
Forced Air Ventilation w/Concealed Vents | |
Engine Compartment |
Gelcoated Bilge & Engine Compartment | |
Fuel Systems |
Double Clamped Fuel Lines | |
Head |
Counter Top w/Solid Surface Inlay | |
Head |
Flooring, Synthetic Wood | |
Head |
Toilet (Porta-Potti) | |
Head |
Vanity w/Sink & Pullout Sprayer | |

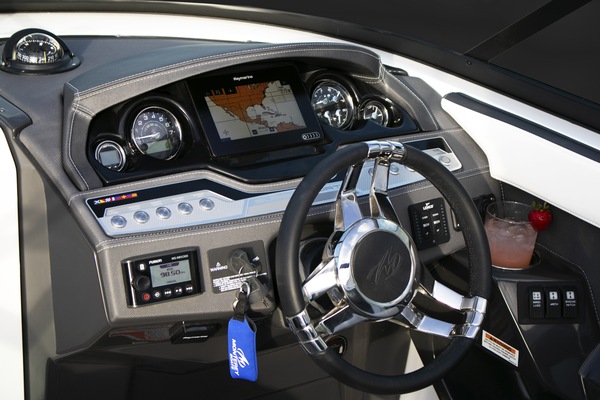

Helm |
Compass | |
Helm |
Digital GPS Speedometer | |
Helm |
Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting | |
Helm |
MP3 Adapter | |
Helm |
Outlet, 12 V | |
Helm |
Steering Wheel, Leather Wrapped w/Chromed Stainless Spokes | |
Helm |
Steering, Power Assisted | |
Helm |
Steering, Tilt | |
Helm |
Switches, Lighted Weatherproof | |
Hull & Deck |
Air Assist Chine | |
Hull & Deck |
Barrier Coat, Vinylester | |
Hull & Deck |
Boarding Ladder, Telescoping & Recessed, Bow | |
Hull & Deck |
Bow Hand Rails, SS | |
Hull & Deck |
Bow & Stern Eyes, Stainless Steel, with Stainless Steel Backing Plate | |
Hull & Deck |
Bow Plate, Stainless Steel | |
Hull & Deck |
Cleats, Stainless Steel (6) | |
Hull & Deck |
Colored Hull Sides | |
Hull & Deck |
Cooler Molded In, Bow | |
Hull & Deck |
Custom Hull Side Graphics | |
Hull & Deck |
Door, Walk-Thru at Helm | |
Hull & Deck |
Door, Walk-Thru at Transom | |
Hull & Deck |
Drain Plug, Brass Garboard | |
Hull & Deck |
Horn, Electric Flush Mount | |
Hull & Deck |
Lights, Docking | |
Hull & Deck |
Lights, Navigation LED | |
Hull & Deck |
NMMA Certified | |
Hull & Deck |
Rub Rail, Heavy Duty w/Stainless Steel Insert | |
Hull & Deck |
Ski Tow, Stainless Steel | |
Hull & Deck |
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | |
Hull & Deck |
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | |
Hull & Deck |
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch w/overboard drain | |
Hull & Deck |
Swim Platform, Integral with Ski Rope Storage | |
Hull & Deck |
Thru Hulls, Stainless Steel Above Waterline | |
Hull & Deck |
Transhield Cover | |
Hull & Deck |
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | |
Seating |
Aft Facing Seat, Starboard w/Carry-on Slide-Out Cooler | |
Seating |

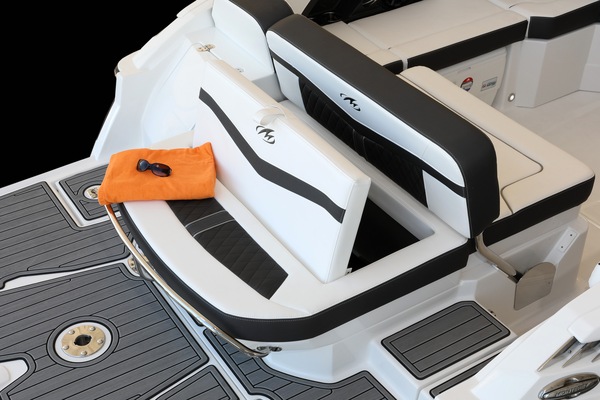

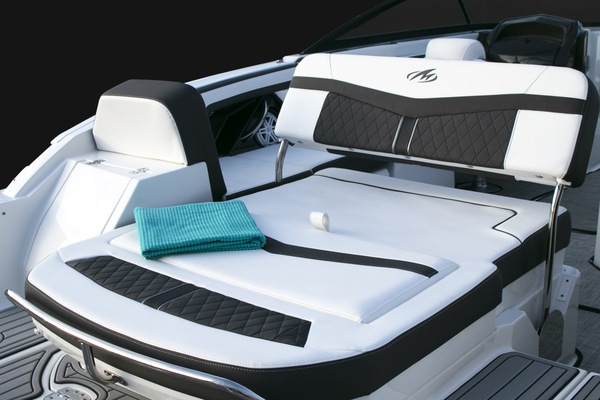

Aft L-Lounge w/Fiberglass Bases, Sun Island Feature, Stainless Steel Stern Rail | |
Seating |
Bow Bolsters | |
Seating |

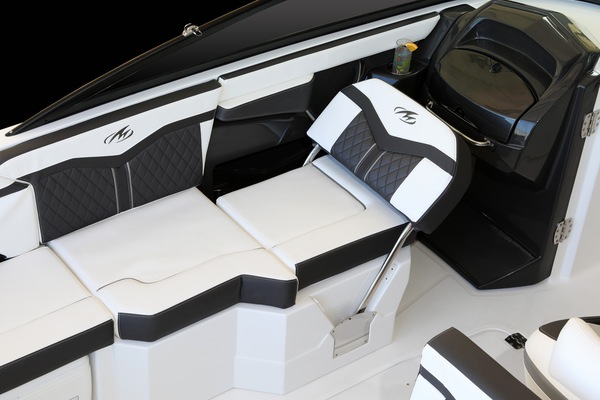

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard | |
Seating |

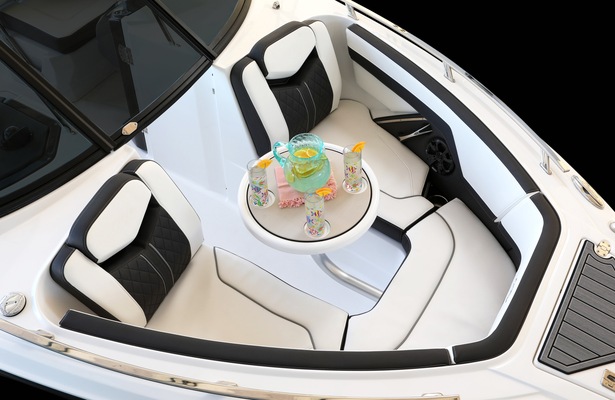

Seat Cushions w/Storage Compartments, Bow | |
Canvas |
Bow & Cockpit Cover: Onyx |  |
Canvas |
Bow & Cockpit Cover: Rio | |
Canvas |
Bow & Cockpit Cover: Royal Blue | |
Canvas |
Bow & Cockpit Cover: Sapphire | |
Canvas |
Bow & Cockpit Cover: Taupe | |
Cockpit |
Tower Cone Speakers, JL with 4 Channel Amplifier (Requires Stereo Upgrade Package) | |
Cockpit |
Cockpit Inlay (SeaDek) (Terra) (Requires Swim Platform Inlay Option) | |
Cockpit |
Cockpit Inlay (SeaDek) (Gray) (Requires Swim Platform Inlay Option)
|
|
Cockpit |
Cockpit Table, w/Pedestal and Vertical side Mount Bases Fwd. & Aft. | |
Cockpit |
Stereo Upgrade Package, Includes JL10" Subwoofer & 5 Channel Amplifier | |
Cockpit |
Stereo Remote, Stern | |
Cockpit |
Transom Shower w/Pressurized Water (Cold Only) | |
Cockpit |
Wet Bar w/Solid Surface Insert, Sink, Faucet & Slide Out Cooler | |
Cockpit |
Woven Flooring, Cockpit | |
Engine Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | |
Engine Compartment |
Fire Extinguishing System (Domestic Only) (Std. in EU Countries & Australia) | |
Head |
Toilet, Pump-out Deck Fitting | |
Head |
Electric Head System w/Holding Tank indicator & pump out deck fitting | |
Helm |
Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer/Integrated Engine Functions & Depthsounder | |
Hull & Deck |
Anchor Windlass, Pre-Wire | |
Hull & Deck |
Anchor Windlass w/Anchor Rope & Chain | |
Hull & Deck |
Colored Hull Bottom (other than Arctic Ice) | |
Hull & Deck |
Delete Graphics | |
Hull & Deck |
Phender Pro Holders (4) | |
Hull & Deck |
Portlight, In Head, w/Screen | |
Hull & Deck |
Ski Tow Pylon, Removable | |
Hull & Deck |
Swim Platform Inlay (SeaDek) (Terra) | |
Hull & Deck |
Swim Platform Inlay (SeaDek) (Gray)
|
|
Hull & Deck |
Underwater Lights, LED RGB | |
Hull & Deck |
Wakeboard Tower Black, Hinged to Fold Down (Includes Wakeboard Bimini) | |
Hull & Deck |
Wakeboard Tower White, Hinged to Fold Down (Includes Wakeboard Bimini) | |
Hull & Deck |
Wakeboard Tower, Electric, Black (Includes Wakeboard Bimini) | |
Hull & Deck |
Wakeboard Tower, Electric, White (Includes Wakeboard Bimini) | |
Seating |
Bow Filler Cushions | |
Seating |
Helm Seat, Premium | |
Seating |
Portside Forward/Aft Facing Lounger | |
Under Water Gear |
Trim Tabs W/Indicators & Auto Retract | |
Waste Systems |
Grey Water System for Porta Potti (N/A With Macerator) | |
Waste Systems |
Macerator w/Overboard Discharge (requires Electric toilet option - Not Available w/Grey Water Option) | |
Waste Systems |
Grey Water System For Electric Head (N/A With Macerator) | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| *6.2L 300HP DTS | 300HP | 2.20 | BRIII | B3-24-SS | 44-48 | 11@36 E | Download |
| *6.2L 350HP DTS | 350HP | 2.20 | BRIII | B3-26-SS | 48-52 | 12.1@36 E | |
| 6.2L 300HP CAT DTS | 300HP | 2.20 | BRIII | B3-24-SS | 44-48 | 11@36 E | |
| 6.2L 350HP CAT DTS | 350HP | 2.20 | BRIII | B3-26-SS | 48-52 | 12.1@36 E |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
