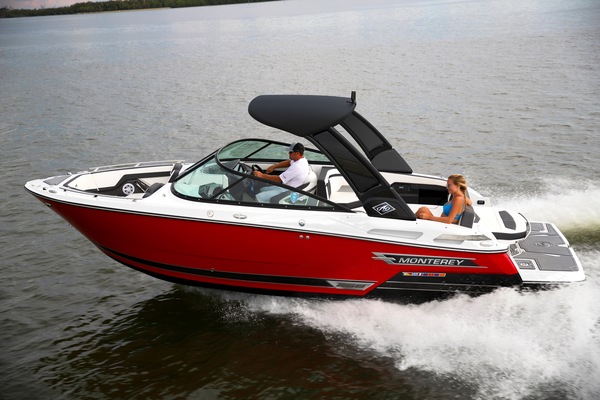

258SS
NAP PRICE STARTING AT $
Setting A New Standard
NAP PRICE STARTING AT $
Make a statement With The 258SS

The 258 Super Sport blends the very best attributes of our Super Sport series line to create the perfect vessel for you and your crew to enjoy endless days of on the water activities. From destination boating to cruising to enjoying your recreational sports, the 258SS has everything you need. Handcrafted with some of the most innovative design features seen on the water today, and loaded with standard features and amenities, the 258SS will satisfy everything your heart desires.

LOA W/SWIM PLATFORM
25'1"
BEAM
8'6"
FUEL CAPACITY
65GAL
MAX HORSEPOWER
430HP
Build Your Custom Monterey 258SS

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
258SS
Photo Gallery
A Study In Luxury
Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Specifications
Spec US Unit Metric Unit Description
LOA w/Swim Platform 25'1" 7.65M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 20° 20° Angle of keel measured at transom
Draft - Stern Drive Up 24" 61CM Depth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down 37" 94CM Depth of hull to bottom of stern drive, trimmed down
Bridge Clearance w/Tower 7'6" 2.3M Height from water to highest point on tower, normal load
Fuel Capacity 65GAL 246.1L Capacity of fuel tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
Waste Capacity 11GAL 41.6L Capacity of waste tank in gallons/liters
Dry Weight 5100LBS 2313KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 15 (US) 13 (CE) Maximum Rated Persons Capacity
Max Persons Weight 2475LBS 975KG Maximum capacity of people that can be safely carried in pounds/kilograms
Maximum Persons w/ Gear Weight 2660LBS 1170KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 430HP 321KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Canvas

Bimini Top w/Embroidered Boot StandardStandard

Cockpit

Cooler, 48 Qt Carry-On StandardStandard
Courtesy Lighting, Blue/White, LED 12 V StandardStandard
Dock Line Straps (2) & Dry Deck StandardStandard
Drink Holders, Stainless Steel (8) StandardStandard
Fiberglass Cockpit Liner w/Non-Skid and Drainage StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Hatch, Engine Compartment, Gas Assisted StandardStandard
Outlet, 12 V StandardStandard
Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & 4 JL Audio 6.5" Speakers with LED Lights & Dash Remote StandardStandard
Storage, In-Floor Ski w/Gas Assisted Hatch Cover, & Dry Deck StandardStandard
Storage, Side Panels StandardStandard
Storage, Starboard Helm w/Hanging Rod, & Trash Receptacle StandardStandard

Electrical Systems

Battery Switch, Dual w/Additional Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard
Transom Tilt Switch StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Bilge Blower StandardStandard
Fire Port StandardStandard
Forced Air Ventilation w/Concealed Vents StandardStandard
Gelcoated Bilge & Engine Compartment StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard

Head

Counter Top w/Solid Surface Inlay StandardStandard
Flooring, Synthetic Wood StandardStandard
Toilet (Porta-Potti) StandardStandard
Vanity w/Sink & Pullout Sprayer StandardStandard

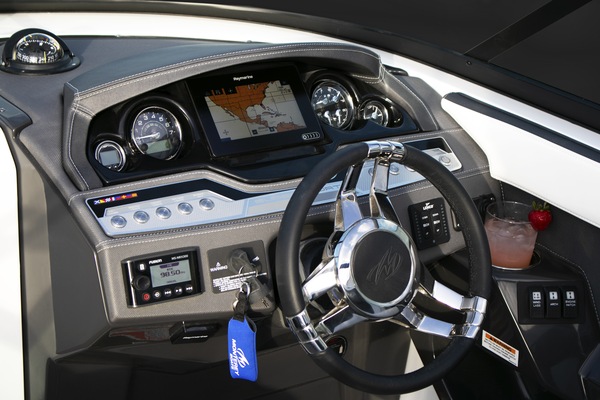

Helm

Compass StandardStandard
Digital GPS Speedometer StandardStandard
Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
Outlet, 12 V StandardStandard
Steering Wheel, Leather Wrapped w/Chromed Stainless Spokes StandardStandard
Steering, Power Assisted StandardStandard
Steering, Tilt StandardStandard
Switches, Lighted Weatherproof StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Barrier Coat, Vinylester StandardStandard
Boarding Ladder, Telescoping & Recessed, Bow StandardStandard
Bow Hand Rails, SS StandardStandard
Bow & Stern Eyes, Stainless Steel, with Stainless Steel Backing Plate StandardStandard
Bow Plate, Stainless Steel StandardStandard
Cleats, Stainless Steel (6) StandardStandard
Colored Hull Sides StandardStandard
Cooler Molded In, Bow StandardStandard
Custom Hull Side Graphics StandardStandard
Door, Walk-Thru at Helm StandardStandard
Door, Walk-Thru at Transom StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Docking StandardStandard
Lights, Navigation LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Ski Tow, Stainless Steel StandardStandard
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) StandardStandard
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck StandardStandard
Swim Platform, Integral with Ski Rope Storage StandardStandard
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch w/overboard drain StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed StandardStandard

Seating

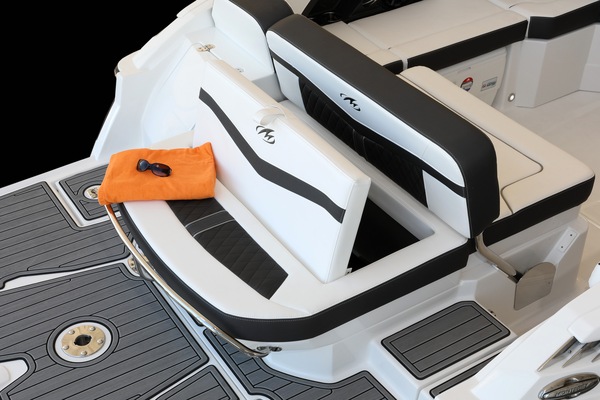

Aft Facing Seat, Starboard w/Carry-on Slide-Out Cooler StandardStandard

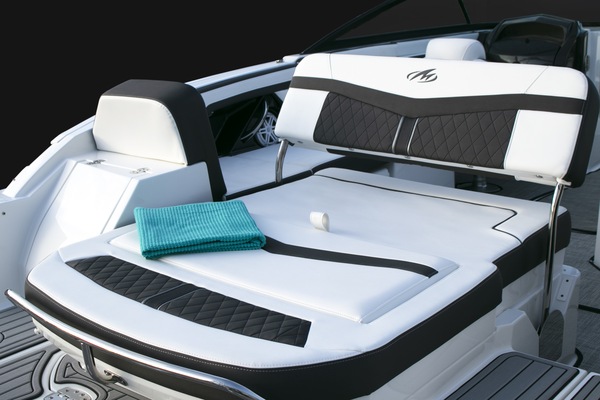

Aft L-Lounge w/Fiberglass Bases, Sun Island Feature, Stainless Steel Stern Rail StandardStandard
Bow Bolsters StandardStandard

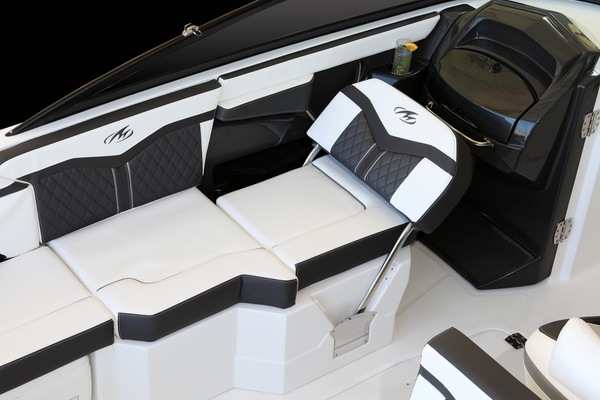

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard StandardStandard

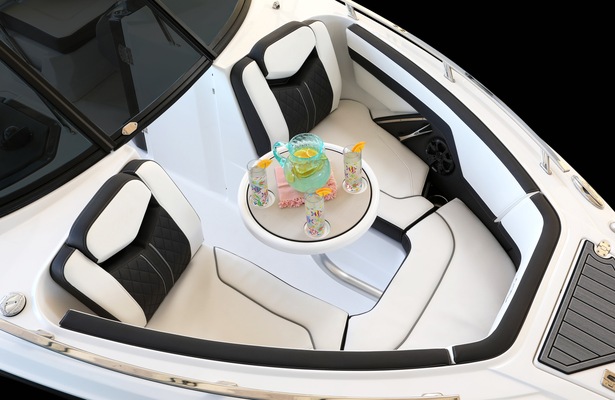

Seat Cushions w/Storage Compartments, Bow StandardStandard

Canvas

Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional

Cockpit

Tower Cone Speakers, JL with 4 Channel Amplifier (Requires Stereo Upgrade Package) Optional FeatureOptional
Cockpit Inlay (SeaDek) (Terra) (Requires Swim Platform Inlay Option) Cockpit Inlay (SeaDek) (Terra) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Inlay (SeaDek) (Gray) (Requires Swim Platform Inlay Option) Cockpit Inlay (SeaDek) (Gray) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Table, w/Pedestal and Vertical side Mount Bases Fwd. & Aft. Optional FeatureOptional
Stereo Upgrade Package, Includes JL10" Subwoofer & 5 Channel Amplifier Optional FeatureOptional
Stereo Remote, Stern Optional FeatureOptional
Transom Shower w/Pressurized Water (Cold Only) Optional FeatureOptional
Wet Bar w/Solid Surface Insert, Sink, Faucet & Slide Out Cooler Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional

Engine Compartment

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Fire Extinguishing System (Domestic Only) (Std. in EU Countries & Australia) Optional FeatureOptional

Head

Toilet, Pump-out Deck Fitting Optional FeatureOptional
Electric Head System w/Holding Tank indicator & pump out deck fitting Optional FeatureOptional

Helm

Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer/Integrated Engine Functions & Depthsounder Optional FeatureOptional

Hull & Deck

Anchor Windlass, Pre-Wire Optional FeatureOptional
Anchor Windlass w/Anchor Rope & Chain Optional FeatureOptional
Colored Hull Bottom (other than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Phender Pro Holders (4) Optional FeatureOptional
Portlight, In Head, w/Screen Optional FeatureOptional
Ski Tow Pylon, Removable Optional FeatureOptional
Swim Platform Inlay (SeaDek) (Terra) Swim Platform Inlay (SeaDek) (Terra) Optional FeatureOptional
Swim Platform Inlay (SeaDek) (Gray) Swim Platform Inlay (SeaDek) (Gray) Optional FeatureOptional
Underwater Lights, LED RGB Optional FeatureOptional
Wakeboard Tower Black, Hinged to Fold Down (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower White, Hinged to Fold Down (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower, Electric, Black (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower, Electric, White (Includes Wakeboard Bimini) Optional FeatureOptional

Seating

Bow Filler Cushions Optional FeatureOptional
Helm Seat, Premium Optional FeatureOptional
Portside Forward/Aft Facing Lounger Optional FeatureOptional

Under Water Gear

Trim Tabs W/Indicators & Auto Retract Optional FeatureOptional

Waste Systems

Grey Water System for Porta Potti (N/A With Macerator) Optional FeatureOptional
Macerator w/Overboard Discharge (requires Electric toilet option - Not Available w/Grey Water Option) Optional FeatureOptional
Grey Water System For Electric Head (N/A With Macerator) Optional FeatureOptional
Performance
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
*6.2L 300HP DTS 300HP 2.20 BRIII B3-24-SS 44-48 11@36 E Download
*6.2L 350HP DTS 350HP 2.20 BRIII B3-26-SS 48-52 12.1@36 E
6.2L 300HP CAT DTS 300HP 2.20 BRIII B3-24-SS 44-48 11@36 E
6.2L 350HP CAT DTS 350HP 2.20 BRIII B3-26-SS 48-52 12.1@36 E

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
