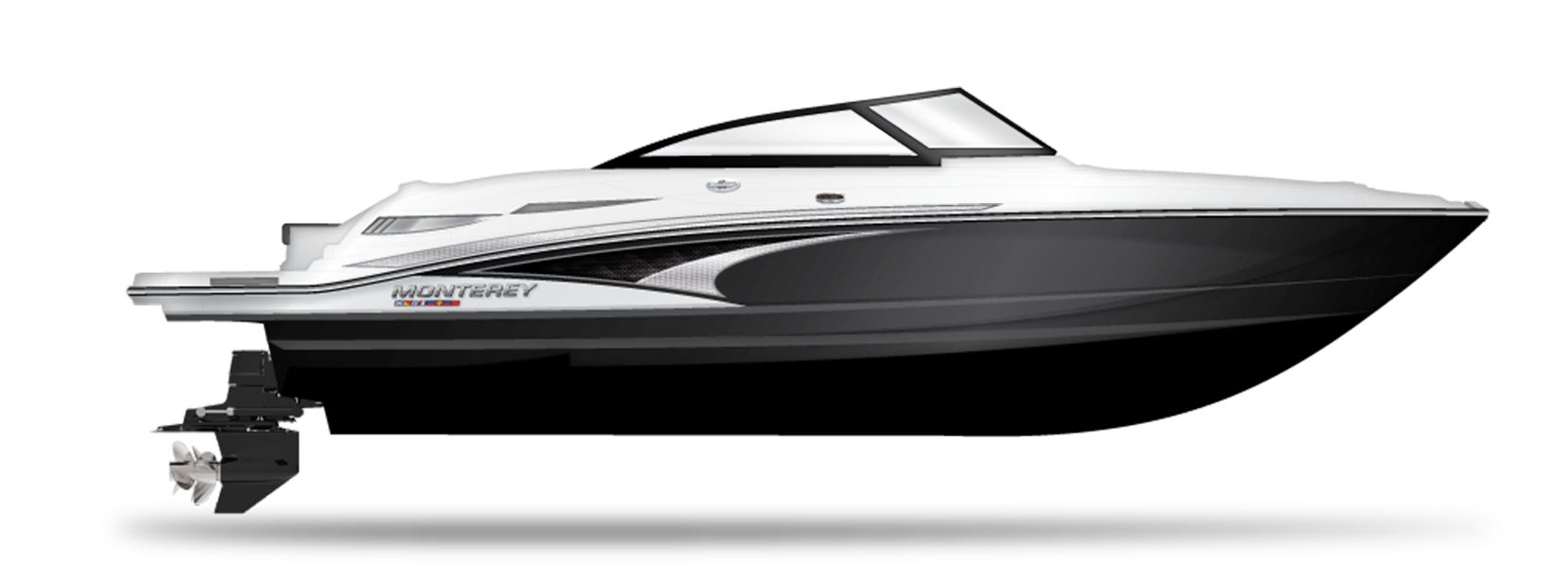

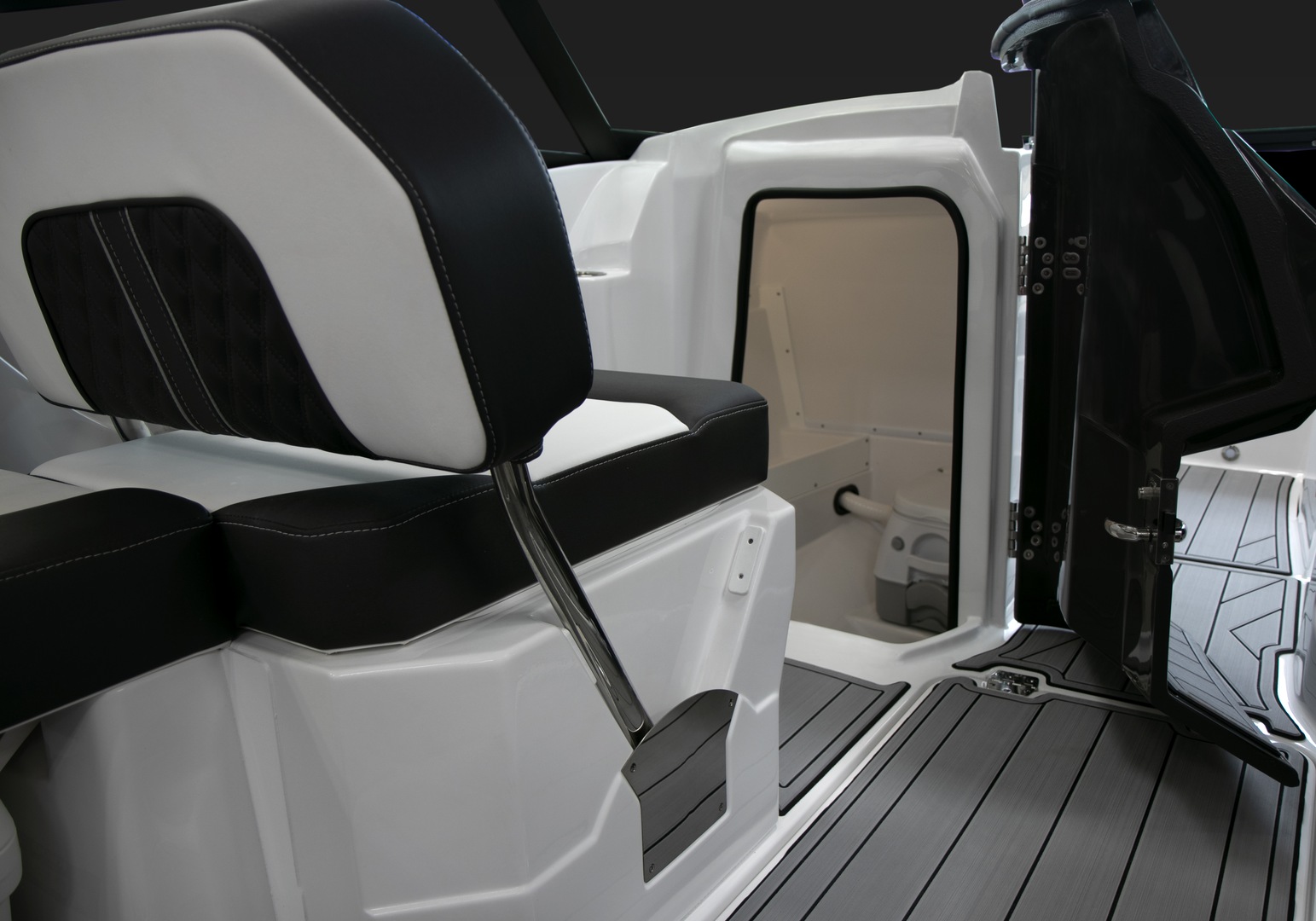

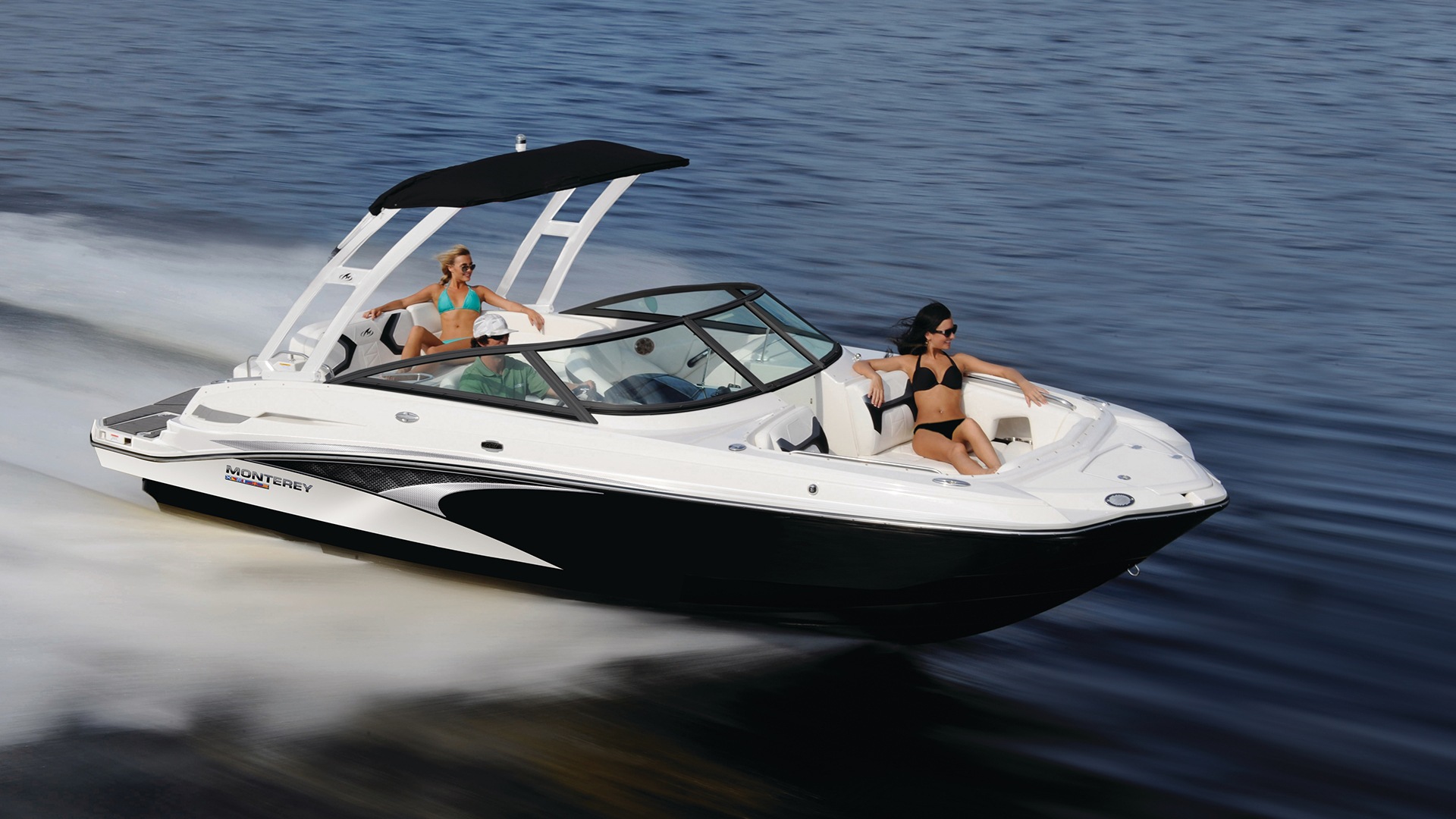

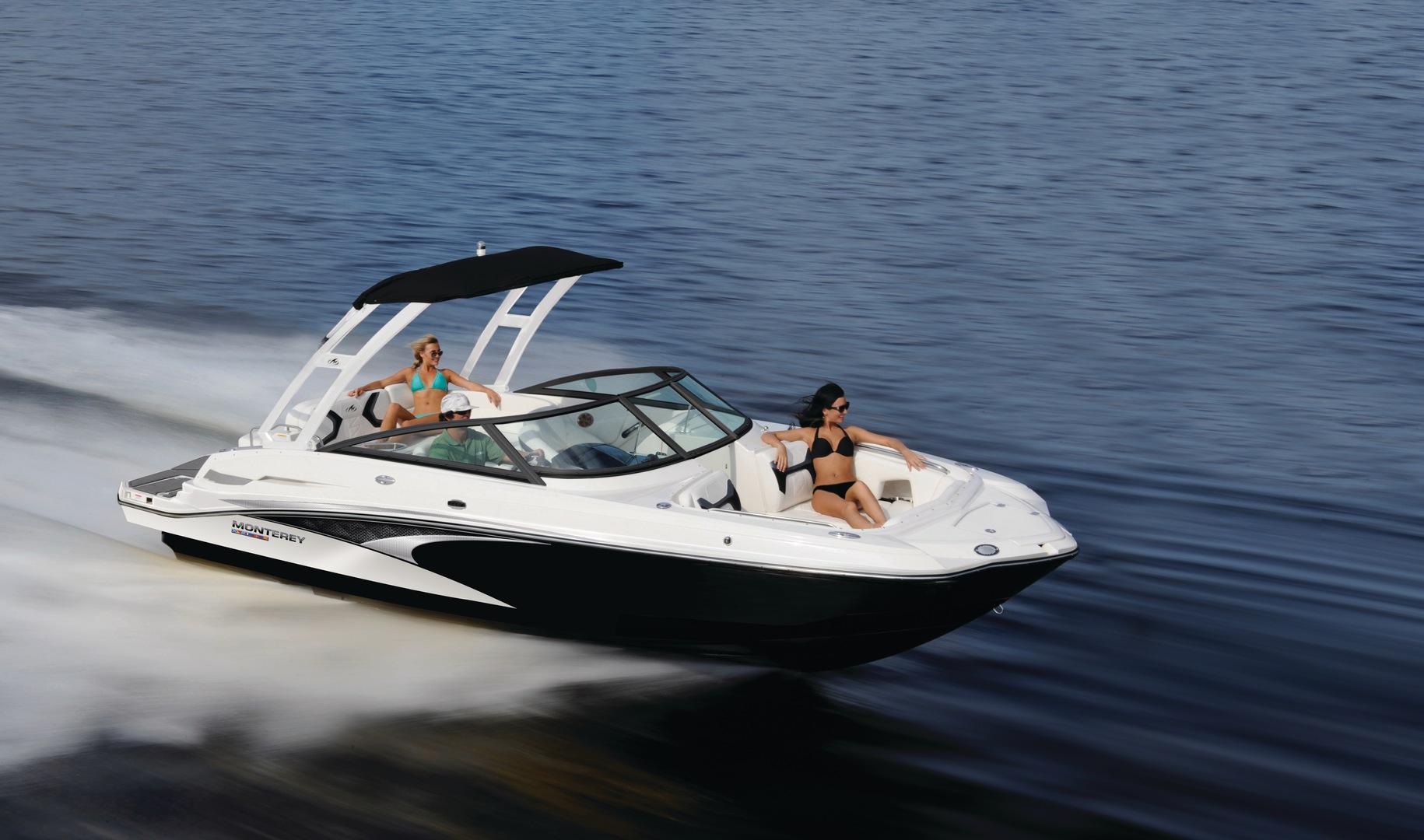

Nimble and Sporty best describes the Monterey M4. Featuring a standard wetbar sized just right for preparing a drink, or a quick snack, spacious seating, and generous dedicated storage areas, the M4 is ahead of the curve. Additional standard features include a stainless steel telescopic boarding ladder for easy access in an out of the water, a small head compartment which is located behind the port side dash, and a fusion satellite ready stereo.
LOA W/SWIM PLATFORM 23'10"
BEAM 8'6"
FUEL CAPACITY 50GAL
MAX HORSEPOWER 300HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 23'10" | 7.26M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| Beam | 8'6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 22" | 55.9CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 36" | 91.4CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance W/Tower | 7'8" | 2.3M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 50GAL | 189.3L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 10GAL | 37.9L | Capacity of water tank in gallons/liters |
| Dry Weight | 4500LBS | 2041KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 14 (US) | 12 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 2100LBS | 900KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons W/ Gear Weight | 2215LBS | 955KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 300HP | 224KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Canvas |
Bimini Top w/Embroidered Boot |  |
Cockpit |
Cockpit Table w/ Pedestal & Vertical Mount Bases, Fwd & Aft | |
| Cooler, 50 Qt Carry-On | |
|
| Courtesy Lighting, Blue/White, LED 12 V | |
|
| Drink Holders, Stainless Steel (10) | |
|
| Fiberglass Cockpit Liner w/Non-Skid & Drainage | |
|
| Grab Rails | |
|
| Outlet, 12 V | |
|
| Stereo, Fusion Satellite Ready AM/FM w/Built in iPod Dock, & (4) Rockford Fosgate 6.5" Speakers & Dash Remote | |
|
| Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck | |
|
| Storage, Starboard Helm | |
|
| Transom Shower, w/Pressurized Water (Cold Only) | |
|

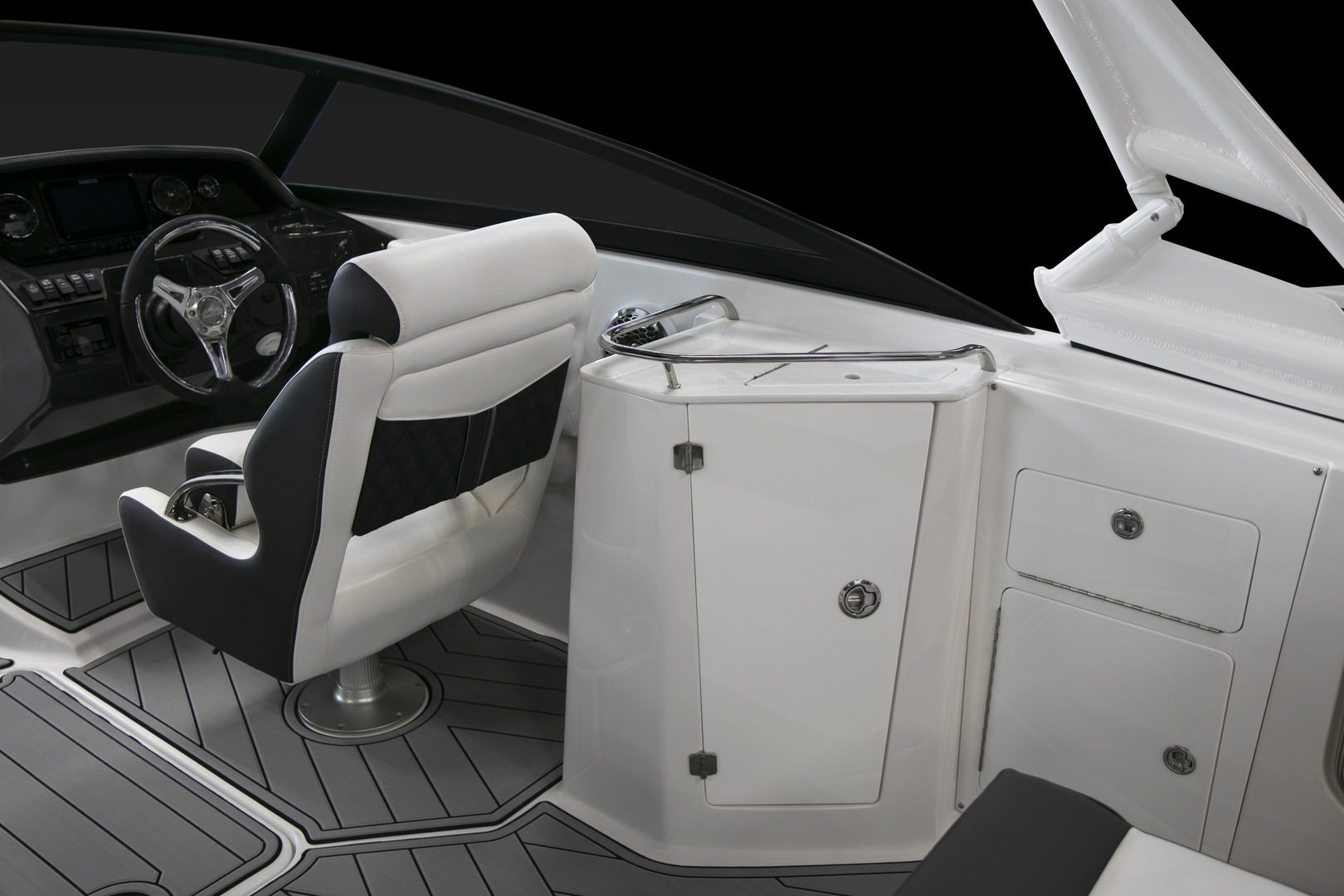

| Wet Bar w/Solid Surface Top, Sink, Faucet, Trash Receptacle & Storage | |
|
Electrical Systems |
Battery Switch, Dual w/2 Battery Trays | |
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
| Transom Tilt Switch | |
|
Engine Compartment |
Automatic Bilge Pump | |
| Bilge Blower | |
|
| Engine Hatch, Electrically Actuated | |
|
| Fire Port | |
|
| Forced Air Ventilation w/Concealed Vents | |
|
| Gel Coated Bilge & Engine Compartment | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
Head |
Flooring, EVA Foam | |
| Toilet (Porta-Potti) | |
|

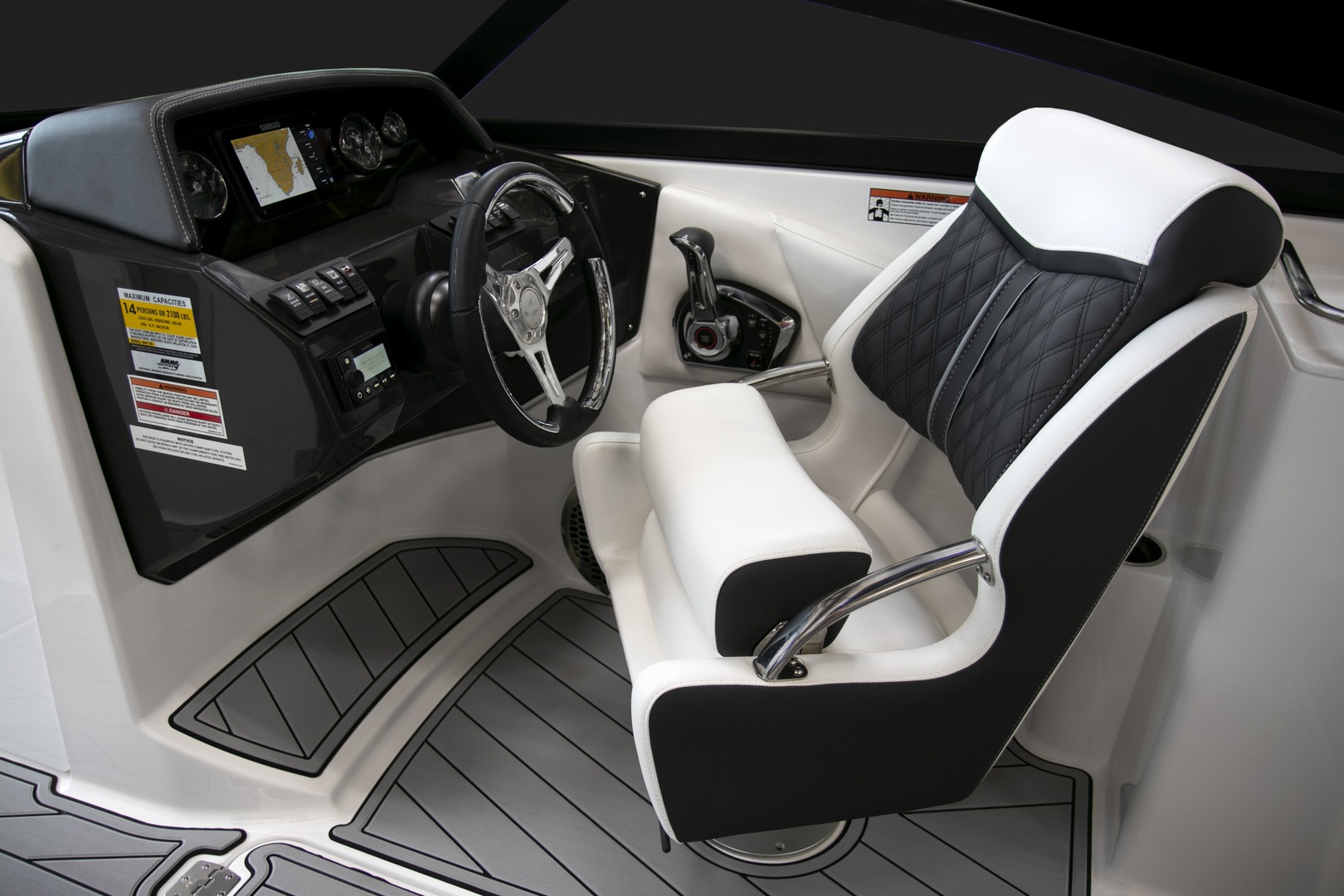

Helm |
Compass | |
| Simrad 12" Ultra Wide GPS / Chartplotter / Sonar w/Transducer / Integrated | |
|
| MP3 Adapter | |
|
| Outlet, 12 V, USB | |
|
| Steering Wheel, Black w/Silver Insert | |
|
| Steering, Power Assisted | |
|
| Steering, Tilt | |
|
| Switches, Lighted Weatherproof | |
|
Hull & Deck |
Air Assist Chine | |
| Barrier Coat Vinylester | |
|
| Boarding Ladder, Telescoping & Recessed, Bow | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Bow Hand Rails, Stainless Steel | |
|
| Bow Plate, Stainless Steel | |
|
| Cleats, Pull-up, Stainless Steel (6) | |
|
| Colored Hull | |
|
| Cooler Molded In, Bow | |
|
| Custom Hull Side Graphics | |
|
| Door, Walk-Thru at Helm | |
|
| Door, Walk-Thru at Transom | |
|
| Drain Plug, Brass Garboard | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Docking | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Ski Tow, Stainless Steel | |
|
| Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | |
|
| Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | |
|
| Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch | |
|
| Swim Platform, Integral | |
|
| Thru Hulls, Stainless Steel Above Waterline | |
|
| Transhield Cover | |
|
| Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | |
|
Seating |

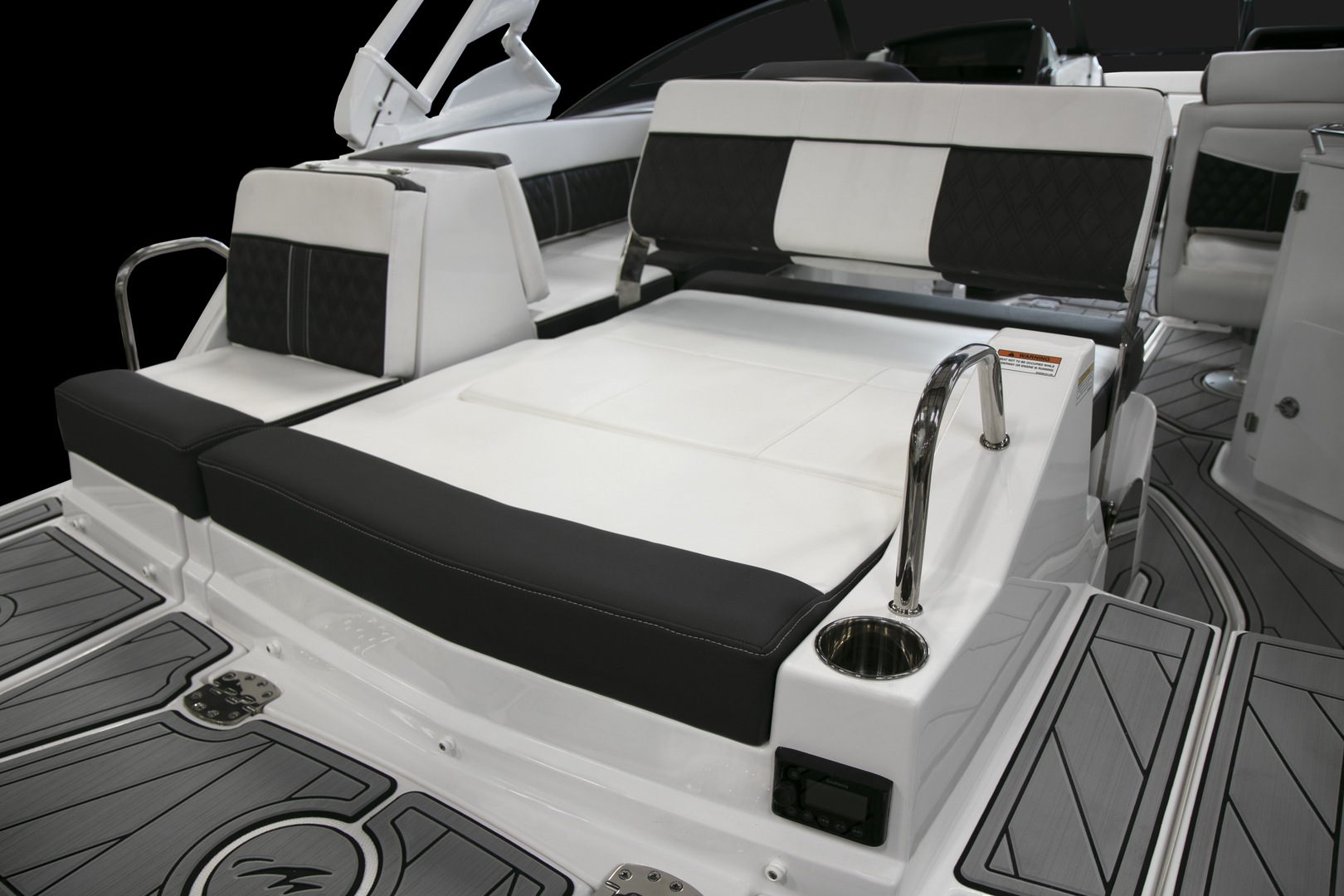

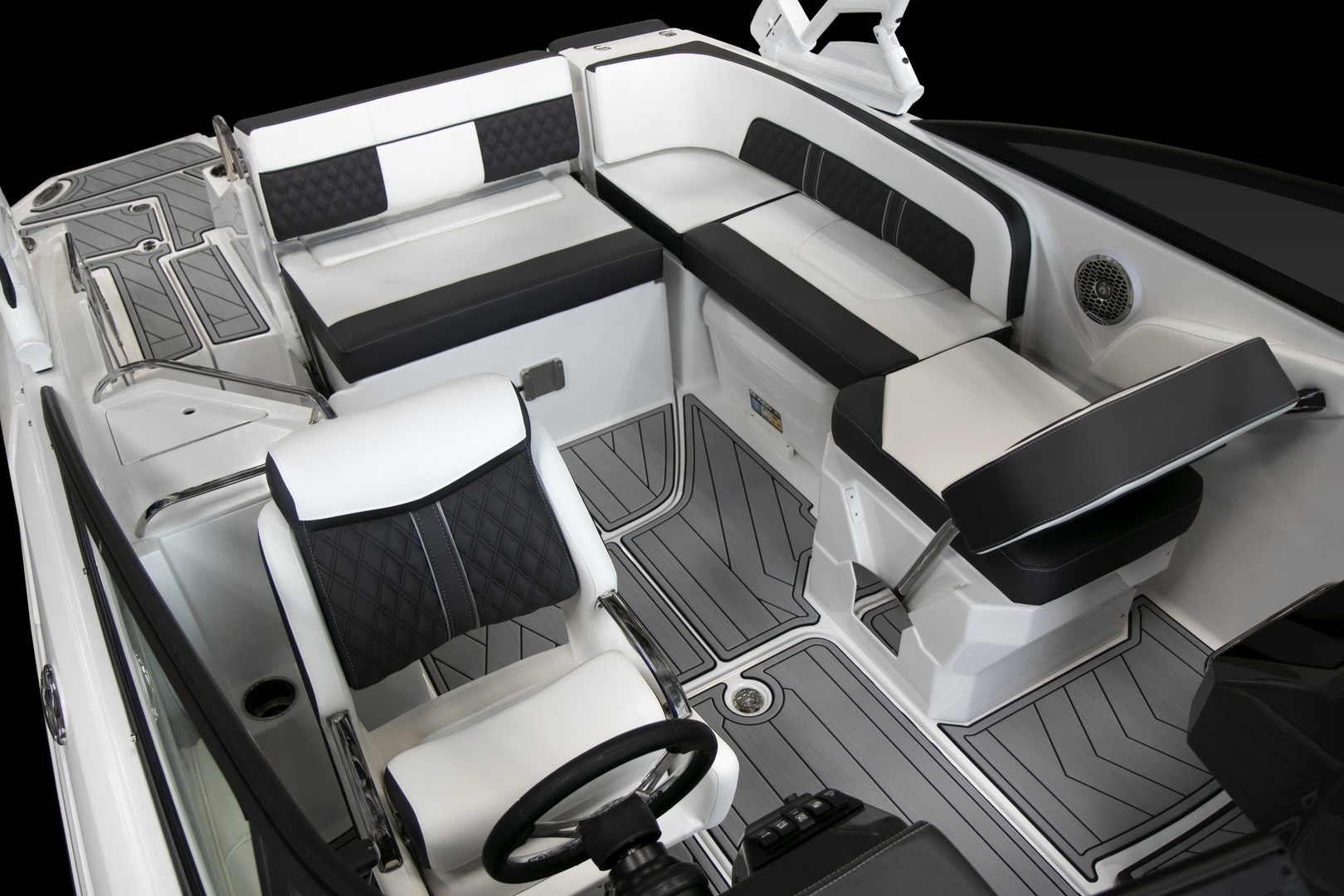

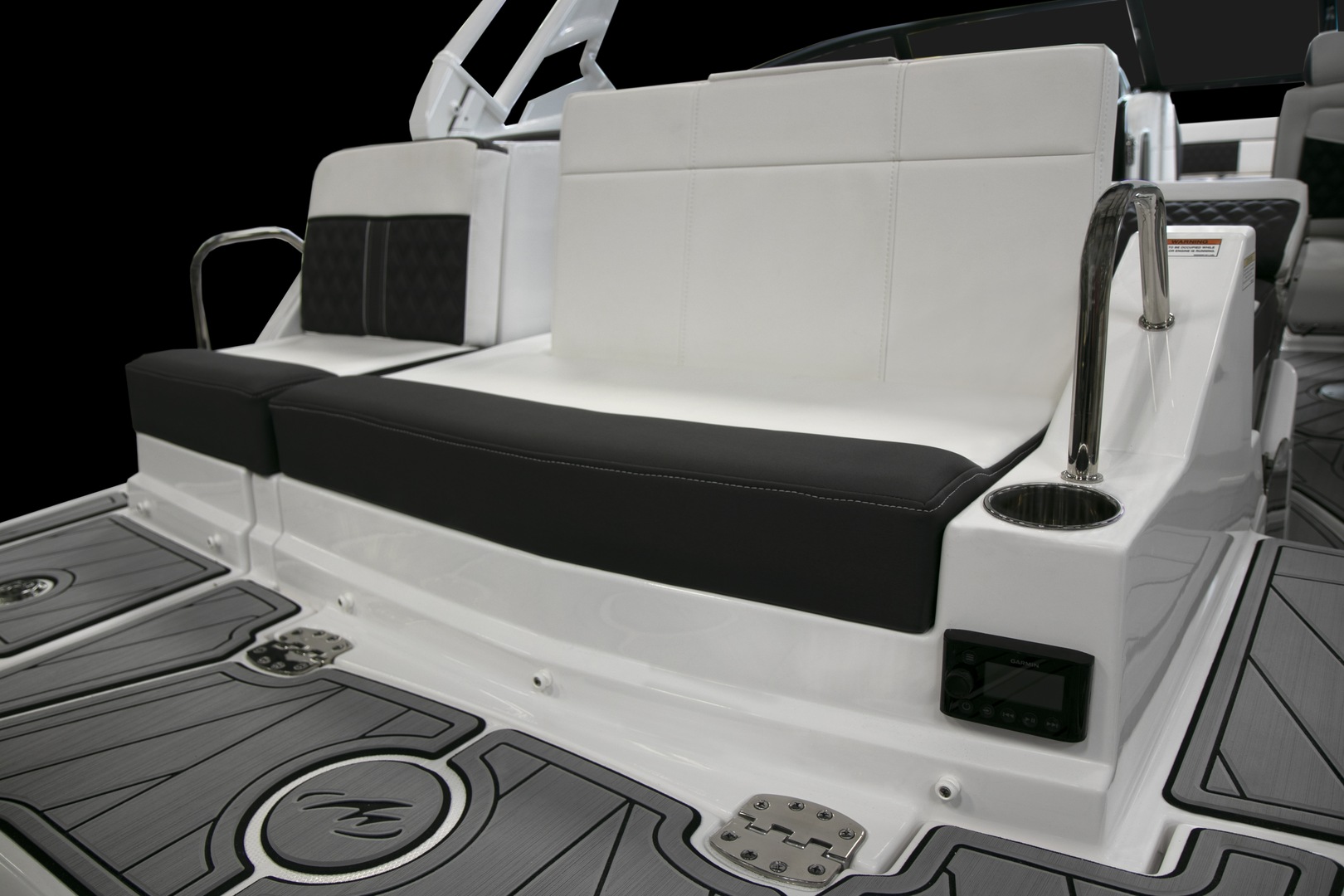

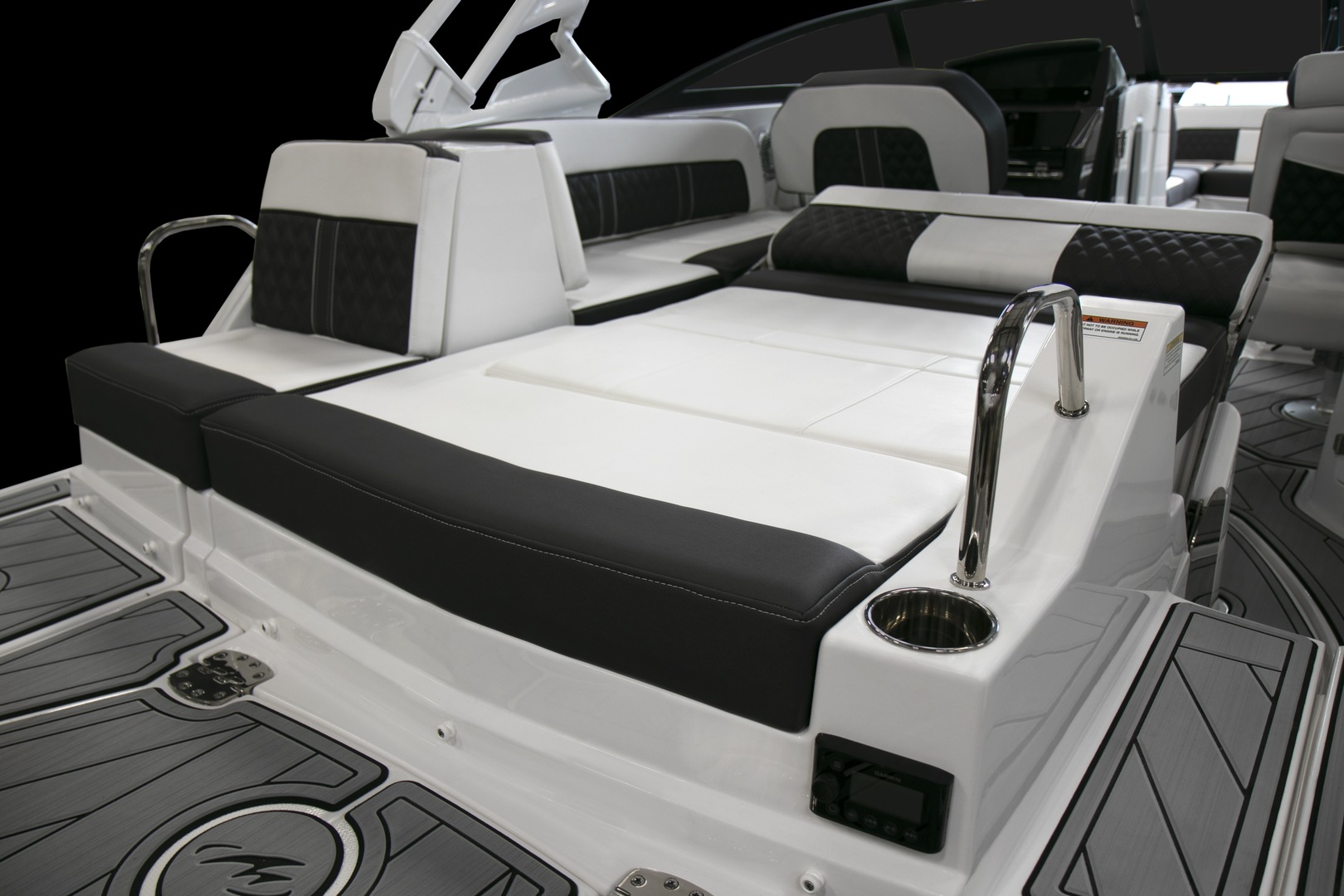

Aft Back To Back L-Lounge w/Fiberglass Bases & Sun Pad Conversion w/Recliner, Electrically Actuated | |
| Aft Transom Seating | |
|

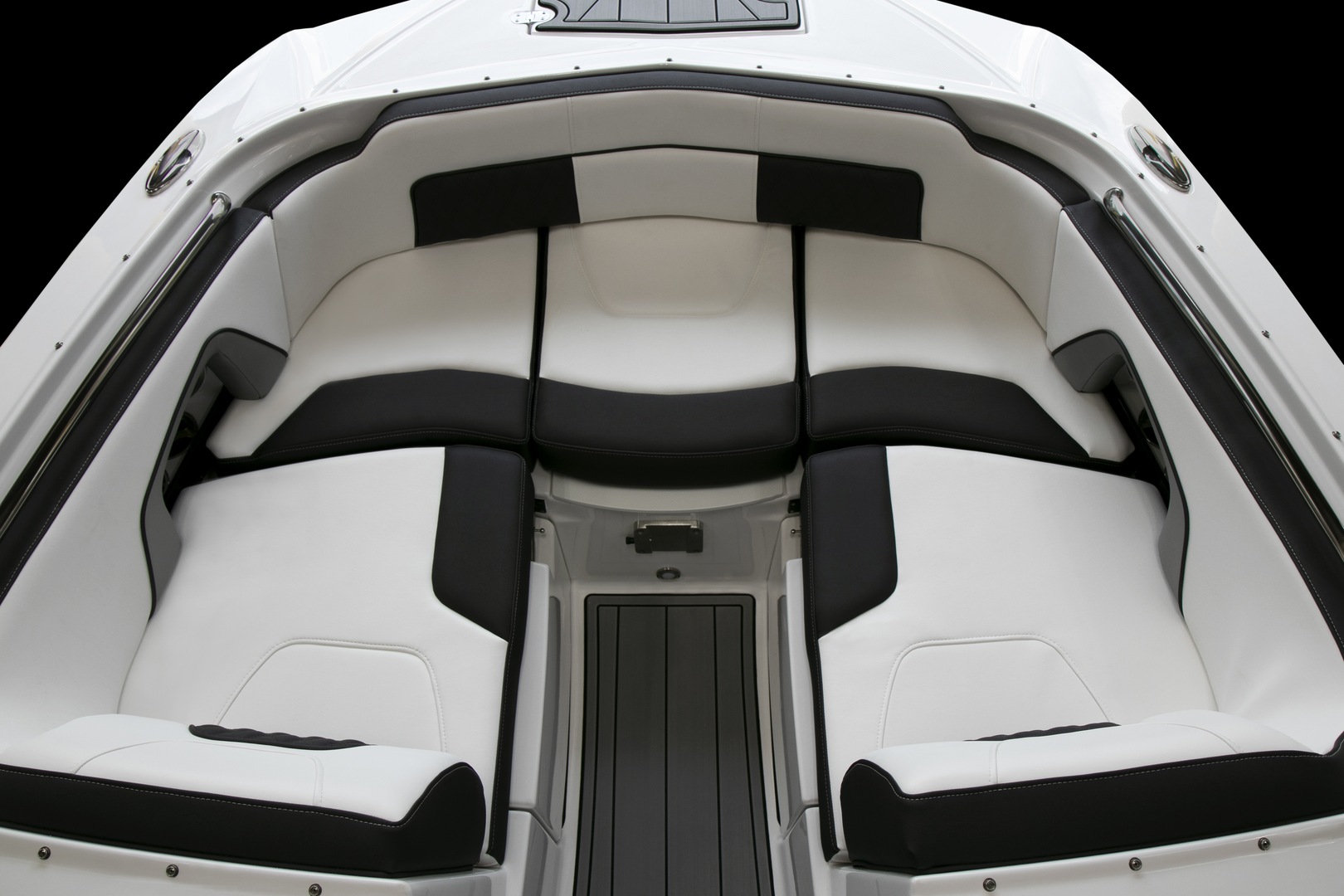

| Bow Seating w/Hinged Storage Skirts | |
|

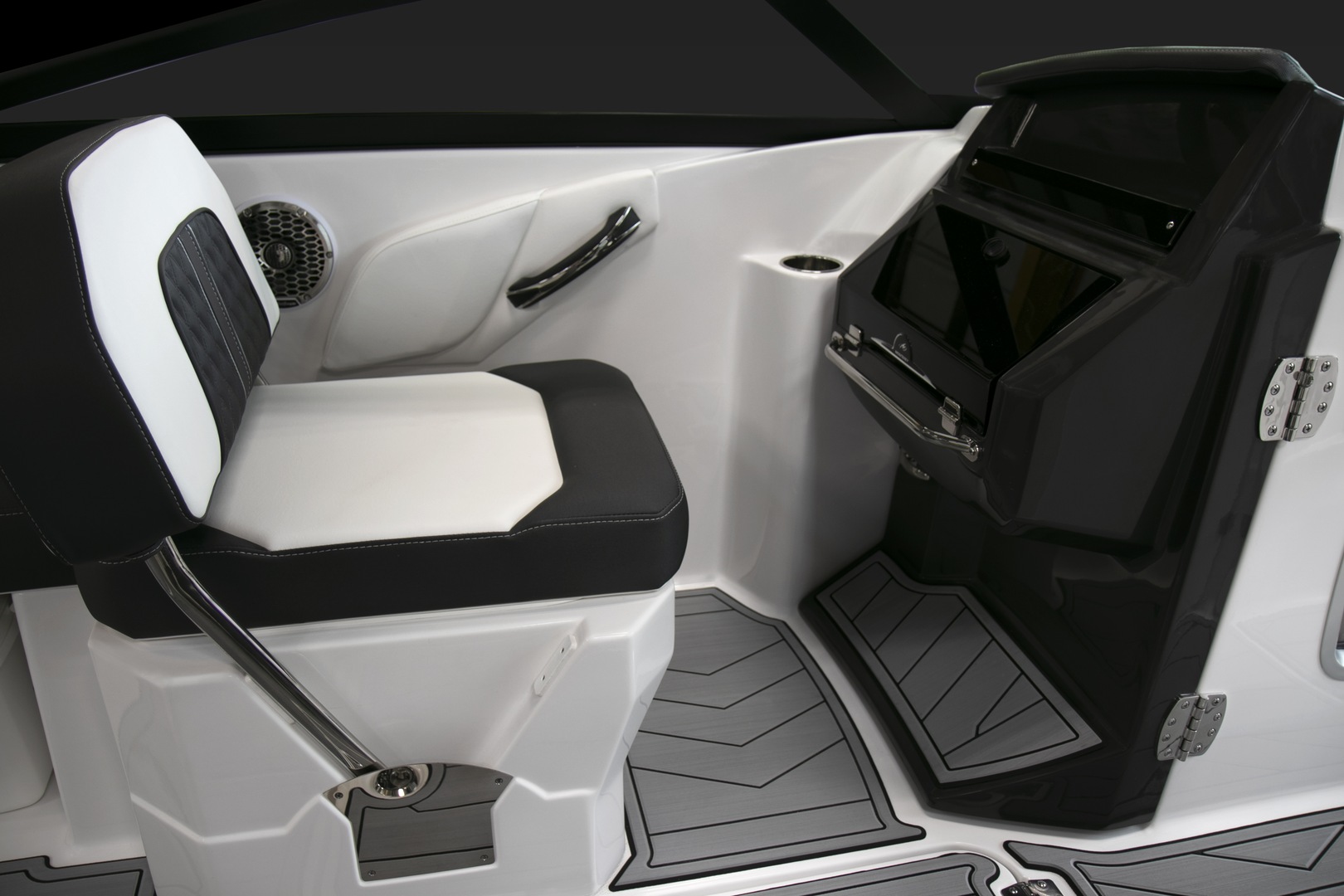

| Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard | |
|
| Seat Cushions w/Storage Compartments, Bow | |
|
Canvas |
Bow & Cockpit Cover |  |
Cockpit |
Cockpit Inlay, (SeaDek) (Requires Swim Platform Inlay Option) | |
| Forward Shower w/Pressurized Water (Cold Only) | |
|
| Stereo Upgrade Package, Premium-Includes (4) 6.5" Rockford Fosgate M2 Speakers w/Integrated LED Lights, 10" Punch Subwoofer & 5 Channel Amplifier | |
|
| Stern Mounted Stereo Remote | |
|
| Swim Platform Inlay, (SeaDek) | |
|
| Tower Cone Speakers, Rockford Fosgate-w/2 Channel Amplifier (Requires Stereo Upgrade Package and Wakeboard Tower) | |
|
| Woven Cockpit Flooring | |
|
Engine Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Fire Extinguishing System (Domestic Only) (Standard in EU Countries& Australia) | |
|
Head |
Toilet, Pump-out Deck Fitting | |
Hull/Deck Exterior |
Anchor Windlass, Pre-Wire | |
| Anchor Windlass w/Anchor Rope & Chain | |
|
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Delete Graphics | |
|
| Phender Pro (4) | |
|
| Portlight, In Head, w/Screen | |
|
| Removable Ski Tow Pylon | |
|
| Underwater Lights, RGB LED | |
|
| Wakeboard Tower, Black (Includes Wakeboard Bimini) | |
|
| Wakeboard Tower, White (Includes Wakeboard Bimini) | |
|
Seating |
Filler Cushion, Bow | |
| Portside Forward/Aft Facing Lounger | |
|
Underwater Gear |
Trim Tabs w/Indicators & Auto Retract | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| *6.2L 300 DTS | 300HP | 2.20 | BR III | B3-24-SS | 47-51 | 9@32E | |
| 6.2L 300 CAT DTS | 300HP | 2.20 | BR III | B3-24-SS | 47-51 | 9@32E | |
| *6.2L 350 DTS | 350HP | 2.20 | BR III | B3-26-SS | 50-54 | 10@34E | Download |
| 6.2L 350 CAT DTS | 350HP | 2.20 | BR III | B3-26-SS | 50-54 | 10@34E | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
