Setting A New Standard
Agile And Nimble

The power-packed M-20 boast sleek lines and fluid curves, and is loaded with amenities waiting to be embraced by both new and experienced boaters alike! Standard features include Monterey Boats patented Air Assist Chine, multiple stainless steel drink holders, an integral swim platform, along with multiple storage options. A stainless steel ski tow, telescoping and recessed swim ladder and sundeck come standard on the M-20, making it ideal for taking both you and your family anywhere you want to go!

Build Your Custom Monterey M-20

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
Photo Gallery
A Study In Luxury

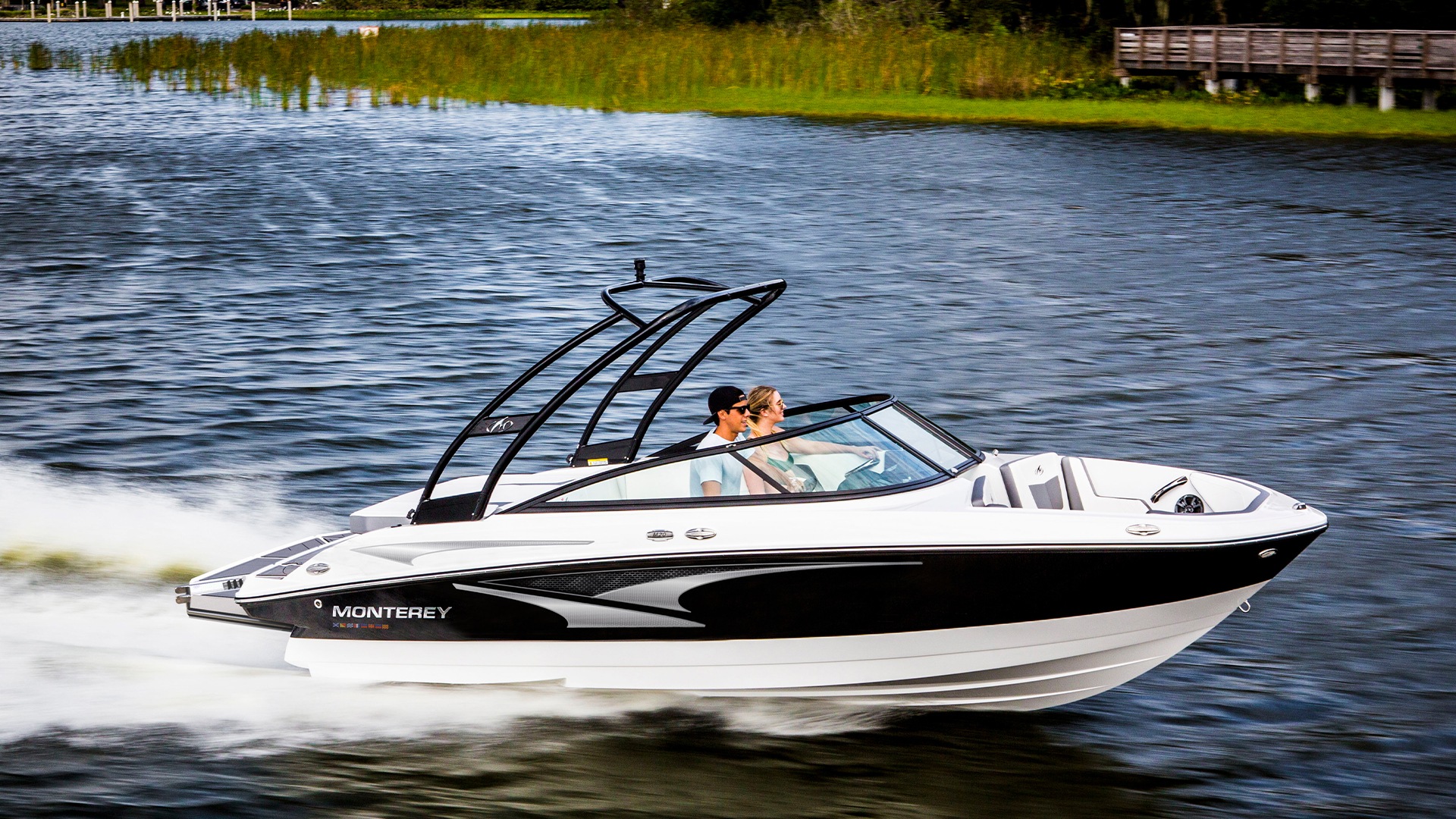

Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Spec US Unit Metric Unit Description
LOA W/Swim Platform 22'2" 6.76M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Beam 8'4" 2.54M Width of hull at widest section including rubrail
Deadrise 19° 19° Angle of keel measured at transom
Draft - Stern Drive Up 19" 48.3CM Depth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down 37" 94.0CM Depth of hull to bottom of stern drive, trimmed down
Bridge Clearanance W/Tower 7'10" 2.4M Height from water to highest point on tower, normal load
Fuel Capacity 36GAL 136.3L Capacity of fuel tank in gallons/liters
Dry Weight 3500LBS 1588KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 11 (US) 9 (CE) Maximum Rated Persons Capacity
Max Persons Weight 1650LBS 675KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight 1655LBS 825KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 280HP 209KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options


Cooler, 48 Qt Carry-On, under cockpit cushion StandardStandard
Glove Box, Port-Molded with lockable cover StandardStandard
Drink Holders, Stainless Steel (9) StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers StandardStandard
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner StandardStandard
Storage, Helm StandardStandard
Storage, Bow Seating StandardStandard
Storage, Port and Starboard Dash, Accessible through bow backrests StandardStandard
Storage, Aft Cockpit Seating and Engine Compartment StandardStandard

Electrical Systems

Battery Switch, Single, On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Fire Port StandardStandard
Forced Air Ventilation StandardStandard
Gel Coated Bilge & Engine Compartment StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard


Fiberglass Dash with Upholstered Visor StandardStandard
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
12V USB Outlet StandardStandard

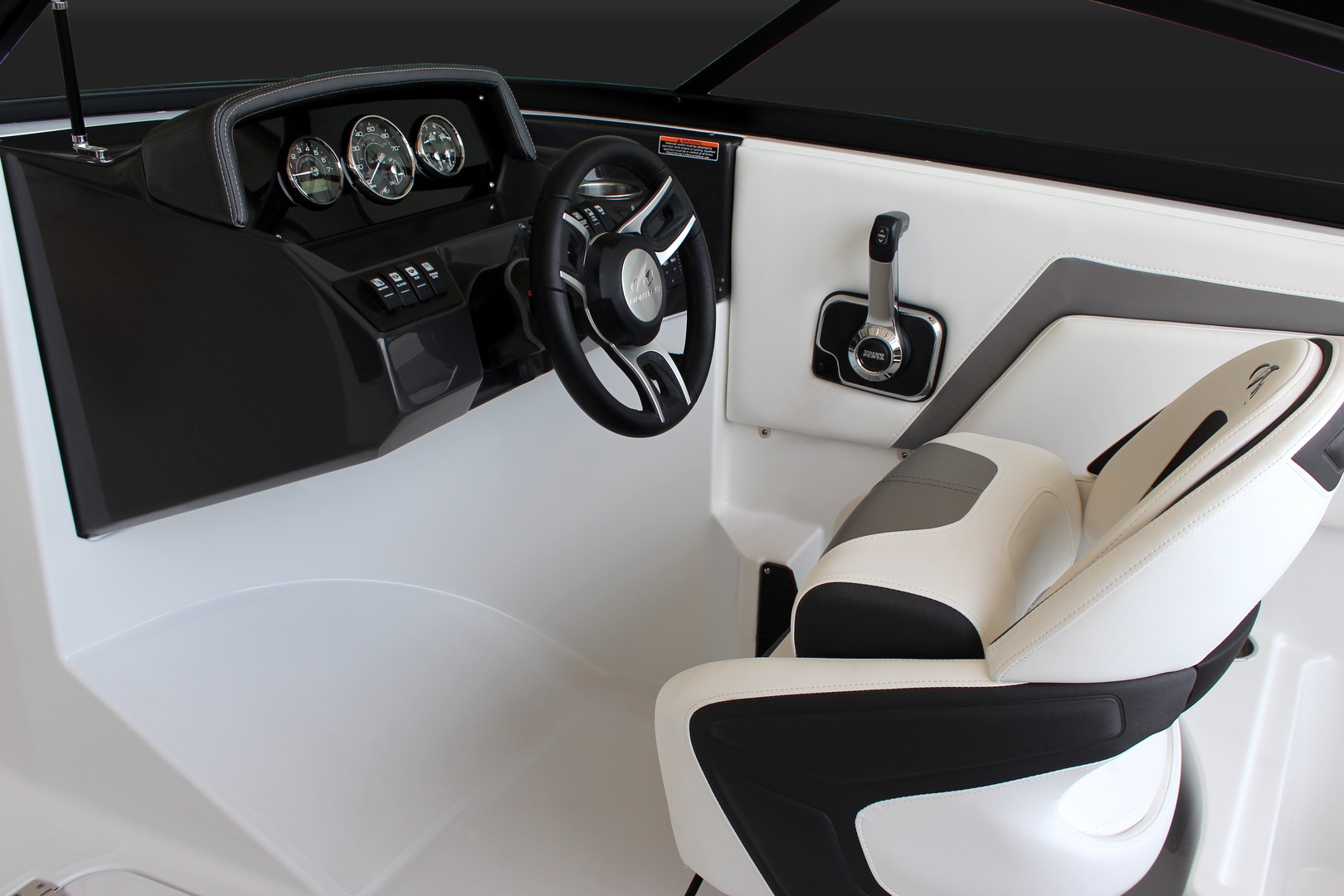

Steering, Power Assisted, Tilt w/Black Steering Wheel StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Arctic Ice Hull Gelcoat with graphics StandardStandard
Barrier Coat Vinylester StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Stainless Steel (6) StandardStandard
Drain Plug, Brass Garboard StandardStandard
Extended Platform w/SeaDek StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Ski Tow, Stainless Steel StandardStandard
Storage, Anchor-Under Forward Bow Cushion StandardStandard
Swim Platform, Integral StandardStandard
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Walk-Thru at Transom StandardStandard
Windshield, Onyx, Curved Tempered w/Walk-Thru StandardStandard

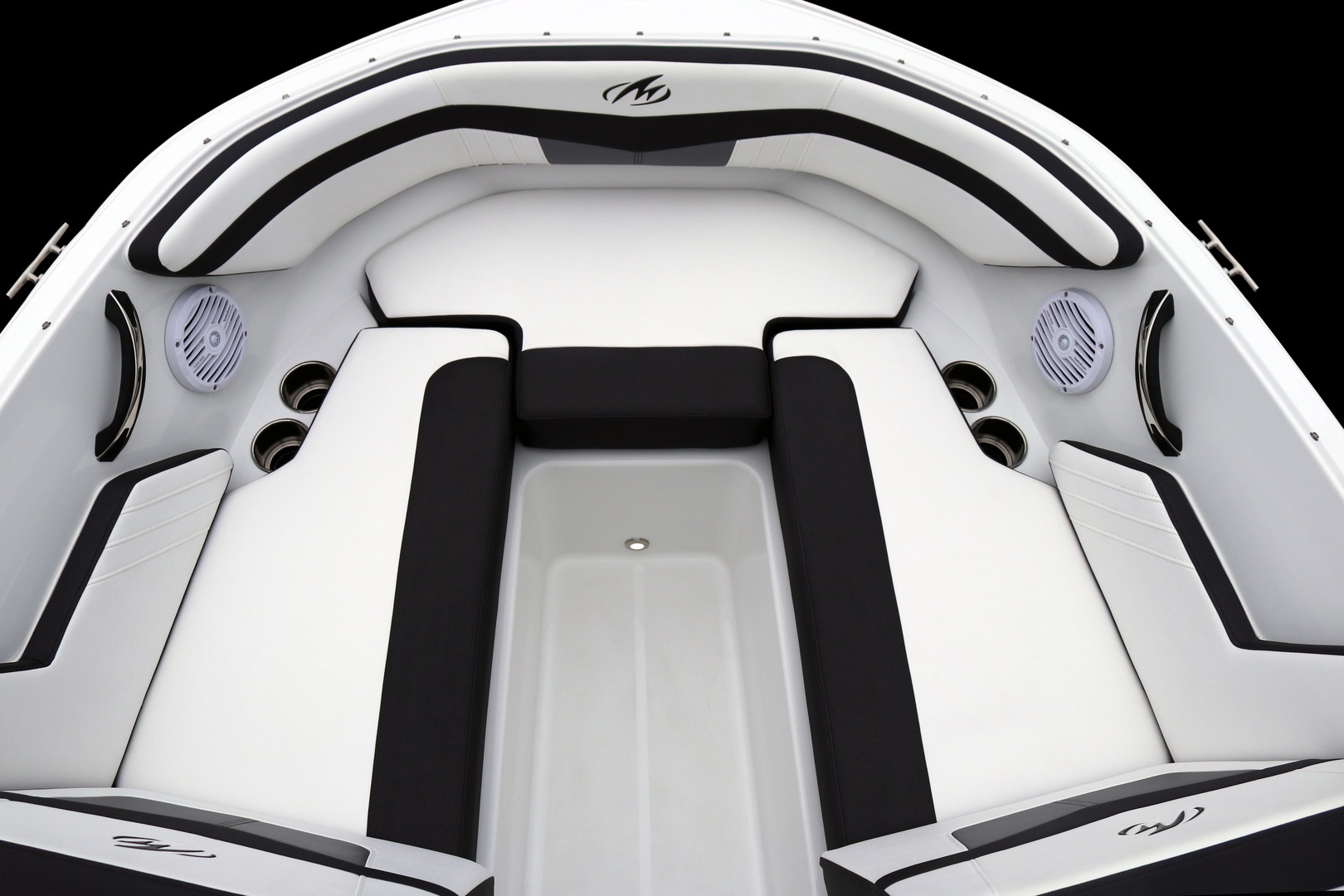

Bow Seating, extra wide with 3 removable cushions StandardStandard
Bucket Seat, w/flip up bolster and manual slide, swivel, starboard StandardStandard
Port Companion seat with flip over backrest converts to aft facing lounge StandardStandard
Port Side Filler Cushion Transferable To Transom Entry StandardStandard
Sundeck w/Bench Seat & Storage StandardStandard
Transom Walkway Filler with Seat Cushion StandardStandard
Wrap around seating, port side and aft cockpit StandardStandard


Bimini Top/Top For Tower: Onyx Optional FeatureOptional
Bimini Top/Top For Tower: Rio Optional FeatureOptional
Bimini Top/Top For Tower: Royal Blue Optional FeatureOptional
Bimini Top/Top For Tower: Sapphire Optional FeatureOptional
Bimini Top/Top For Tower: Taupe Optional FeatureOptional
Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional


Bow Filler Cushions Optional FeatureOptional
Cockpit Inlay, Terra (SeaDek) Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek) Requires Seadek Swim Platform Inlay) Cockpit Inlay, Gray (SeaDek) Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Table w/Pedestal & Vertical Side Mount Base Optional FeatureOptional
Stainless Steel Pull Up Cleats Optional FeatureOptional
Stereo Remotes, Helm & Transom Optional FeatureOptional
Swim Platform Inlay, Terra (SeaDek) Optional FeatureOptional
Swim Platform Inlay, Gray (SeaDek) Swim Platform Inlay, Gray (SeaDek) Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional


Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder) Optional FeatureOptional

Hull & Deck

Colored Hull Sides with Graphics (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Removable Ski Tow Pylon Optional FeatureOptional
Wakeboard Tower Black (Hinged To Fold Down) Optional FeatureOptional
Wakeboard Tower White (Hinged To Fold Down) Optional FeatureOptional

Mechanical Systems

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Battery Switch, Dual w/Additional Battery Tray Optional FeatureOptional
Depthsounder w/shallow water alarm (N/A W/GPS Option) Optional FeatureOptional
Fire Extinguishing System (Domestic Only) (Std. In EU Countries & Australia) Optional FeatureOptional
Transom Tilt Switch Optional FeatureOptional
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
4.5L CAT 200 1.81 Merc Alpha BM-21-AL 41-45 7.9@30.8 Download
*4.5L 250 1.62 Merc Alpha BM-21-AL 45-49 8.9@35 E Download
4.5L CAT 250 1.62 Merc Alpha BM-21-AL 45-49 8.9@35 E Download
*4.5L 250 DTS 250 2.20 BRIII B3-24-ss 50-54 9.7@36 E
4.5L 250 DTS CAT 250 2.20 BRIII B3-24-ss 50-54 9.7@36 E

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.

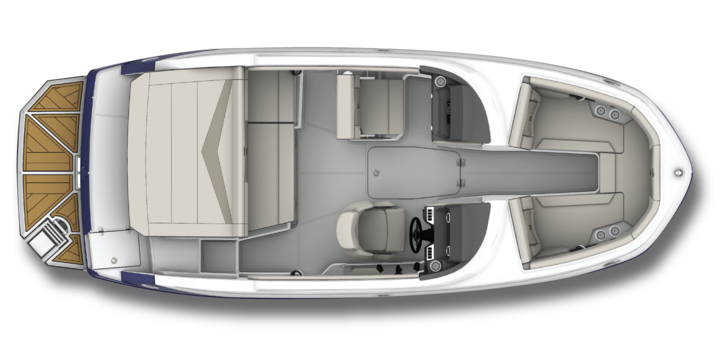

Overhead Image
