M-22
NAP PRICE STARTING AT $
Setting A New Standard
NAP PRICE STARTING AT $
Sporty & Spacious

Our new M-22 features luxurious seating appointments and offers room for the entire crew.  Equipped with an ergonomically-designed helm station featuring a fiberglass dash with upholstered visor, medallion digital instruments, MP3 adapter, and power assisted tilt steering; this boat is a captain’s delight!  Other amenities include a choice of 2 upholstery packages, Fusion Satellite Ready AM/FM USB Stereo with Bluetooth & 4 speakers and a 48-quart carry-on cooler.

LOA W/SWIM PLATFORM
23'9"
BEAM
8'6"
FUEL CAPACITY
52GAL
MAX HORSEPOWER
350HP
Build Your Custom Monterey M-22

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
M-22
Photo Gallery
A Study In Luxury
Monterey In Motion
Capturing Performance, Speed, And Luxury
Sorry video not available.
A Work Of Art Is Best Viewed In Person
Specifications Review
Specifications
Spec US Unit Metric Unit Description
LOA W/Swim Platform 23'9" 7.24M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 19° 19° Angle of keel measured at transom
Draft - Stern Drive Up 19" 48.3CM Depth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down 37" 94.0CM Depth of hull to bottom of stern drive, trimmed down
Bridge Clearanance W/Tower 7'10" 2.39M Height from water to highest point on tower, normal load
Fuel Capacity 52GAL 196.8L Capacity of fuel tank in gallons/liters
Dry Weight 3850LBS 1746KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 12 (US) 10 (CE) Maximum Rated Persons Capacity
Max Persons Weight 1980LBS 750KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight 2000LBS 900KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 350HP 261KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Cockpit

Cooler, 48 Qt Carry-On, under cockpit cushion StandardStandard
Drink Holders, Stainless Steel (11) StandardStandard
Glove Box, Port, with lockable cover StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers StandardStandard
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner StandardStandard
Storage, Helm StandardStandard
Storage, Transom Walk through Deck Hatch StandardStandard
Storage, Bow Seating StandardStandard
Storage, Port and Starboard Dash, Accessible through bow backrests StandardStandard
Storage, Aft Cockpit Seating and Engine Compartment StandardStandard

Electrical Systems

Battery Switch, Single, On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Fire Port StandardStandard
Forced Air Ventilation StandardStandard
Gel Coated Bilge & Engine Compartment StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard

Helm

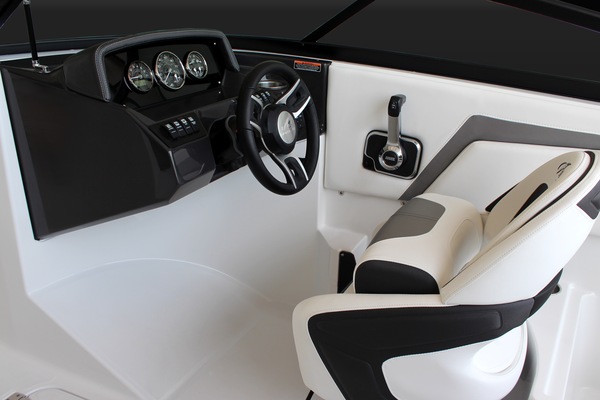

Fiberglass Dash with Upholstered Visor StandardStandard
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
12V USB Outlet StandardStandard
Steering, Power Assisted, Tilt w/Black Steering Wheel StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Arctic Ice Hull Gelcoat with graphics StandardStandard
Barrier Coat Vinylester StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Stainless Steel (6) StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric Flush Mount StandardStandard
Extended Platform w/SeaDek StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Ski Tow, Stainless Steel StandardStandard
Storage, Anchor-Bow Locker With Hatch StandardStandard
Swim Platform, Integral StandardStandard
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Walk-Thru at Transom StandardStandard
Windshield, Onyx, Curved Tempered w/Walk-Thru StandardStandard

Seating

Arena Seating, Port Side and Aft Cockpit StandardStandard
Bow Seating, Extra Wide with 3 Removable Cushions StandardStandard
Bucket Seat, swivel w/slider & Flip-Up Bolster, Starboard StandardStandard
Sundeck w/Bench Seat & Storage StandardStandard
Transom Walkway Filler with Seat Cushion StandardStandard
Wrap around seating with removable filler cushions StandardStandard

Canvas

Bimini Top/Top For Tower: Onyx Optional FeatureOptional
Bimini Top/Top For Tower: Rio Optional FeatureOptional
Bimini Top/Top For Tower: Royal Blue Optional FeatureOptional
Bimini Top/Top For Tower: Sapphire Optional FeatureOptional
Bimini Top/Top For Tower: Taupe Optional FeatureOptional
Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional

Cockpit

Bow Filler Cushion Optional FeatureOptional
Cockpit Inlay, Terra (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Table, w/Pedestal and Vertical side Mount Base Optional FeatureOptional
Stainless Steel Pull Up Cleats Optional FeatureOptional
Stereo Remotes, Helm & Stern Optional FeatureOptional
Swim Platform Inlay, Terra (SeaDek) Optional FeatureOptional
Swim Platform Inlay, Gray (SeaDek) Swim Platform Inlay, Gray (SeaDek) Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional

Helm

Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder) Optional FeatureOptional

Hull & Deck

Colored Hull Sides with Graphics (Other Than Arctic Ice) Optional FeatureOptional
Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Removable Ski Tow Pylon Optional FeatureOptional
Wakeboard Tower Black (Hinged To Fold Down) Optional FeatureOptional
Wakeboard Tower White (Hinged To Fold Down) Optional FeatureOptional

Mechanical Systems

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Battery Switch, Dual w/Additional Battery Tray Optional FeatureOptional
Depthsounder w/shallow water alarm (N/A W/GPS Option) Optional FeatureOptional
Fire Extinguishing System (Domestic Only) (Std. In EU Countries & Australia) Optional FeatureOptional
Transom Tilt Switch Optional FeatureOptional

Seating

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port (Replaces Std. Arena Seating) Optional FeatureOptional
Performance
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
4.5L CAT 200 1.81 Merc Alpha BM-19-AL 42-46 8.3@34 E Download
*4.5L 250 1.62 Merc Alpha BM-19-AL 44-48 8.7@31.3 Download
4.5L CAT 250 1.62 Merc Alpha BM-19-AL 44-48 8.7@31.3 Download
*4.5L 250 DTS 250 2.20 BRIII BM-24-SS 44-48 6.0@24.0 Download
4.5L 250 DTS CAT 250 2.20 BRIII BM-24-SS 44-48 6.0@24.0 Download

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
