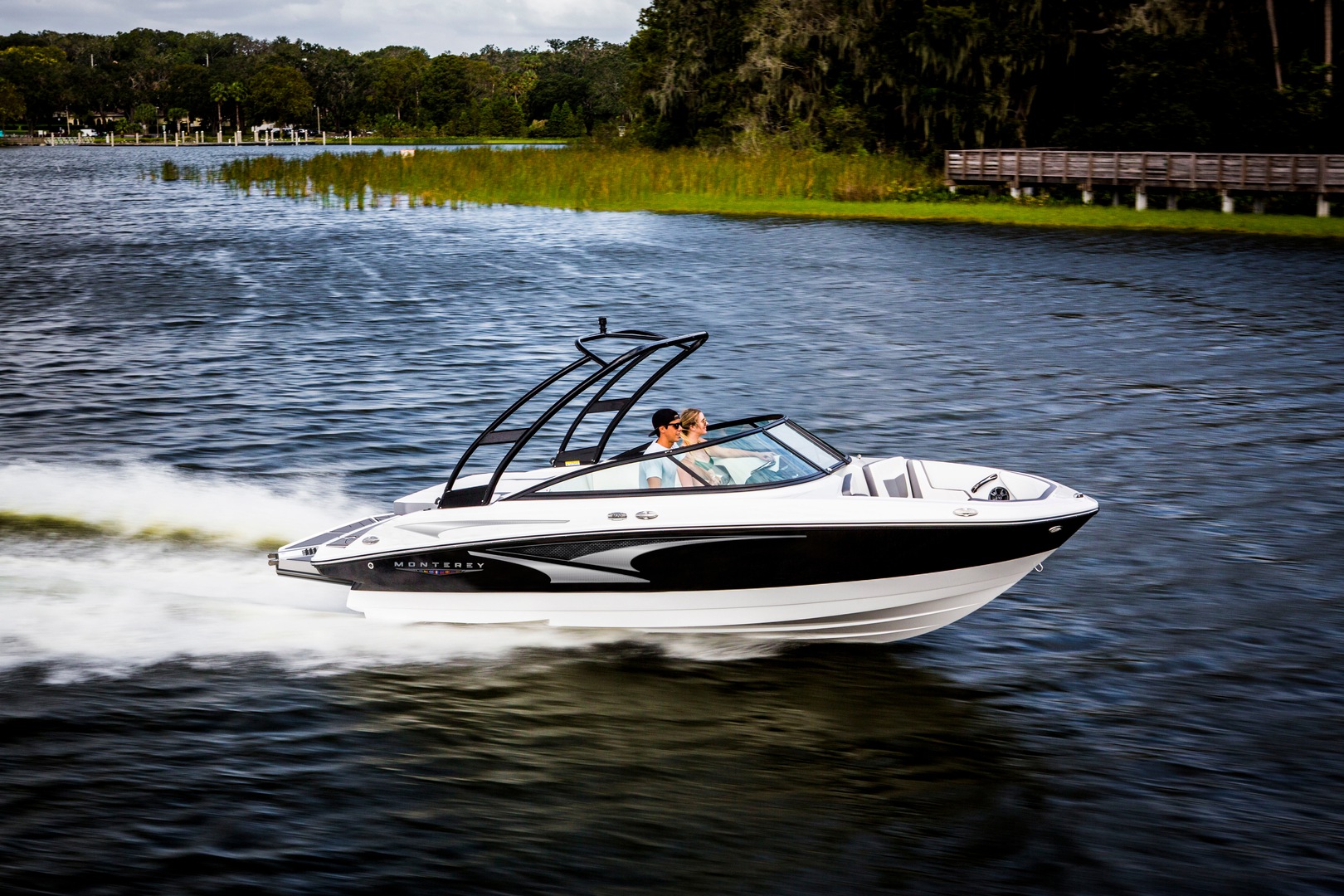

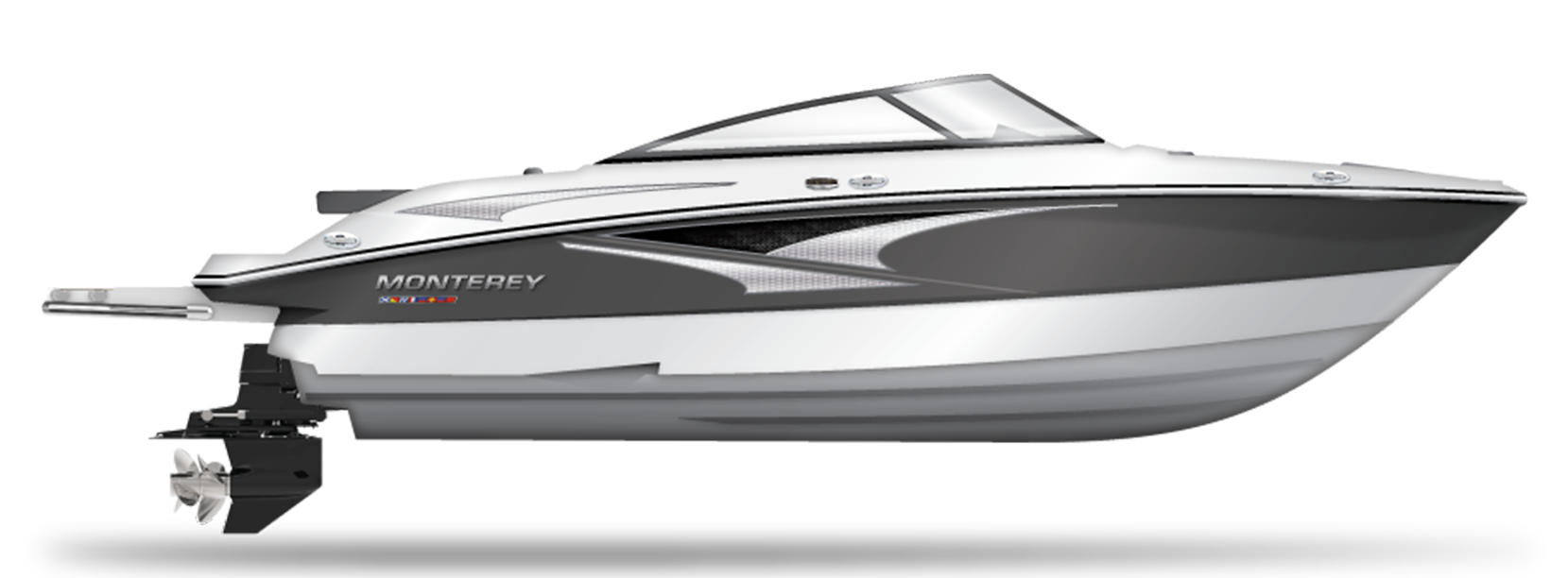

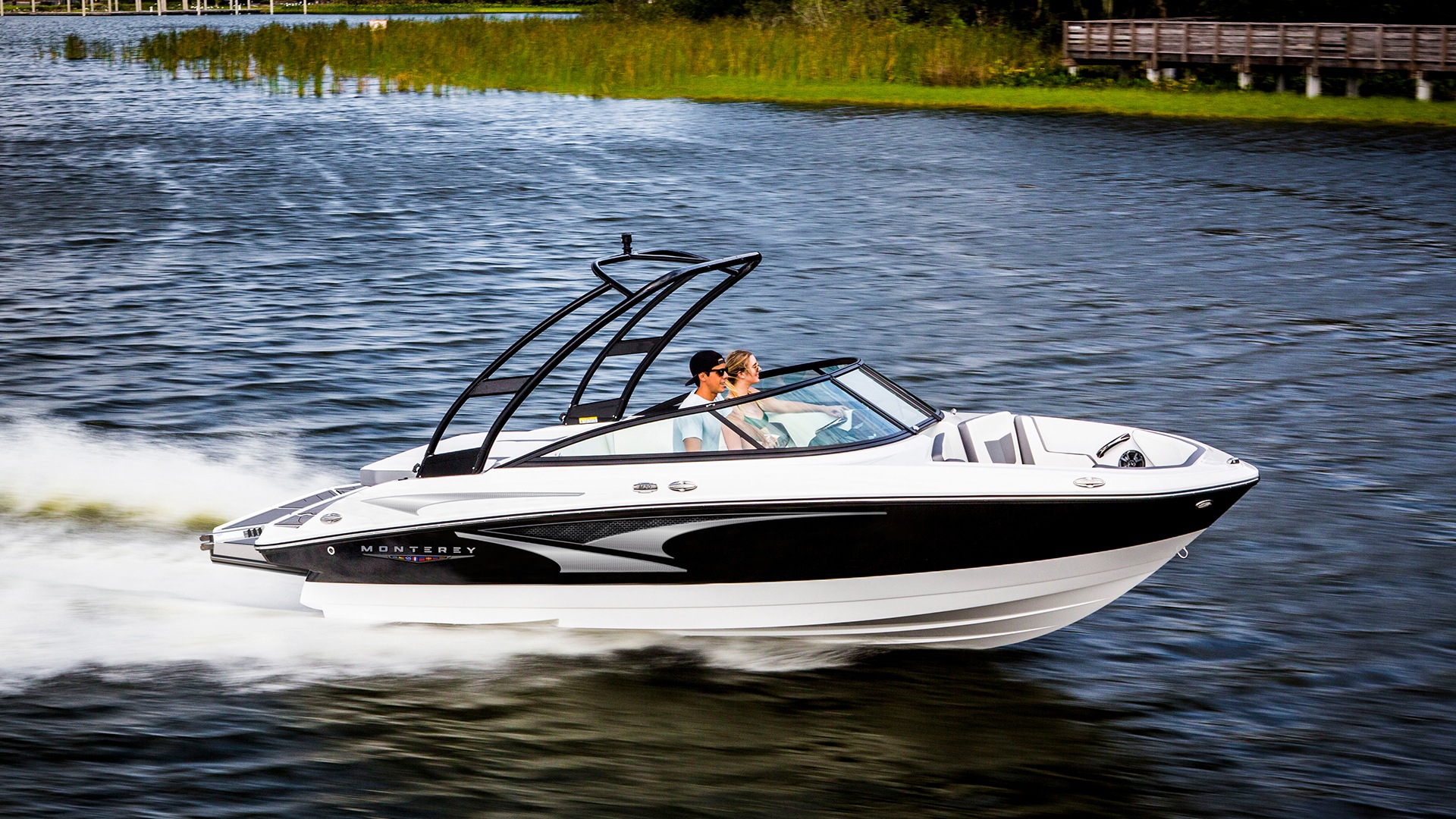

The power-packed M-20 boast sleek lines and fluid curves, and is loaded with amenities waiting to be embraced by both new and experienced boaters alike! Standard features include Monterey Boats patented Air Assist Chine, multiple stainless steel drink holders, an integral swim platform, along with multiple storage options. A stainless steel ski tow, telescoping and recessed swim ladder and sundeck come standard on the M-20, making it ideal for taking both you and your family anywhere you want to go!
LOA W/SWIM PLATFORM 22'2"
BEAM 8'4"
FUEL CAPACITY 36GAL
MAX HORSEPOWER 280HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 22'2" | 6.76M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| Beam | 8'4" | 2.54M | Width of hull at widest section including rubrail |
| Deadrise | 19° | 19° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 19" | 48.3CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 37" | 94.0CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance W/Tower | 7'10" | 2.4M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 36GAL | 136.3L | Capacity of fuel tank in gallons/liters |
| Dry Weight | 3500LBS | 1588KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 11 (US) | 9 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 1650LBS | 675KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons W/ Gear Weight | 1655LBS | 825KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 280HP | 209KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Cockpit |
Cooler, 50 Qt Carry-On, under cockpit cushion |  |
| Glove Box, Port-Molded with lockable cover | |
|
| Drink Holders, Stainless Steel (9) | |
|
| Grab Handles, Black Urethane w/Stainless Steel Inserts | |
|
| Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers | |
|
| Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner | |
|
| Storage, Helm | |
|
| Storage, Bow Seating | |
|
| Storage, Port and Starboard Dash, Accessible through bow backrests | |
|
| Storage, Aft Cockpit Seating and Engine Compartment | |
|
Electrical Systems |
Battery Switch, Single, On/Off | |
| Battery Tray | |
|
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
Engine Compartment |
Automatic Bilge Pump | |
| Fire Port | |
|
| Forced Air Ventilation | |
|
| Gel Coated Bilge & Engine Compartment | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
Helm |

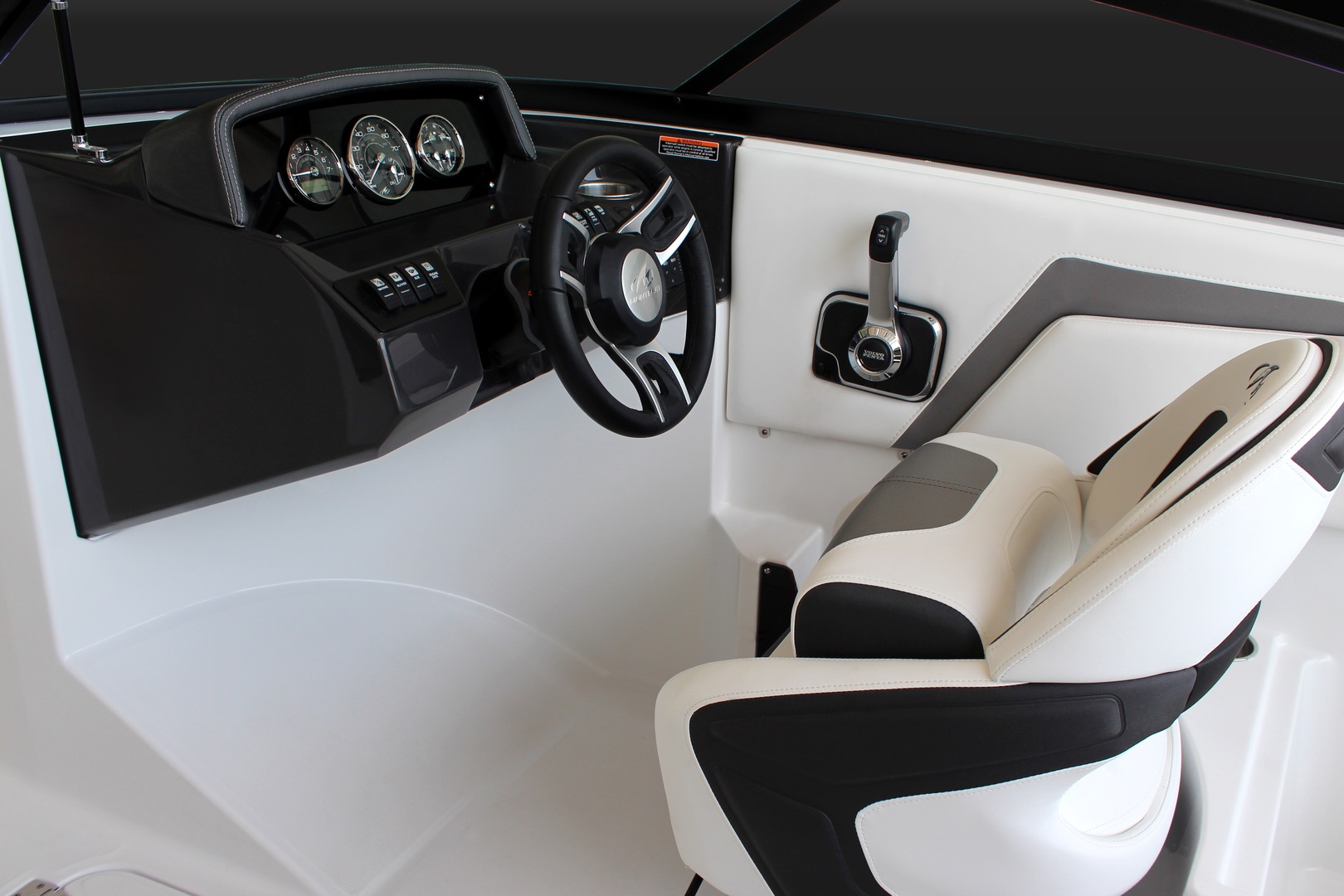

Fiberglass Dash with Upholstered Visor | |
| Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting | |
|
| MP3 Adapter | |
|
| 12V USB Outlet | |
|
| Steering, Power Assisted, Tilt w/Black Steering Wheel | |
|
Hull & Deck |
Air Assist Chine | |
| Arctic Ice Hull Gelcoat with graphics | |
|
| Barrier Coat Vinylester | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Cleats, Pull Up, Stainless Steel (6) | |
|
| Drain Plug, Brass Garboard | |
|
| Extended Platform w/SeaDek | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Ski Tow, Stainless Steel | |
|
| Storage, Anchor-Under Forward Bow Cushion | |
|
| Swim Platform, Integral | |
|
| Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch | |
|
| Thru Hulls, Stainless Steel Above Waterline | |
|
| Transhield Cover | |
|
| Walk-Thru at Transom | |
|
| Windshield, Onyx, Curved Tempered w/Walk-Thru | |
|
Seating |

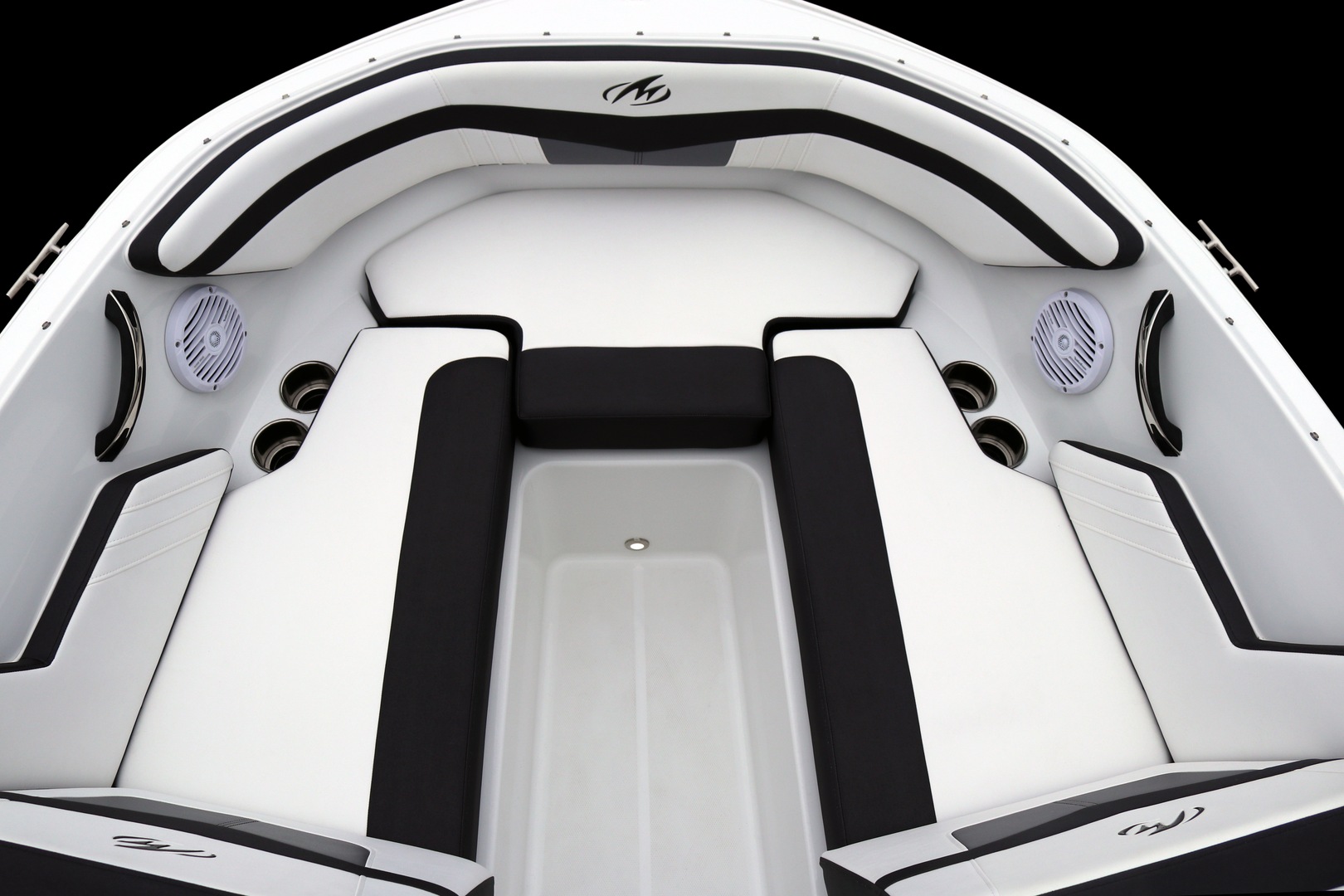

Bow Seating, extra wide with 3 removable cushions | |
| Bucket Seat, w/flip up bolster and manual slide, swivel, starboard | |
|
| Port Companion seat with flip over backrest converts to aft facing lounge | |
|
| Port Side Filler Cushion Transferable To Transom Entry | |
|
| Sundeck w/Bench Seat & Storage | |
|
| Transom Walkway Filler with Seat Cushion | |
|
| Wrap around seating, port side and aft cockpit | |
|
Canvas |
Bimini Top/Top For Tower |  |
| Bow & Cockpit Cover | |
|
Cockpit |
Bow Filler Cushions | |
| Cockpit Inlay (SeaDek) Requires Seadek Swim Platform Inlay) | |
|
| Cockpit Table w/Pedestal & Vertical Side Mount Base | |
|
| Stereo Remotes, Helm & Transom | |
|
| Swim Platform Inlay (SeaDek) | |
|
| Woven Flooring, Cockpit | |
|
Helm |
Depthsounder w/Shallow Water Alarm (NA with GPS Option) | |
| Simrad NSX Series/Chartplotter/Sonar w/Transducer (Includes Depthsounder) | |
|
Hull & Deck |
Colored Hull Sides with Graphics (Other Than Arctic Ice) | |
| Delete Graphics | |
|
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Removable Ski Tow Pylon | |
|
| Wakeboard Tower Black (Hinged To Fold Down) | |
|
| Wakeboard Tower White (Hinged To Fold Down) | |
|
Mechanical Systems |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Battery Switch, Dual w/Additional Battery Tray | |
|
| Fire Extinguishing System (Domestic Only) (Std. In EU Countries & Australia) | |
|
| Transom Tilt Switch | |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
