Setting A New Standard
Lounge In The Sun!

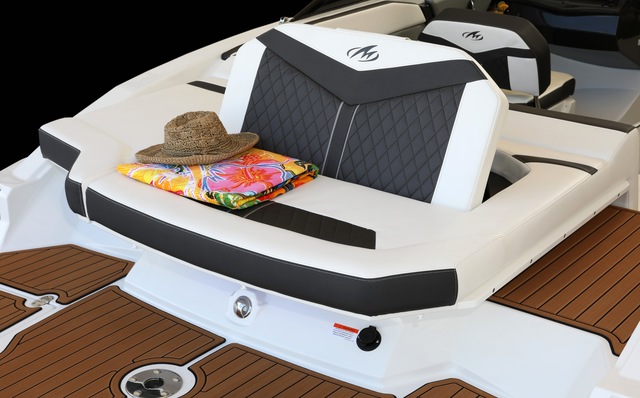

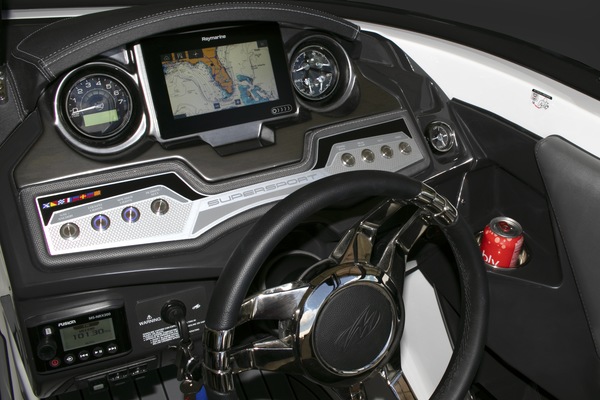

Versatility at its best. The 238 Super Sport offers it all, from powerboating performance to recreational comfort for the whole crew. Enjoy lounging on the aft sun-pad with a flip-up bolster or keep things on course with the ergonomically designed helm station. The 238SS features multiple dedicated storage options and spacious seating options. Add in the optional wakeboard tower and you’ll have everything you need to provide the perfect day out on the water for you and your crew.

Build Your Custom Monterey 238SS

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
Photo Gallery
A Study In Luxury
Monterey In Motion
Capturing Performance, Speed, And Luxury
Sorry video not available.
A Work Of Art Is Best Viewed In Person
Specifications Review
Spec US Unit Metric Unit Description
LOA W/Swim Platform 23'0" 7.01M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 20° 20° Angle of keel measured at transom
Draft - Stern Drive Up 25" 63.5CM Depth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down 37" 94CM Depth of hull to bottom of stern drive, trimmed down
Bridge Clearanance W/Tower 7'3" 2.2M Height from water to highest point on tower, normal load
Fuel Capacity 52GAL 196.8L Capacity of fuel tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
Dry Weight 3950LBS 1792KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 12 (US) 11 (CE) Maximum Rated Persons Capacity
Max Persons Weight 1980LBS 825KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight 2250LBS 880KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 380HP 283KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options


Bimini Top w/Embroidered Boot StandardStandard


Cooler 48 qt Carry -On StandardStandard
Cooler, Molded In StandardStandard
Cooler, Port Console w/Overboard Drain StandardStandard
Courtesy Lighting, Blue/White, LED 12v StandardStandard
Drink Holders, Stainless Steel (10) StandardStandard
Fiberglass Cockpit Liner w/Non-Skid & Drainage StandardStandard
Glove Box, Port Side, Lockable StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Hatch, Engine Compartment, Gas Assisted StandardStandard
Outlet 12v StandardStandard
Stereo Fusion Satellite Ready AM/FM/BLUETOOTH, w/Built in iPod Dock and 4 JL Audio 6.5" Speakers with LED Lights StandardStandard
Storage In-Floor Ski w/Gas Assisted Hatch Cover and Dry Deck StandardStandard
Storage Bow Bolsters StandardStandard
Storage, Side Panels StandardStandard

Electrical Systems

Battery Switch, Single On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Fire Port StandardStandard
Forced Air Ventilation w/Concealed Vents StandardStandard
Gel Coated Bilge & Engine Compartment StandardStandard

Fuel System

Double Clamped Fuel Lines StandardStandard


Instrumentation w/Fog Resistant Gauges (Digital & Low Glare Night Lighting) StandardStandard
MP3 Adapter StandardStandard
Outlet 12v USB StandardStandard
Steering, Power Assisted StandardStandard
Steering, Tilt StandardStandard
Switches, Lighted Weatherproof StandardStandard
Steering Wheel, Black w/Silver Insert StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Barrier Coat Vinylester StandardStandard
Bow Hand Rails, Stainless Steel StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Pull Up, Stainless Steel (6) StandardStandard
Colored Hull StandardStandard
Custom Hull Side Graphics StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric, Flush Mount StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Ski Tow, Stainless Steel StandardStandard
Storage, Anchor w/Fiberglass Hatch StandardStandard
Storage, Transom Wakeboard w/Gas Assisted Hatch Cover and Dry Deck StandardStandard
Swim Ladder, Telescoping and Recessed, Stern w/Fiberglass Hatch StandardStandard
Swim Platform, Integral w/Ski Rope Storage StandardStandard
Thru Hulls, Stainless Steel, Above Waterline StandardStandard
Transhield Shipping Cover StandardStandard
Walk-Thru at Transom StandardStandard
Windshield Curved, Tempered Walk-Thru, Onyx Framed StandardStandard


Aft U-Shaped Bench Seat and Storage StandardStandard
Aft Sunpad w/Aft Facing Flip Up Bolster StandardStandard
Bucket Seat, Swivel w/Slider and Flip Up Bolster Port and Starboard StandardStandard
Seat Cushions with Storage Compartments, Bow StandardStandard


Bow and Cockpit Cover-Onyx Optional FeatureOptional
Bow and Cockpit Cover-Rio Optional FeatureOptional
Bow and Cockpit Cover-Royal Blue Optional FeatureOptional
Bow and Cockpit Cover-Sapphire Optional FeatureOptional
Bow and Cockpit Cover-Taupe Optional FeatureOptional


Bow Block Off Door, Removable Optional FeatureOptional
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay) Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay) Optional FeatureOptional
Cockpit Table w/pedestal & Vertical Side Mount Bases, Fwd & Aft Optional FeatureOptional
Seadek Swim Platform Inlay (Terra) Optional FeatureOptional
Seadek Swim Platform Inlay (Gray) Seadek Swim Platform Inlay (Gray) Optional FeatureOptional
Steering Wheel, Premium Optional FeatureOptional
Stereo Upgrade Package, Premium Includes 4 Channel Amplifier (Requires Dual Battery Switch Option) Optional FeatureOptional
Stereo Remotes (Helm and Stern) Optional FeatureOptional
Cone Speakers For Tower W/4 Channel Amp (Wakeboard Tower & Stereo Upgrade Required) Optional FeatureOptional
Transom Shower w/Pressurized Water (Cold Only) Optional FeatureOptional
Woven Cockpit Flooring Optional FeatureOptional

Engine Compartment

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Dual Battery Switch with Additional Battery Tray Optional FeatureOptional
Fire Extinguishing System (Domestic Only) (Std. in EU Countries & Australia) Optional FeatureOptional


Compass Optional FeatureOptional
Depthsounder w/Shallow Water Alarm (N/A with GPS Option) Optional FeatureOptional
Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder) Optional FeatureOptional
Transom Tilt Switch Optional FeatureOptional

Hull/Deck Exterior

Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Removable Ski Tow Pylon Optional FeatureOptional
Stainless Steel Package (Includes: Boarding Ladder, Telescoping & Recessed At Bow, Stainless Steel Bow Plate, Docking Lights) Optional FeatureOptional
Underwater Lights, RGB LED Optional FeatureOptional
Wakeboard Tower Black Hinged To Fold Down Optional FeatureOptional
Wakeboard Tower White Hinged To Fold Down Optional FeatureOptional
Wakeboard Tower, Black Electronically Articulating Optional FeatureOptional
Wakeboard Tower, White Electronically Articulating Optional FeatureOptional


Bow Filler Cushions Optional FeatureOptional
Portside Forward/Aft Facing Lounger Optional FeatureOptional
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
*4.5L 250 DTS 250HP 2.20 Merc Bravo III B3-22.5-SS 45-49 9.8@32
*6.2L 300HP DTS 300HP 2.20 Merc Bravo III B3-24-SS 50-54 7.3@28 Download
4.5L 250 CAT DTS 250HP 2.20 Merc Bravo III B3-22.5-SS 45-49 9.8@32
6.2L 300HP CAT DTS 300HP 2.20 Merc Bravo III B3-24-SS 50-54 7.3@28 Download

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
