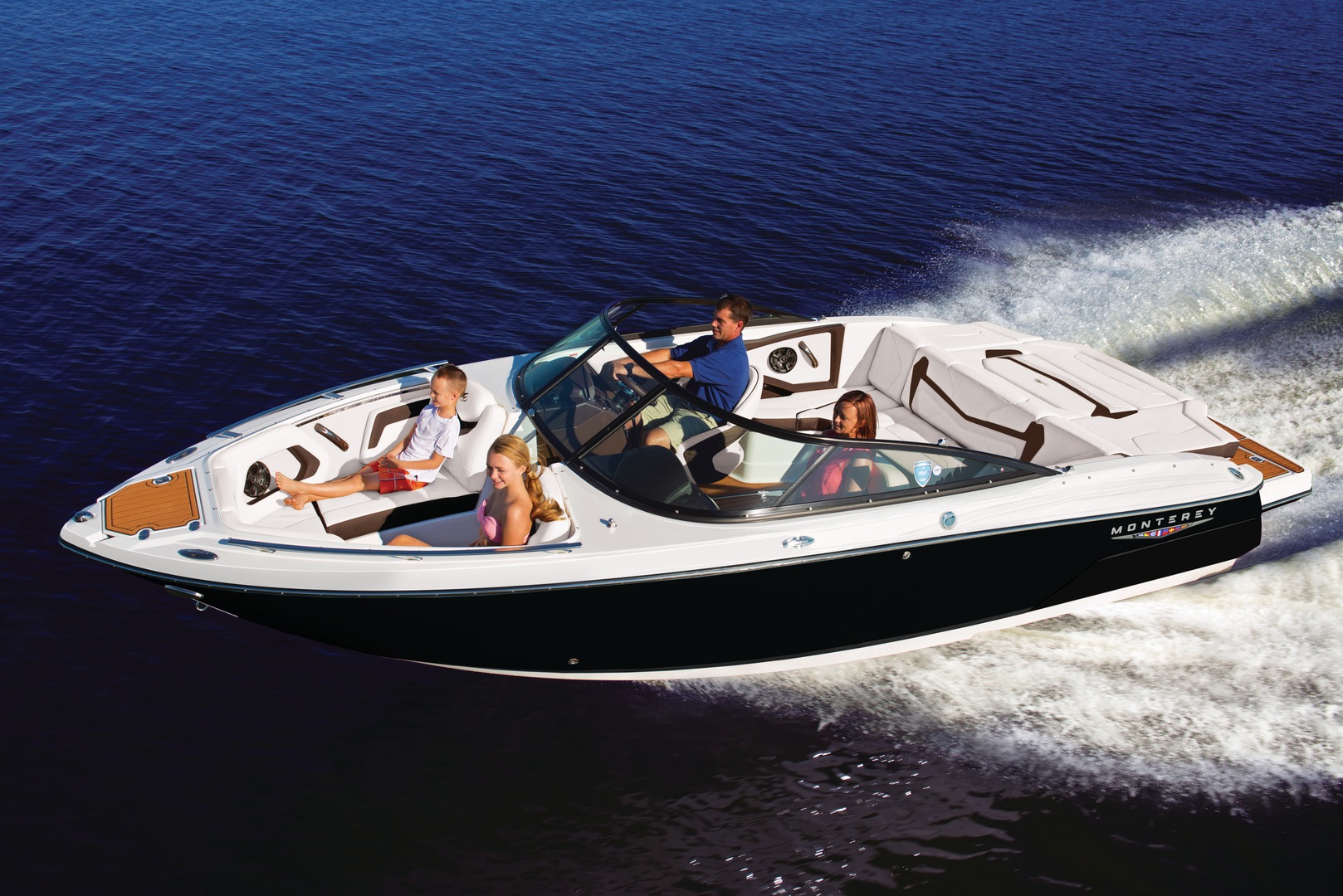

Versatility at its best. The 238 Super Sport offers it all, from powerboating performance to recreational comfort for the whole crew. Enjoy lounging on the aft sun-pad with a flip-up bolster or keep things on course with the ergonomically designed helm station. The 238SS features multiple dedicated storage options and spacious seating options. Add in the optional wakeboard tower and you’ll have everything you need to provide the perfect day out on the water for you and your crew.
LOA W/SWIM PLATFORM 23'0"
BEAM 8'6"
FUEL CAPACITY 52GAL
MAX HORSEPOWER 380HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 23'0" | 7.01M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| Beam | 8'6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 25" | 63.5CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 37" | 94CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance W/Tower | 7'3" | 2.2M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 52GAL | 196.8L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 10GAL | 37.9L | Capacity of water tank in gallons/liters |
| Dry Weight | 3950LBS | 1792KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 12 (US) | 11 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 1980LBS | 825KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons W/ Gear Weight | 2250LBS | 880KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 380HP | 283KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Canvas |
Bimini Top w/Embroidered Boot |  |
Cockpit |
Cooler 48 qt Carry -On | |
| Cooler, Molded In | |
|
| Cooler, Port Console w/Overboard Drain | |
|
| Courtesy Lighting, Blue/White, LED 12v | |
|
| Drink Holders, Stainless Steel (10) | |
|
| Fiberglass Cockpit Liner w/Non-Skid & Drainage | |
|
| Glove Box, Port Side, Lockable | |
|
| Grab Handles, Black Urethane w/Stainless Steel Inserts | |
|
| Hatch, Engine Compartment, Gas Assisted | |
|
| Outlet 12v | |
|
| Stereo Fusion Satellite Ready AM/FM/BLUETOOTH, w/Built in iPod Dock and 4 JL Audio 6.5" Speakers with LED Lights | |
|
| Storage In-Floor Ski w/Gas Assisted Hatch Cover and Dry Deck | |
|
| Storage Bow Bolsters | |
|
| Storage, Side Panels | |
|
Electrical Systems |
Battery Switch, Single On/Off | |
| Battery Tray | |
|
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
Engine Compartment |
Automatic Bilge Pump | |
| Fire Port | |
|
| Forced Air Ventilation w/Concealed Vents | |
|
| Gel Coated Bilge & Engine Compartment | |
|
Fuel System |
Double Clamped Fuel Lines | |
Helm |
Dual Simrad NSX 7 GPS/Chartplotter/Sonar w/Transducer and Engine Integration (Includes Depthsounder) | |
| Instrumentation w/Fog Resistant Gauges (Digital & Low Glare Night Lighting) | |
|
| MP3 Adapter | |
|
| Outlet 12v USB | |
|
| Steering, Power Assisted | |
|
| Steering, Tilt | |
|
| Switches, Lighted Weatherproof | |
|
| Steering Wheel, Black w/Silver Insert | |
|
Hull & Deck |
Air Assist Chine | |
| Barrier Coat Vinylester | |
|
| Bow Hand Rails, Stainless Steel | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Cleats, Pull Up, Stainless Steel (6) | |
|
| Colored Hull | |
|
| Custom Hull Side Graphics | |
|
| Drain Plug, Brass Garboard | |
|
| Horn, Electric, Flush Mount | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Ski Tow, Stainless Steel | |
|
| Storage, Anchor w/Fiberglass Hatch | |
|
| Storage, Transom Wakeboard w/Gas Assisted Hatch Cover and Dry Deck | |
|
| Swim Ladder, Telescoping and Recessed, Stern w/Fiberglass Hatch | |
|
| Swim Platform, Integral w/Ski Rope Storage | |
|
| Thru Hulls, Stainless Steel, Above Waterline | |
|
| Transhield Shipping Cover | |
|
| Walk-Thru at Transom | |
|
| Windshield Curved, Tempered Walk-Thru, Onyx Framed | |
|
Seating |
Aft U-Shaped Bench Seat and Storage | |

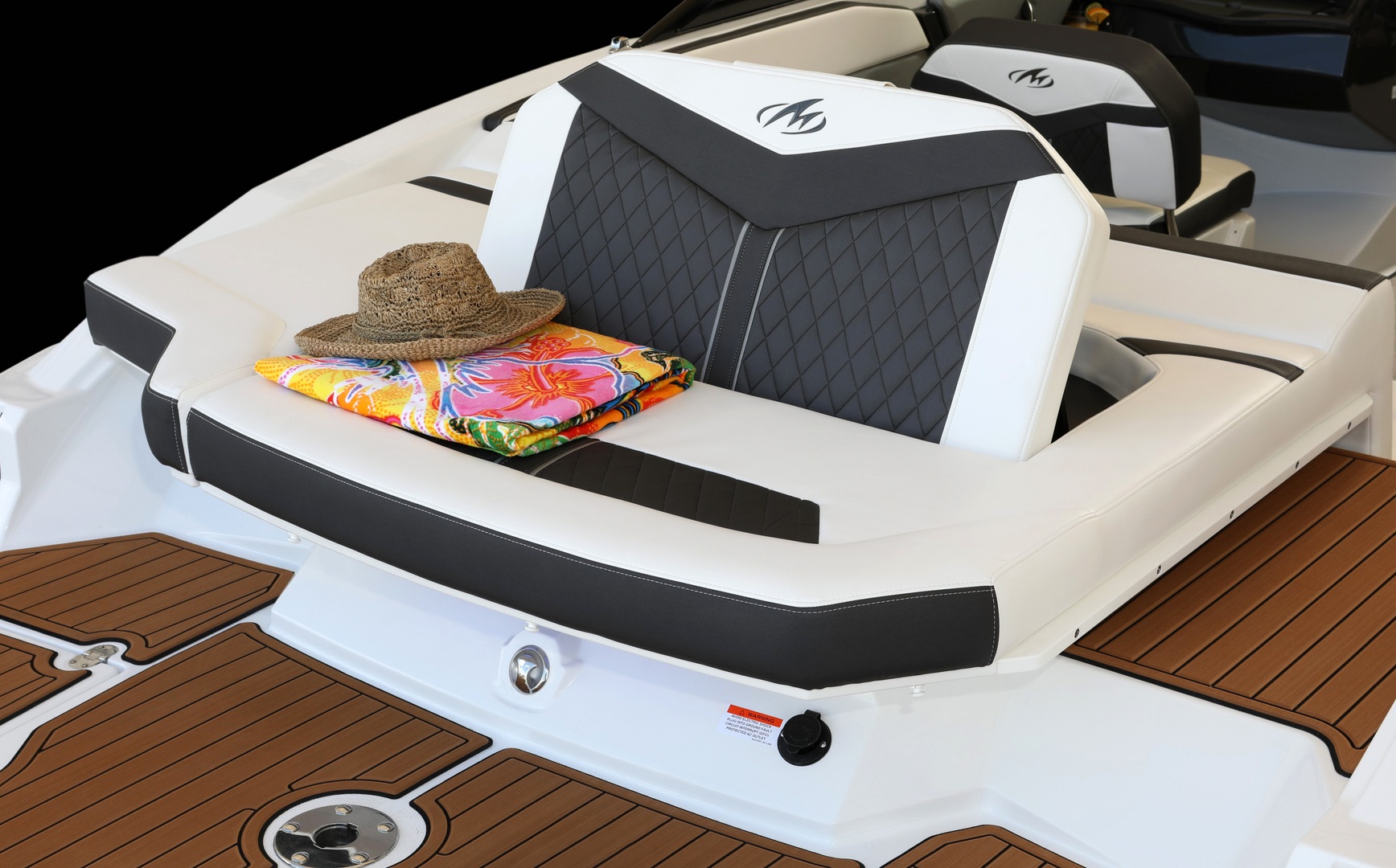

| Aft Sunpad w/Aft Facing Flip Up Bolster | |
|

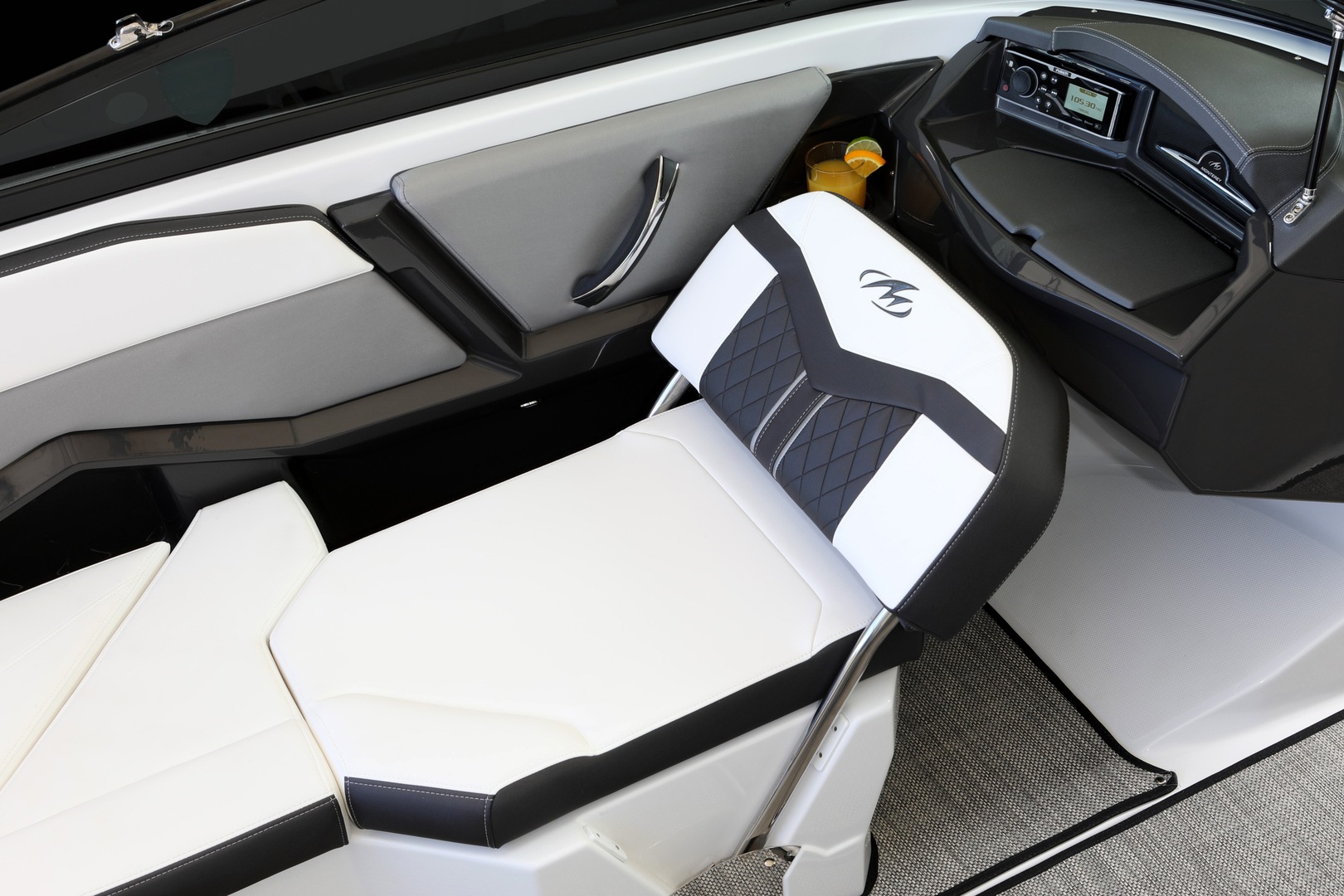

| Bucket Seat, Swivel w/Slider and Flip Up Bolster Starboard | |
|
| Portside Fwd./Aft Facing Lounger | |
|
| Seat Cushions with Storage Compartments, Bow | |
|
Canvas |
Bow and Cockpit Cover-Onyx |  |
| Bow and Cockpit Cover-Rio | |
|
| Bow and Cockpit Cover-Royal Blue | |
|
| Bow and Cockpit Cover-Sapphire | |
|
| Bow and Cockpit Cover-Taupe | |
|
Cockpit |
Bow Block Off Door, Removable | |
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay)
|
|
|
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay)
|
|
|
| Cockpit Table w/pedestal & Vertical Side Mount Bases, Fwd & Aft | |
|
Seadek Swim Platform Inlay (Terra)
|
|
|
Seadek Swim Platform Inlay (Gray)
|
|
|
| Steering Wheel, Leather Wrapped with Chrome Stainless Spokes | |
|
| Stereo Upgrade Package, Premium Includes 4 Channel Amplifier (Requires Dual Battery Switch Option) | |
|
| Stereo Remotes (Stern) | |
|
| Cone Speakers For Tower JL W/4 Channel Amp (Wakeboard Tower & Stereo Upgrade Required) | |
|
| Transom Shower w/Pressurized Water (Cold Only) | |
|
| Woven Cockpit Flooring | |
|
Engine Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Dual Battery Switch with Additional Battery Tray | |
|
| Fire Extinguishing System (Domestic Only) (Std. in EU Countries & Australia) | |
|
Helm |
Compass | |
| Transom Tilt Switch | |
|
Hull/Deck Exterior |
Colored Hull Bottom (Other Than Arctic Ice) | |
| Delete Graphics | |
|
| Removable Ski Tow Pylon | |
|
| Stainless Steel Package (Includes: Boarding Ladder, Telescoping & Recessed At Bow, Stainless Steel Bow Plate, Docking Lights) | |
|
| Underwater Lights, RGB LED | |
|
| Wakeboard Tower Black Hinged To Fold Down | |
|
| Wakeboard Tower White Hinged To Fold Down | |
|
| Wakeboard Tower, Black Electronically Articulating | |
|
| Wakeboard Tower, White Electronically Articulating | |
|
Seating |
Bow Filler Cushions | |
| Bucket Seat, Swivel w/Slider and Flip Up Bolster, Port | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| *4.5L 250 DTS | 250HP | 2.20 | Merc Bravo III | B3-22.5-SS | 45-49 | 9.8@32 | |
| *6.2L 300HP DTS | 300HP | 2.20 | Merc Bravo III | B3-24-SS | 50-54 | 7.3@28 | Download |
| 4.5L 250 CAT DTS | 250HP | 2.20 | Merc Bravo III | B3-22.5-SS | 45-49 | 9.8@32 | |
| 6.2L 300HP CAT DTS | 300HP | 2.20 | Merc Bravo III | B3-24-SS | 50-54 | 7.3@28 | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
* Results received from this calculator are designed solely for informational purposes and to provide a general estimate based on the information you have provided. Accuracy is not guaranteed. Personal circumstances may have a significant effect on interest rates for which an individual might qualify. Accordingly, we cannot guarantee the accuracy or applicability of the estimates produced by this calculation and the results from its use should be viewed as hypothetical and for illustration purposes only. Total calculations are based on U.S. dollars and do not include additional cost factors such as: freight, dealer prep and rigging fees, CE certification, currency exchange rates, duties, VAT, Registration fees, taxes, trailer, or any other applicable discounts and/or charges. Estimated payments are based on \standard industry data. At the appropriate time, we recommend that you consult your local dealer or lender for more accurate interest rate and payment information.
| Loan Amount | $ | |
| Interest (APR) | % | |
| Term | ||
| Down Payment | $ | |
| Payment | ||
| Cost of Loan | ||
Monterey stands behind every boat we build with the best warranty in the business-Monterey's MVP-the Most Valuable Protection plan. MVP is a shield that protects the most important elements of your boat to ensure that your ownership experience is lifelong and trouble free.
