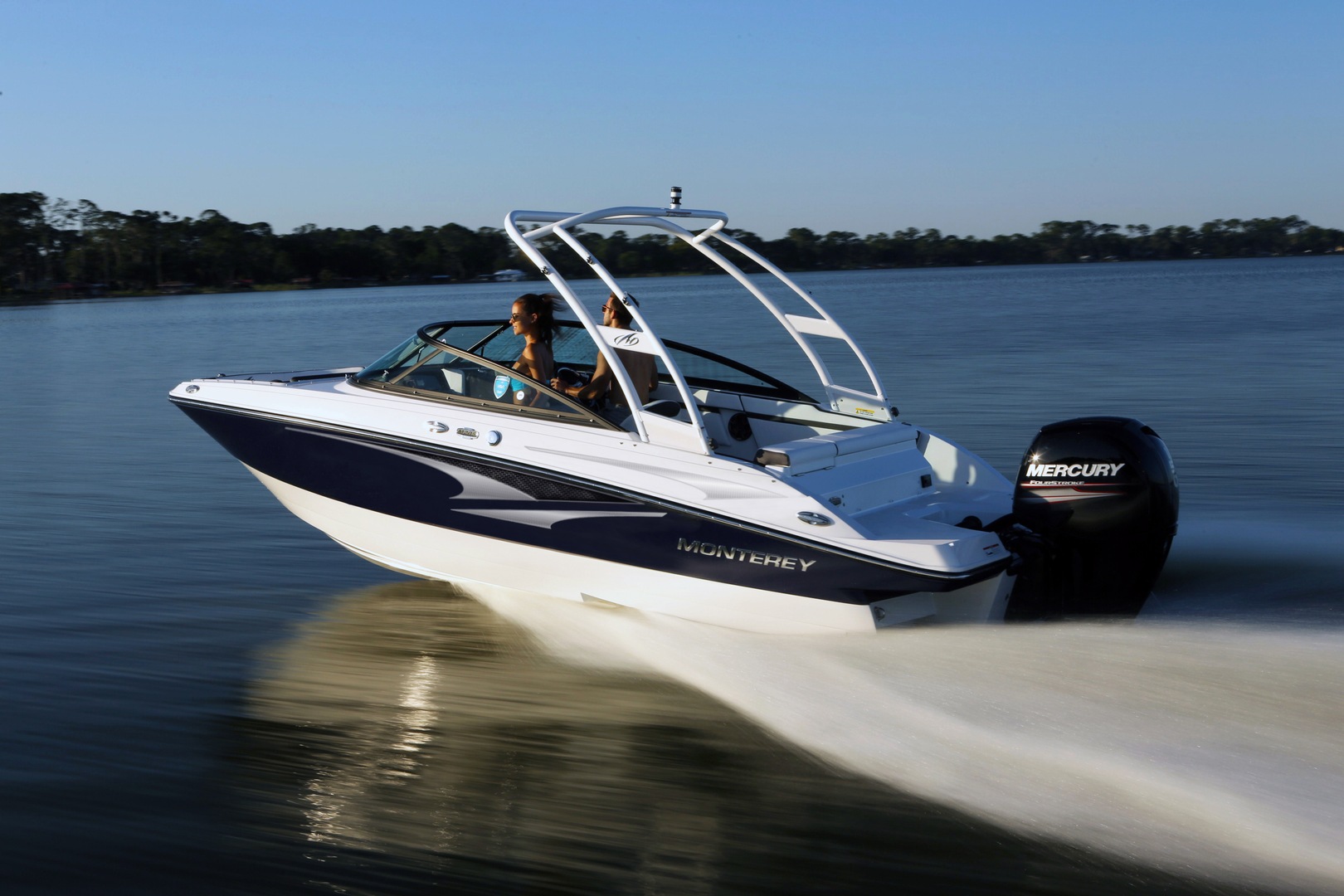

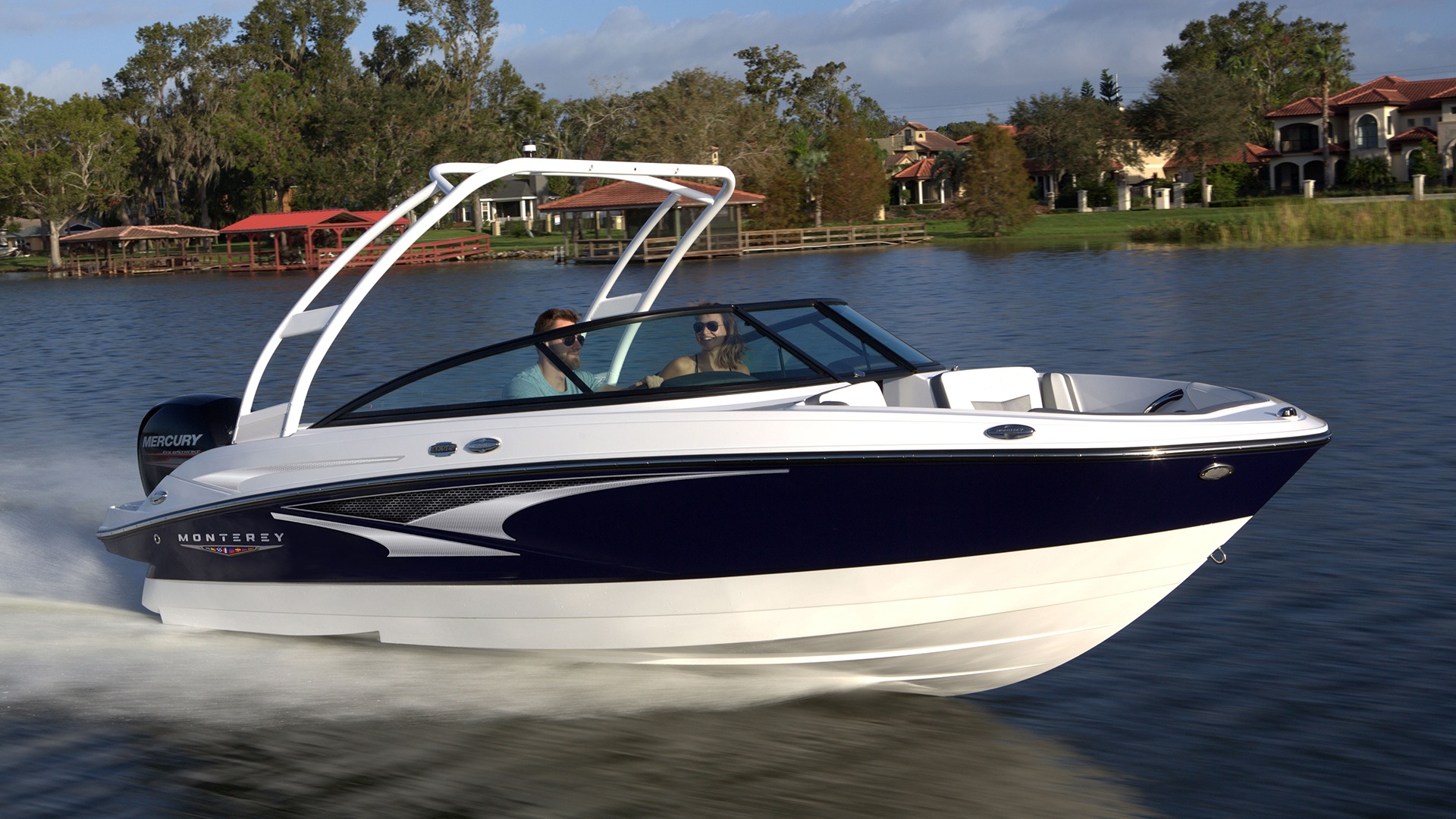

Brimming with standard features and amenities, the M-205 boasts features such as a fiberglass dash with upholstered visor and an ergonomically designed helm station, an MP3 adapter, 12V/USB outlet and power assisted tilt steering, as well as a multitude of designated storage options located throughout the boat. Perfectly designed seating arrangements provide you with a spacious entertainment setting. A choice of 2 standard upholstery options completes the package!
LOA W/SWIM PLATFORM 20'0"
BEAM 8'4"
FUEL CAPACITY 36GAL
MAX HORSEPOWER 225HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 20'0" | 6.09M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| LOA w/Engines | 22'8" | 6.91M | Length Overall With Engines |
| Beam | 8'4" | 2.54M | Width of hull at widest section including rubrail |
| Deadrise | 19° | 19° | Angle of keel measured at transom |
| Draft - Engine Up | 18" | 45.7CM | Depth of hull to lowest point, Engine trimmed up |
| Draft - Engine Down | 33" | 83.8CM | Depth of hull to bottom Engine, trimmed down |
| Bridge Clearanance W/Tower | 7'10" | 2.4M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 36GAL | 136.3L | Capacity of fuel tank in gallons/liters |
| Dry Weight | 3100LBS | 1406KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons Weight | 1765LBS | 675KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons W/ Gear Weight & Motor | 2568LBS | 1165KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 225HP | 168KW | Maximum horsepower for safe operation |
| Max Persons | 11 (US) | 9 (CE) | Maximum Rated Persons Capacity |
| Engine | Option | Standards and Options |
|---|---|---|
Bilge Compartment |
Automatic Bilge Pump |  |
| Gelcoated Bilge Compartment | |
|
Cockpit |
Cooler, 48 Qt Carry-On, under cockpit cushion | |
| Drink Holders, Stainless Steel (9) | |
|
| Glove Box, Port-Molded with lockable cover | |
|
| Grab Handles, Black Urethane w/Stainless Steel Inserts | |
|
| Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers | |
|
| Storage, Aft Cockpit Seating and Engine Compartment | |
|
| Storage, Bow Seating | |
|
| Storage, Helm | |
|
| Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner | |
|
| Storage, Port and Starboard Dash, Accessible through bow backrests | |
|
Electrical Systems |
Battery Switch, Single, On/Off | |
| Battery Tray | |
|
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
| Water Separating Fuel Filter | |
|
Helm |

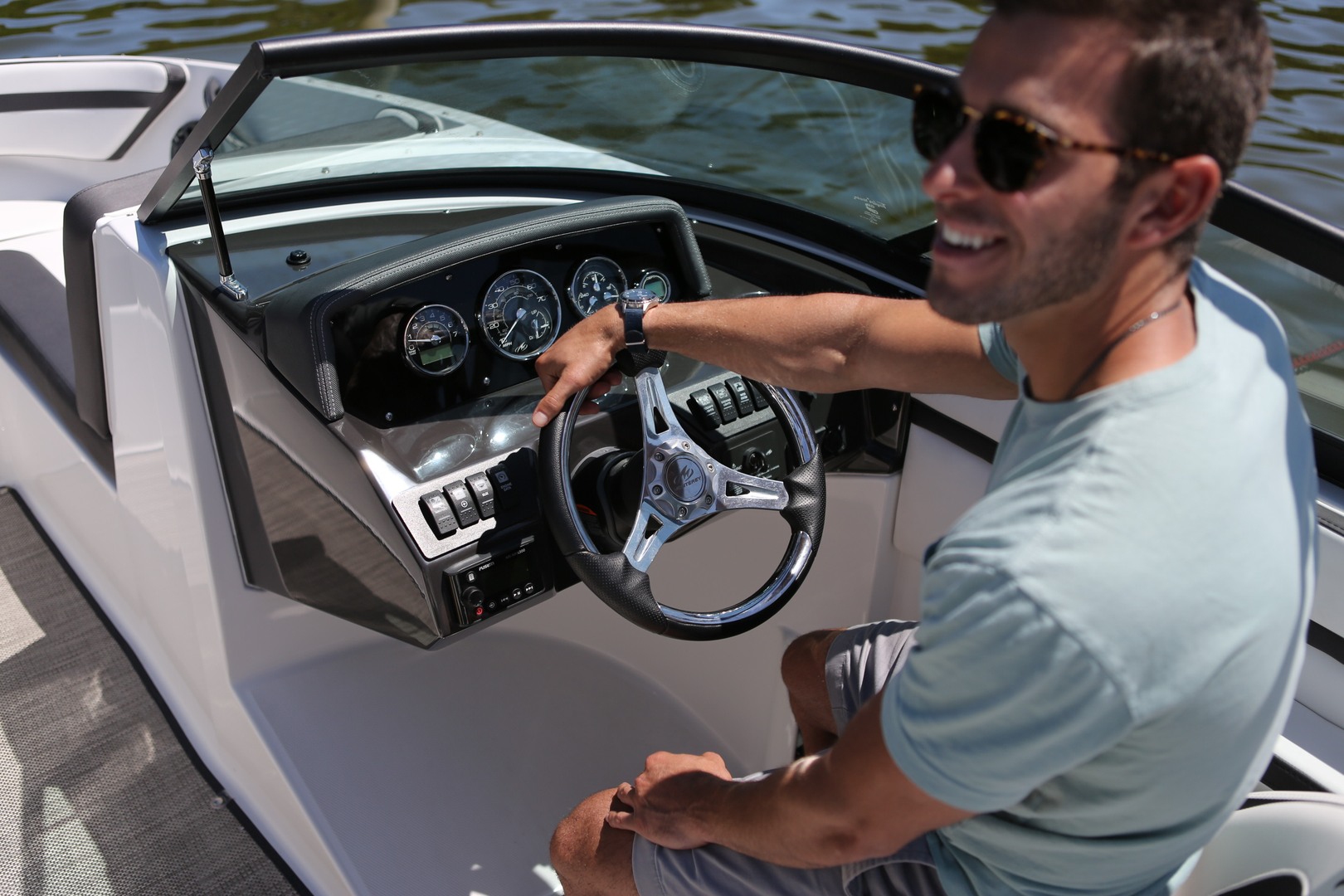

Fiberglass Dash with Upholstered Visor | |
| Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting | |
|
| MP3 Adapter | |
|
| 12V USB Outlet | |
|
| Steering, Hydraulic, Tilt w/Black Steering Wheel | |
|
Hull & Deck |
Air Assist Chine | |
| Arctic Ice Hull Gelcoat with graphics | |
|
| Barrier Coat Vinylester | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Cleats, Pull Up, Stainless Steel (6) | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Storage, Anchor-Under Forward Bow Cushion | |
|
| Swim Platform, Integral | |
|
| Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch | |
|
| Thru Hulls, Stainless Steel Above Waterline | |
|
| Transhield Cover | |
|
| Walk-Thru at Transom | |
|
| Windshield, Onyx, Curved Tempered w/Walk-Thru | |
|
Seating |

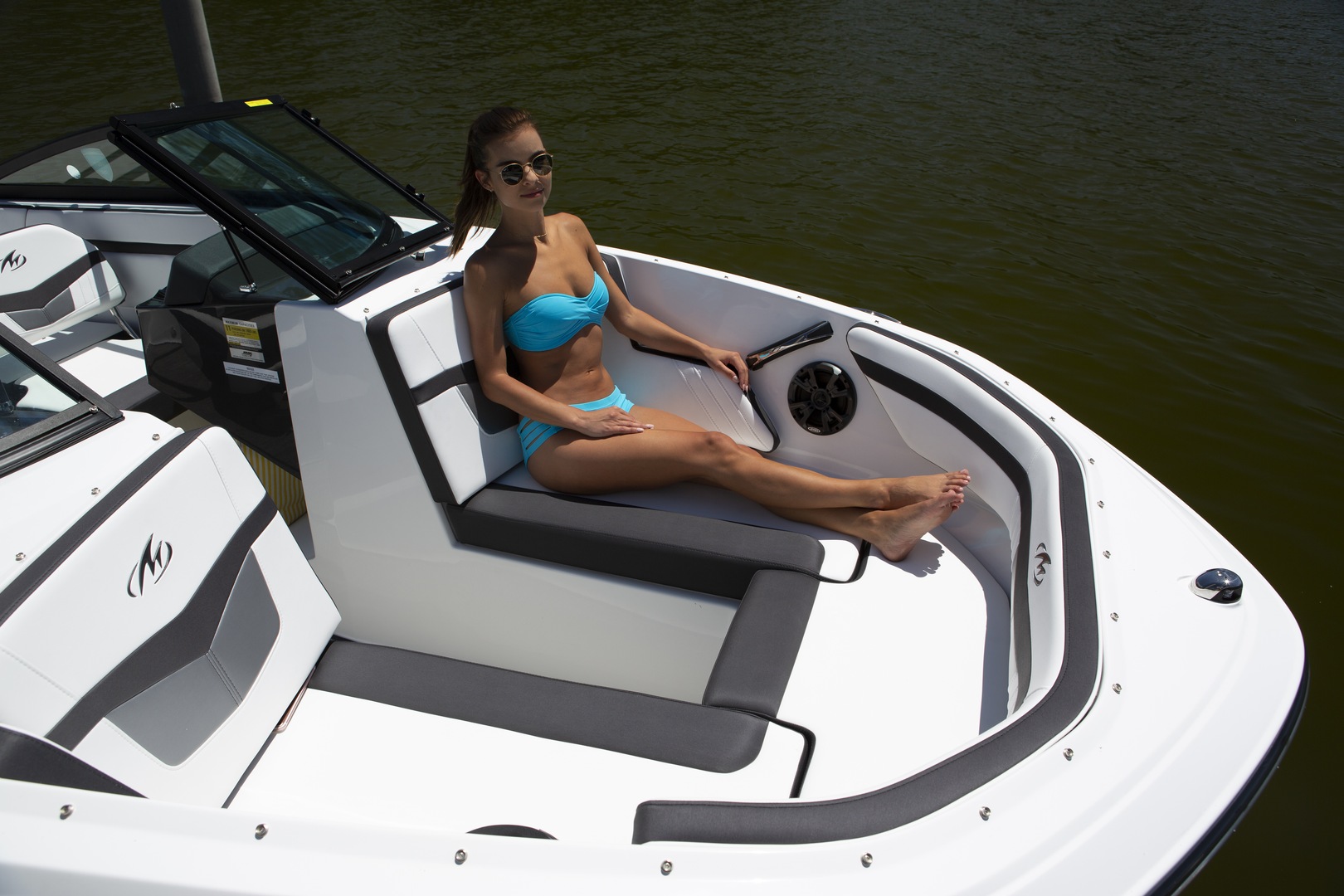

Bow Seating, extra wide with 3 removable cushions | |
| Bucket Seat, w/Flip Up Bolster & Manual Slide, Swivel Stbd | |
|
| Port Companion seat with flip over backrest converts to aft facing lounge | |
|
| Wrap around seating Port side and aft cockpit | |
|
Canvas |
Bimini Top/Bimini Top For Tower: Onyx |  |
| Bimini Top/Bimini Top For Tower: Rio | |
|
| Bimini Top/Bimini Top For Tower: Royal Blue | |
|
| Bimini Top/Bimini Top For Tower: Sapphire | |
|
| Bimini Top/Bimini Top For Tower: Taupe | |
|
| Bow & Cockpit Cover: Onyx | |
|
| Bow & Cockpit Cover: Rio | |
|
| Bow & Cockpit Cover: Royal Blue | |
|
| Bow & Cockpit Cover: Sapphire | |
|
| Bow & Cockpit Cover: Taupe | |
|
Cockpit |
Bow Filler Cushion | |
Cockpit Inlay, Terra (SeaDek. Requires Seadek Swim Platform Inlay)
|
|
|
Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay)
|
|
|
| Cockpit Table, w/Pedestal and Vertical side Mount Base, Fwd & Aft | |
|
| Stereo Remotes, Helm & Stern | |
|
Swim Platform Inlay, Terra (SeaDek)
|
|
|
Swim Platform Inlay, Gray (SeaDek)
|
|
|
| Woven Flooring, Cockpit | |
|
Helm |
Depthsounder w/shallow water alarm (N/A W/GPS Option) | |
| Simrad NSX Series/Chartplotter/Sonar w/Transducer (Includes Depthsounder) | |
|
Hull & Deck |
Colored Hull Sides with Graphics (Other Than Arctic Ice) | |
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Delete Graphics | |
|
| Removable Ski Tow Pylon | |
|
| Wakeboard Tower Black (Hinged To Fold Down) | |
|
| Wakeboard Tower White (Hinged To Fold Down) | |
|
Technical |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Battery Switch, Dual w/Additional Battery Tray | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| MERCURY 200XL 4 Stroke RM | 200 | MERCURY OUTBOARD | Enertia-17-SS | 50-54 | 7.0@34E | ||
| MERCURY 200XL 4 Stroke RM, WHITE | 200 | MERCURY OUTBOARD | Enertia-17-SS | 50-54 | 7.0@34E | ||
| MERCURY 225XL 4 Stroke RM | 225 | MERCURY OUTBOARD | Enertia Eco-19-SS | 53-57 | 5.2@28.1 | Download | |
| MERCURY 225XL 4 Stroke RM, WHITE | 225 | MERCURY OUTBOARD | Enertia Eco-19-SS | 53-57 | 5.2@28.1 | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
