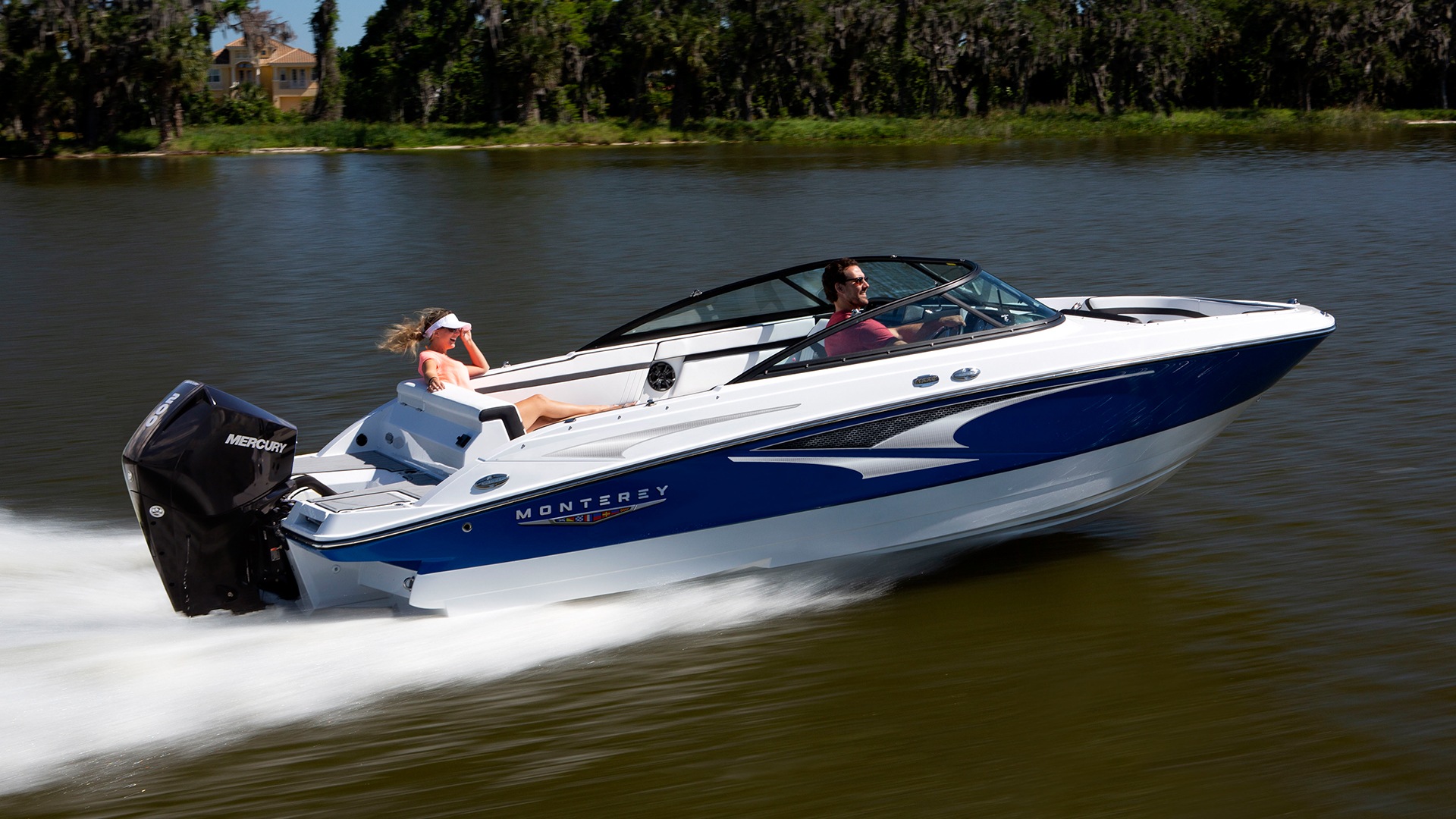

M-225
Setting A New Standard
Outboard Power Has Never Looked So Good

Masterfully crafted, and innovatively designed, Monterey’s M225 offers uncompromising performance with elegant styling. Featuring an LOA of 22’, the M225 offers plenty of room for your entire crew.  Add in the helm and stern stereo remote, as well as the optional wakeboard tower and you’ll have everything you could ever need to begin your on the water adventures!

LOA W/SWIM PLATFORM
22'0"
BEAM
8'6"
FUEL CAPACITY
52GAL
MAX HORSEPOWER
250HP
Build Your Custom Monterey M-225

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
M-225

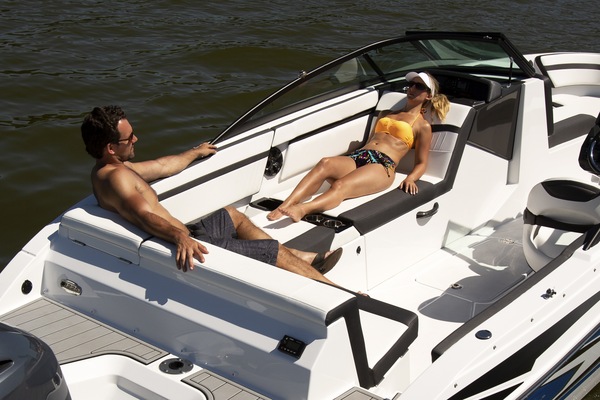

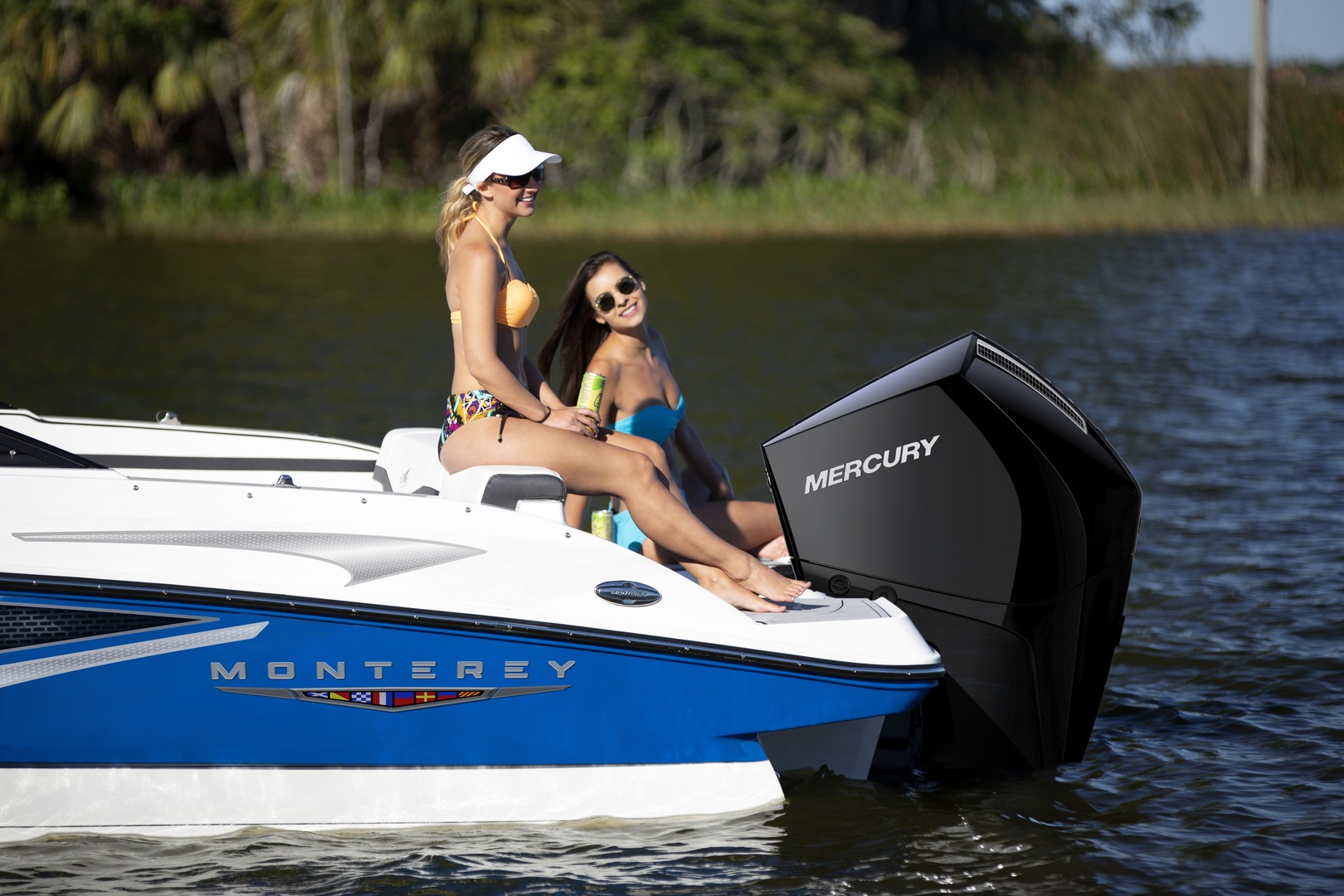

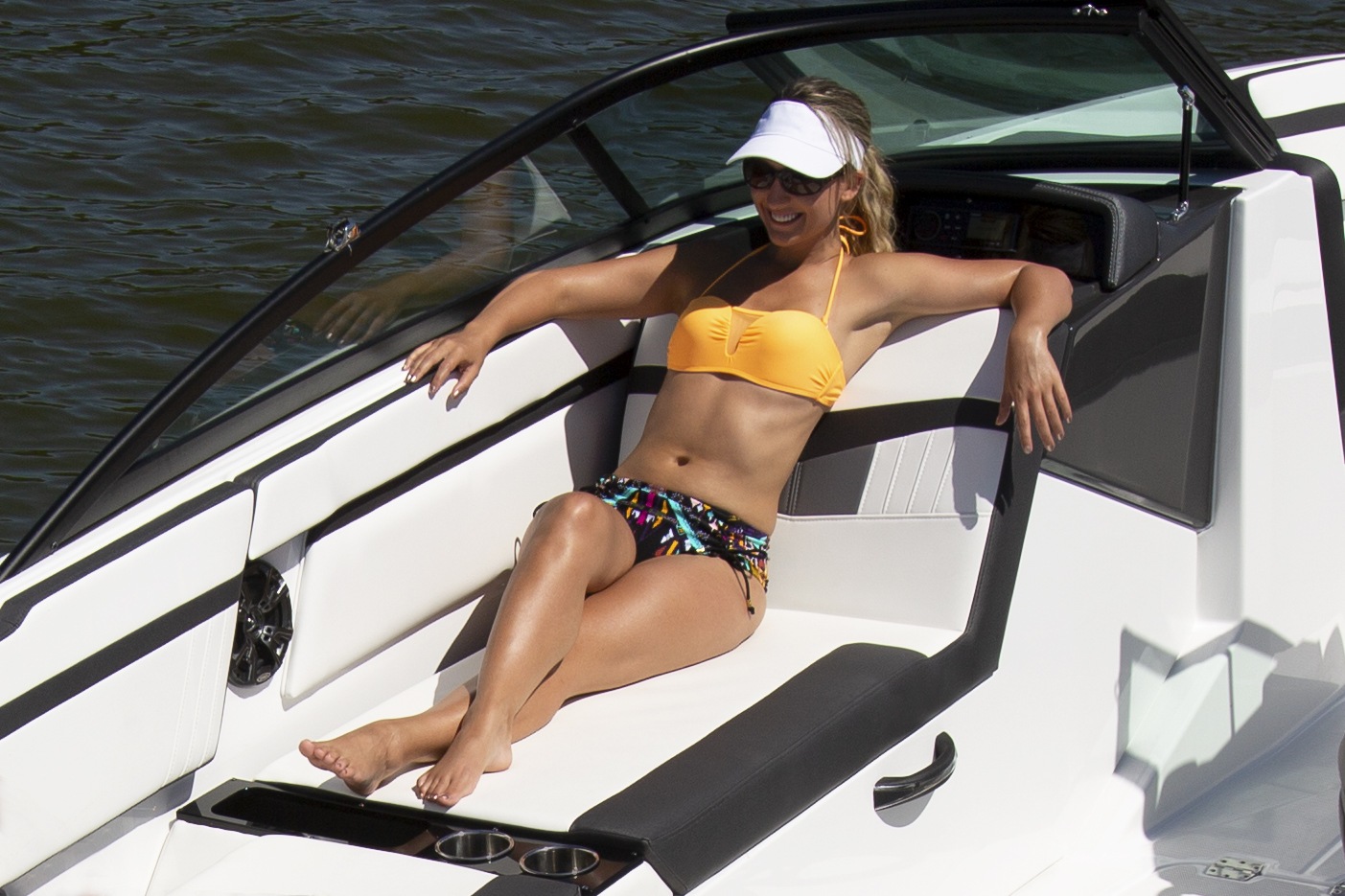

Photo Gallery
A Study In Luxury

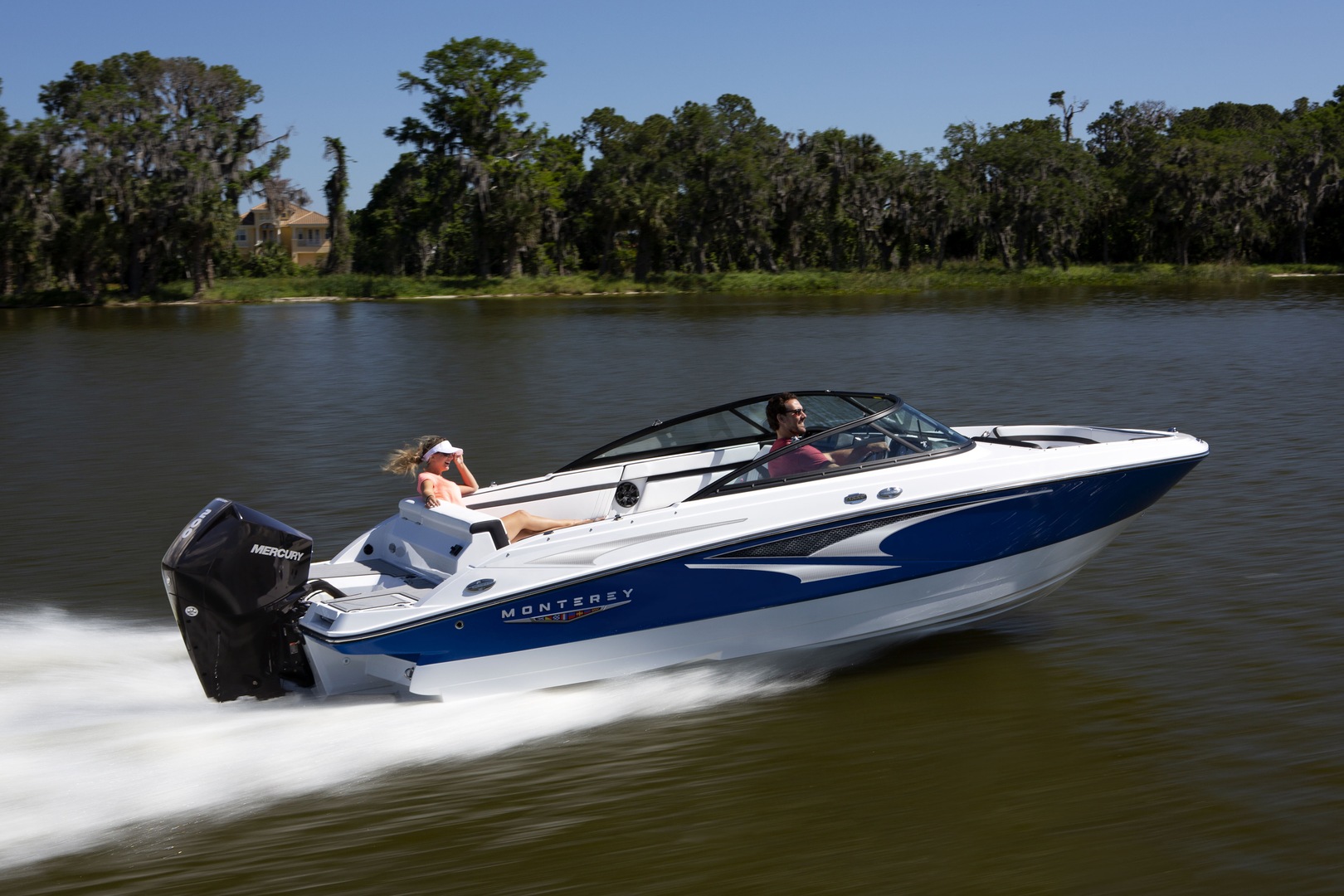

Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Specifications
Spec US Unit Metric Unit Description
LOA W/Swim Platform 22'0" 6.71M Length Overall, including add-on swim platform, not including bow rail or anchor roller
LOA w/Engines 24'10" 7.57M Length Overall With Engines
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 19° 19° Angle of keel measured at transom
Draft - Engine Up 17" 43.2CM Depth of hull to lowest point, engine trimmed up
Draft - Engine Down 34" 86.4CM Depth of hull to bottom of engine, trimmed down
Bridge Clearance W/Tower 8'1" 2.5M Height from water to highest point on tower, normal load
Fuel Capacity 52GAL 196.8L Capacity of fuel tank in gallons/liters
Dry Weight 3500LBS 1588KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 12 (US) 10 (CE) Maximum Rated Persons Capacity
Max Persons Weight 1980LBS 750KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight & Motor 2794LBS 1267KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 250HP 186KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Bilge Compartment

Automatic Bilge Pump StandardStandard
Gelcoated Bilge Compartment StandardStandard

Cockpit

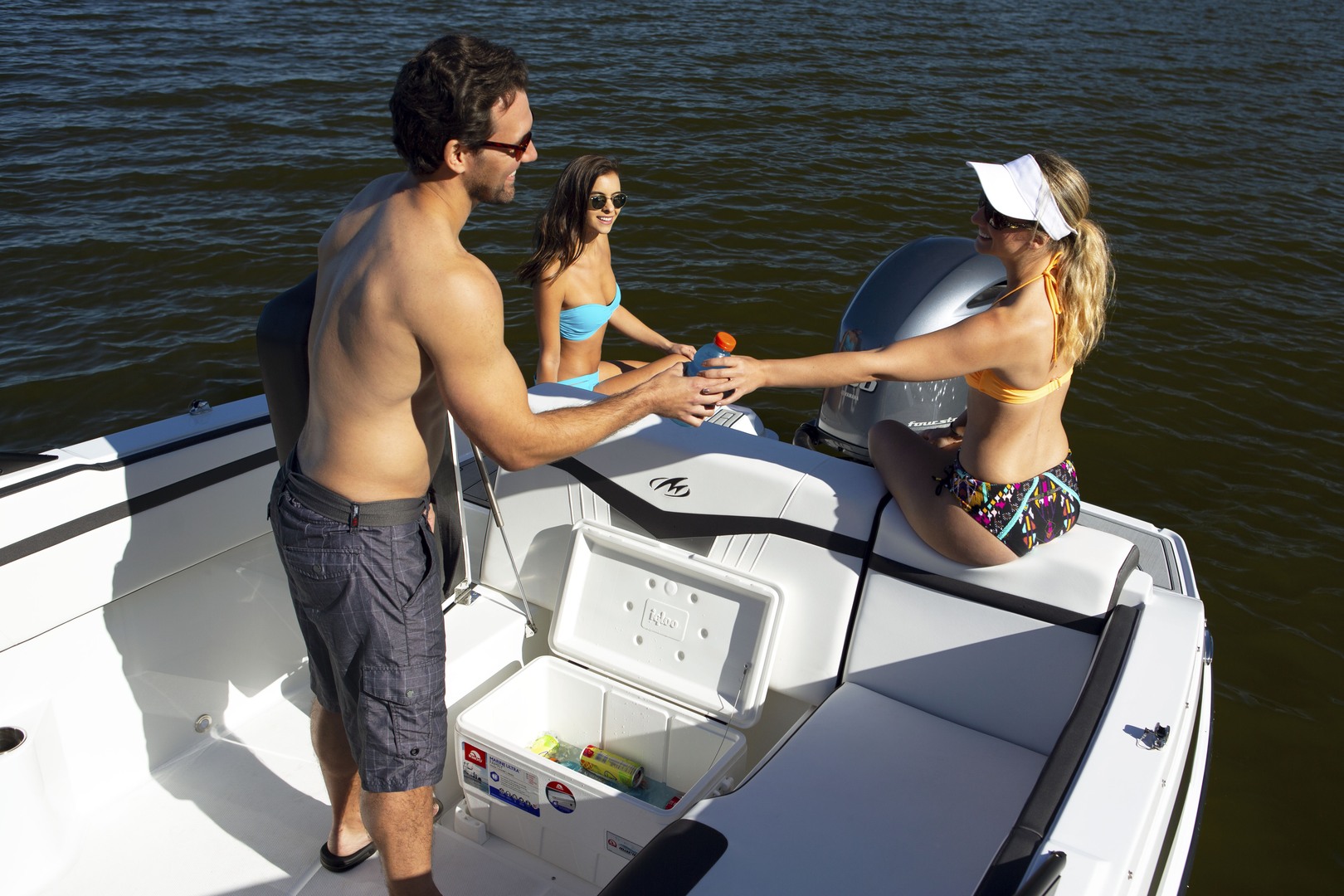

Cooler, 48 Qt Carry-On, under cockpit cushion StandardStandard
Drink Holders, Stainless Steel (11) StandardStandard
Glove Box, Port-with lockable cover StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers StandardStandard
Storage, Aft Cockpit Seating & Bilge Compartment StandardStandard
Storage, Bow Seating StandardStandard
Storage, Cockpit Seating StandardStandard
Storage, Helm StandardStandard
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner StandardStandard
Storage, Port and Starboard Dash, Accessible through bow backrests StandardStandard

Electrical Systems

Battery Switch, Single, On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard
Water Separating Fuel Filter StandardStandard

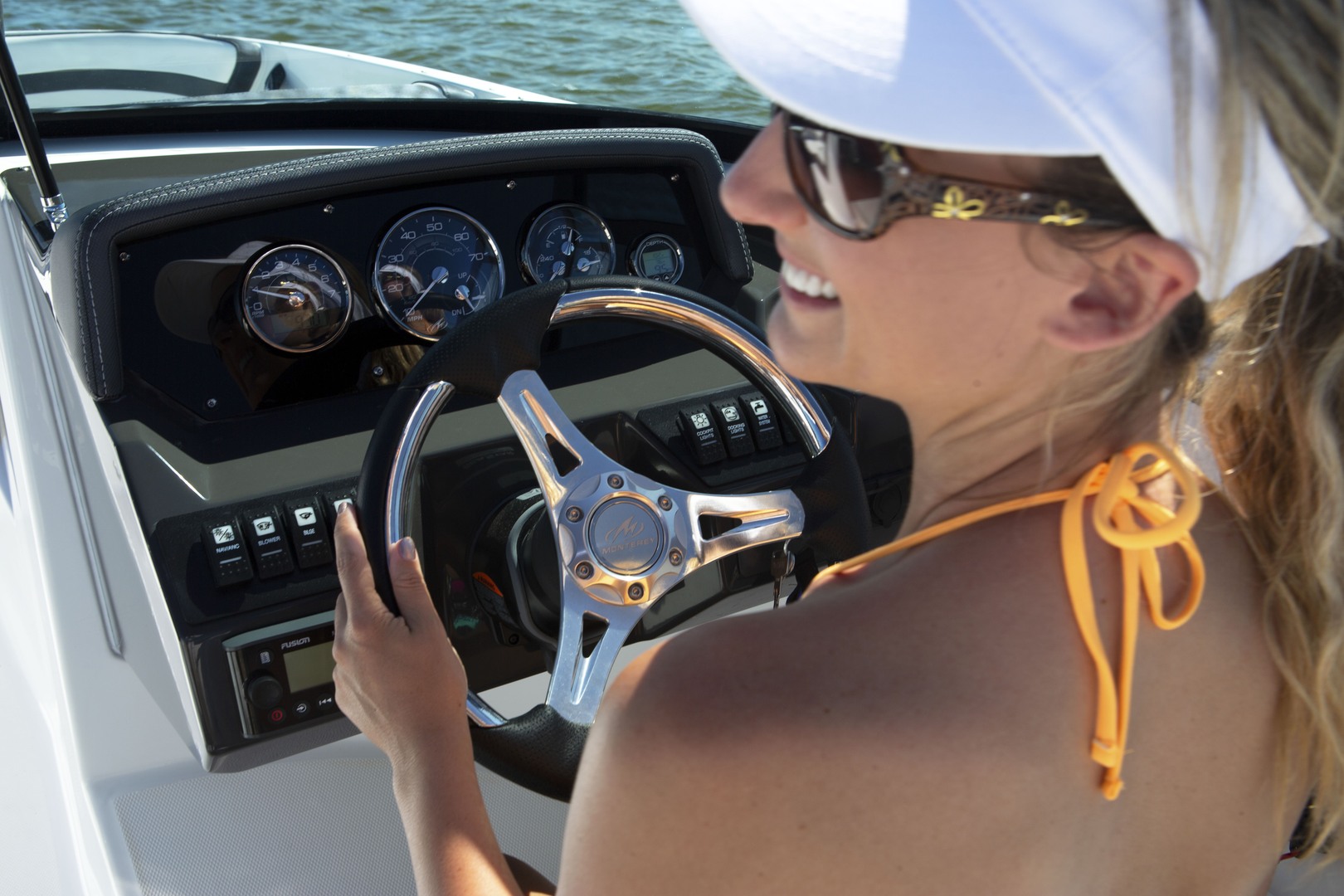

Helm

Fiberglass Dash with Upholstered Visor StandardStandard
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
12V USB Outlet StandardStandard
Steering, Hydraulic, Tilt w/Black Steering Wheel StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Arctic Ice Hull Gelcoat with graphics StandardStandard
Barrier Coat Vinylester StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Pull Up, Stainless Steel (6) StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Storage, Anchor-Bow Locker With Hatch StandardStandard
Swim Platform, Integral StandardStandard
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Walk-Thru at Transom StandardStandard
Windshield, Onyx, Curved Tempered w/Walk-Thru StandardStandard

Seating

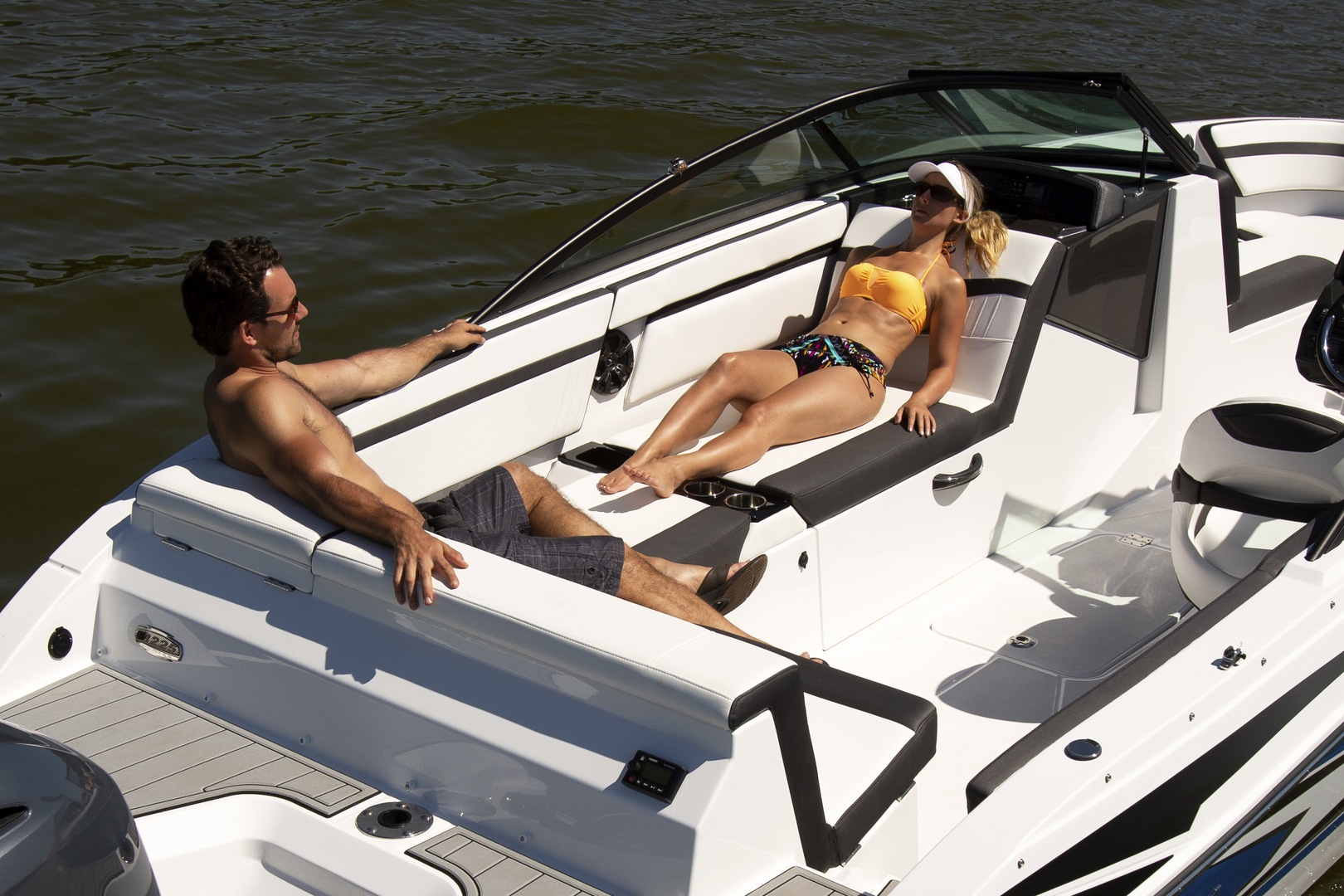

Arena Seating, Port Side and Aft Wrap Around Seating with Removable Filler Cushions StandardStandard
Bow Seating, extra wide with 3 removable cushions StandardStandard
Bucket Seat, Swivel w/slider & Flip-Up Bolster, Starboard StandardStandard

Canvas

Bimini Top/Top For Tower: Onyx Optional FeatureOptional
Bimini Top/Top For Tower: Rio Optional FeatureOptional
Bimini Top/Top For Tower: Royal Blue Optional FeatureOptional
Bimini Top/Top For Tower: Sapphire Optional FeatureOptional
Bimini Top/Top For Tower: Taupe Optional FeatureOptional
Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional

Cockpit

Bow Filler Cushion Optional FeatureOptional
Cockpit Inlay, Terra (SeaDek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Terra (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Table, w/Pedestal and Vertical side Mount Base Optional FeatureOptional
Stereo Remotes, Helm & Transom Optional FeatureOptional
Swim Platform Inlay, Terra (SeaDek) Swim Platform Inlay, Terra (SeaDek) Optional FeatureOptional
Swim Platform Inlay, Gray (SeaDek) Swim Platform Inlay, Gray (SeaDek) Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional

Helm

Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder) Optional FeatureOptional

Hull & Deck

Colored Hull Sides with Graphics (Other Than Arctic Ice) Optional FeatureOptional
Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Removable Ski Tow Pylon Optional FeatureOptional
Wakeboard Tower Black (Hinged To Fold Down) Optional FeatureOptional
Wakeboard Tower White (Hinged To Fold Down) Optional FeatureOptional

Seating

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port (in Lieu of Arena Seating) Optional FeatureOptional

Technical

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Battery Switch, Dual w/Additional Battery Tray Optional FeatureOptional
Depthsounder w/shallow water alarm (N/A W/Axiom Option) Optional FeatureOptional
Performance
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
MERCURY 200XL 200 MERCURY OUTBOARD Enertia-17-SS 45-49 8.9@32.6 Download
MERCURY 200XL, WHITE 200 MERCURY OUTBOARD Enertia-17-SS 45-49 8.9@32.6 Download
MERCURY 225XL 225 MERCURY OUTBOARD Enertia-19-SS 46-50 7.0@26.9 Download
MERCURY 225XL, WHITE 225 MERCURY OUTBOARD Enertia-19-SS 46-50 7.0@26.9 Download
MERCURY 250XL 250 MERCURY OUTBOARD Enertia-19-SS 50-54 10.0@35E
MERCURY 250XL, WHITE 250 MERCURY OUTBOARD Enertia-19-SS 50-54 10.0@35E

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.

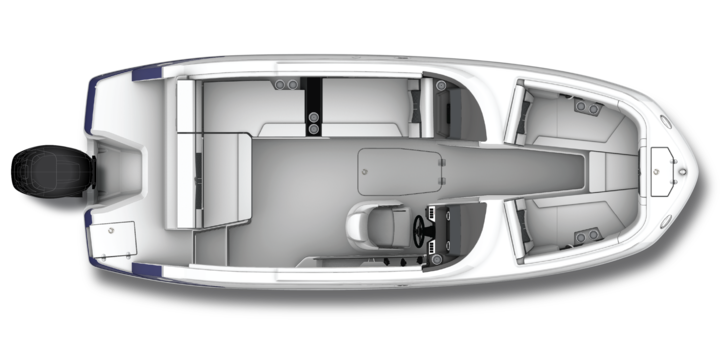

Overhead Image
