Setting A New Standard
Designed For Fun On The Water

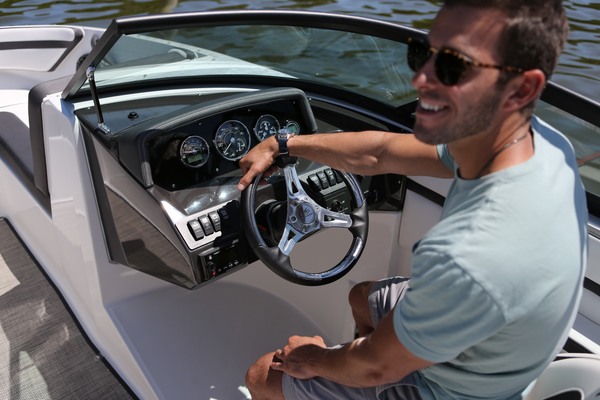

Brimming with standard features and amenities, the M-205 boasts features such as a fiberglass dash with upholstered visor and an ergonomically designed helm station, equipped with Medallion digital instruments, an MP3 adapter, 12V/USB outlet and power assisted tilt steering, as well as a multitude of designated storage options located throughout the boat.

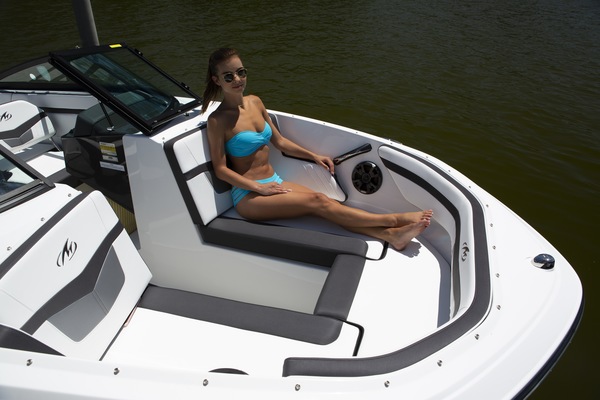

Perfectly designed seating arrangements provide you with a spacious entertainment setting. This includes a starboard side bucket seat with swivel slider and flip-up bolster, a port side companion seat with flip backrest and wrap around seating with removable filler cushions. You’ll find the extra wide bow seating with 3 removable cushions provides a generous amount of leg room in the bow seating area . A choice of 2 standard upholstery options completes the package!

Build Your Custom Monterey M-205

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
Photo Gallery
A Study In Luxury
Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Spec US Unit Metric Unit Description
LOA W/Swim Platform 20'0" 6.09M Length Overall, including add-on swim platform, not including bow rail or anchor roller
LOA w/Engines 22'8" 6.91M Length Overall With Engines
Beam 8'4" 2.54M Width of hull at widest section including rubrail
Deadrise 19° 19° Angle of keel measured at transom
Draft - Engine Up 18" 45.7CM Depth of hull to lowest point, Engine trimmed up
Draft - Engine Down 33" 83.8CM Depth of hull to bottom Engine, trimmed down
Bridge Clearanance W/Tower 7'10" 2.4M Height from water to highest point on tower, normal load
Fuel Capacity 36GAL 136.3L Capacity of fuel tank in gallons/liters
Dry Weight 3100LBS 1406KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons Weight 1765LBS 675KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight & Motor 2568LBS 1165KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 225HP 168KW Maximum horsepower for safe operation
Max Persons 11 (US) 9 (CE) Maximum Rated Persons Capacity
Standards & Options
Engine Option Standards and Options

Bilge Compartment

Automatic Bilge Pump StandardStandard
Gelcoated Bilge Compartment StandardStandard


Cooler, 48 Qt Carry-On, under cockpit cushion StandardStandard
Drink Holders, Stainless Steel (9) StandardStandard
Glove Box, Port-Molded with lockable cover StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Stereo, Fusion Satellite Ready AM/FM/USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers StandardStandard
Storage, Aft Cockpit Seating and Engine Compartment StandardStandard
Storage, Bow Seating StandardStandard
Storage, Helm StandardStandard
Storage, In-Floor Ski w/Fiberglass Hatch & Dry Deck Liner StandardStandard
Storage, Port and Starboard Dash, Accessible through bow backrests StandardStandard

Electrical Systems

Automatic Bilge Pump StandardStandard
Battery Switch, Single, On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard
Water Separating Fuel Filter StandardStandard


Fiberglass Dash with Upholstered Visor StandardStandard
Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
12V USB Outlet StandardStandard
Steering, Hydraulic, Tilt w/Black Steering Wheel StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Arctic Ice Hull Gelcoat with graphics StandardStandard
Barrier Coat Vinylester StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Stainless Steel (6) StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Storage, Anchor-Under Forward Bow Cushion StandardStandard
Swim Platform, Integral StandardStandard
Swim Platform Ladder, 4 step, Telescoping, Recessed with Fiberglass Hatch StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Walk-Thru at Transom StandardStandard
Windshield, Onyx, Curved Tempered w/Walk-Thru StandardStandard


Bow Seating, extra wide with 3 removable cushions StandardStandard
Bucket Seat, w/Flip Up Bolster & Manual Slide, Swivel Stbd StandardStandard
Port Companion seat with flip over backrest converts to aft facing lounge StandardStandard
Wrap around seating Port side and aft cockpit StandardStandard


Bimini Top/Bimini Top For Tower: Onyx Optional FeatureOptional
Bimini Top/Bimini Top For Tower: Rio Optional FeatureOptional
Bimini Top/Bimini Top For Tower: Royal Blue Optional FeatureOptional
Bimini Top/Bimini Top For Tower: Sapphire Optional FeatureOptional
Bimini Top/Bimini Top For Tower: Taupe Optional FeatureOptional
Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional


Bow Filler Cushion Optional FeatureOptional
Cockpit Inlay, Terra (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Gray (SeaDek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Table, w/Pedestal and Vertical side Mount Base Optional FeatureOptional
Stainless Steel Pull Up Cleats Optional FeatureOptional
Stereo Remotes, Helm & Stern Optional FeatureOptional
Swim Platform Inlay, Terra (SeaDek) Optional FeatureOptional
Swim Platform Inlay, Gray (SeaDek) Swim Platform Inlay, Gray (SeaDek) Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional


Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer (Includes Depthsounder) Optional FeatureOptional

Hull & Deck

Colored Hull Sides with Graphics (Other Than Arctic Ice) Optional FeatureOptional
Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Removable Ski Tow Pylon Optional FeatureOptional
Wakeboard Tower Black (Hinged To Fold Down) Optional FeatureOptional
Wakeboard Tower White (Hinged To Fold Down) Optional FeatureOptional


Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Battery Switch, Dual w/Additional Battery Tray Optional FeatureOptional
Depthsounder w/shallow water alarm (N/A W/GPS Option) Optional FeatureOptional
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
MERCURY 200XL 200 MERCURY OUTBOARD Enertia-17-SS 50-54 7.0@34E
MERCURY 200XL, WHITE 200 MERCURY OUTBOARD Enertia-17-SS 50-54 7.0@34E
MERCURY 225XL 225 MERCURY OUTBOARD Enertia Eco-19-SS 53-57 5.2@28.1 Download
MERCURY 225XL, WHITE 225 MERCURY OUTBOARD Enertia Eco-19-SS 53-57 5.2@28.1 Download

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
