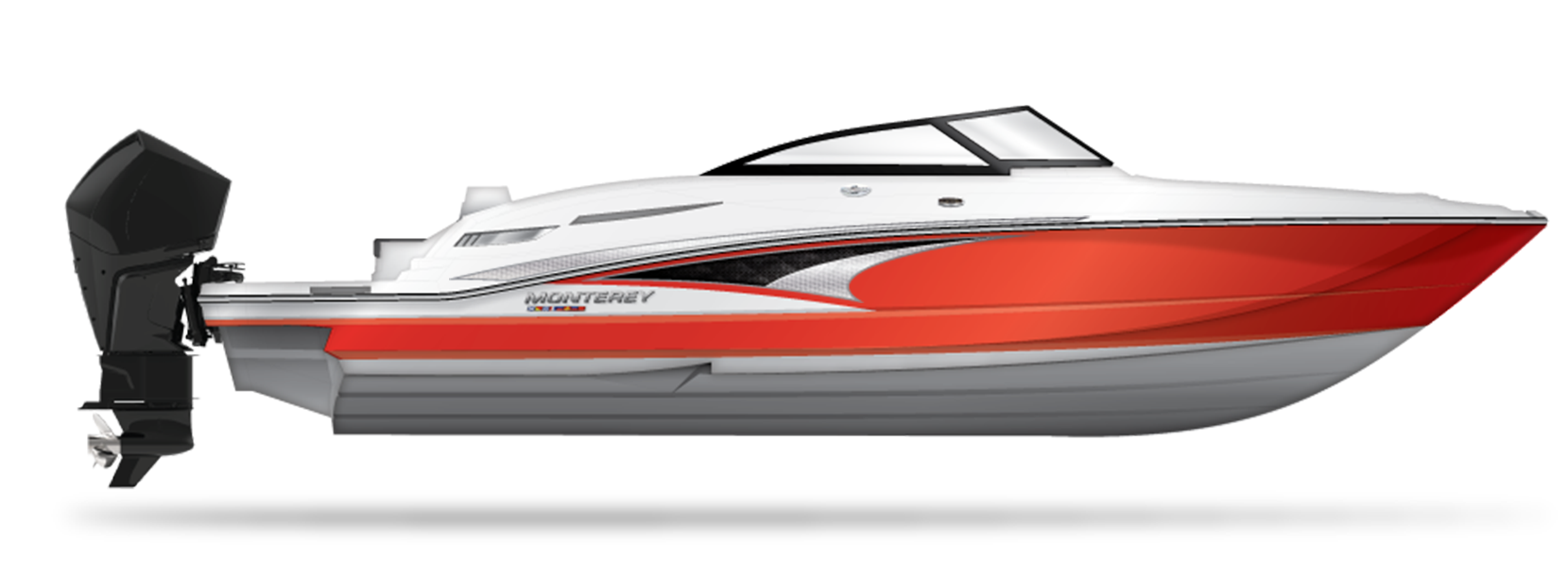

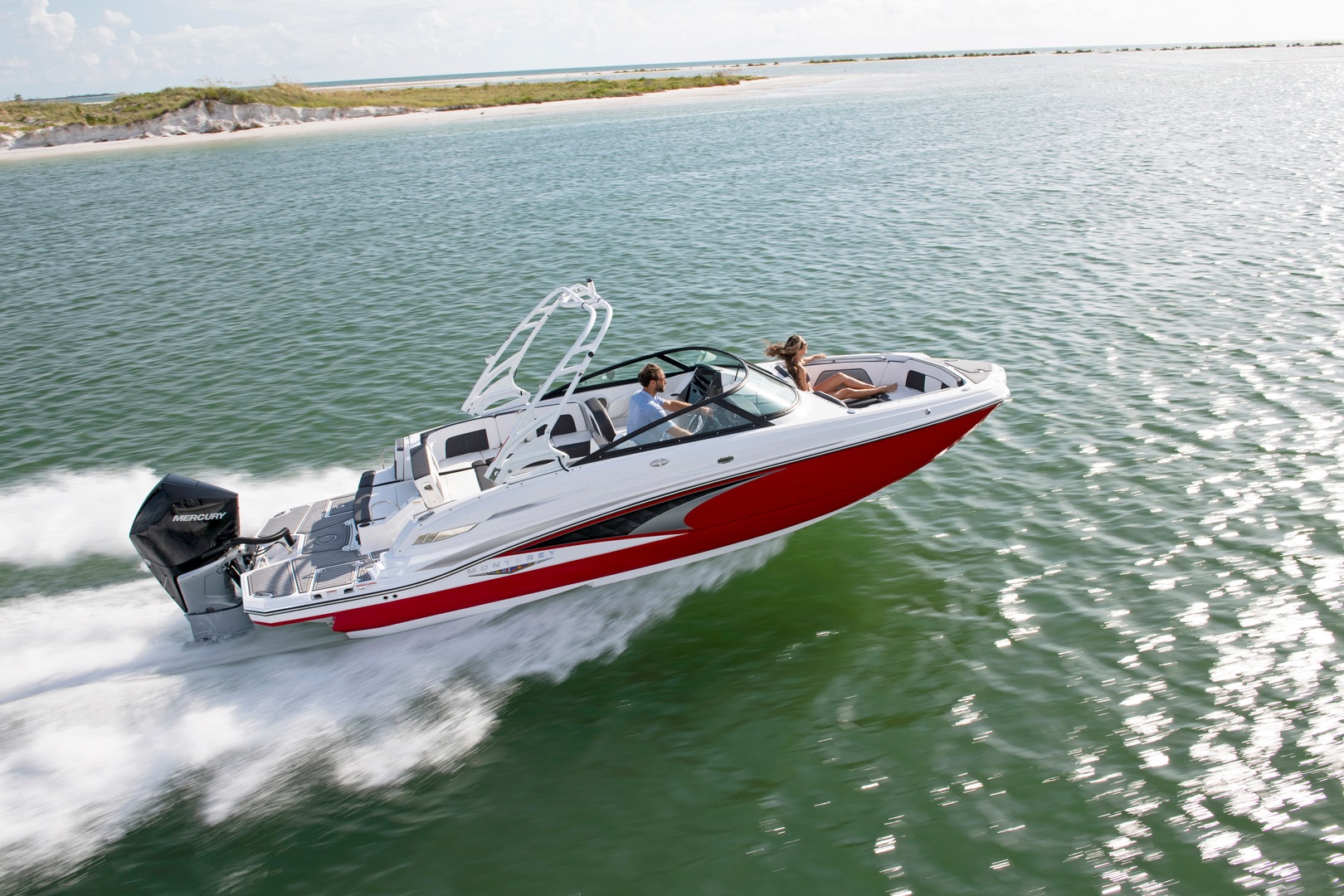

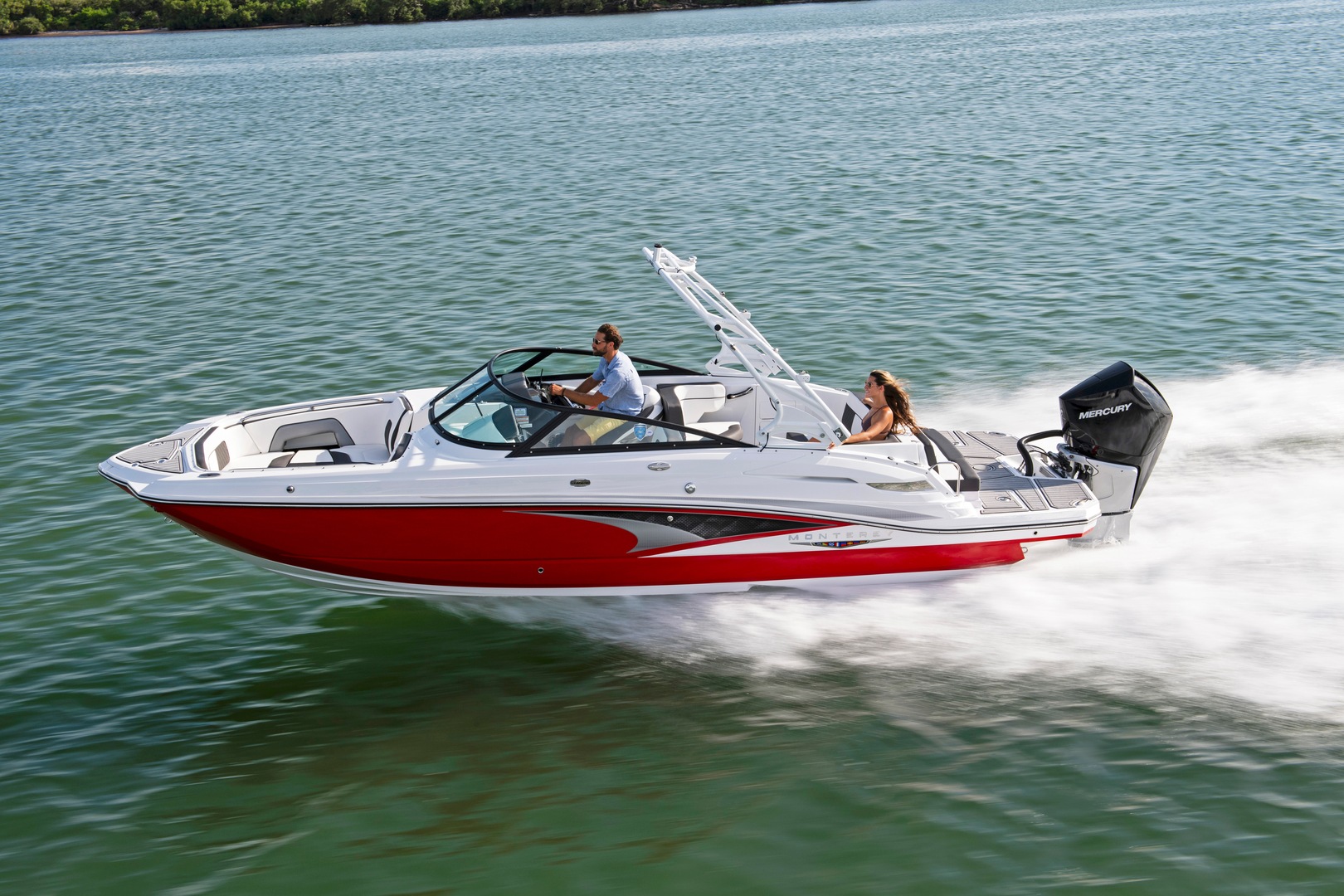

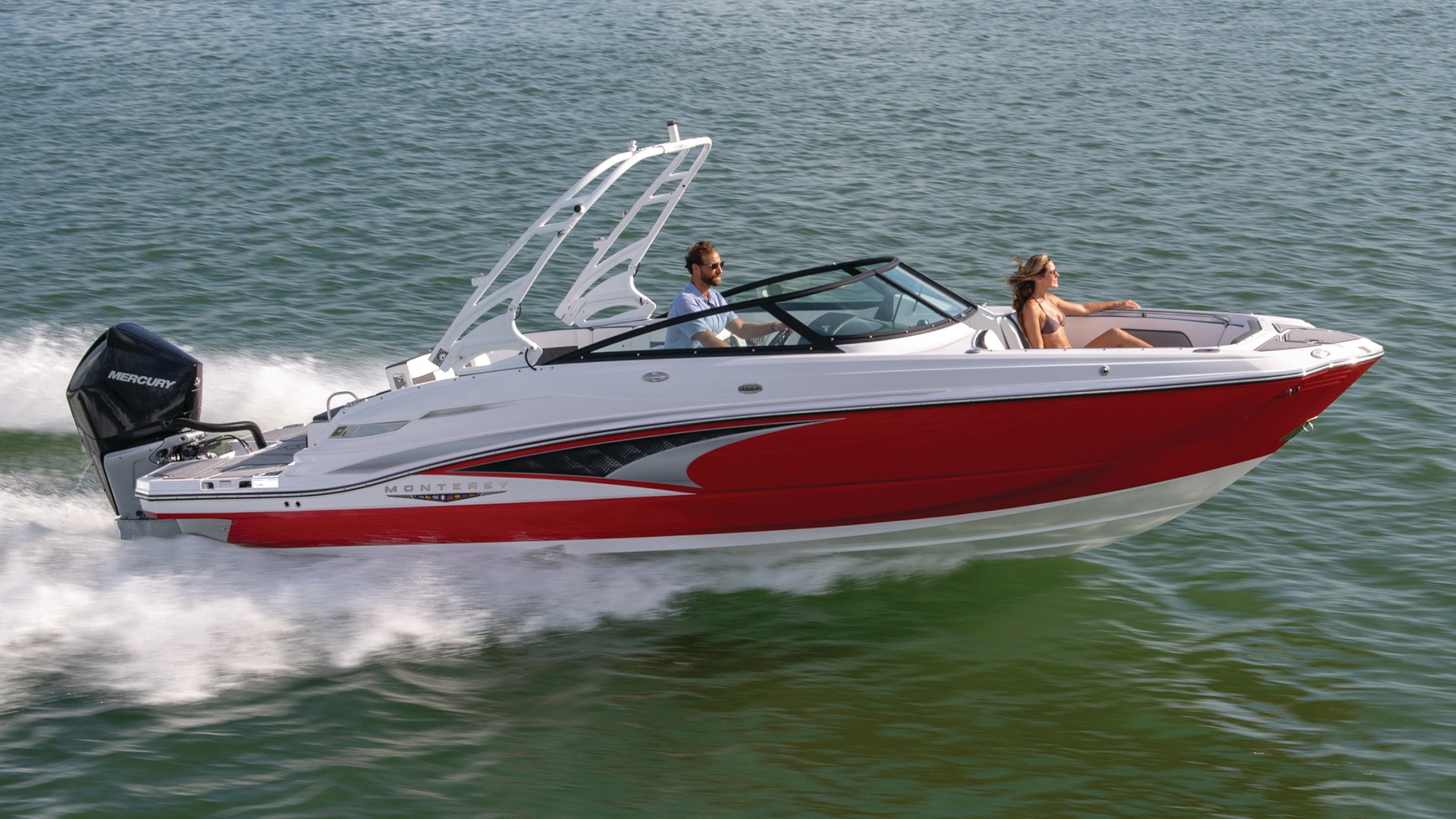

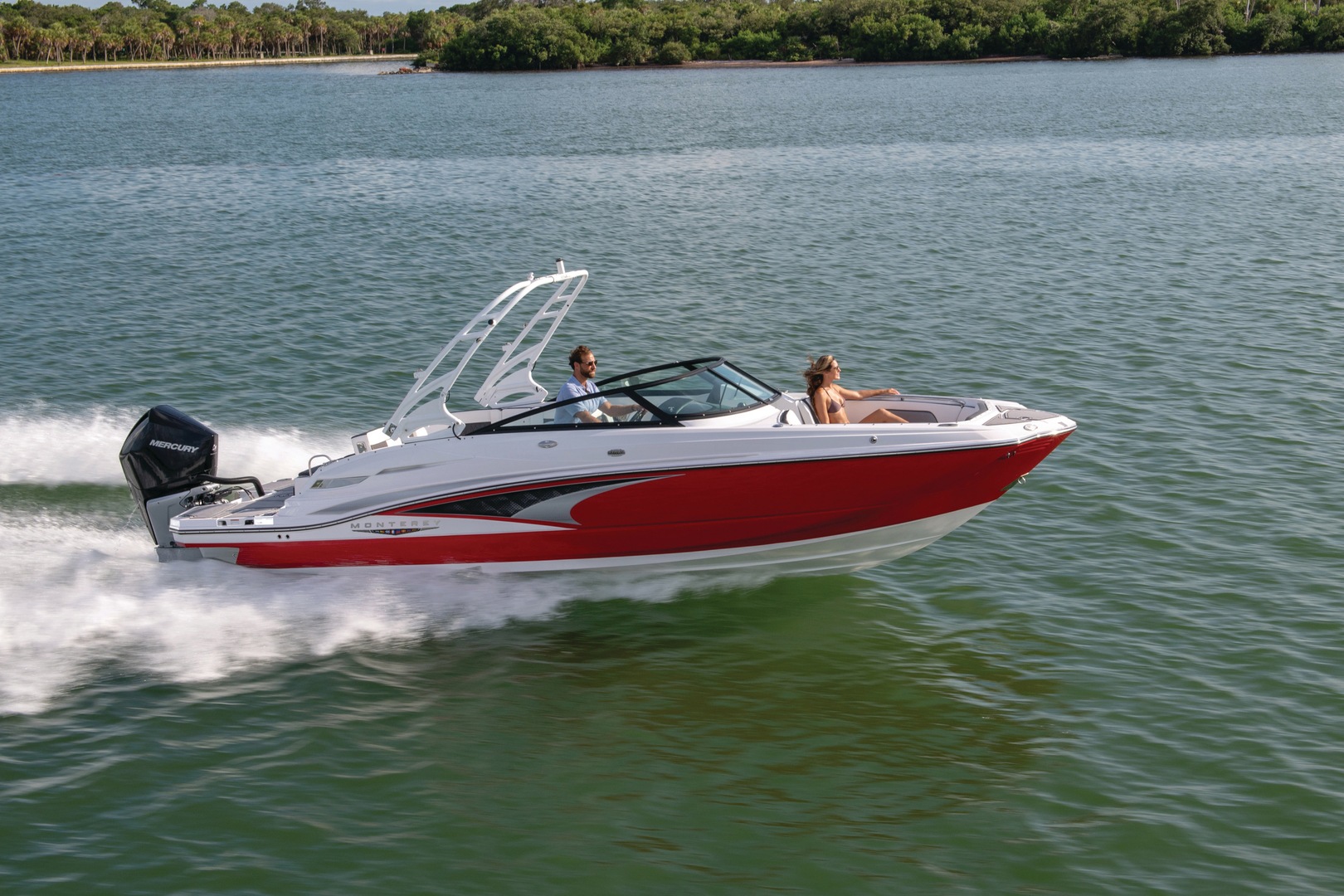

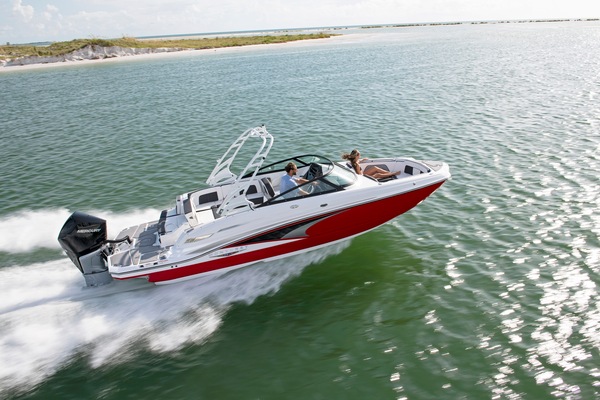

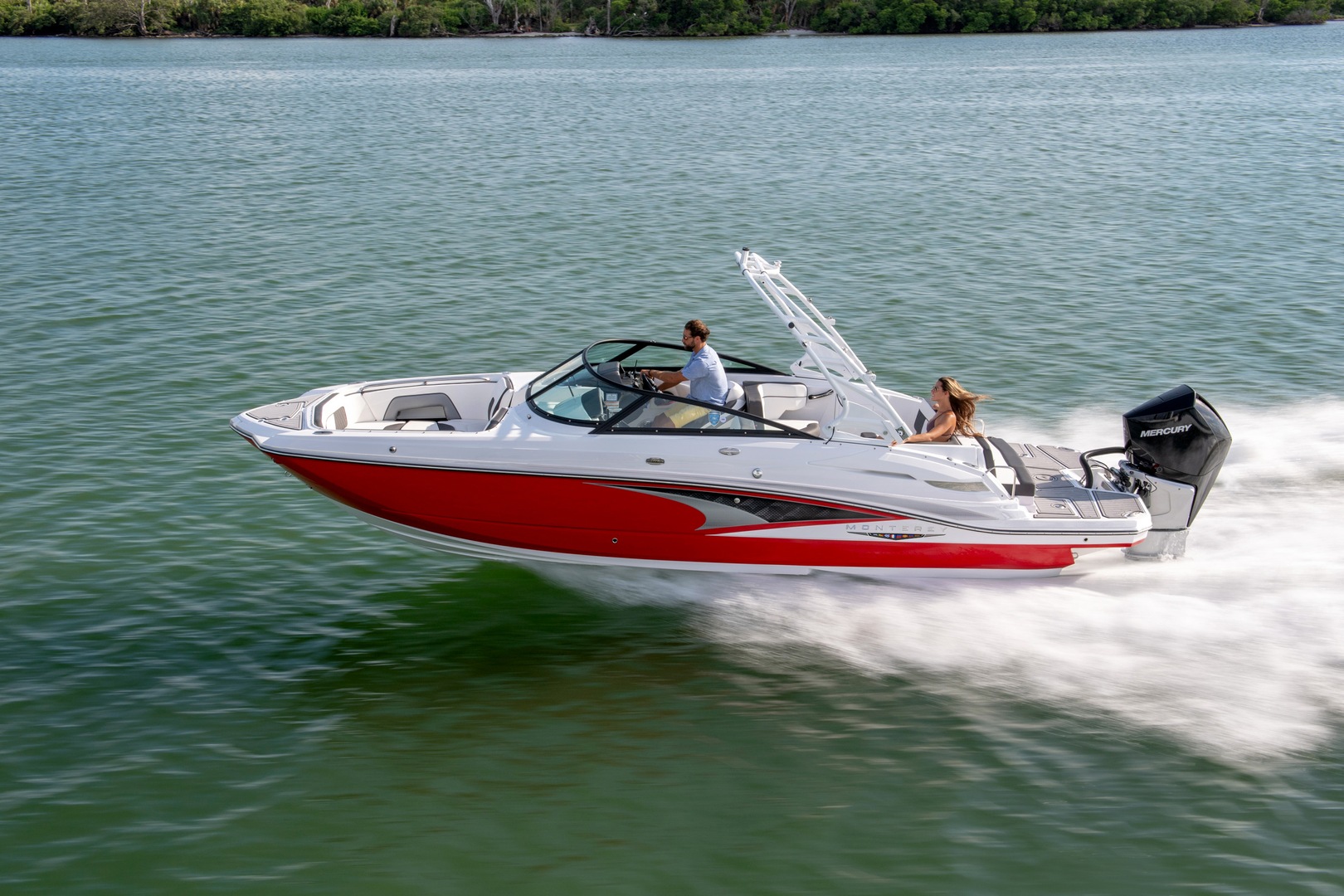

Sleek, refined, luxurious, and powerful are just a few words that will come to mind when you first step on the M-65. But what you can't see is what really makes the M-65 so special. Spacious seating arrangements, special dedicated storage options, and powerful engineering make it easy to spend long, unforgettable days aboard the M-65.
LOA W/SWIM PLATFORM 26'7"
BEAM 8'6"
FUEL CAPACITY 80GAL
MAX HORSEPOWER 400HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 26'7" | 8.1M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| LOA w/Engines | 29'1" | 8.86M | Length Overall With Engines |
| Beam | 8' 6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 18" | 45.7CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 33" | 83.8CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance W/Tower | 8'0" | 2.4M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 80GAL | 302.8L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 15GAL | 56.8L | Capacity of water tank in gallons/liters |
| Waste Capacity | 11GAL | 41.6L | Capacity of waste tank in gallons/liters |
| Dry Weight | 5200LBS | 2359KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | Yacht Certified | 13 (CE) | Maximum Rated Persons Capacity |
| Max Power | 400HP | 298KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Bilge Compartment |
Automatic Bilge Pump |  |
| Bilge Hatch, Electrically Actuated | |
|
| Gel Coated Bilge Compartment | |
|
Canvas |
Bimini Top w/Embroidered Boot | |

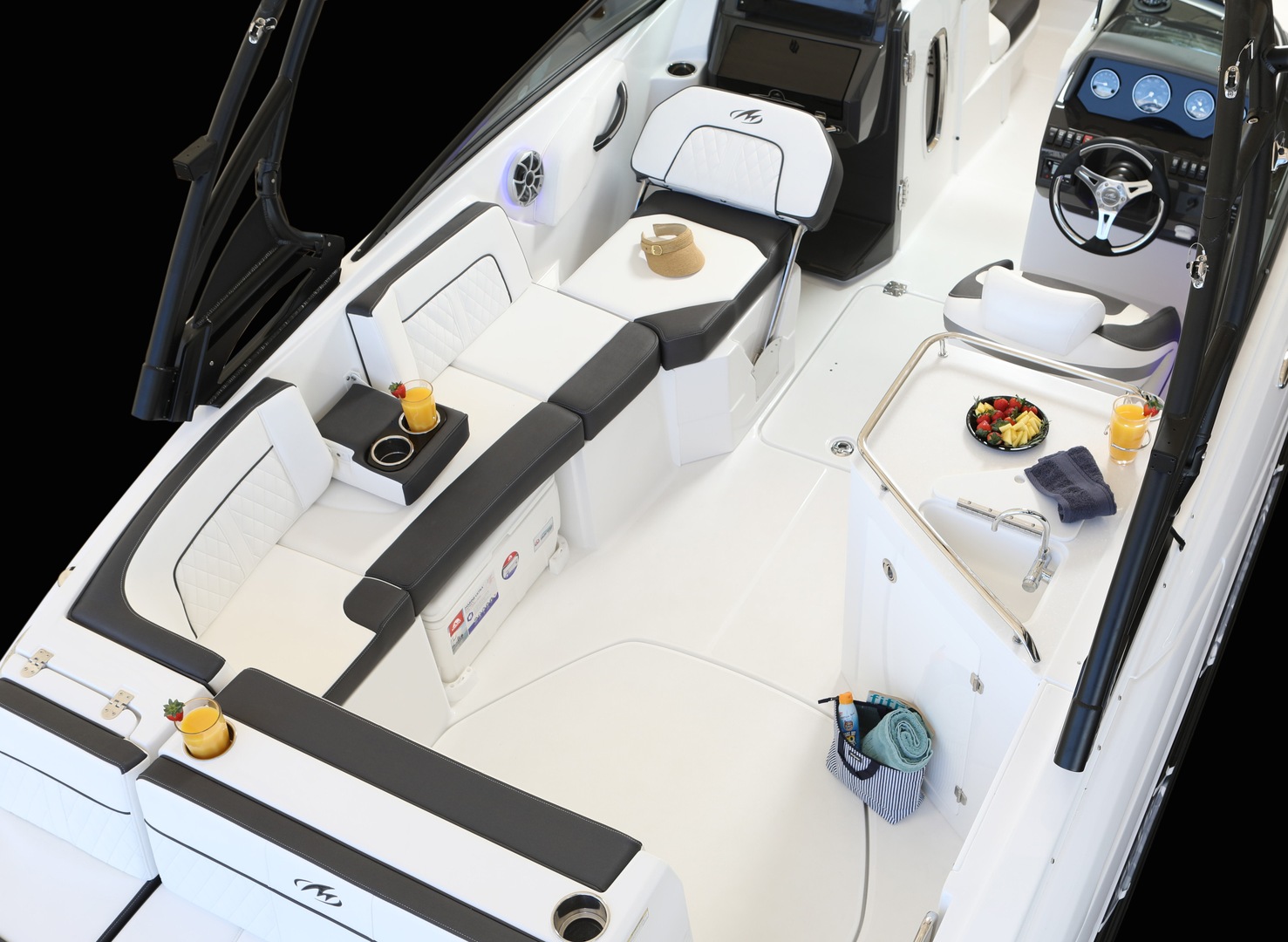

Cockpit |
Cockpit Table w/ Pedestal & Vertical Side Mount Bases, Fwd | |
| Cooler, 48 Qt Carry-On | |
|
| Courtesy Lighting, Blue/White, LED 12 V | |
|
| Drink Holders, Stainless Steel (13) | |
|
| Fiberglass Cockpit Liner w/Non-Skid & Self Bailing | |
|
| Grab Rails | |
|
| Outlet, 12 V | |
|
| Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & (4) Rockford Fosgate 6.5" Speakers & Dash Remote | |
|
| Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck | |
|

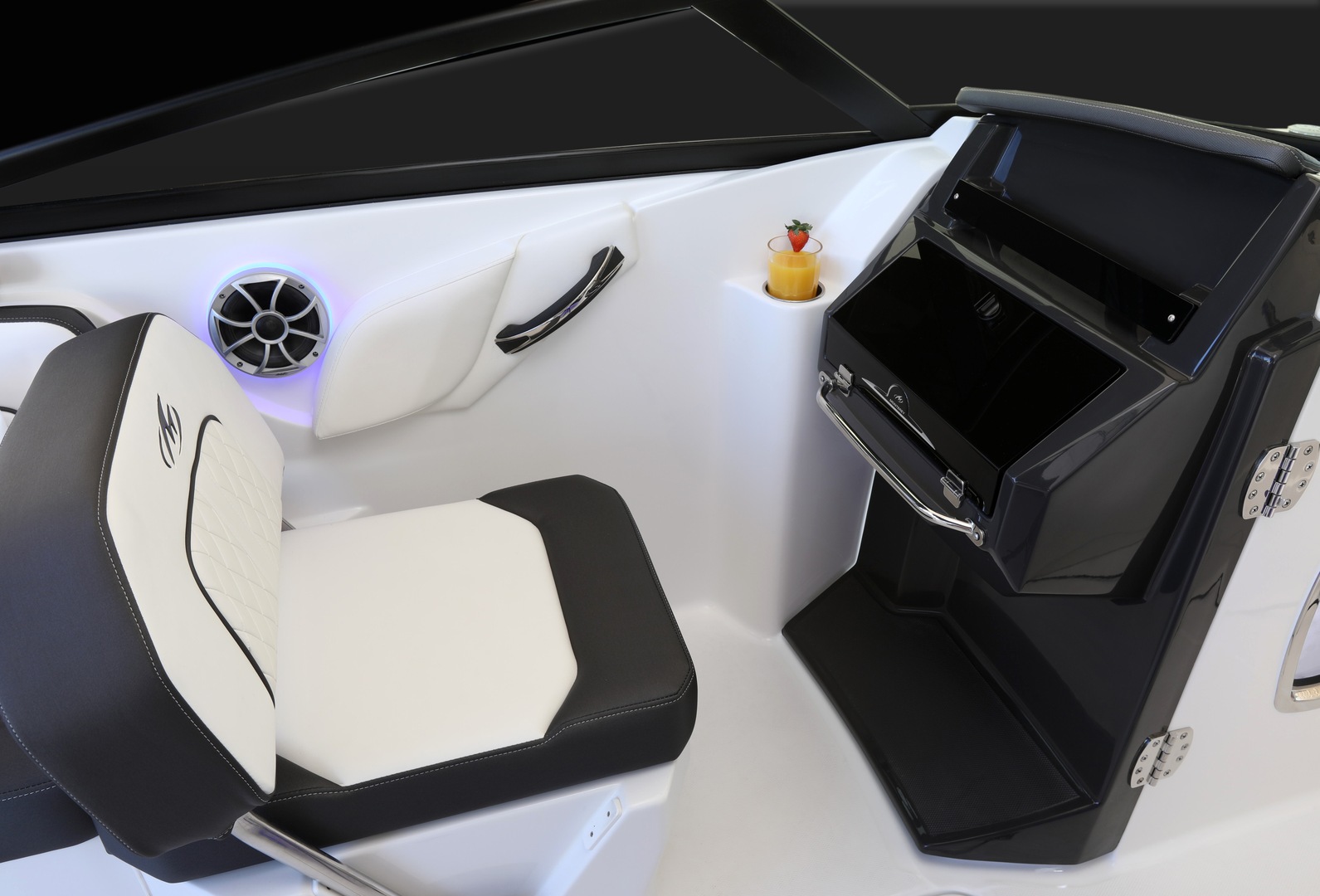

| Storage, Starboard Helm | |
|
| Transom Shower w/Pressurized Water (Cold Only) | |
|
Electrical Systems |
Battery Switch, Dual w/2 Battery Trays | |
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
| Water Separating Fuel Filter | |
|

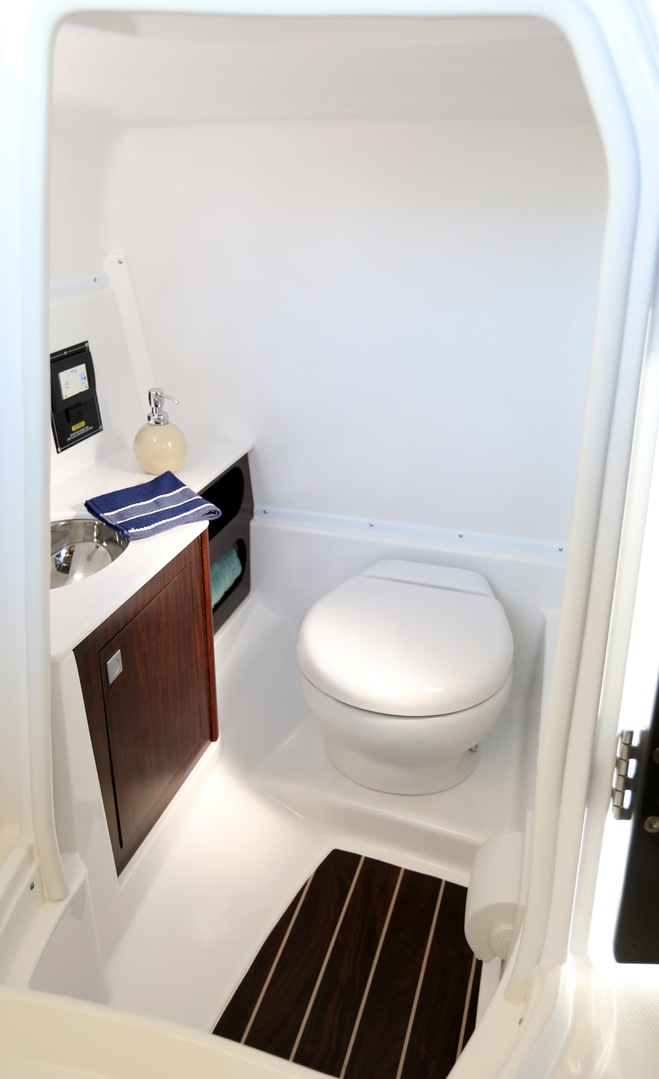

Head |
Toilet (Porta-Potti) | |
| Vanity w/Solid Surface Top, Sink & Pullout Sprayer | |
|
| Flooring, EVA Foam | |
|

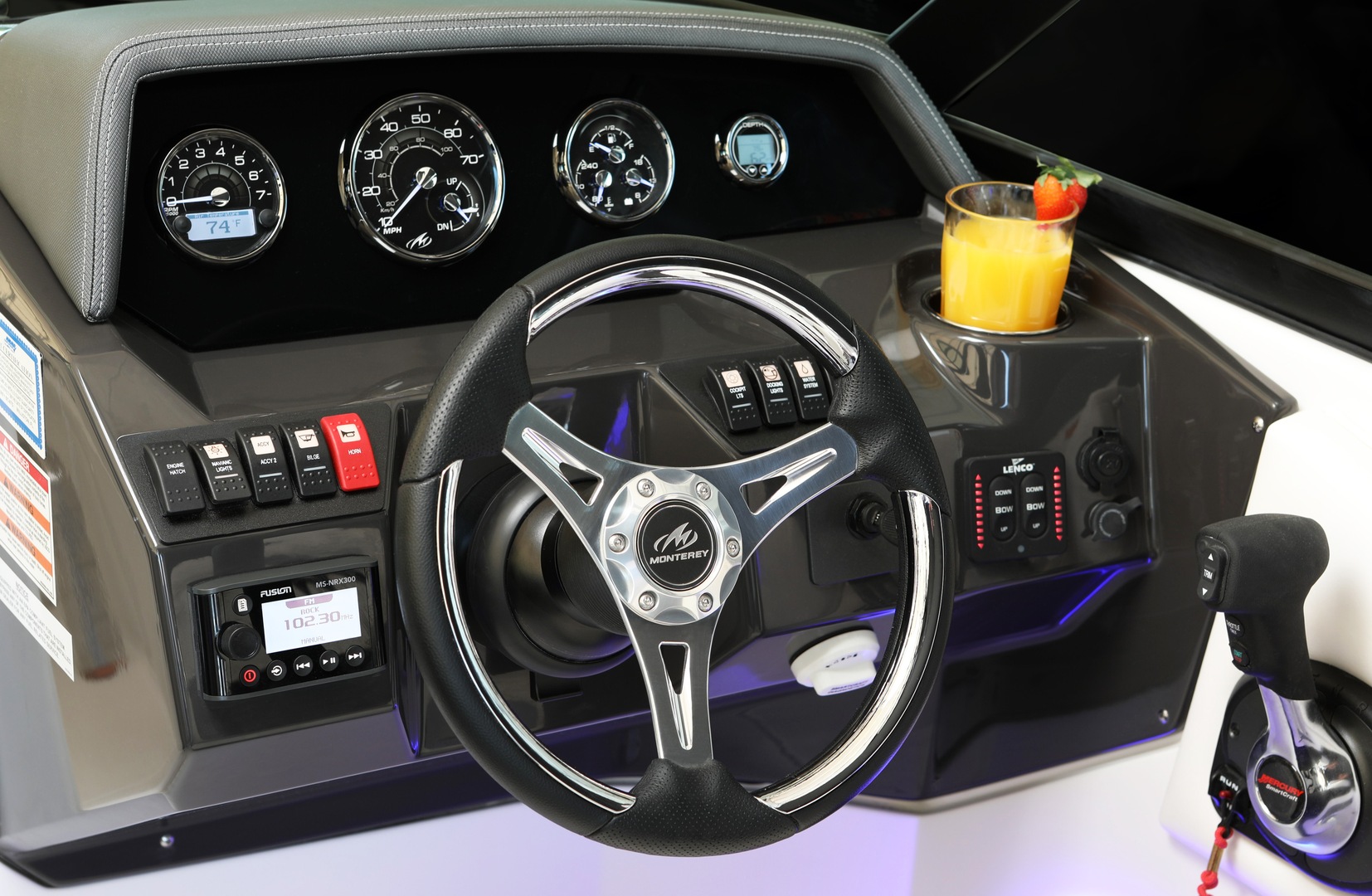

Helm |
Compass | |
| Digital GPS Speedometer | |
|
| Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting | |
|
| MP3 Adapter | |
|
| Outlet, 12 V USB | |
|
| Steering Wheel, Black w/Silver Insert | |
|
| Steering, Power Assisted | |
|
| Steering, Tilt | |
|
| Switches, Lighted Weatherproof | |
|
Hull & Deck |
Air Assist Chine | |
| Barrier Coat, Vinylester | |
|
| Boarding Ladder, Telescoping & Recessed, Bow | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Bow Hand Rails, Stainless Steel | |
|
| Bow Plate, Stainless Steel | |
|
| Cleats, Pull-up, Stainless Steel (8) | |
|
| Colored Hull | |
|
| Cooler Molded In, Bow | |
|
| Custom Hull Side Graphics | |
|
| Door, Walk-Thru at Helm | |
|
| Door, Walk-Thru at Transom | |
|
| Drain Plug, Brass Garboard | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Docking | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | |
|
| Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | |
|
| Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch | |
|
| Swim Platform, Integral | |
|
| Thru Hulls, Stainless Steel Above Waterline | |
|
| Transhield Cover | |
|
| Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | |
|
Seating |

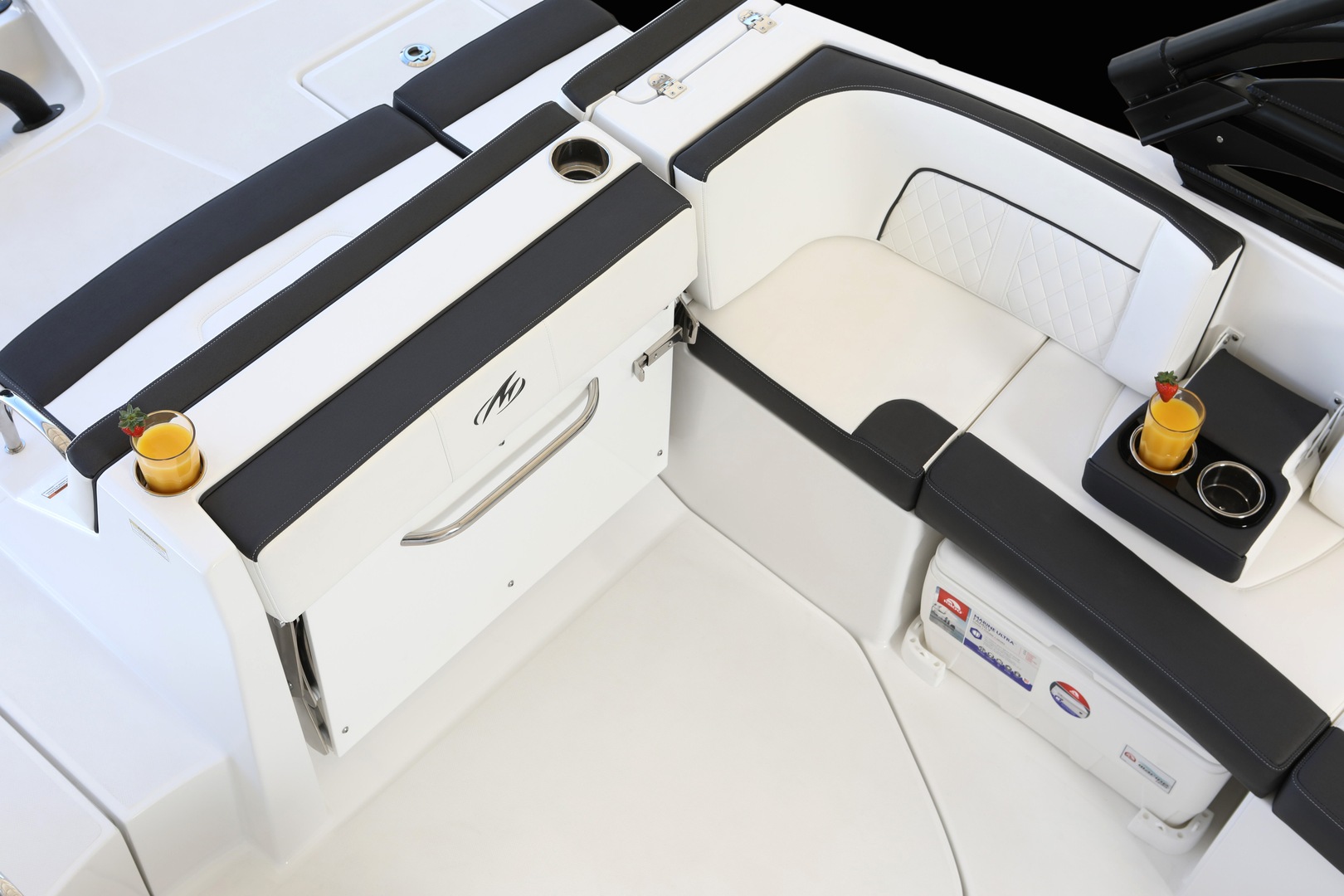

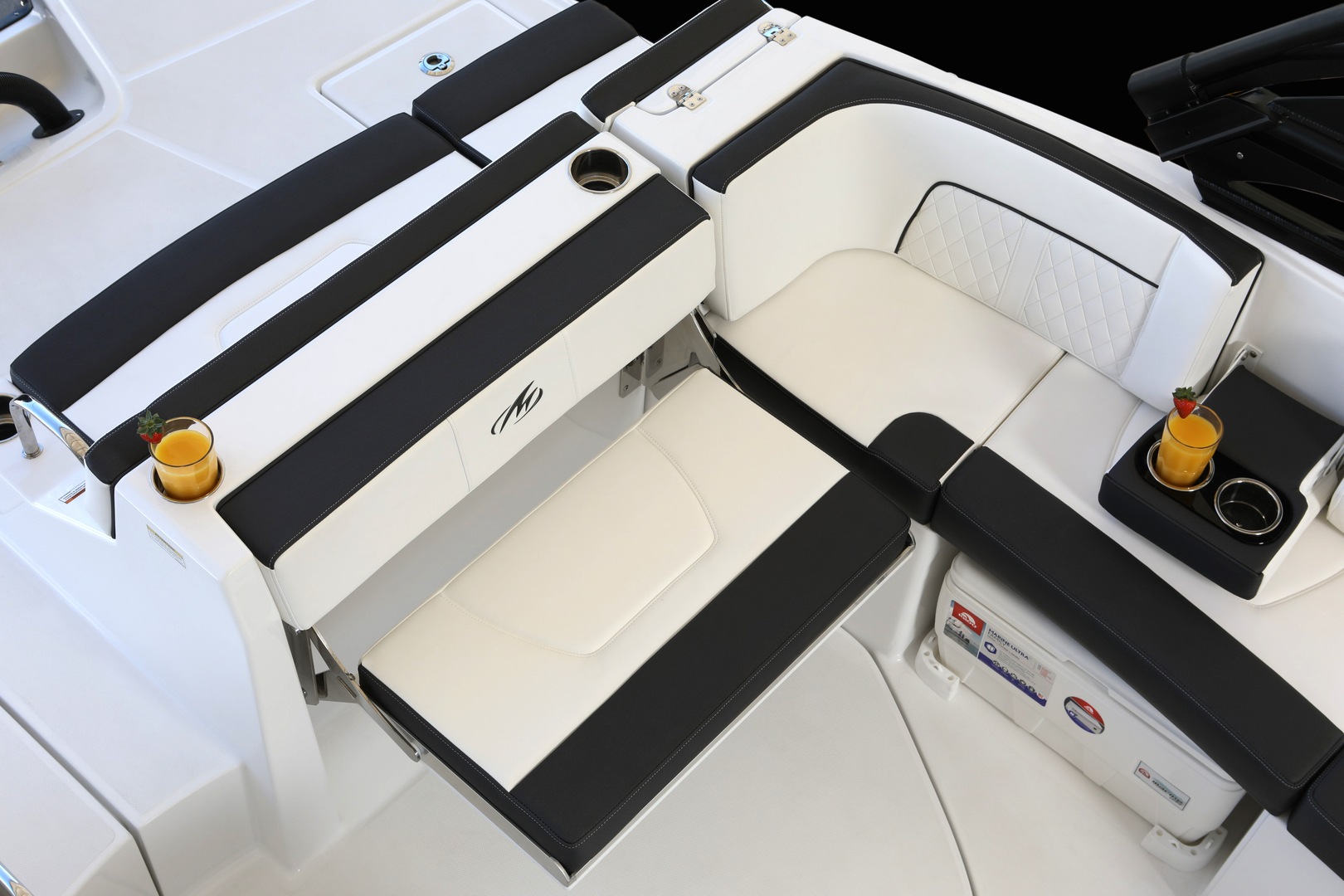

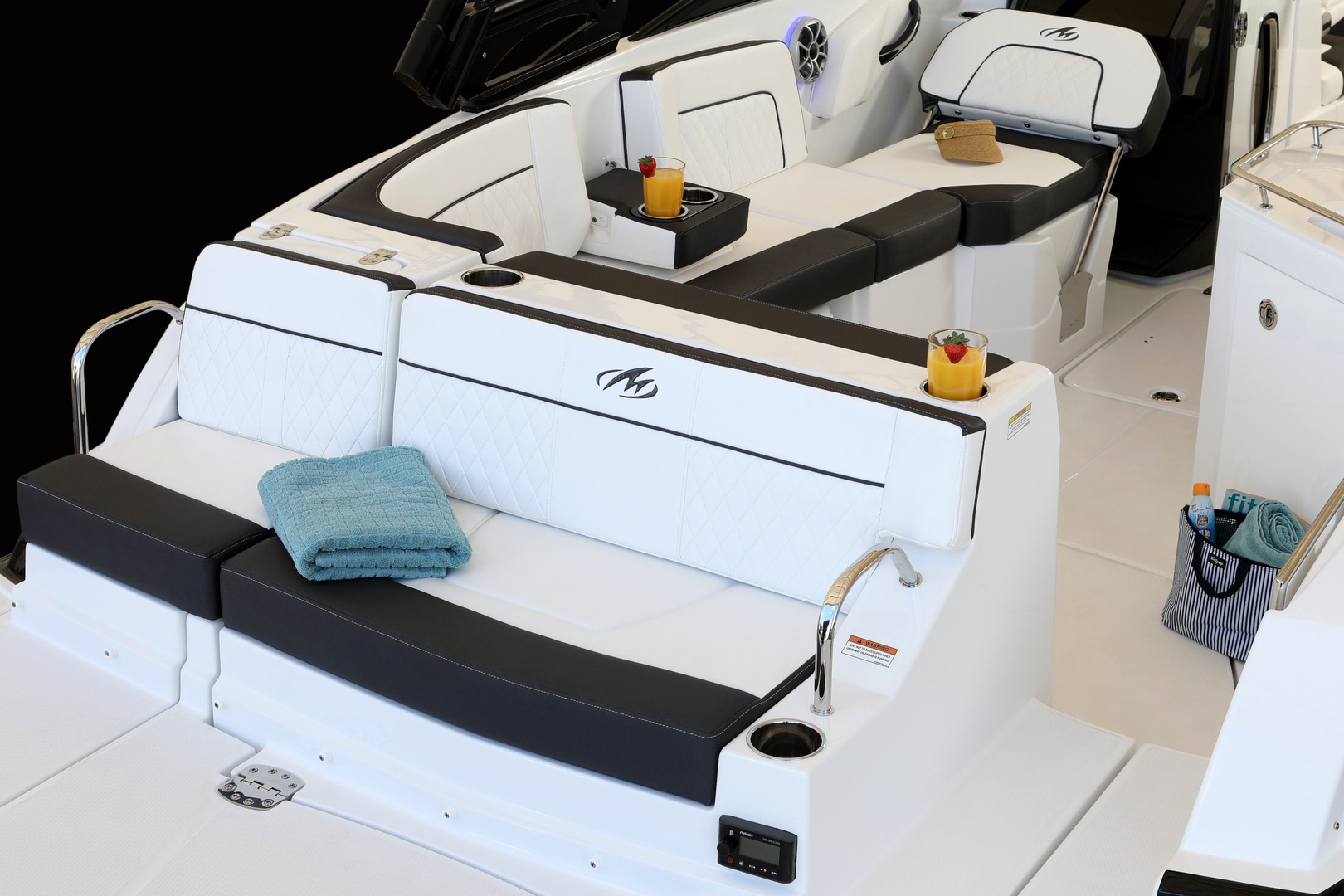

Aft Back To Back L-Lounge w/ Fiberglass Bases & Sun Pad Conversion w/Recliner, Electrically Actuated | |

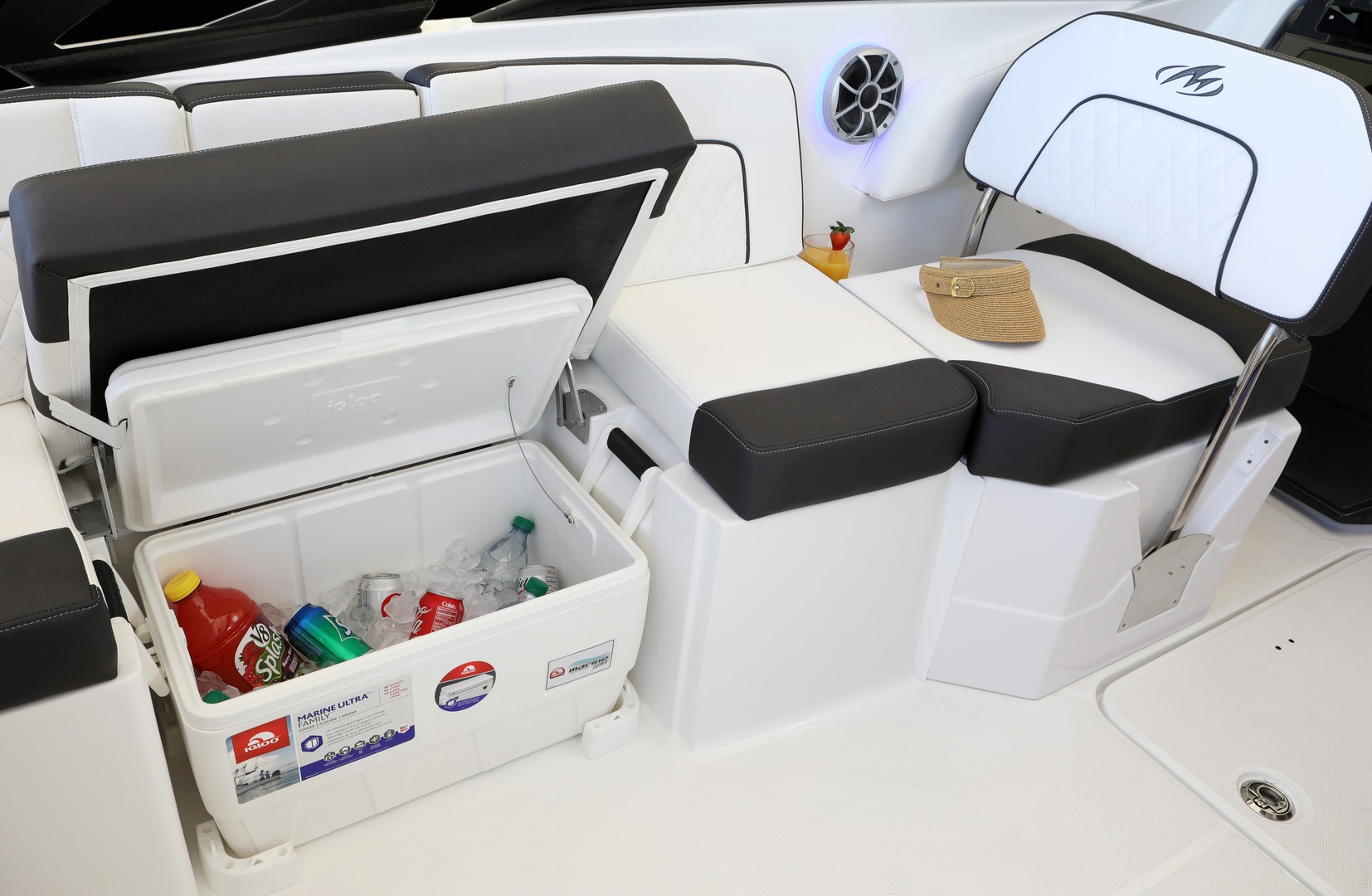

| Aft Facing Seat, Starboard W/Carry-on Slide-Out Cooler | |
|
| Aft Facing Transom Seating | |
|

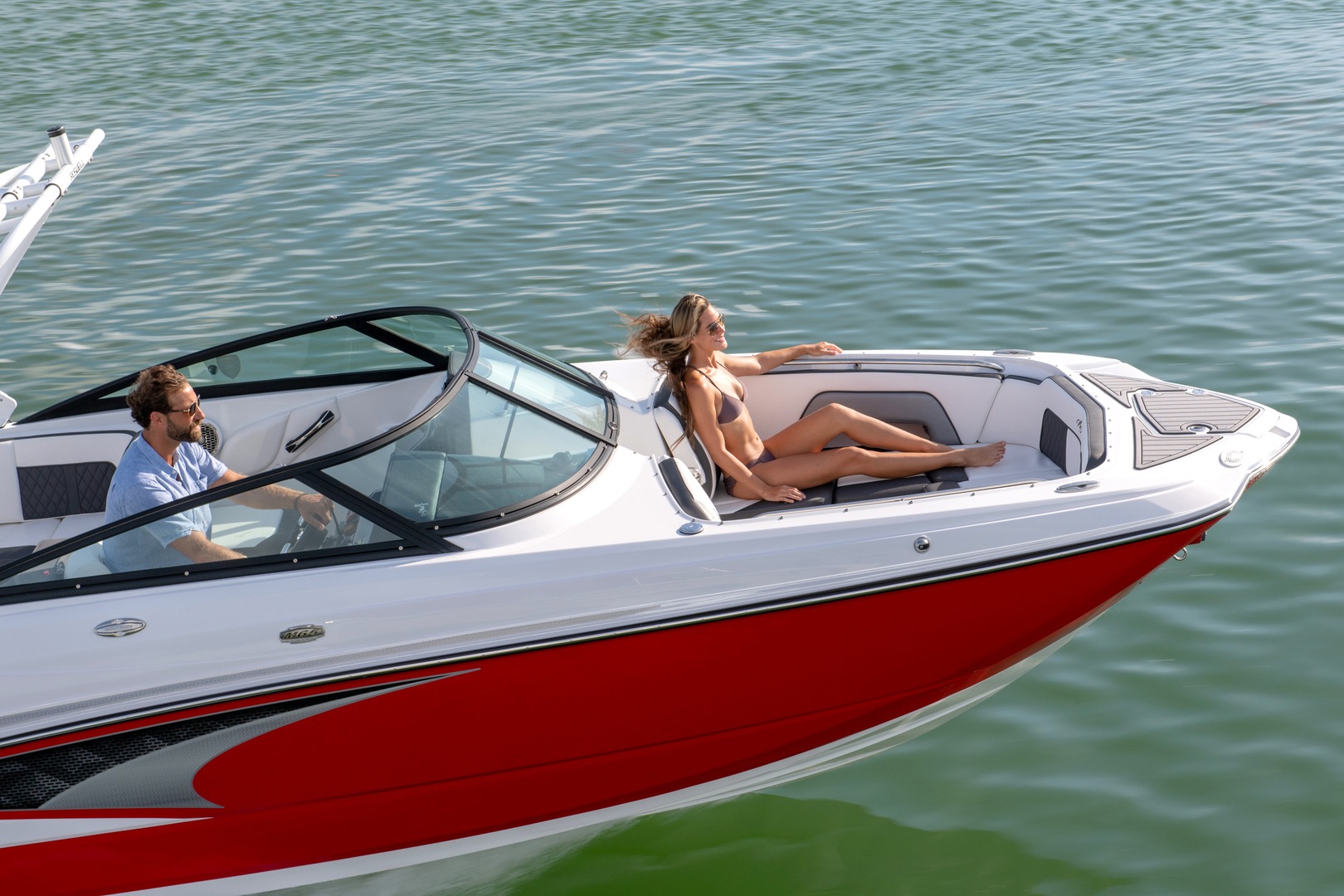

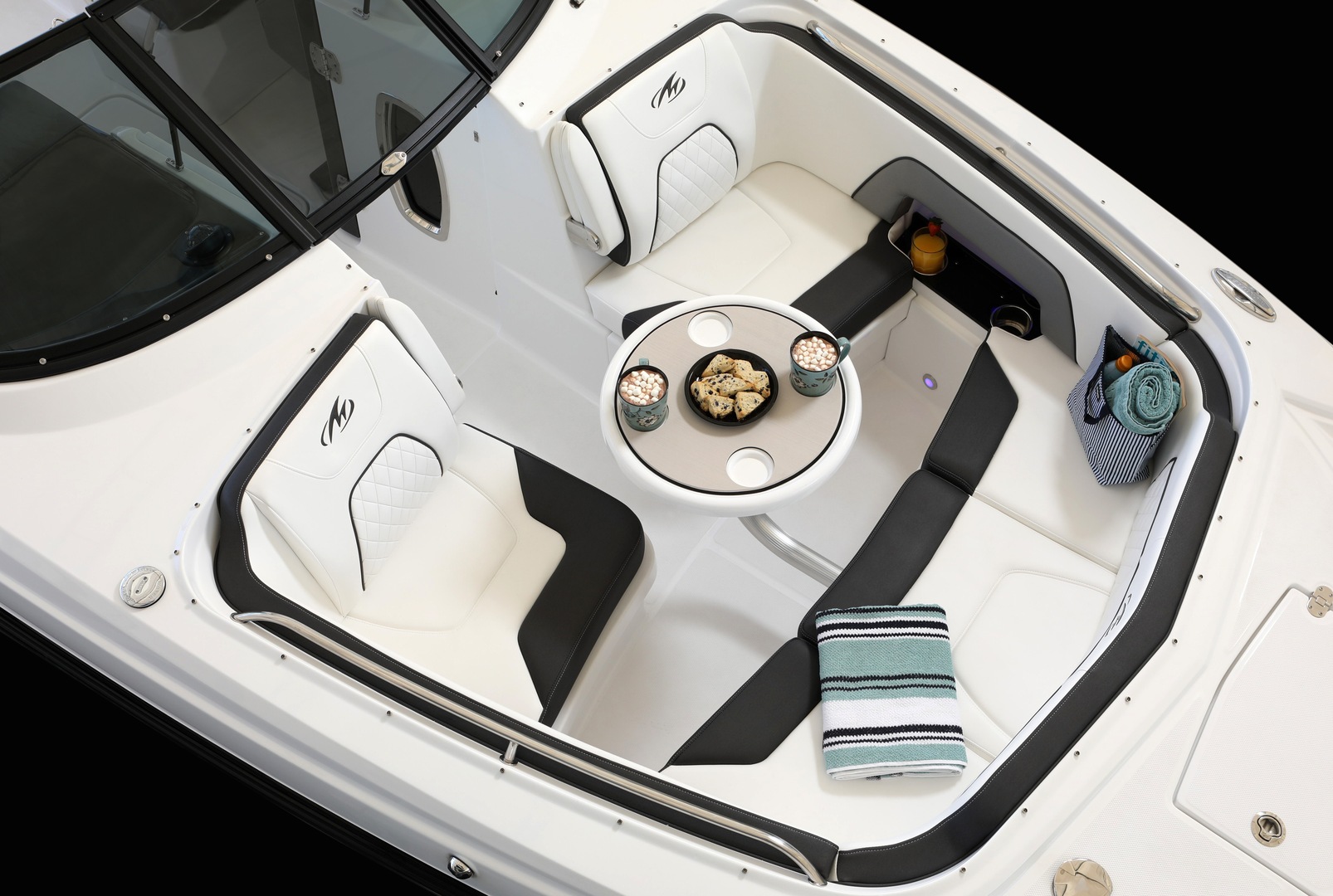

| Bow Seating w/Fold Down Arm Rest | |
|
| Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard | |
|
| Seat Cushions w/Storage Compartments, Bow | |
|
Bilge Compartment |
Battery Charger w/Deck Plug (Standard in Australia) |  |
Canvas |
Bow and Cockpit Cover-Onyx | |
| Bow and Cockpit Cover-Rio | |
|
| Bow and Cockpit Cover-Royal Blue | |
|
| Bow and Cockpit Cover-Sapphire | |
|
| Bow and Cockpit Cover-Taupe | |
|
Cockpit |
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option)
|
|
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option)
|
|
|
| Forward Shower w/Pressurized Water (Cold Only) | |
|
| Premium Stereo Upgrade Package,Includes (4) 6.5" Rockford Fosgate M2 Speakers w/Integrated LED Lights, 10" Punch Subwoofer & 5 Channel Amplifier | |
|
| Stern Mounted Stereo Remote | |
|
| Cone Speakers with 2 Channel Amp For Tower (Wakeboard Tower & Stereo Upgrade Required) | |
|
Swim Platform Inlay, Terra (SeaDek)
|
|
|
Swim Platform Inlay, Gray (SeaDek)
|
|
|
| Wet Bar w/Solid Surface Insert, Sink, Faucet, Slide-Out Carry-On Cooler & Storage (In Lieu of Standard Aft Seat) | |
|
| Woven Cockpit Flooring | |
|
Head |
Toilet, Pump-out Deck Fitting | |
| Toilet, Electric w/Holding Tank, Indicator & Pump-Out Deck Fitting | |
|
Helm |
Simrad NSX Series GPS/Chartplotter/Sonar w/Transducer/Integrated Engine Functions, and Depthsounder | |
Hull & Deck |
Anchor Windlass Pre-Wire | |
| Anchor Windlass w/Anchor, Rope and Chain | |
|
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Delete Graphics | |
|
| Phender Pro Holders (4) | |
|
| Portlight, In Head, w/Screen | |
|
| Ski Tow Pylon, (Removable) | |
|
| Underwater Lights, RGB LED | |
|
| Wakeboard Tower, Black (Includes Bimini) | |
|
| Wakeboard Tower, White (Includes Bimini) | |
|
Seating |
Filler Cushion, Bow | |
| Portside, Foward/Aft Facing Lounger | |
|
Under Water Gear |
Trim Tabs W/Indicators & Auto Retract | |
Waste Systems |
Grey Water System for Porta Potti (N/A With Macerator, Includes Pump Out Deck Fittings) | |
| Macerator w/Overboard Discharge (requires Electric Toilet Option-Not Available with Grey Water Option) | |
|
| Grey Water System For Electric Head (N/A With Macerator) | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| Verado 300XXL DTS | 300HP | OB | Enertia Eco-19-SS | 47-51 | 12@33 | Download | |
| Verado 300XXL-White DTS | 300HP | OB | Enertia Eco-19-SS | 47-51 | 12@33 | Download | |
| Verado 350XL V10 DTS | 350HP | OB | REV X-21-SS | 50-54MPH | 12@31.4 | Download | |
| Verado 350XL V10 DTS White | 350HP | OB | REV X-21-SS | 50-54MPH | 12@31.4 | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
