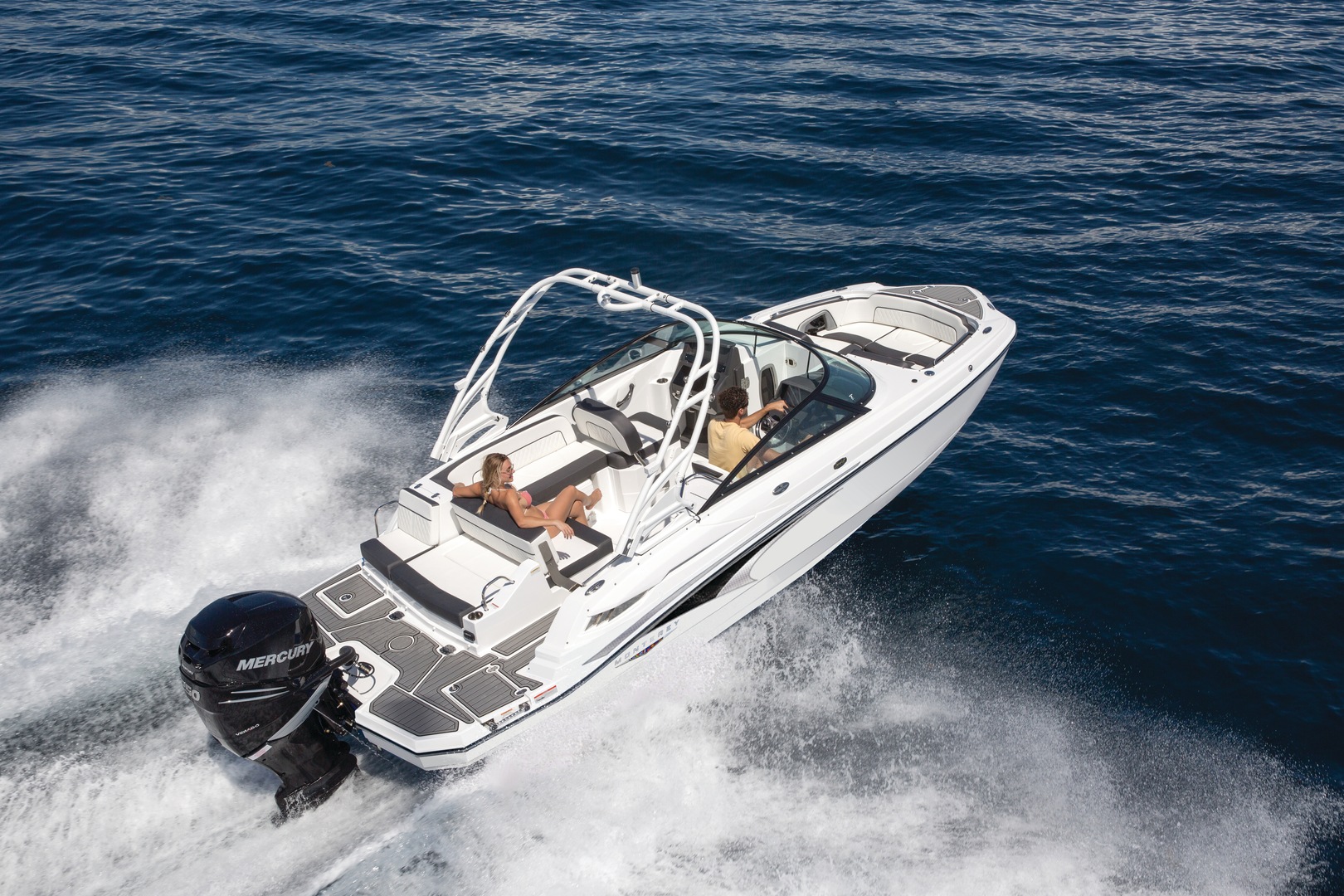

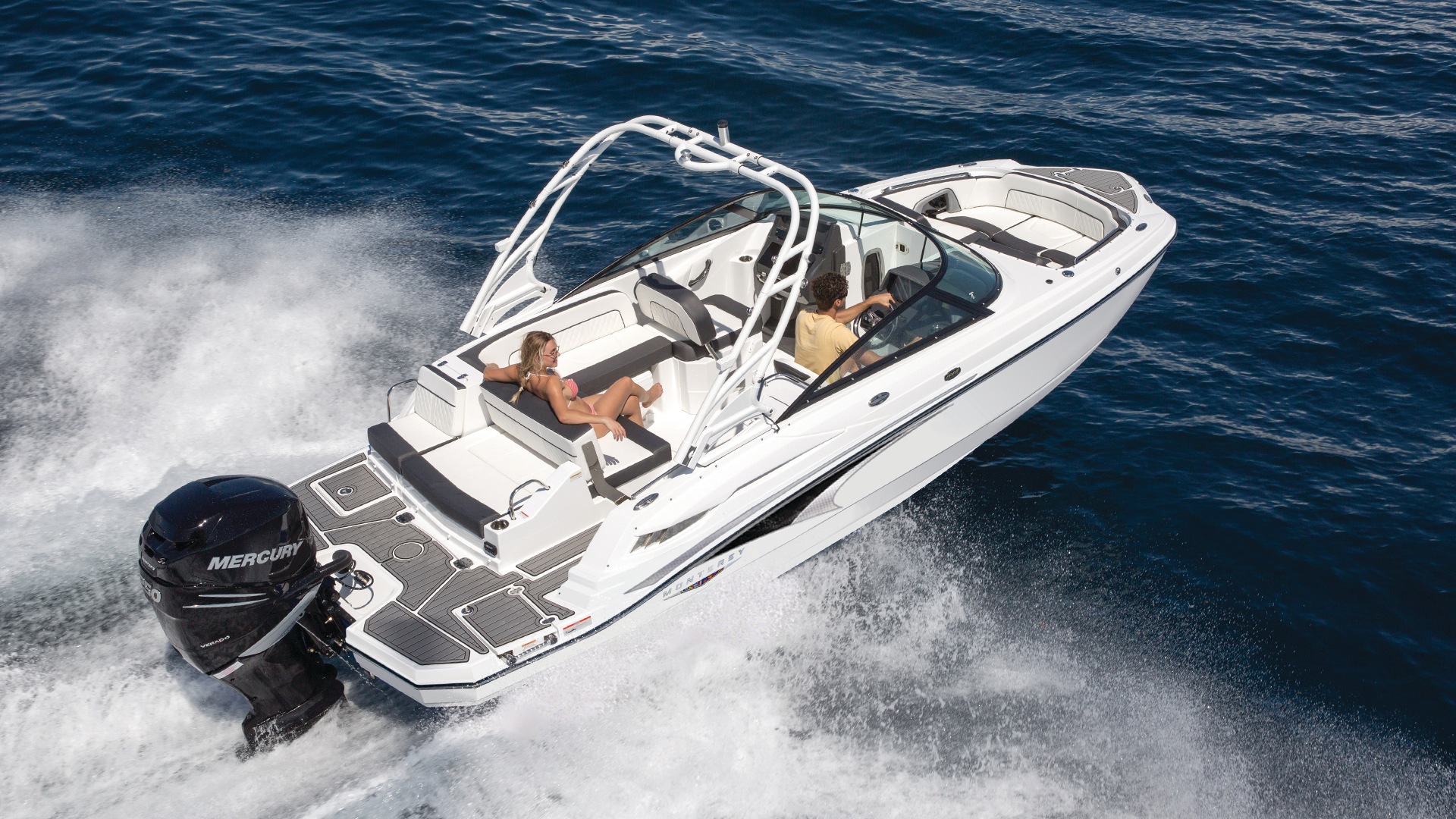

Spacious, Suave, and stylish, the M45 offers a unique blend of performance and comfort. Standard features include an ergonomically designed helm station, spacious seating options with custom dedicated storage, Fusion Satellite Ready AM/FM Stereo, as well as a wet bar with solid surface top, sink, and faucet. Add on the optional wakeboard tower to complete you’re on the water adventures!
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
Spec | US Unit | Metric Unit | Description |
---|---|---|---|
LOA W/Swim Platform | 24'0" | 7.32M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
LOA w/Engines | 26'4" | 8.03M | Length Overall With Engines |
Beam | 8' 6" | 2.59M | Width of hull at widest section including rubrail |
Deadrise | 20° | 20° | Angle of keel measured at transom |
Draft - Engine Up | 16" | 40.6CM | Depth of hull to lowest point, Engine trimmed up |
Draft - Engine Down | 32" | 81.3CM | Depth of hull to lowest point, Engine trimmed down |
Bridge Clearance W/Tower | 7'8" | 2.3M | Height from water to highest point on tower, normal load |
Fuel Capacity | 50GAL | 189.3L | Capacity of fuel tank in gallons/liters |
Water Capacity | 10GAL | 37.9L | Capacity of water tank in gallons/liters |
Dry Weight | 4500LBS | 2041KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
Max Persons | 14 (US) | 12 (CE) | Maximum Rated Persons Capacity |
Max Persons Weight | 2100LBS | 900KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
Max Persons W/ Gear Weight | 3232LBS | 1267KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
Max Power | 350HP | 261KW | Maximum horsepower for safe operation |
Engine | Option | Standards and Options |
---|---|---|
Bilge Compartment |
Automatic Bilge Pump | ![]() |
Bilge Hatch, Electrically Actuated | ![]() |
|
Gel Coated Bilge Compartment | ![]() |
|
Canvas |
Bimini Top w/Embroidered Boot | ![]() |
Cockpit |
Cockpit Table w/ Pedestal & Vertical Mount Bases, Forward & Aft | ![]() |
Cooler, 50 Qt Carry-On | ![]() |
|
Courtesy Lighting, Blue/White, LED 12 V | ![]() |
|
Drink Holders, Stainless Steel (10) | ![]() |
|
Fiberglass Cockpit Liner w/Non-Skid & Self Bailing | ![]() |
|
Grab Rails | ![]() |
|
Stereo, Fusion Satellite Ready AM/FM/Bluetooth w/built-in iPod Dock, & (4) Rockford Fosgate 6.5" Speakers & Dash Remote | ![]() |
|
Outlet, 12 V | ![]() |
|
Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck | ![]() |
|
Storage, Starboard Helm | ![]() |
|
Transom Shower, w/Pressurized Water (Cold Only) | ![]() |
|

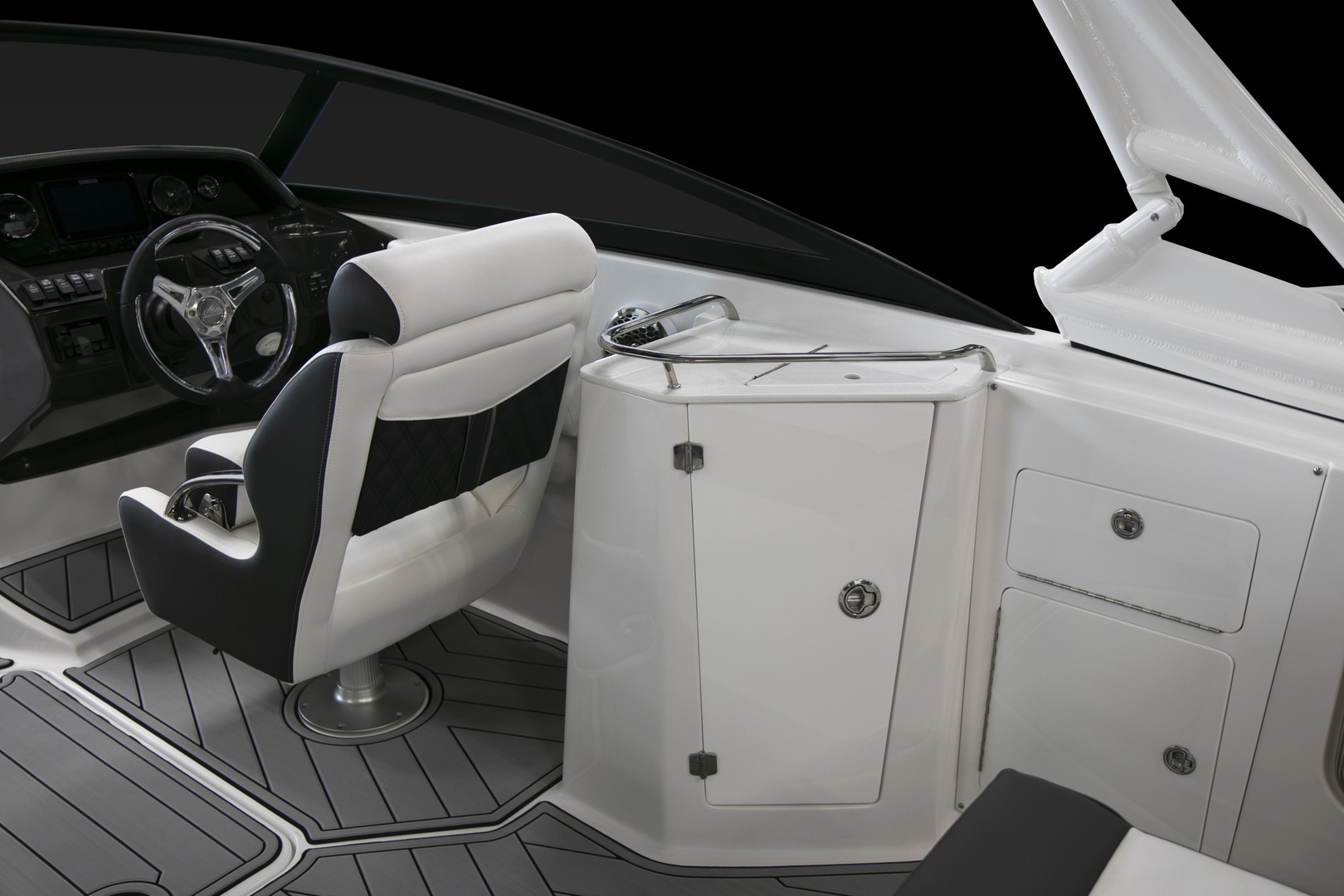

Wet Bar w/Solid Surface Top, Sink, Faucet, Trash Receptacle & Storage | ![]() |
|
Electrical Systems |
Battery Switch, Dual w/2 Battery Trays | ![]() |
Weatherproof Electrical System w/Individual Circuit Protection | ![]() |
|
Fuel Systems |
Double Clamped Fuel Lines | ![]() |
Water Separating Fuel Filter | ![]() |
|
Head |
Flooring, EVA Foam | ![]() |
Toilet (Porta-Potti) | ![]() |
|

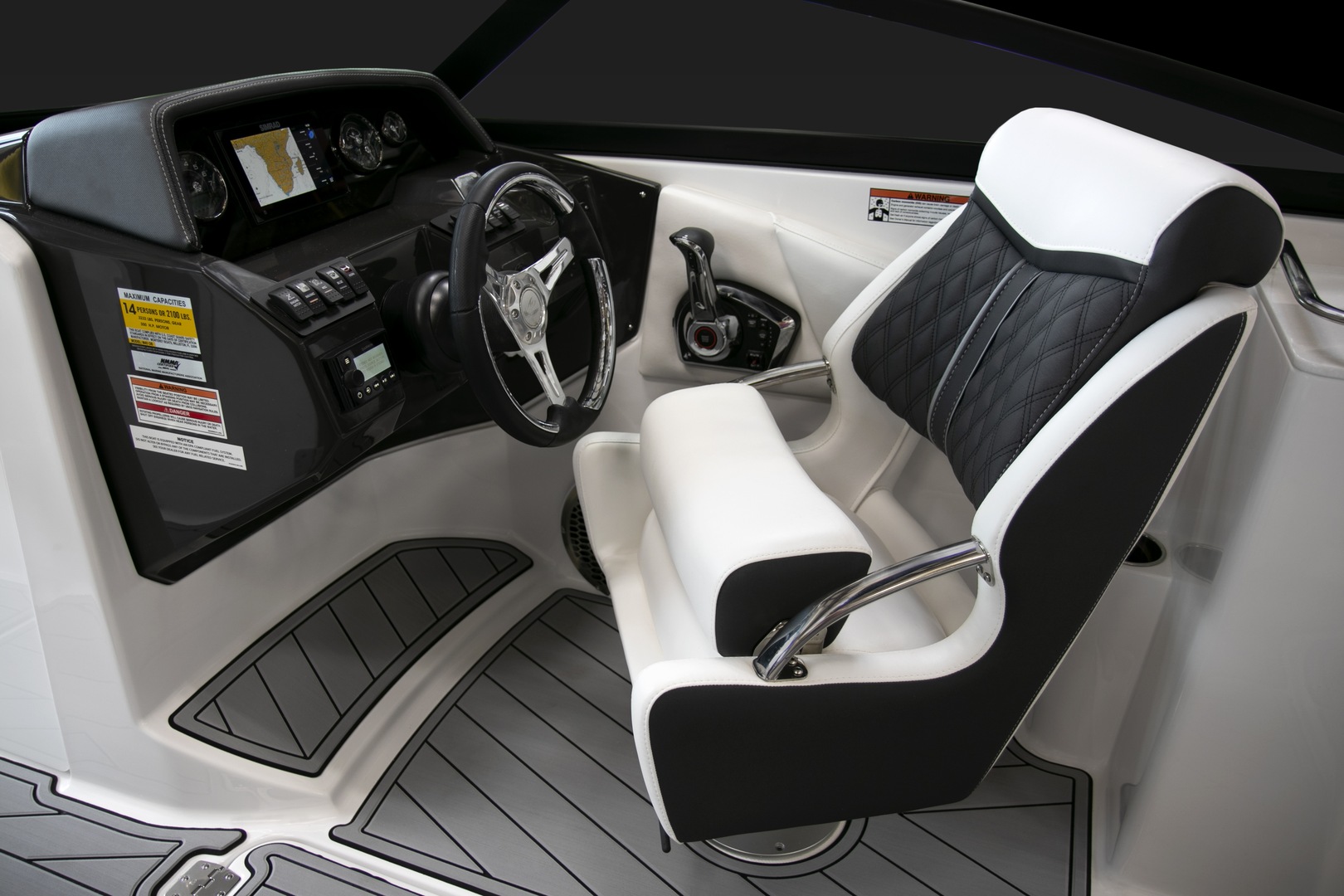

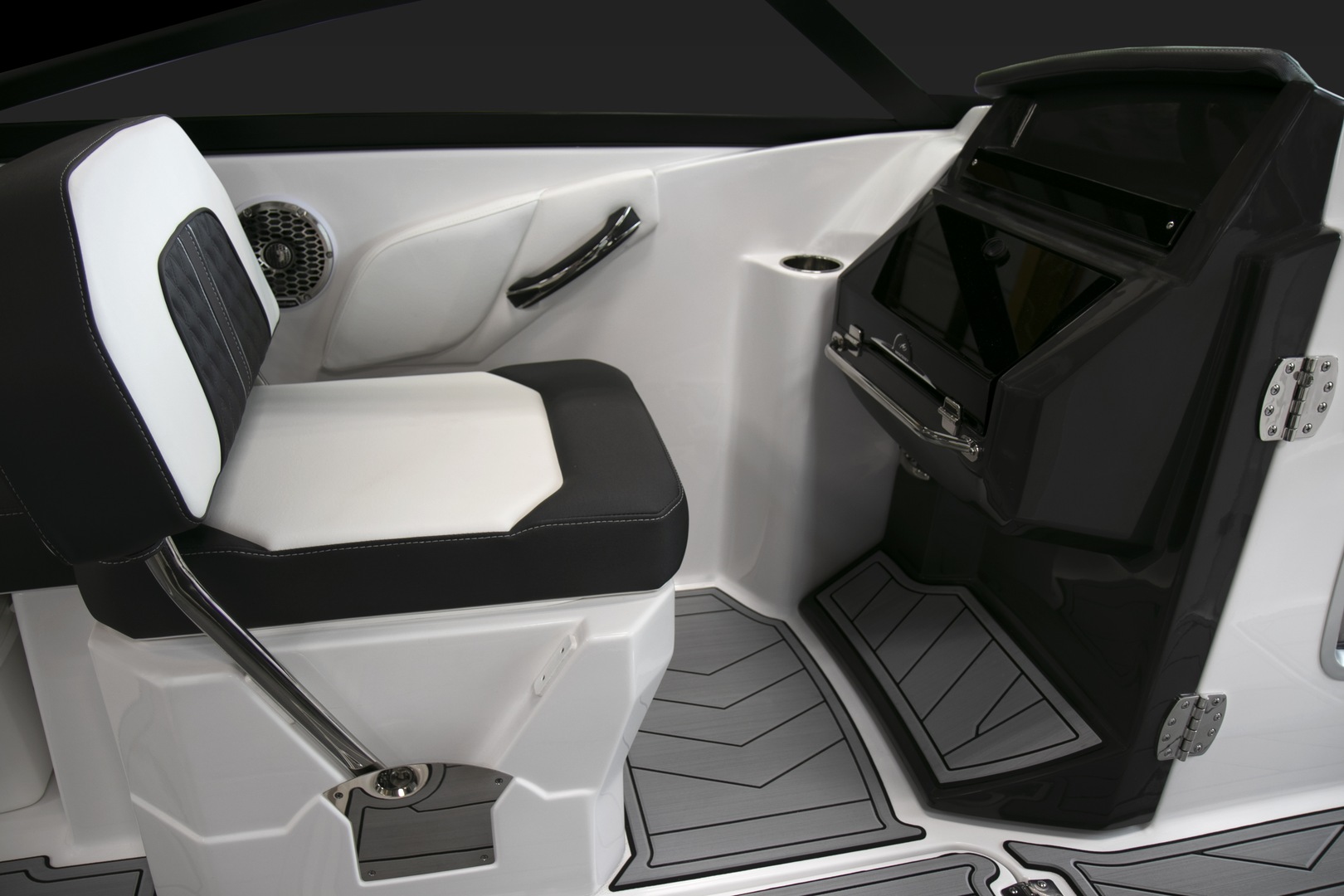

Helm |
Compass | ![]() |
Simrad 12" Ultra Wide GPS / Chartplotter / Sonar w/Transducer / Integrated | ![]() |
|
MP3 Adapter | ![]() |
|
Outlet, 12 V USB | ![]() |
|
Steering Wheel, Black w/Silver Insert | ![]() |
|
Steering, Power Assisted | ![]() |
|
Steering, Tilt | ![]() |
|
Switches, Lighted Weatherproof | ![]() |
|
Hull & Deck |
Air Assist Chine | ![]() |
Barrier Coat Vinylester | ![]() |
|
Boarding Ladder, Telescoping & Recessed, Bow | ![]() |
|
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | ![]() |
|
Bow Hand Rails, Stainless Steel | ![]() |
|
Bow Plate, Stainless Steel | ![]() |
|
Cleats, Pull-up, Stainless Steel (8) | ![]() |
|
Colored Hull | ![]() |
|
Cooler Molded In, Bow | ![]() |
|
Custom Hull Side Graphics | ![]() |
|
Door, Walk-Thru at Helm | ![]() |
|
Door, Walk-Thru at Transom | ![]() |
|
Drain Plug, Brass Garboard | ![]() |
|
Horn, Electric Flush Mount | ![]() |
|
Lights, Docking | ![]() |
|
Lights, Navigation, LED | ![]() |
|
NMMA Certified | ![]() |
|
Rub Rail, Heavy Duty w/Stainless Steel Insert | ![]() |
|
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | ![]() |
|
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | ![]() |
|
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch | ![]() |
|
Swim Platform, Integral | ![]() |
|
Thru Hulls, Stainless Steel Above Waterline | ![]() |
|
Transhield Cover | ![]() |
|
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | ![]() |
|
Seating |

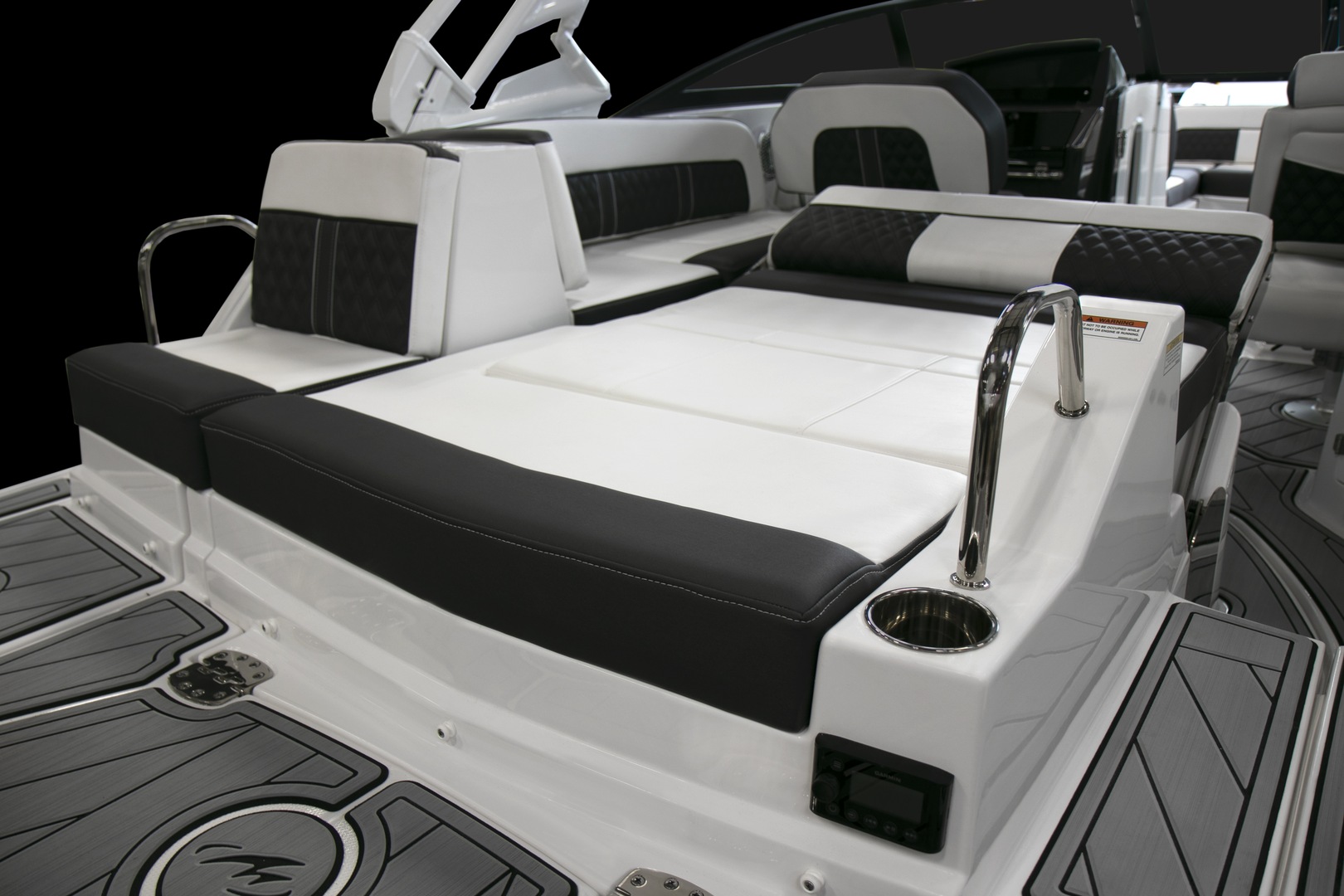

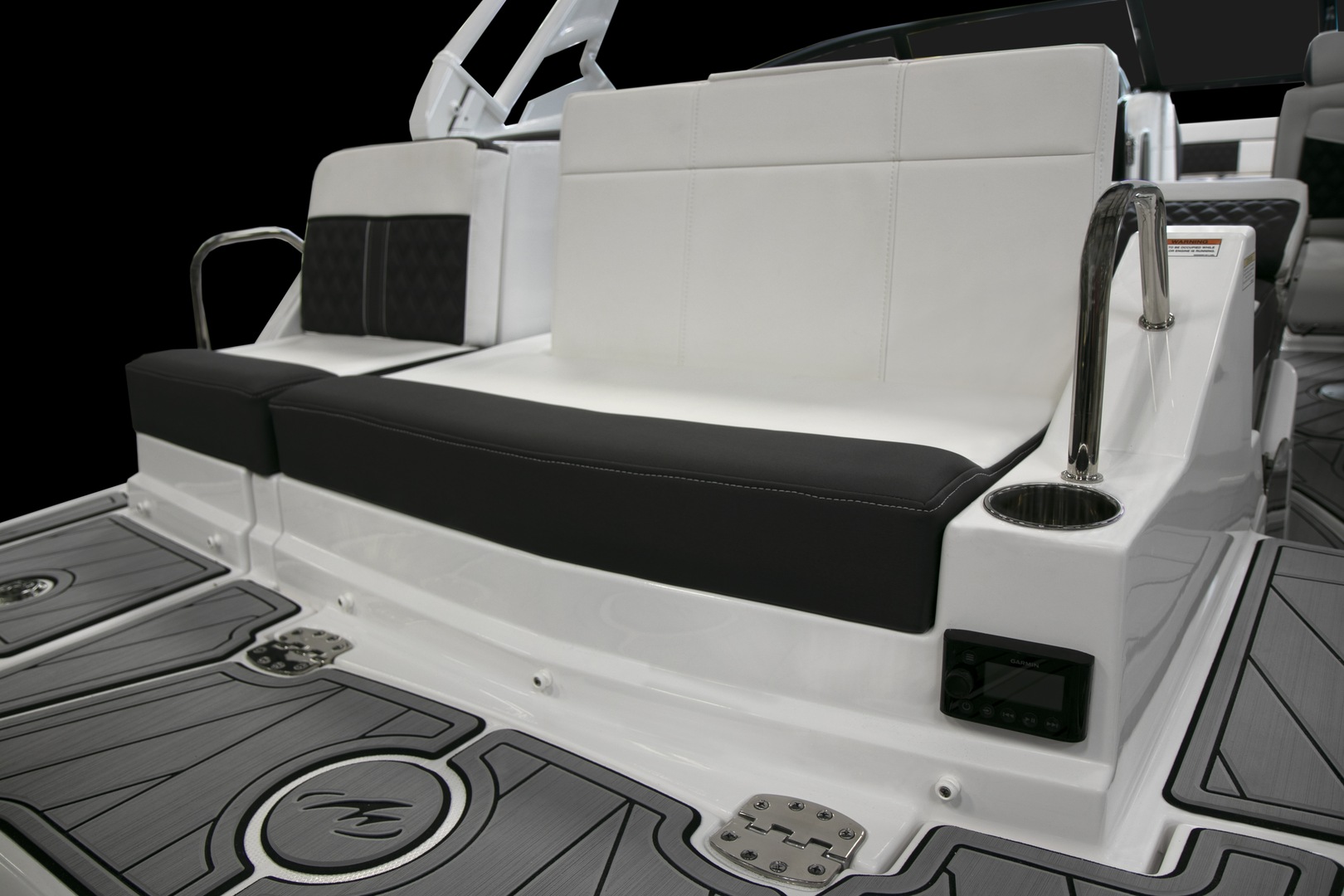

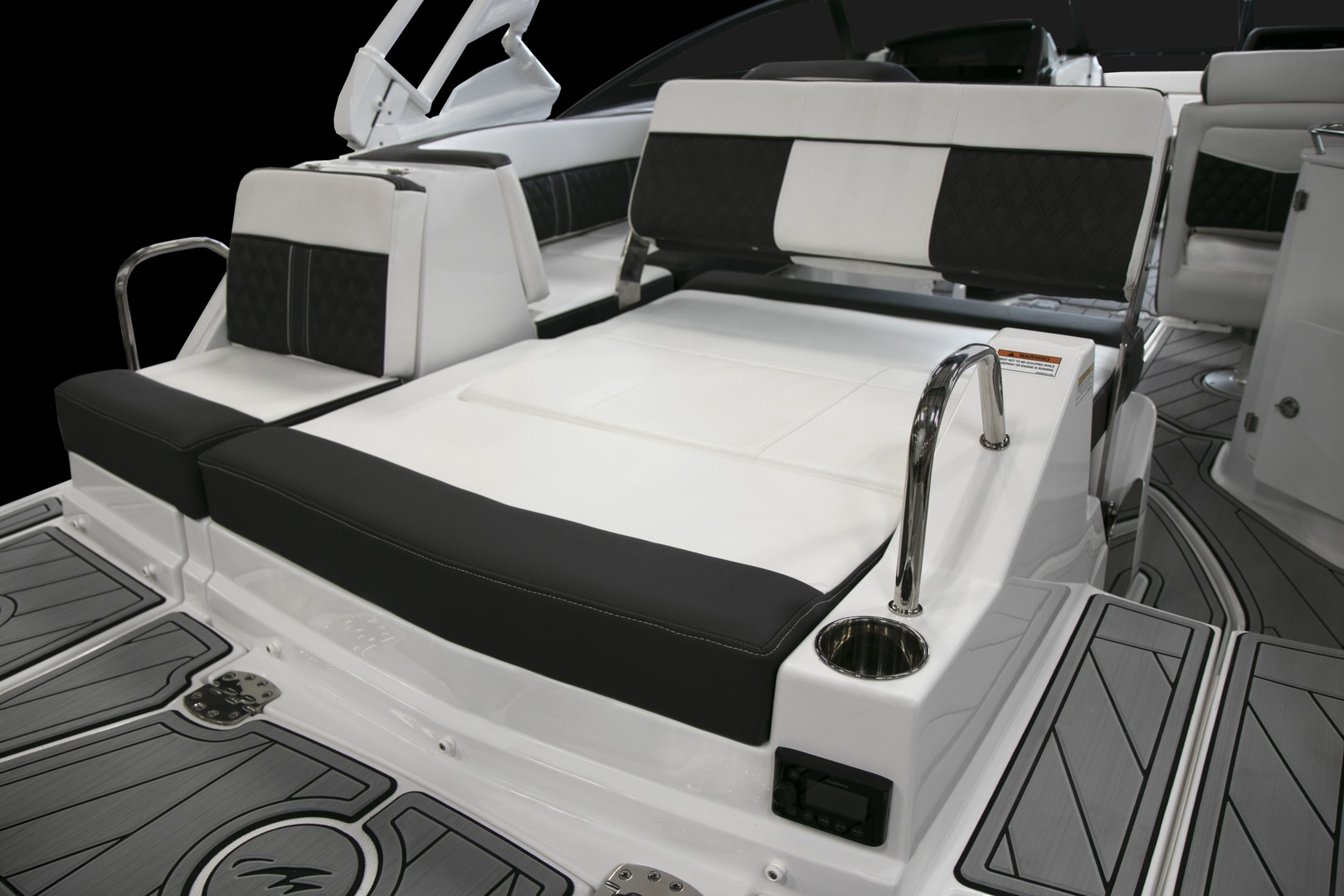

Aft Back to Back L-Lounge w/Fiberglass Bases & Sun Pad Conversion w/Recliner, Electrically Actuated | ![]() |
Aft Facing Transom Seat | ![]() |
|

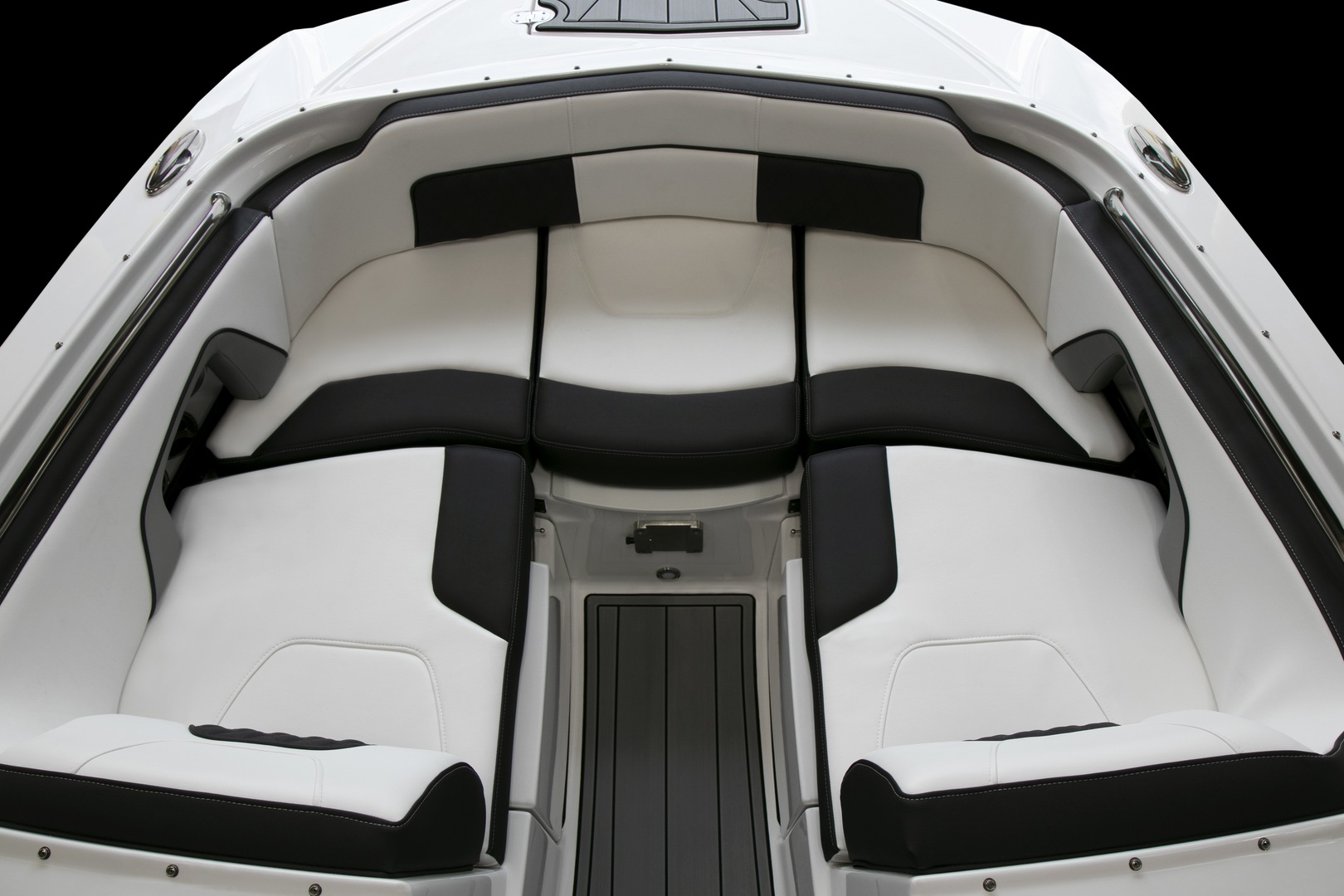

Bow Seating w/Hinged Storage Skirts | ![]() |
|
Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard | ![]() |
|
Seat Cushions w/Storage Compartments, Bow | ![]() |
|
Bilge Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | ![]() |
Canvas |
Bow & Cockpit Cover: Onyx | ![]() |
Bow & Cockpit Cover: Rio | ![]() |
|
Bow & Cockpit Cover: Royal Blue | ![]() |
|
Bow & Cockpit Cover: Sapphire | ![]() |
|
Bow & Cockpit Cover: Taupe | ![]() |
|
Cockpit |
Cockpit Inlay (Seadek. Requires Seadek Swim Platform Inlay) | ![]() |
Forward Shower w/Pressurized Water (Cold Only) | ![]() |
|
Premium Stereo Upgrade Package Includes (4) 6.5" Rockford Fosgate M2 Speakers w/Integrated LED Lights, 10" punch Subwoofer and 5 channel amplifier | ![]() |
|
Stern Mounted Stereo Remote | ![]() |
|
Swim Platform Inlay (SeaDek) | ![]() |
|
Cone Speakers with 2 Channel Amp For Tower (Wakeboard Tower & Stereo Upgrade Required) | ![]() |
|
Woven Cockpit Flooring | ![]() |
|
Head |
Toilet, Pump-out Deck Fitting | ![]() |
Hull & Deck |
Anchor Windlass Pre-Wire | ![]() |
Anchor Windlass w/Anchor, Rope and Chain | ![]() |
|
Colored Hull Bottom (Other Than Arctic Ice) | ![]() |
|
Delete Graphics | ![]() |
|
Phender Pro Holders (4) | ![]() |
|
Portlight, In Head, w/Screen | ![]() |
|
Ski Tow Pylon, (Removable) | ![]() |
|
Underwater Lights, RGB LED | ![]() |
|
Wakeboard Tower, Black (Includes Bimini) | ![]() |
|
Wakeboard Tower, White (Includes Bimini) | ![]() |
|
Seating |
Filler Cushion, Bow | ![]() |
Portside, Foward/Aft Facing Lounger | ![]() |
|
Under Water Gear |
Trim Tabs W/Indicators & Auto Retract | ![]() |
Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
---|---|---|---|---|---|---|---|
Verado 250XXL DTS | 250HP | OB | Enertia Eco-17-SS | 46-50 | 11.6@33.9 | Download | |
Verado 250XXL DTS White | 250HP | OB | Enertia Eco-17-SS | 46-50 | 11.6@33.9 | Download | |
Verado 300XXL DTS | 300HP | OB | Enertia Eco-19-SS | 52-56 | 10.0@35 | Download | |
Verado 300XXL-White DTS | 300HP | OB | Enertia Eco-19-SS | 52-56 | 10.0@35 | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
