Setting A New Standard
Spacious, Suave, And Stylish

Spacious, Suave, and stylish, the M45 offers a unique blend of performance and comfort. Standard features include an ergonomically designed helm station, spacious seating options with custom dedicated storage, Fusion Satellite Ready AM/FM Stereo, as well as a wet bar with solid surface top, sink, and faucet.  Add on the optional wakeboard tower to complete you’re on the water adventures!

Build Your Custom Monterey M-45

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
Photo Gallery
A Study In Luxury

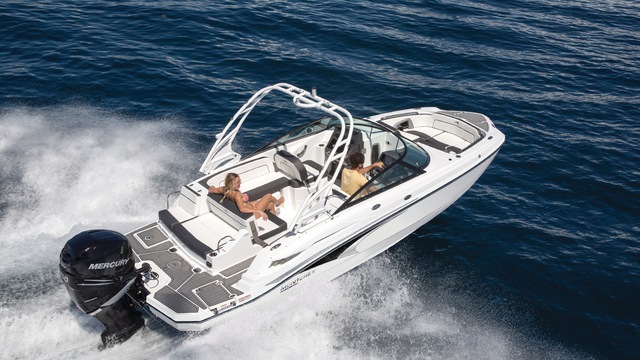

Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Spec US Unit Metric Unit Description
LOA W/Swim Platform 24'0" 7.32M Length Overall, including add-on swim platform, not including bow rail or anchor roller
LOA w/Engines 26'4" 8.03M Length Overall With Engines
Beam 8' 6" 2.59M Width of hull at widest section including rubrail
Deadrise 20° 20° Angle of keel measured at transom
Draft - Engine Up 16" 40.6CM Depth of hull to lowest point, Engine trimmed up
Draft - Engine Down 32" 81.3CM Depth of hull to lowest point, Engine trimmed down
Bridge Clearance W/Tower 7'8" 2.3M Height from water to highest point on tower, normal load
Fuel Capacity 50GAL 189.3L Capacity of fuel tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
Dry Weight 4500LBS 2041KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 14 (US) 12 (CE) Maximum Rated Persons Capacity
Max Persons Weight 2100LBS 900KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight 3232LBS 1267KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 350HP 261KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Bilge Compartment

Automatic Bilge Pump StandardStandard
Bilge Hatch, Electrically Actuated StandardStandard
Gel Coated Bilge Compartment StandardStandard


Bimini Top w/Embroidered Boot StandardStandard


Cockpit Table w/ Pedestal & Vertical Mount Bases, Forward & Aft StandardStandard
Cooler, 48 Qt Carry-On StandardStandard
Courtesy Lighting, Blue/White, LED 12 V StandardStandard
Drink Holders, Stainless Steel (10) StandardStandard
Fiberglass Cockpit Liner w/Non-Skid & Self Bailing StandardStandard
Grab Rails StandardStandard
Stereo, Fusion Satellite Ready AM/FM/Bluetooth w/built-in iPod Dock, & (4) Rockford Fosgate 6.5" Speakers & Dash Remote StandardStandard
Outlet, 12 V StandardStandard
Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck StandardStandard
Storage, Starboard Helm StandardStandard
Transom Shower, w/Pressurized Water (Cold Only) StandardStandard
Wet Bar w/Solid Surface Top, Sink, Faucet, Trash Receptacle & Storage StandardStandard

Electrical Systems

Battery Switch, Dual w/2 Battery Trays StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard
Water Separating Fuel Filter StandardStandard


Flooring, Synthetic Wood StandardStandard

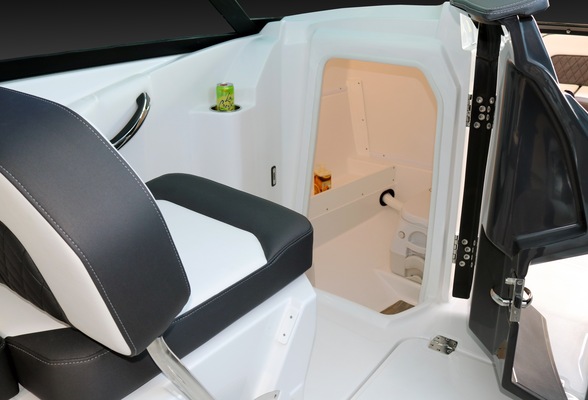

Toilet (Porta-Potti) StandardStandard


Compass StandardStandard
Digital GPS Speedometer StandardStandard

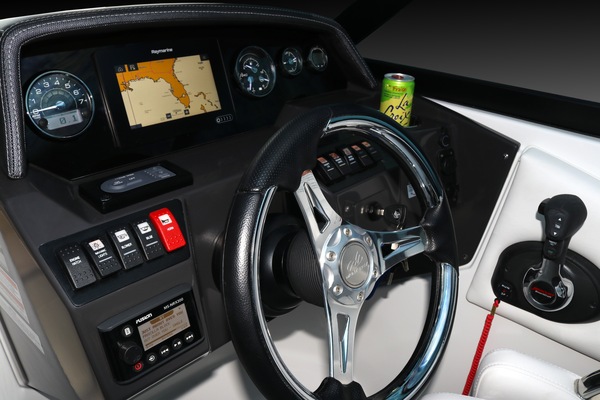

Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
Outlet, 12 V USB StandardStandard
Steering Wheel, Black w/Silver Insert StandardStandard
Steering, Power Assisted StandardStandard
Steering, Tilt StandardStandard
Switches, Lighted Weatherproof StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Barrier Coat Vinylester StandardStandard
Boarding Ladder, Telescoping & Recessed, Bow StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Bow Hand Rails, Stainless Steel StandardStandard
Bow Plate, Stainless Steel StandardStandard
Cleats, Pull-up, Stainless Steel (8) StandardStandard
Colored Hull StandardStandard
Cooler Molded In, Bow StandardStandard
Custom Hull Side Graphics StandardStandard
Door, Walk-Thru at Helm StandardStandard
Door, Walk-Thru at Transom StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Docking StandardStandard
Lights, Navigation, LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) StandardStandard
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck StandardStandard
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch StandardStandard
Swim Platform, Integral StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed StandardStandard

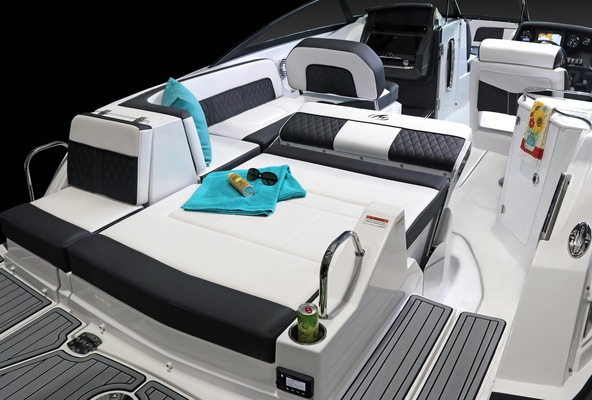

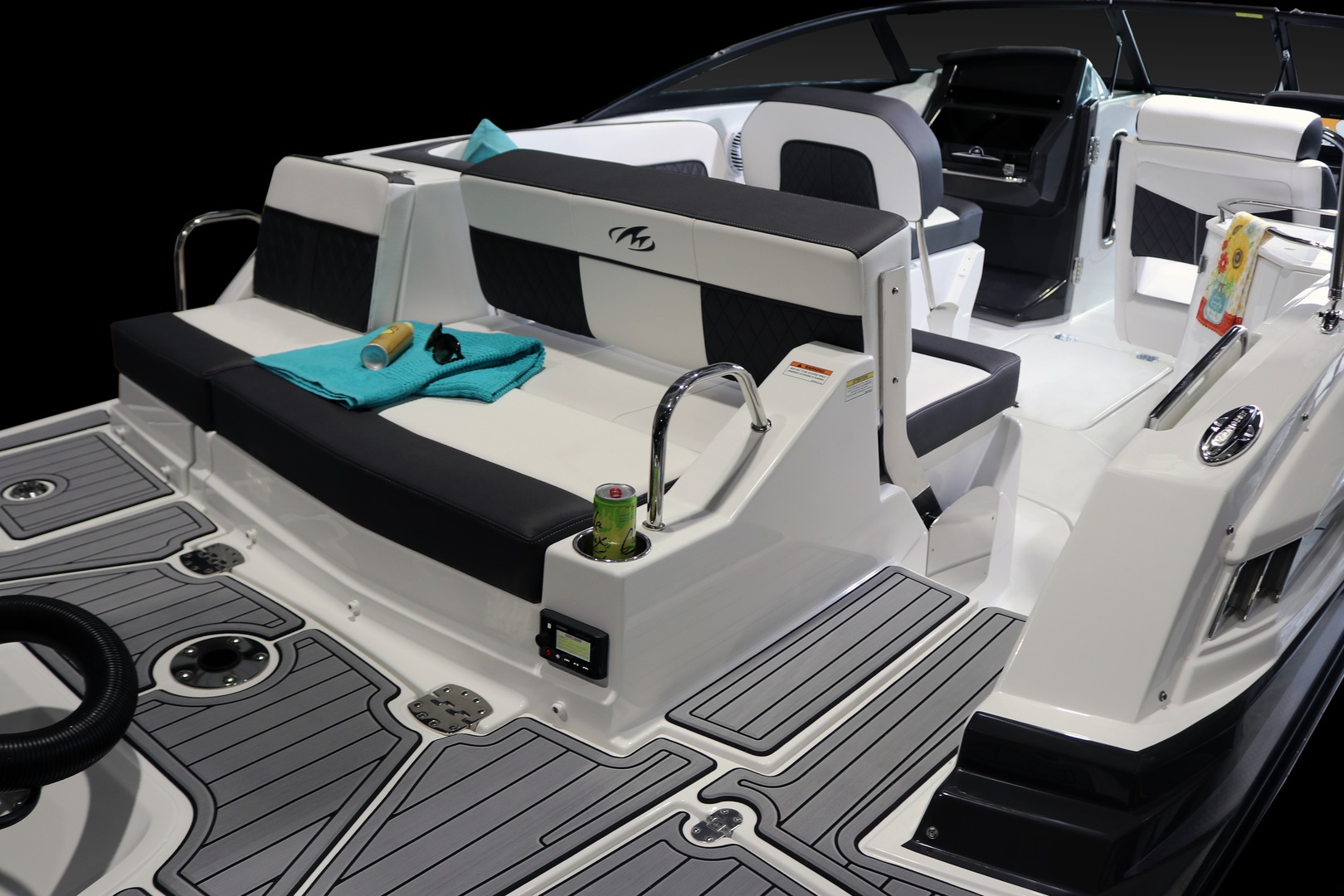

Aft Back to Back L-Lounge w/Fiberglass Bases & Sun Pad Conversion w/Recliner, Electrically Actuated StandardStandard
Aft Facing Transom Seat StandardStandard

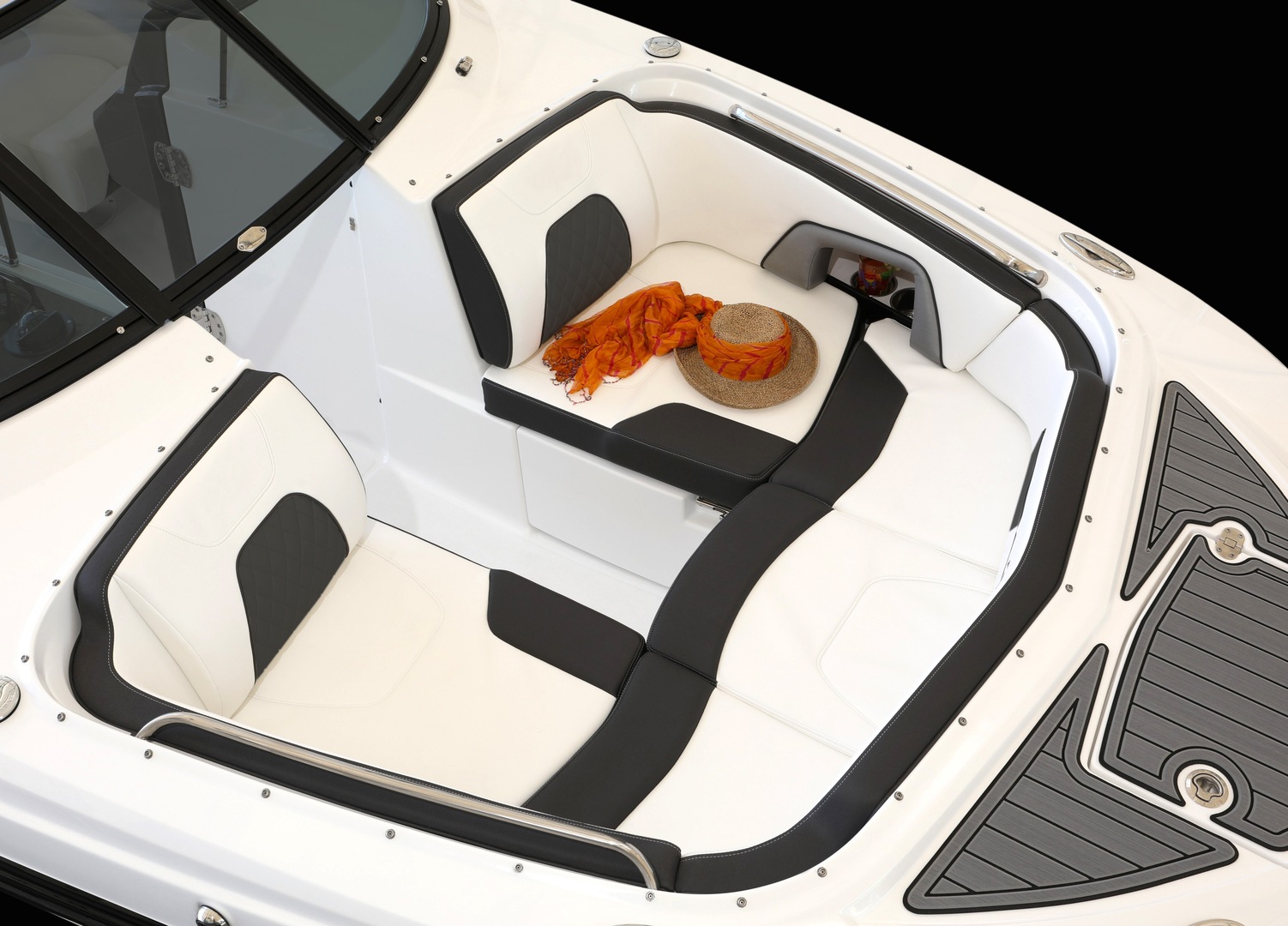

Bow Seating w/Hinged Storage Skirts StandardStandard

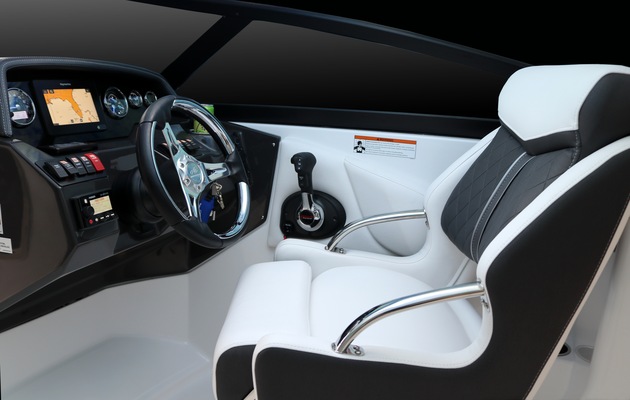

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard StandardStandard
Seat Cushions w/Storage Compartments, Bow StandardStandard

Bilge Compartment

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional


Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional


Cockpit Inlay, Terra (Seadek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Terra (Seadek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Cockpit Inlay, Gray (Seadek. Requires Seadek Swim Platform Inlay) Cockpit Inlay, Gray (Seadek. Requires Seadek Swim Platform Inlay) Optional FeatureOptional
Forward Shower w/Pressurized Water (Cold Only) Optional FeatureOptional
Premium Stereo Upgrade Package Includes (4) 6.5" Rockford Fosgate M2 Speakers w/Integrated LED Lights, 10" punch Subwoofer and 5 channel amplifier(Requires Dual Battery Option) Optional FeatureOptional
Stern Mounted Stereo Remote Optional FeatureOptional
Swim Platform Inlay, Terra (SeaDek) Swim Platform Inlay, Terra (SeaDek) Optional FeatureOptional
Swim Platform Inlay, Gray (SeaDek) Swim Platform Inlay, Gray (SeaDek) Optional FeatureOptional
Cone Speakers with 2 Channel Amp For Tower (Wakeboard Tower & Stereo Upgrade Required) Optional FeatureOptional
Woven Cockpit Flooring Optional FeatureOptional


Toilet, Pump-out Deck Fitting Optional FeatureOptional


Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer/Integrated Engine Functions & Depthsounder Optional FeatureOptional

Hull & Deck

Anchor Windlass Pre-Wire Optional FeatureOptional
Anchor Windlass w/Anchor, Rope and Chain (Requires Dual Battery Switch) Optional FeatureOptional
Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Phender Pro Holders (4) Optional FeatureOptional
Portlight, In Head, w/Screen Optional FeatureOptional
Ski Tow Pylon, (Removable) Optional FeatureOptional
Underwater Lights, RGB LED Optional FeatureOptional
Hybrid Tower, Black (Includes Bimini) Optional FeatureOptional
Hybrid Tower, White (Includes Bimini) Optional FeatureOptional


Filler Cushion, Bow Optional FeatureOptional
Portside, Foward/Aft Facing Lounger Optional FeatureOptional

Under Water Gear

Trim Tabs W/Indicators & Auto Retract Optional FeatureOptional
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
Verado 250XXL DTS 250HP OB Enertia Eco-17-SS 46-50 11.6@33.9 Download
Verado 250XXL DTS White 250HP OB Enertia Eco-17-SS 46-50 11.6@33.9 Download
Verado 300HP DTS 300HP OB Enertia Eco-19-SS 52-56 10.0@35 Download
Verado 300HP-White DTS 300HP OB Enertia Eco-19-SS 52-56 10.0@35 Download

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
