255SS
NAP PRICE STARTING AT $109,765.00
Setting A New Standard
NAP PRICE STARTING AT $109,765.00
New Model!

Loaded with an abundance of standard features and amenities, the 255SS features an ergonomically designed helm station with compass, depth sounder with shallow water alarm, digital GPS speedometer, instrumentation with fog resistant digital gauges and low glare night lighting, as well as power assisted tilt steering, making this a captain’s dream. A Fusion satellite ready AM/FM/Bluetooth stereo with built in iPod dock and 4 JL audio speakers, 8 stainless steel drink holders, 12V courtesy lighting, 48 court carry-on cooler, and telescoping and recessed swim ladder help to complete the package, making this the perfect vessel for all your on the water adventures



LOA W/ENGINE
28'8"
BEAM
8'6"
FUEL CAPACITY
65GAL
MAX HORSEPOWER
350HP
Build Your Custom Monterey 255SS

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
255SS

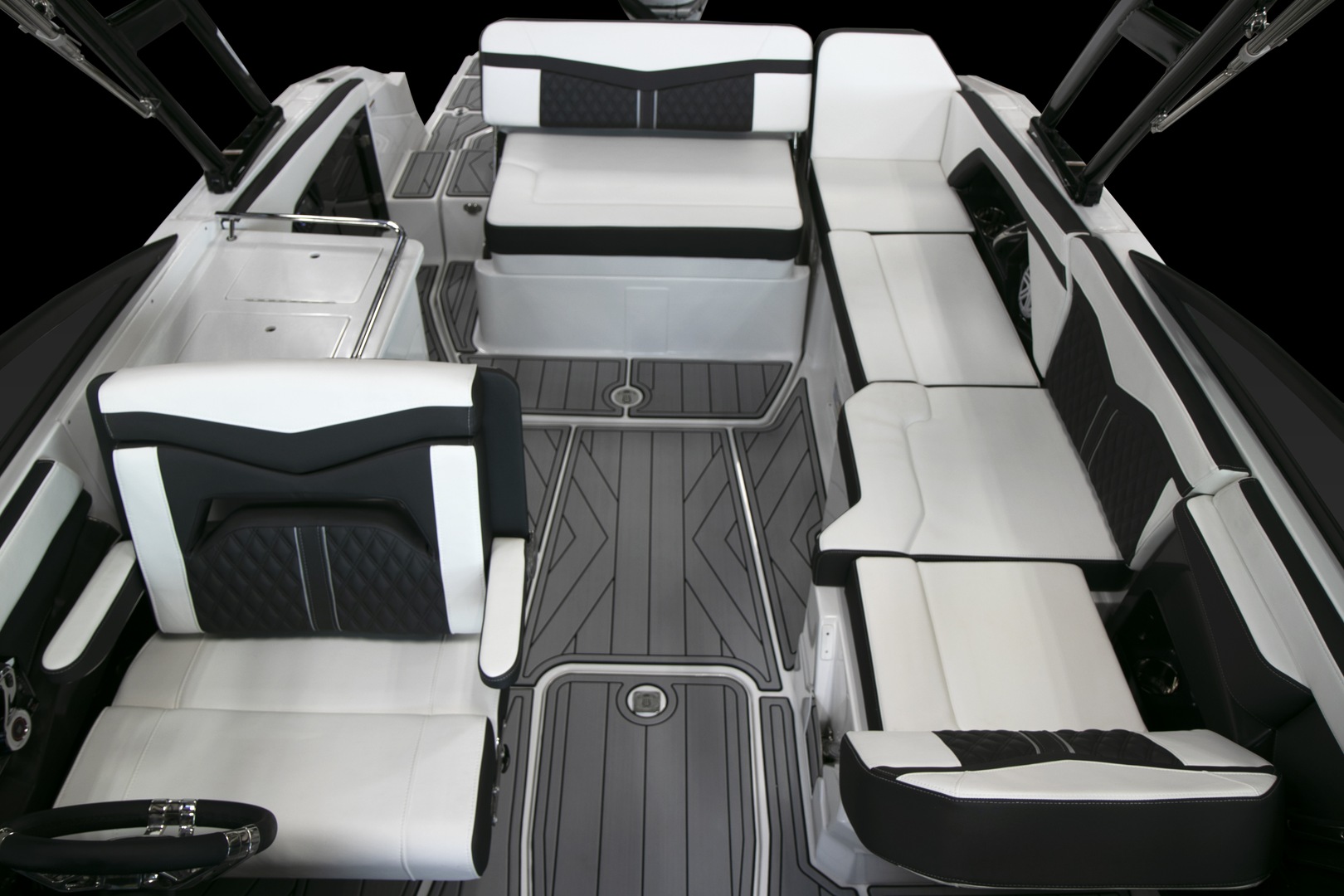

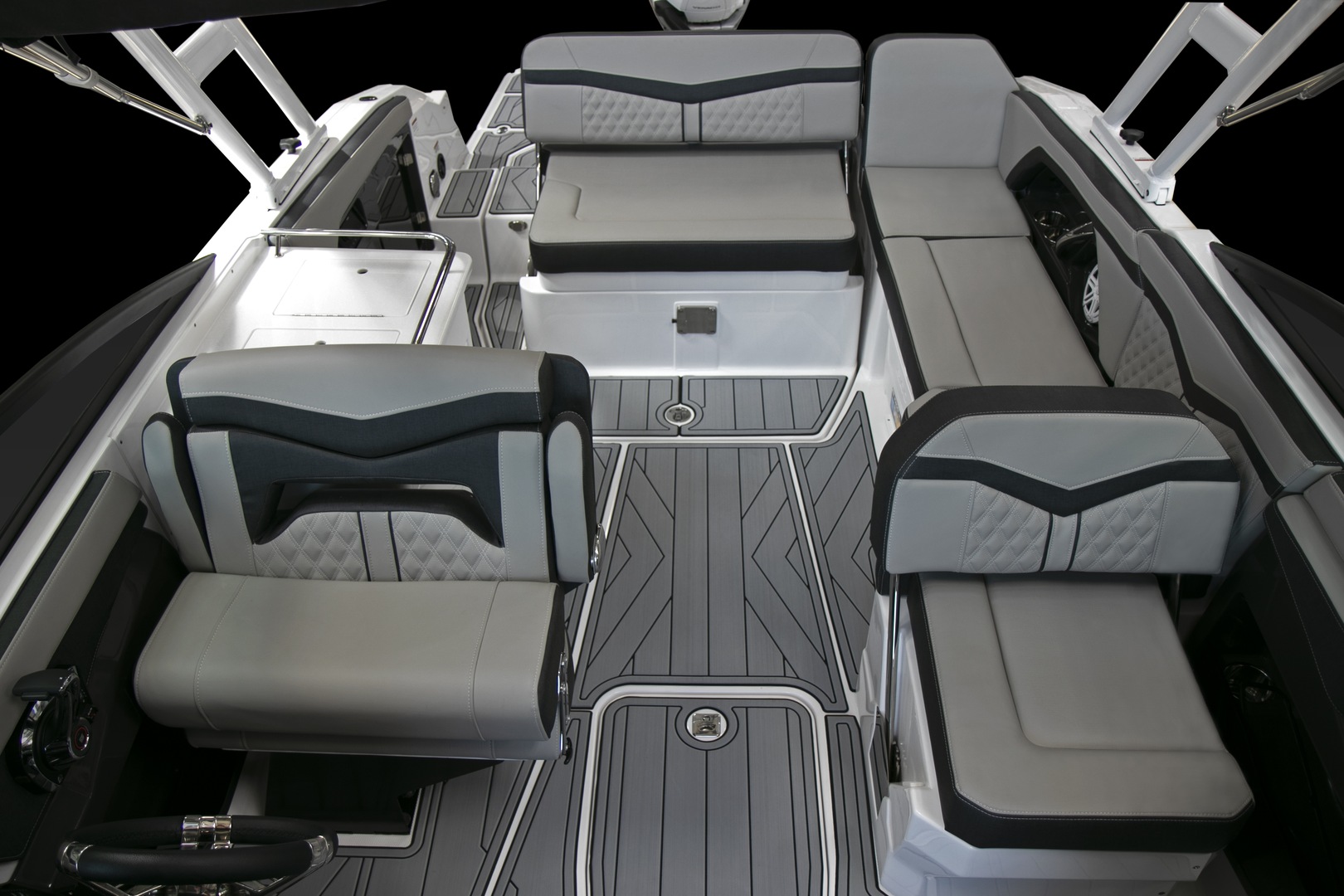

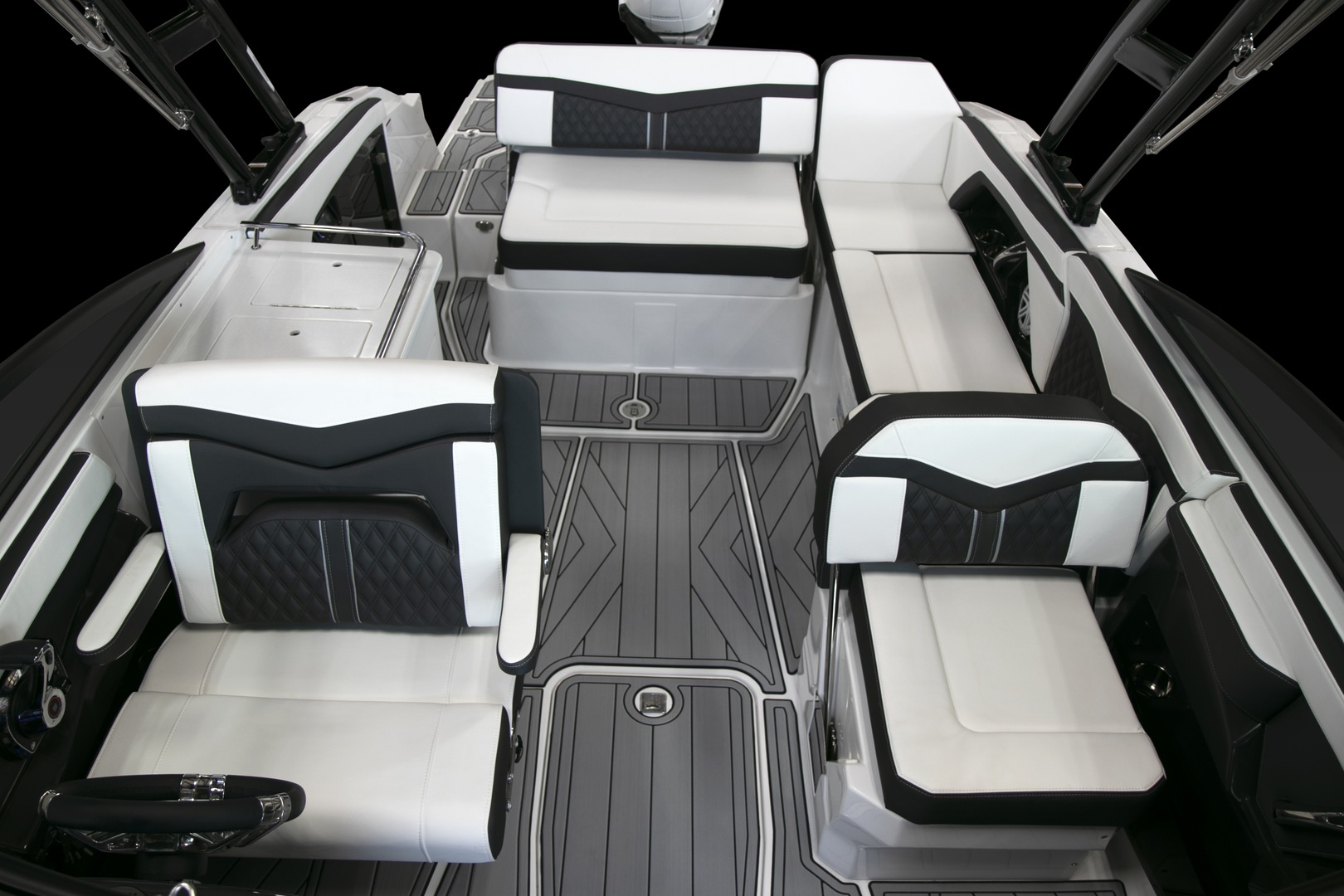

Photo Gallery
A Study In Luxury

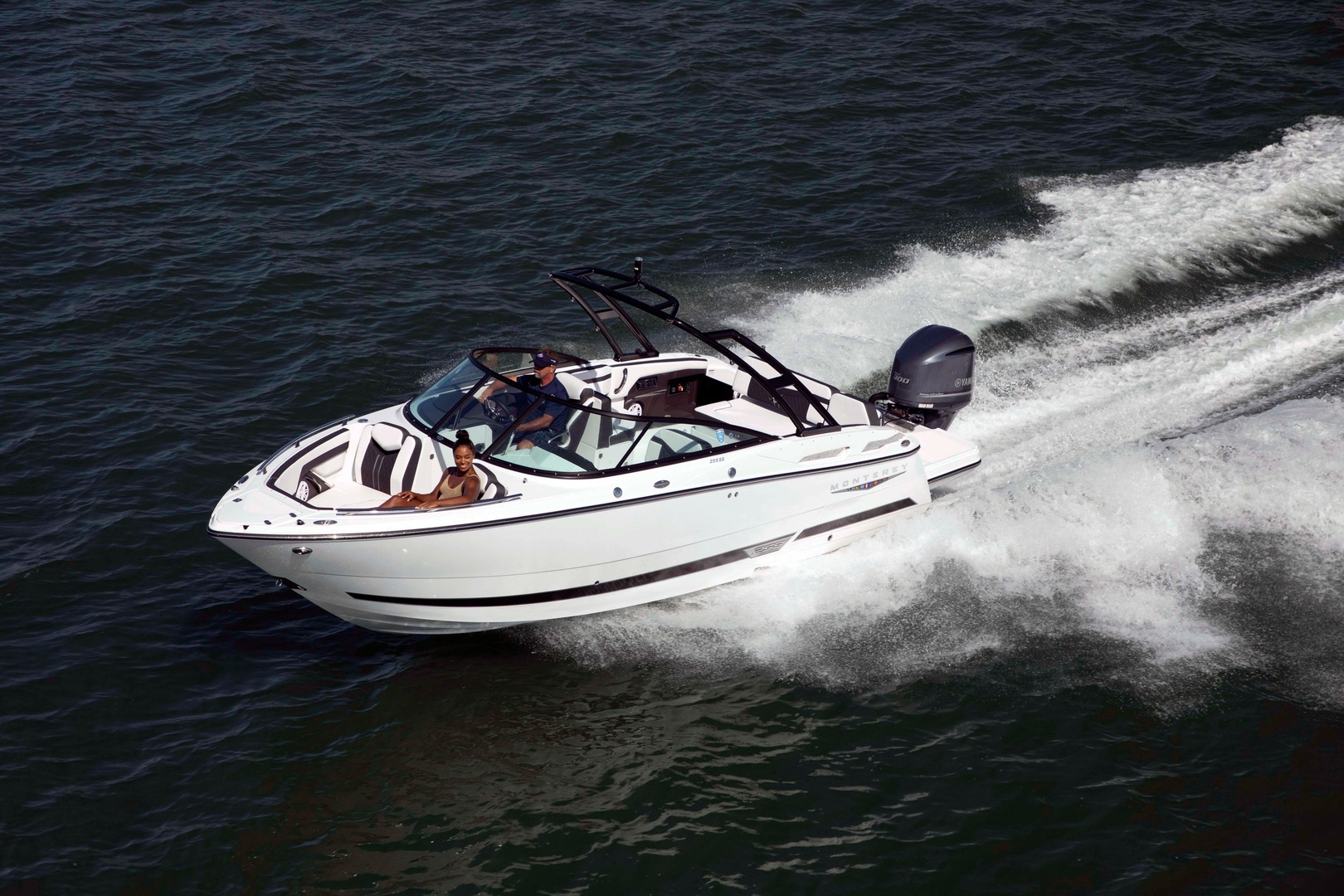

Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Specifications
Spec US Unit Metric Unit Description
LOA w/Swim Platform 25'8" 7.82M Length Overall, including add-on swim platform, not including bow rail or anchor roller
LOA W/Engines 28'8" 8.74M Length Overall With Engines
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 20° 20° Angle of keel measured at transom
Draft - Engine Up 16" 40.6CM Depth of hull to lowest point, engine trimmed up
Draft -Engine Down 35" 88.9CM Depth of hull to bottom of engine, trimmed down
Bridge Clearance w/Tower 8'0" 2.4M Height from water to highest point on tower, normal load
Fuel Capacity 65GAL 246.1L Capacity of fuel tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
Waste Capacity 11GAL 41.6L Capacity of waste tank in gallons/liters
Dry Weight 5500LBS 2495KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 15 (US) 13 (CE) Maximum Rated Persons Capacity
Max Persons Weight 2340LBS 975KG Maximum capacity of people that can be safely carried in pounds/kilograms
Maximum Persons w/ Gear Weight & Motor 3432LBS 1557KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 350HP 261KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Canvas

Bimini Top w/Embroidered Boot StandardStandard

Cockpit

Cooler, 48 Qt Carry-On StandardStandard
Courtesy Lighting, Blue/White, LED 12 V StandardStandard
Dock Line Straps (2) & Dry Deck StandardStandard
Drink Holders, Stainless Steel (8) StandardStandard
Fiberglass Cockpit Liner w/Non-Skid and Drainage StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Hatch, Engine Compartment, Gas Assisted StandardStandard
Outlet, 12 V StandardStandard

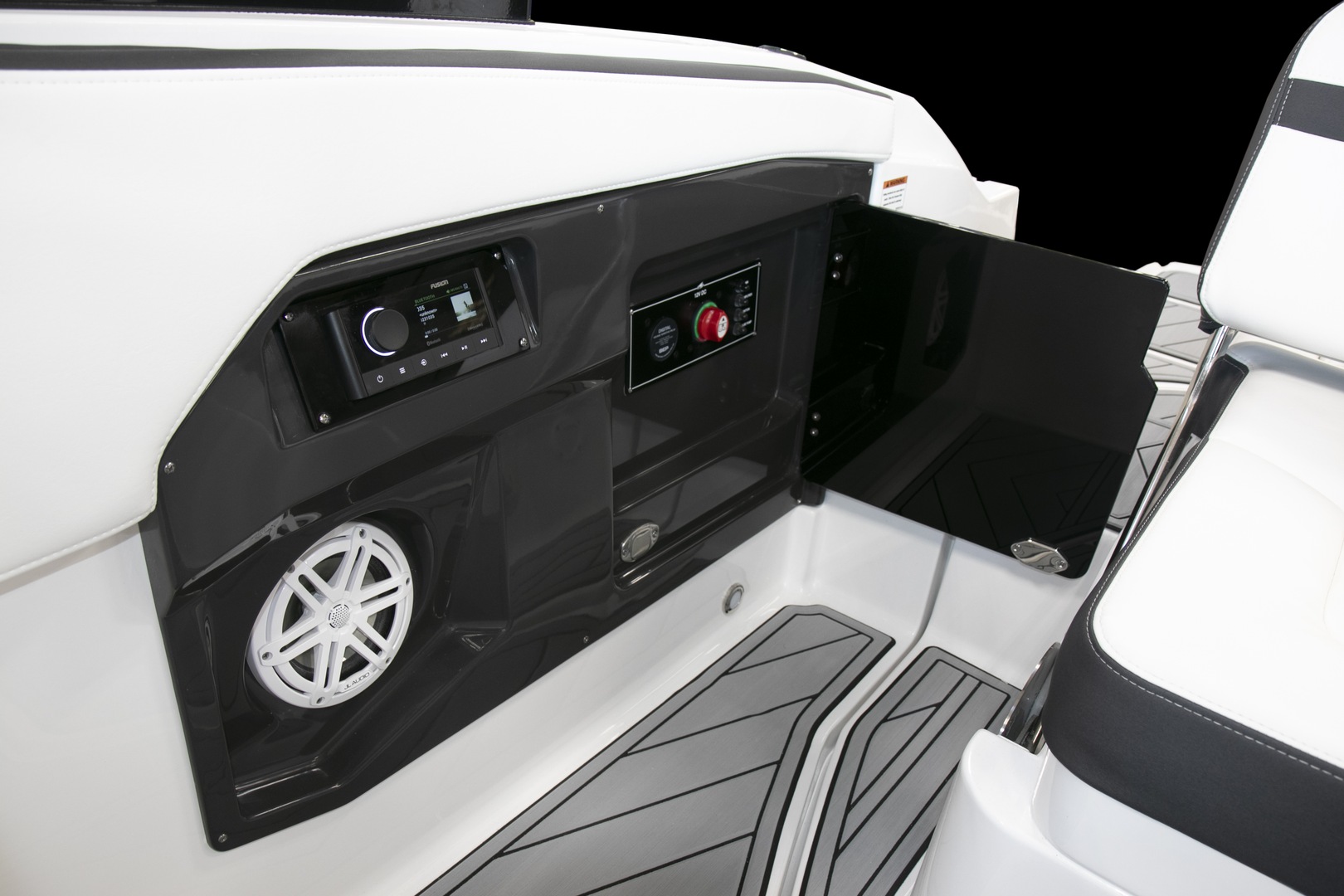

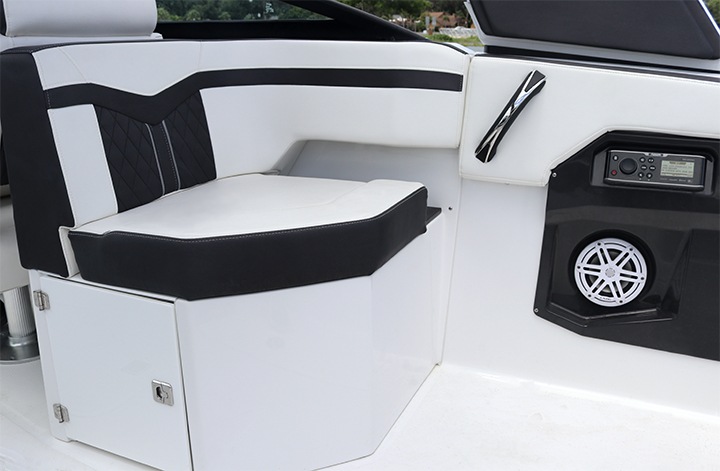

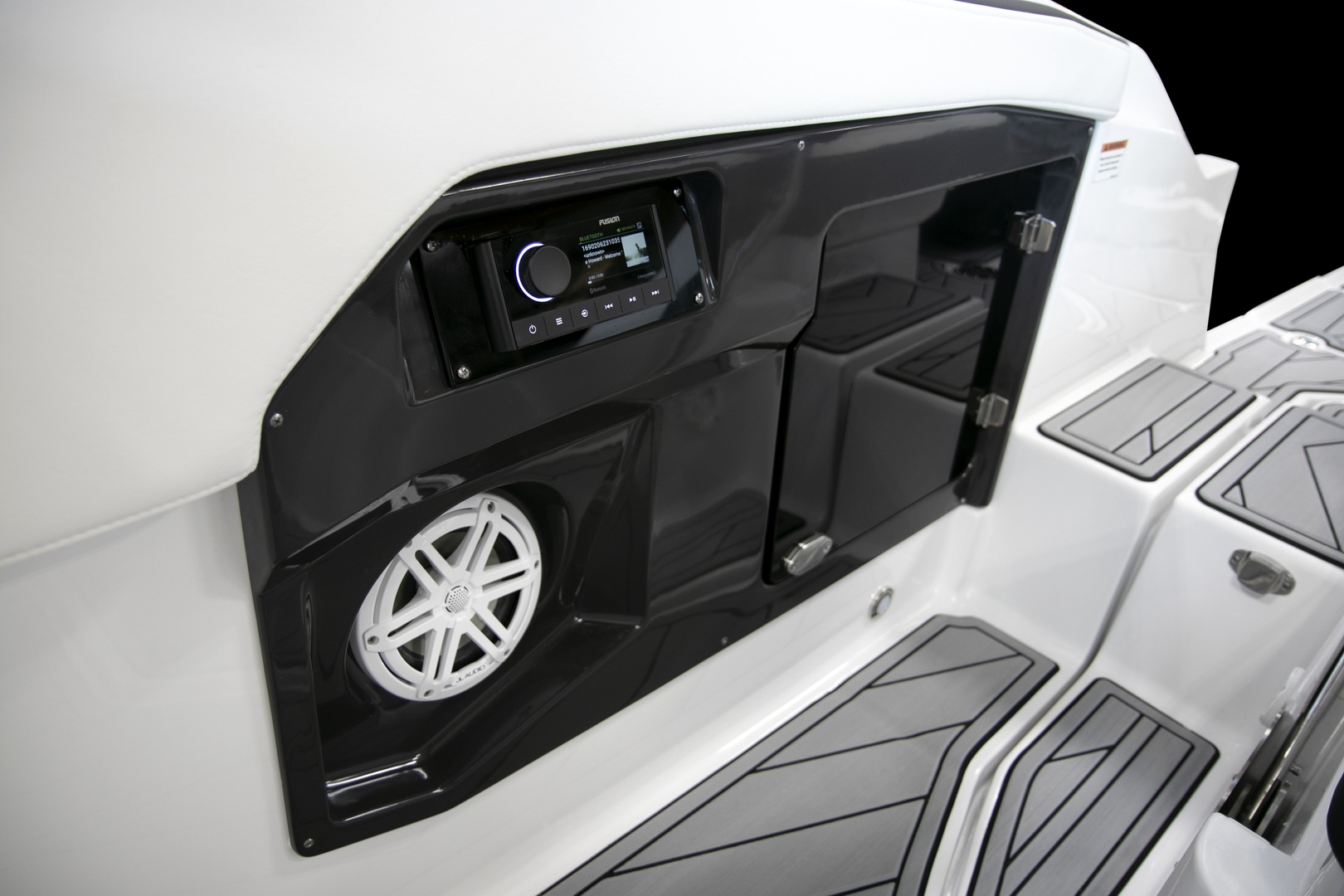

Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & 4 JL Audio 6.5" Speakers with LED Lights & Dash Remote StandardStandard
Storage, In-Floor Ski w/Gas Assisted Hatch Cover, & Dry Deck StandardStandard
Storage, Side Panels StandardStandard
Storage, Starboard Helm w/Hanging Rod, Trash Receptacle StandardStandard

Electrical Systems

Battery Switch, Dual w/Additional Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Gelcoated Bilge Compartment StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard
Water Separating Fuel Filter StandardStandard

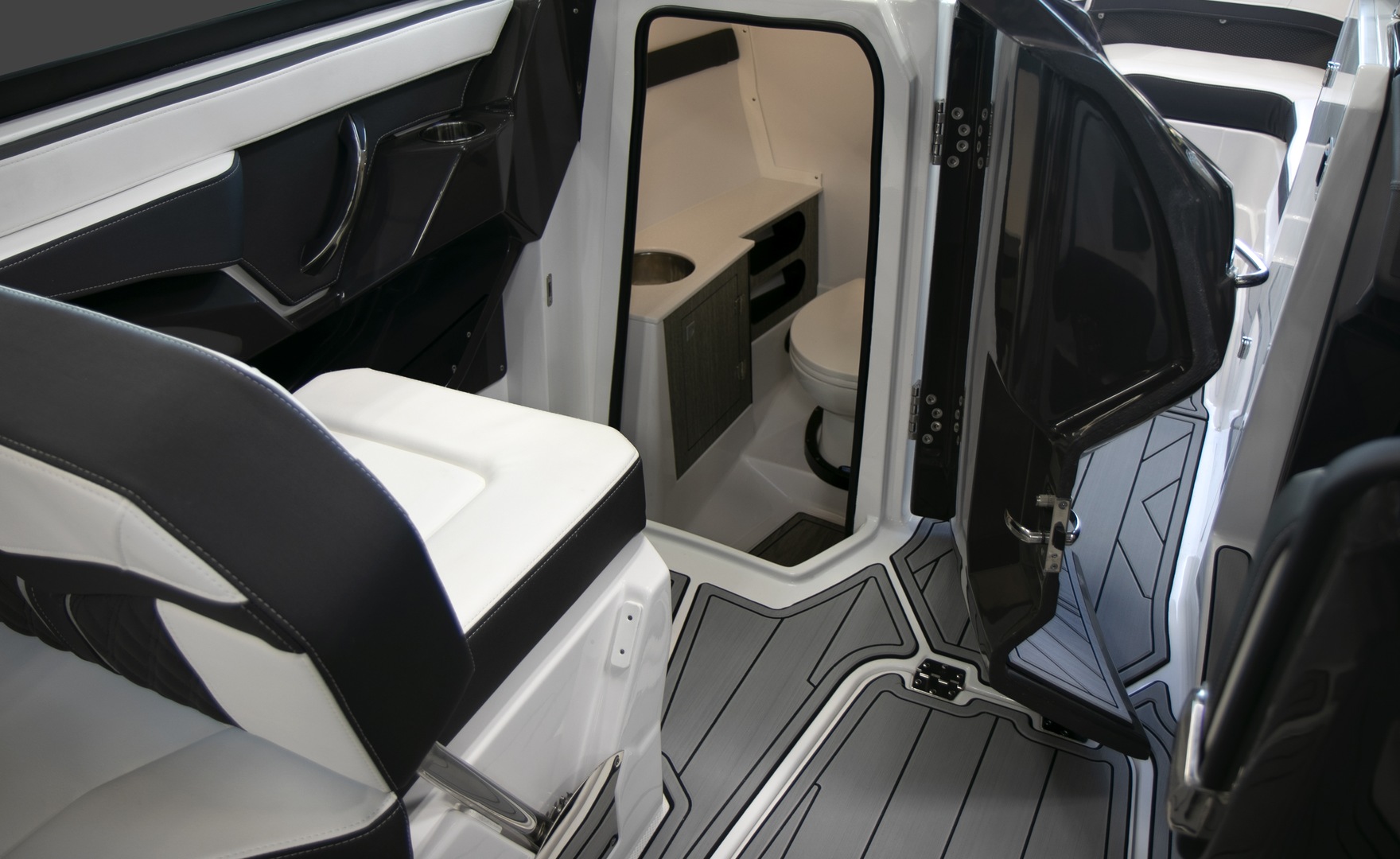

Head

Counter Top w/Solid Surface Inlay StandardStandard
Flooring, EVA Foam StandardStandard
Toilet (Porta-Potti) StandardStandard
Vanity w/Sink & Pullout Sprayer StandardStandard

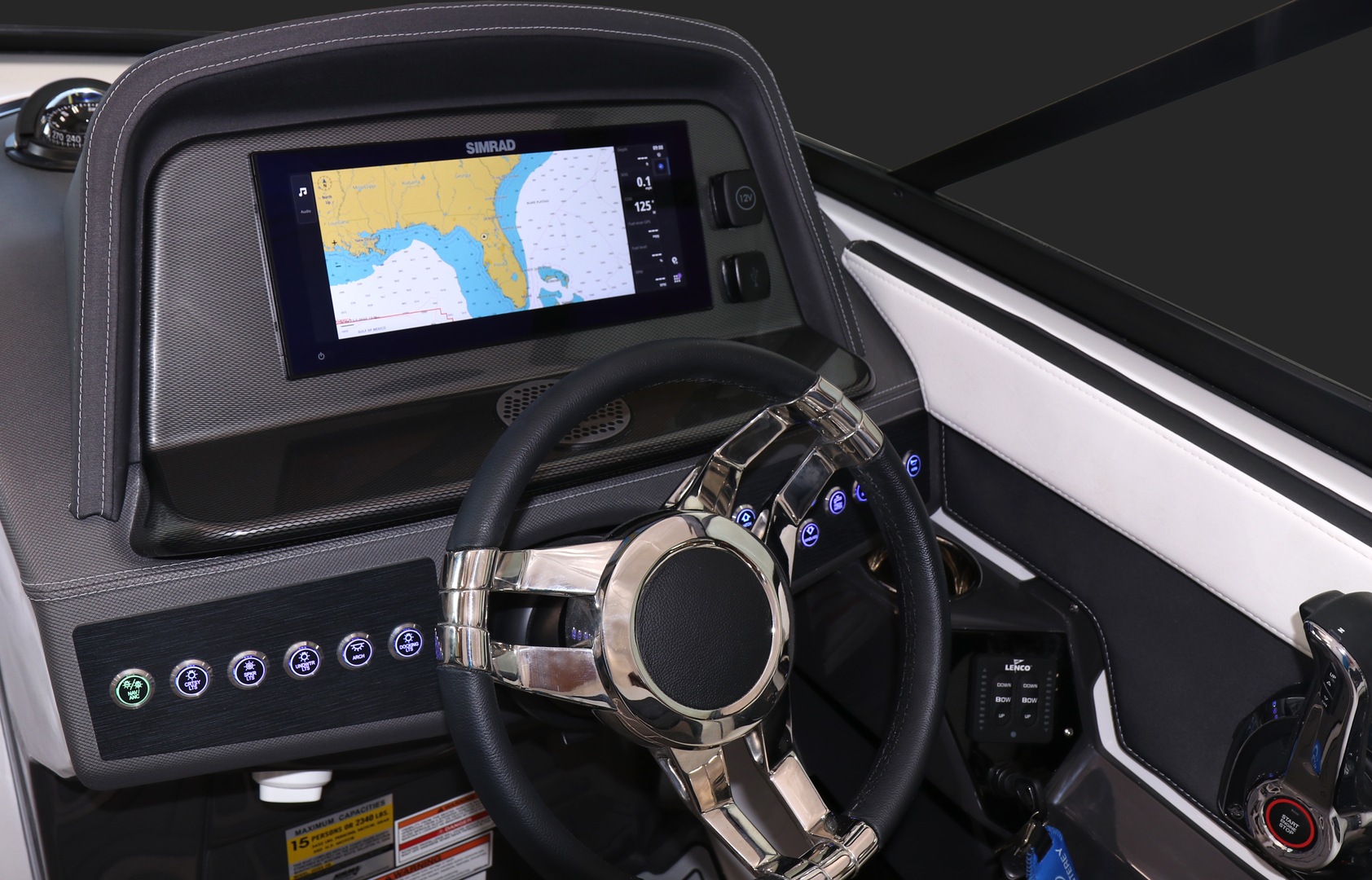

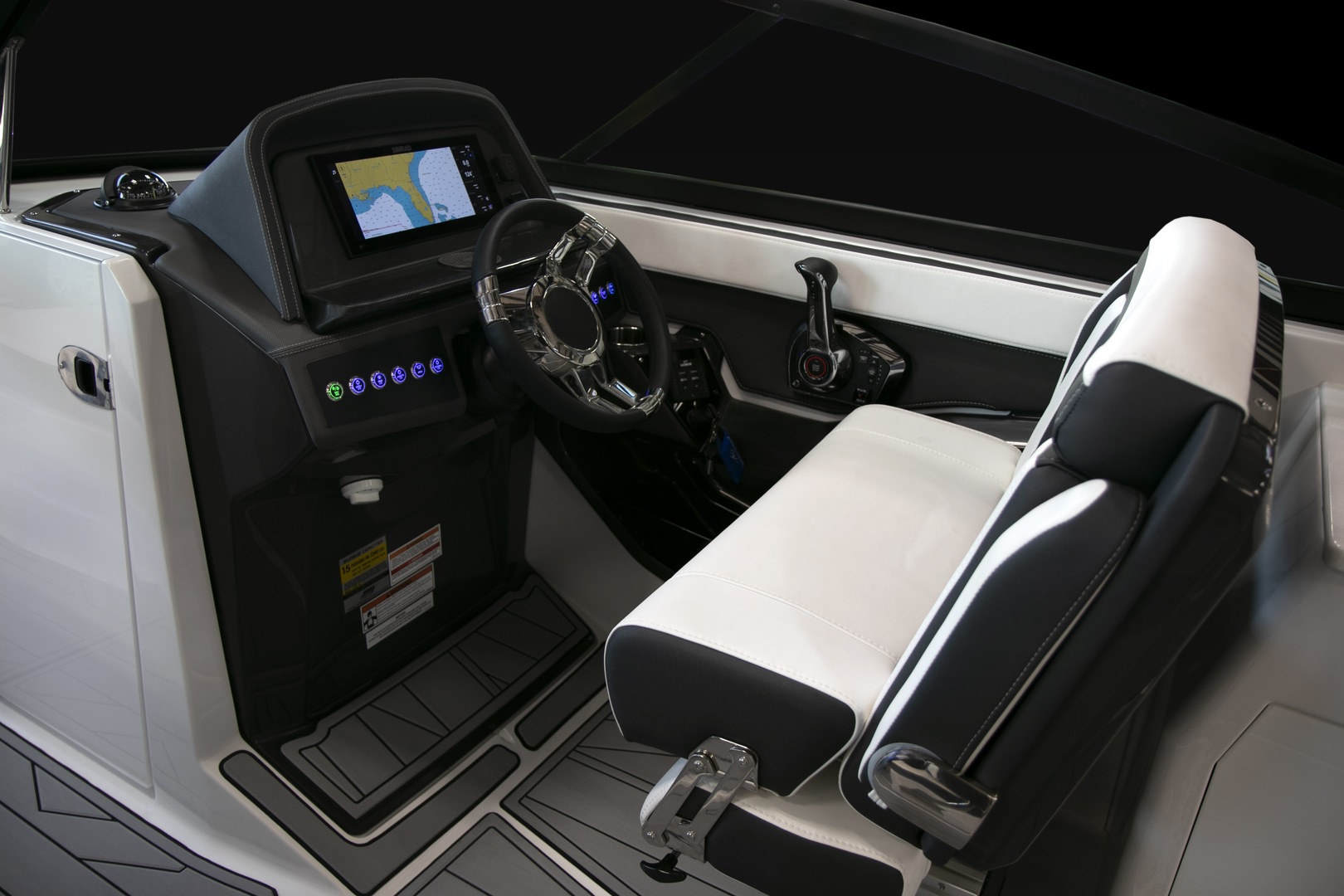

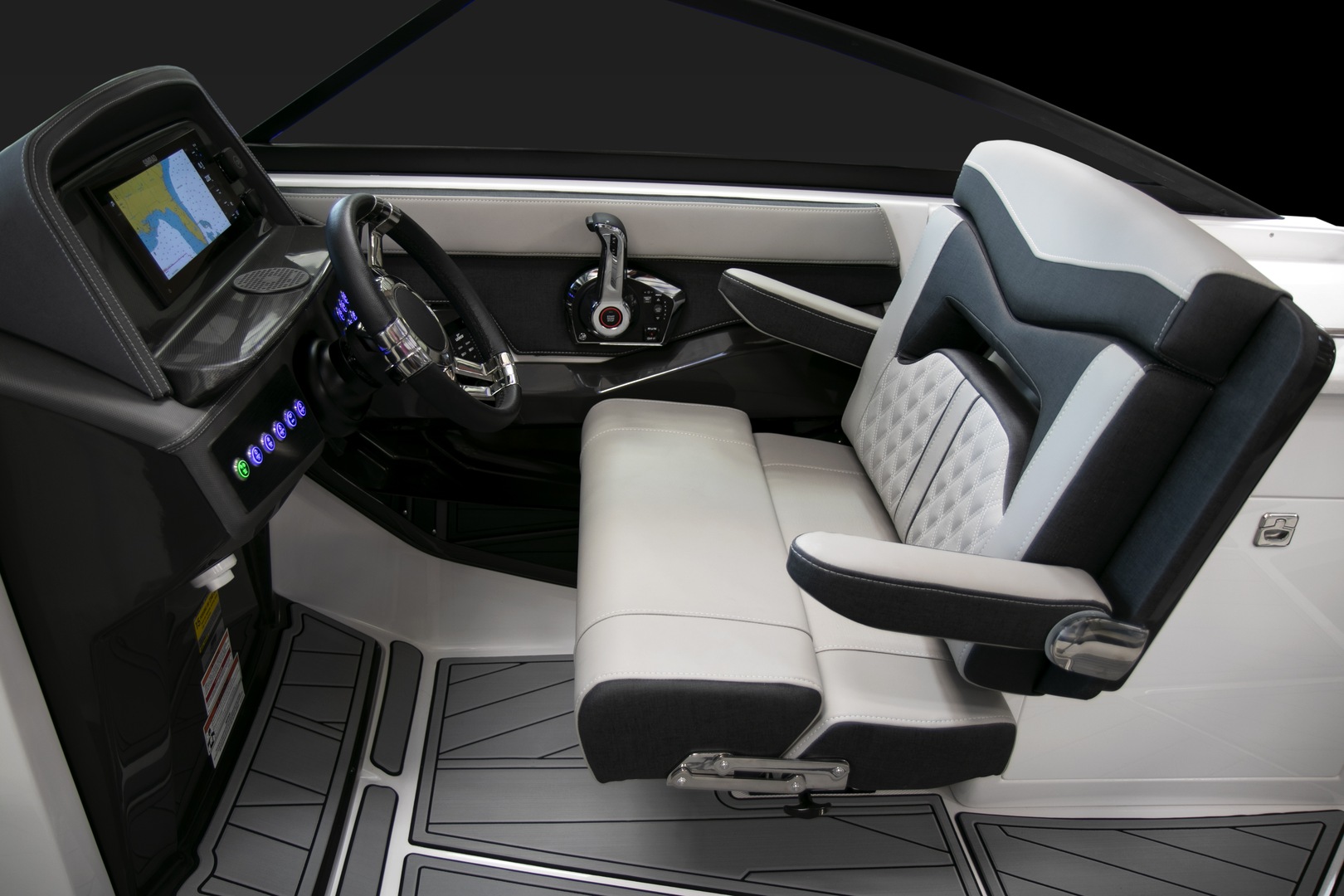

Helm

Compass StandardStandard
Digital GPS Speedometer StandardStandard
Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting StandardStandard
Outlet, 12 V StandardStandard
Simrad 12" Ultra Wide GPS/Chartplotter/Sonar w/Transducer w/Integrated Engine Functions and Depthsounder StandardStandard
Steering Wheel, Leather Wrapped w/Chromed Stainless Spokes StandardStandard
Steering, Power Assisted StandardStandard
Steering, Tilt StandardStandard
Switches, Lighted Weatherproof StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Barrier Coat, Vinylester StandardStandard
Boarding Ladder, Telescoping & Recessed, Bow StandardStandard
Bow Hand Rails, SS StandardStandard
Bow & Stern Eyes, Stainless Steel, with Stainless Steel Backing Plate StandardStandard
Bow Plate, Stainless Steel StandardStandard
Cleats, Stainless Steel (6) StandardStandard
Colored Hull Sides StandardStandard
Cooler Molded In, Bow StandardStandard
Custom Hull Side Super Sport Graphics StandardStandard
Door, Walk-Thru at Helm StandardStandard
Door, Walk-Thru at Transom StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric Flush Mount StandardStandard
Lights, Docking StandardStandard
Lights, Navigation LED StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) StandardStandard
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch StandardStandard
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck StandardStandard
Swim Platform, Integral with Ski Rope Storage StandardStandard
Thru Hulls, Stainless Steel Above Waterline StandardStandard
Transhield Cover StandardStandard
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed StandardStandard

Seating

Aft Facing Seat, Starboard w/Carry-on Slide-Out Cooler StandardStandard

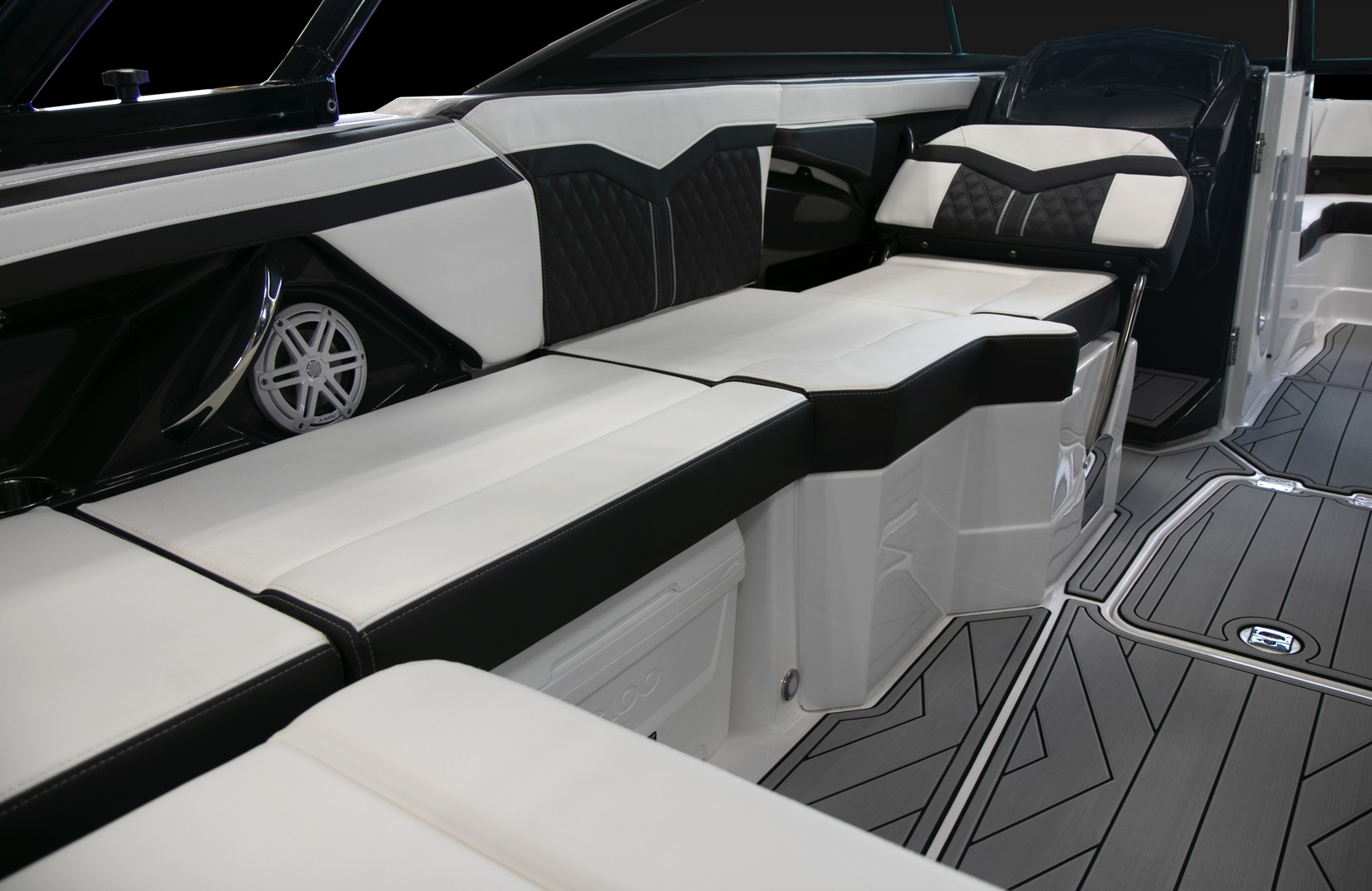

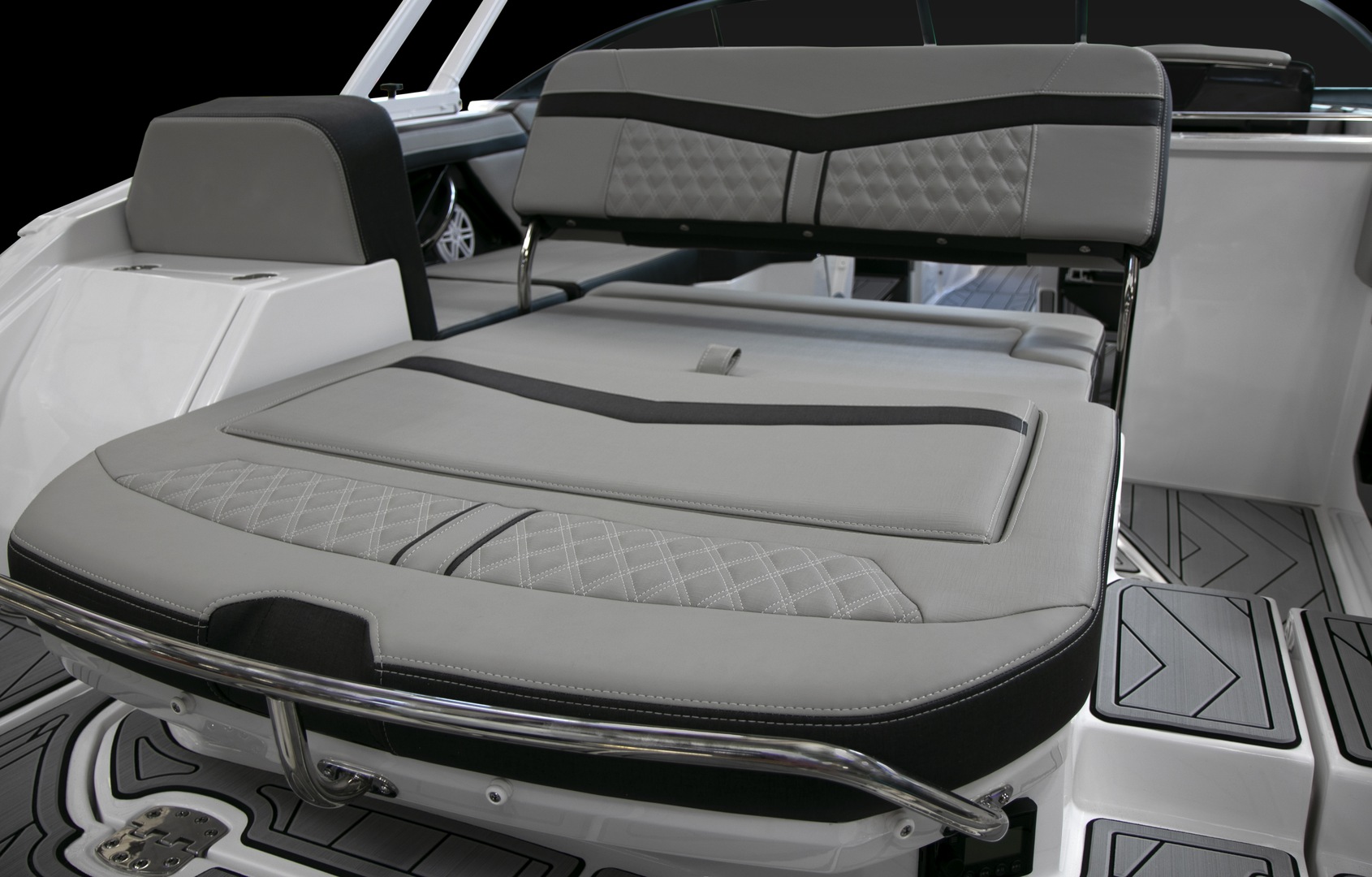

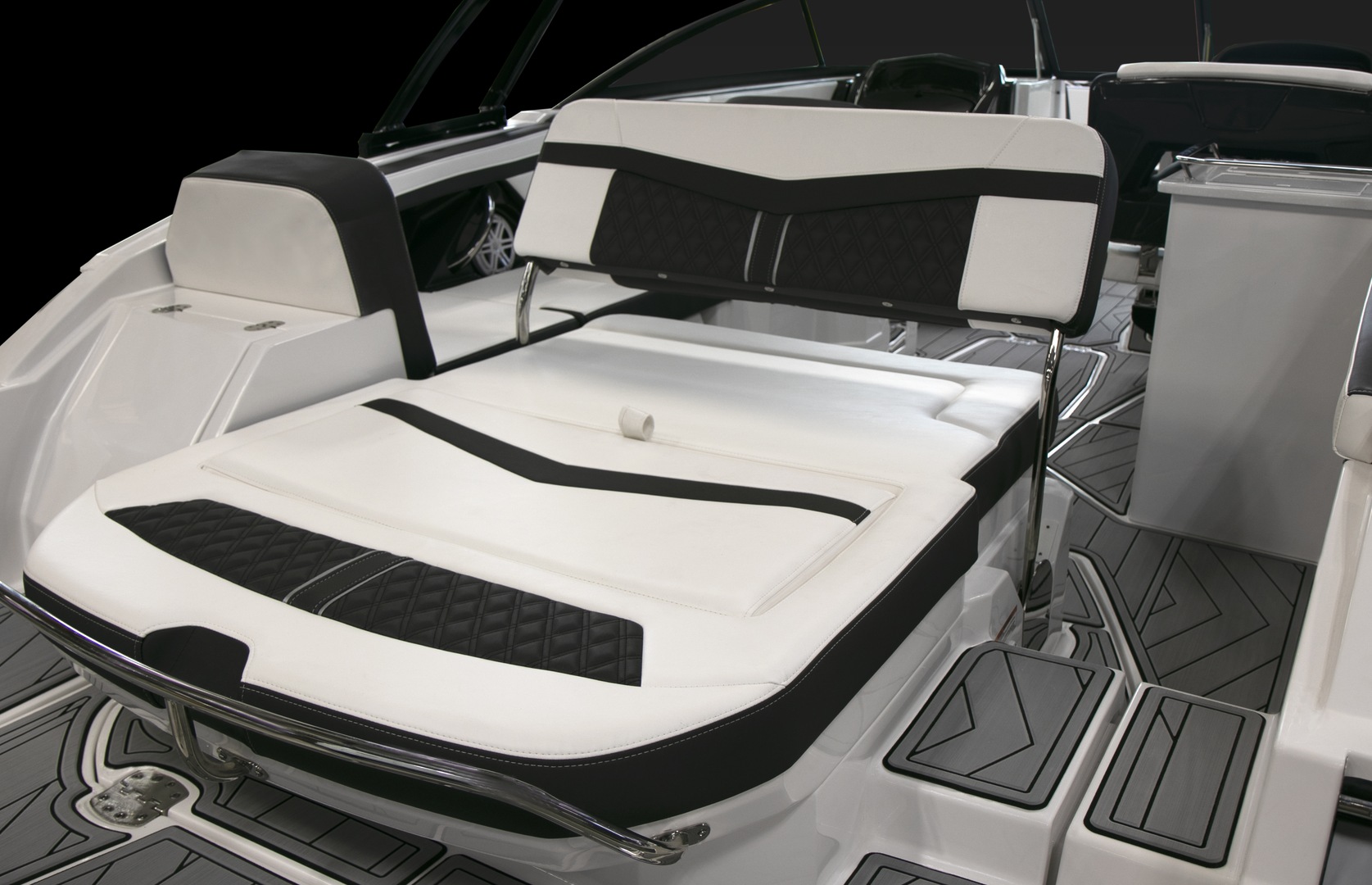

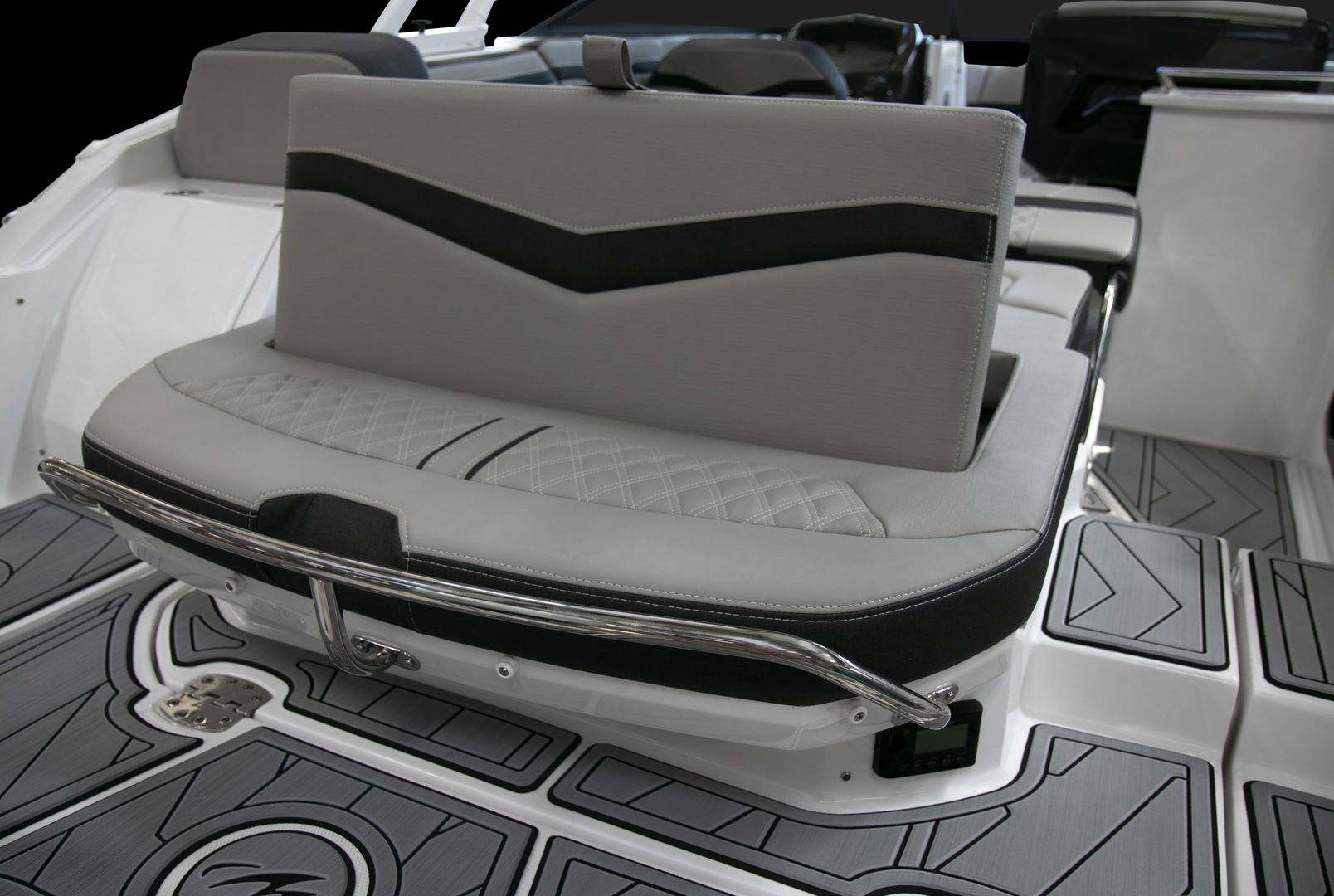

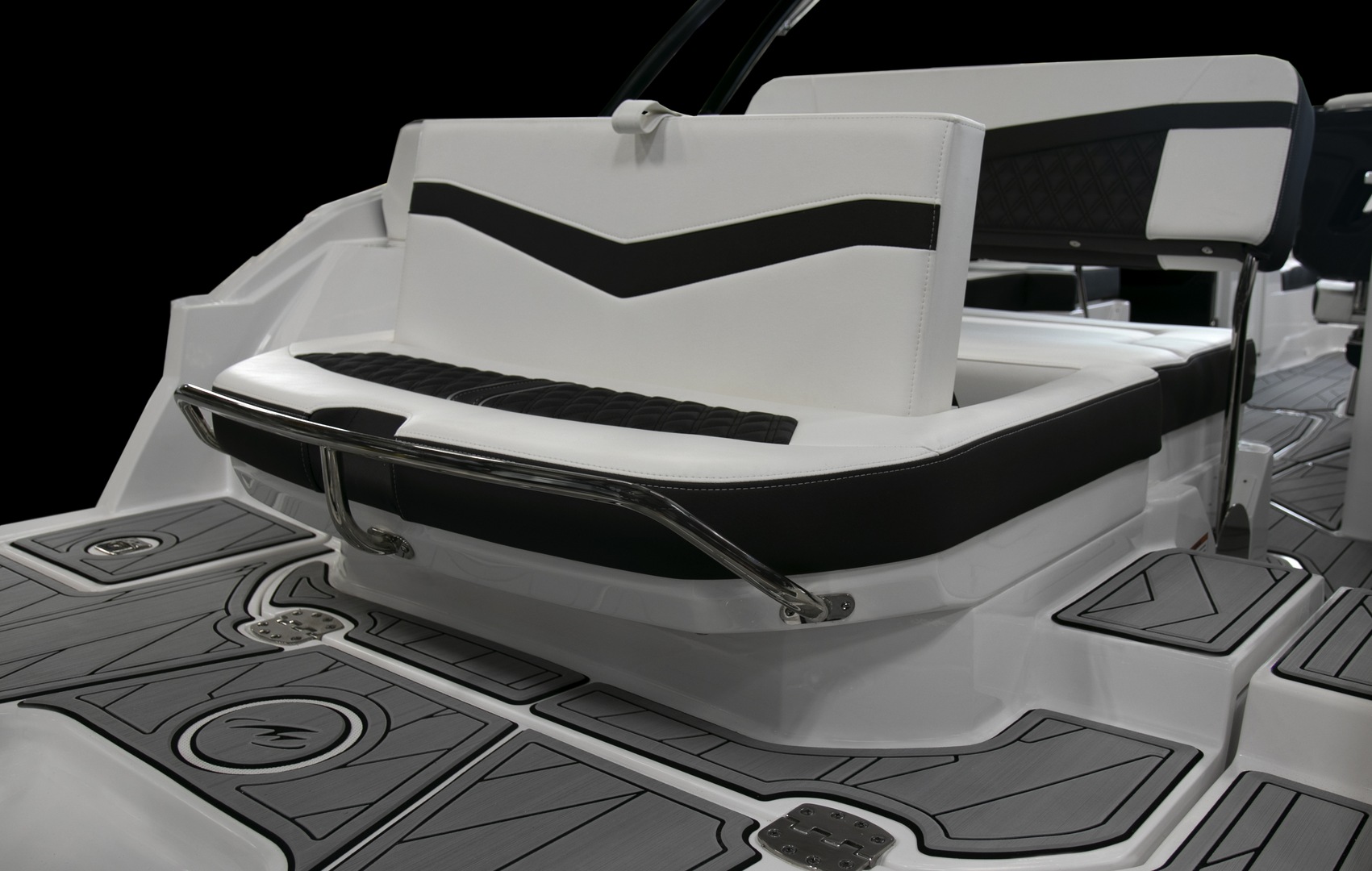

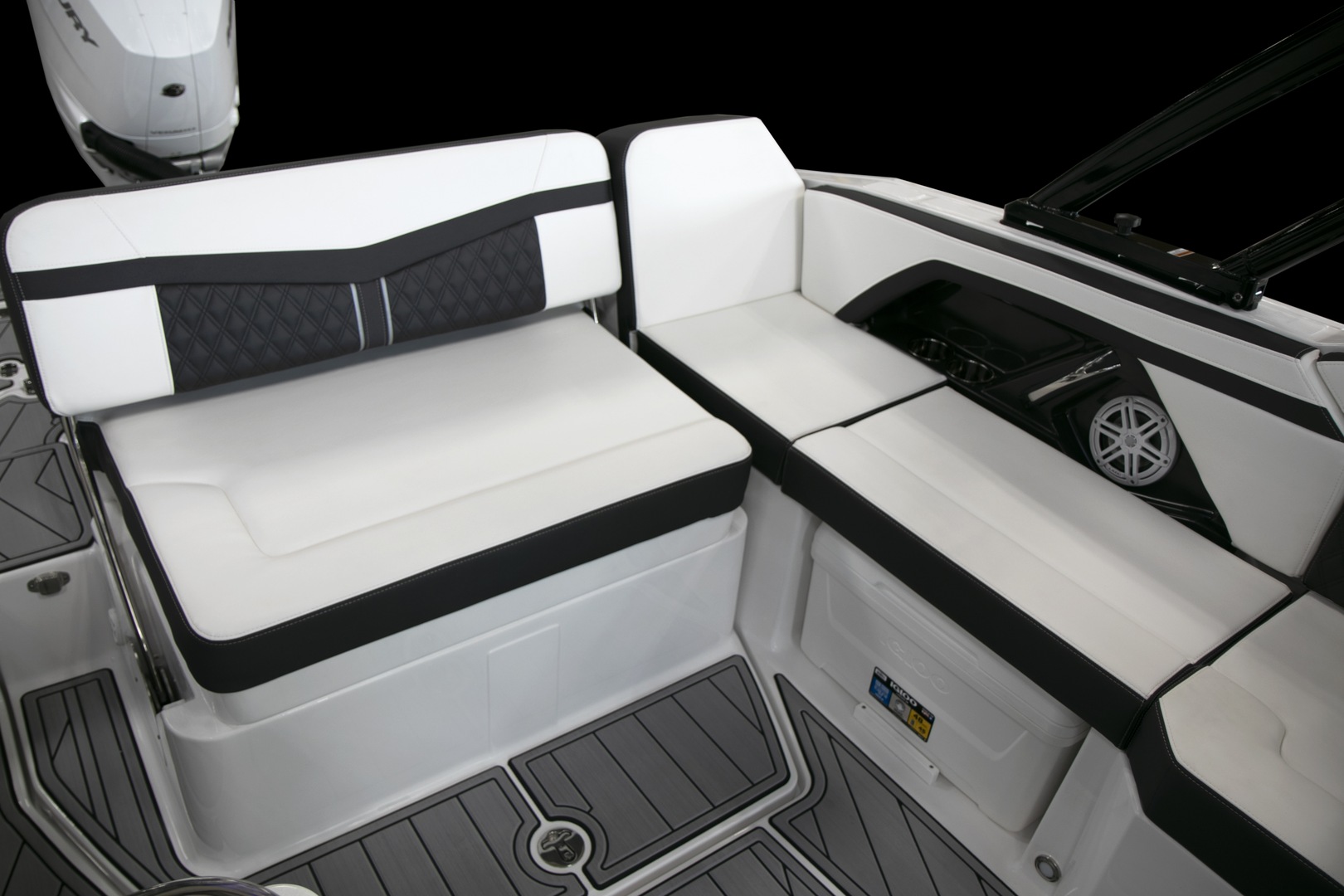

Aft L-Lounge w/Fiberglass Bases, Sun Island Feature, Stainless Steel Stern Rail StandardStandard
Bow Bolsters StandardStandard

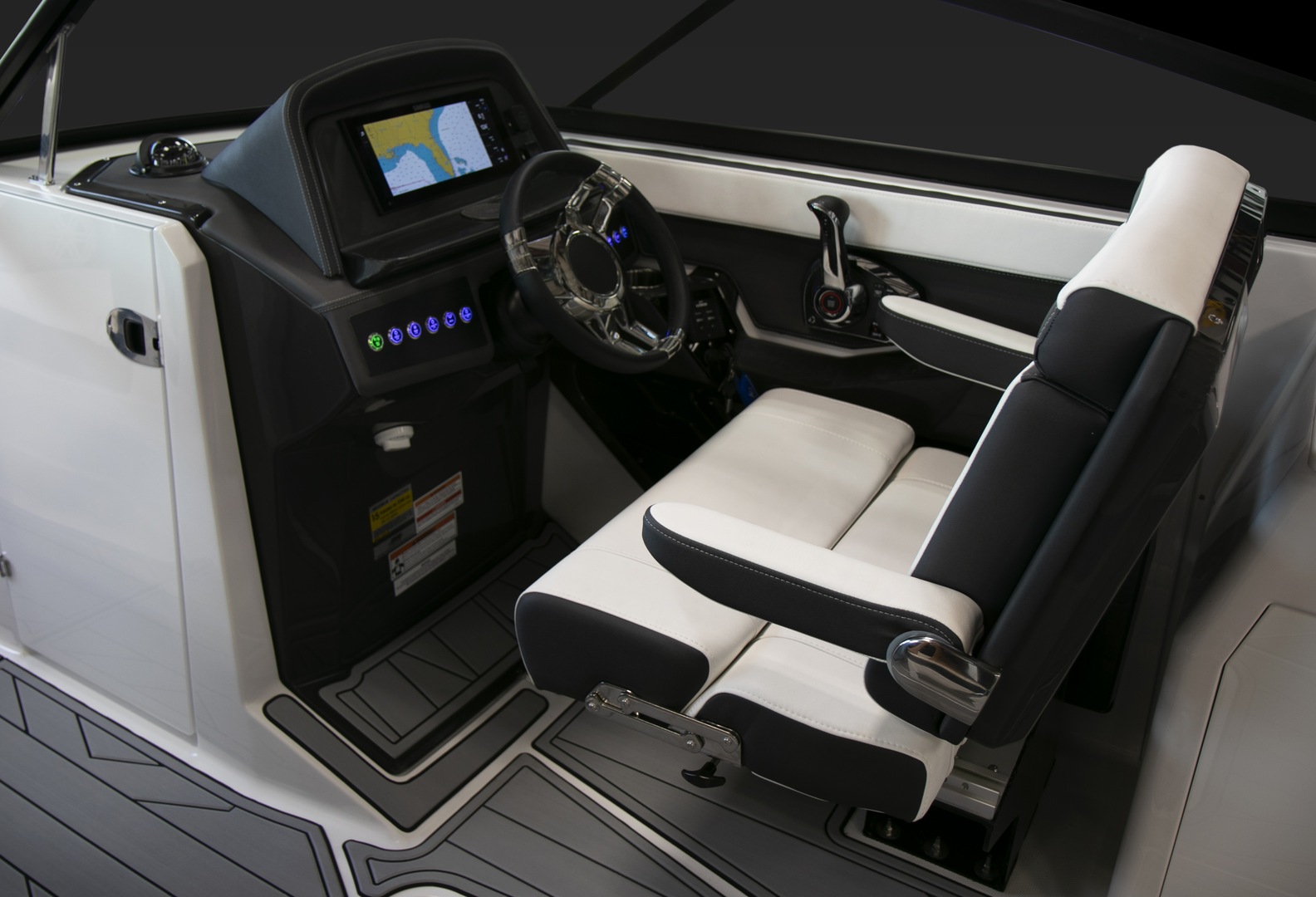

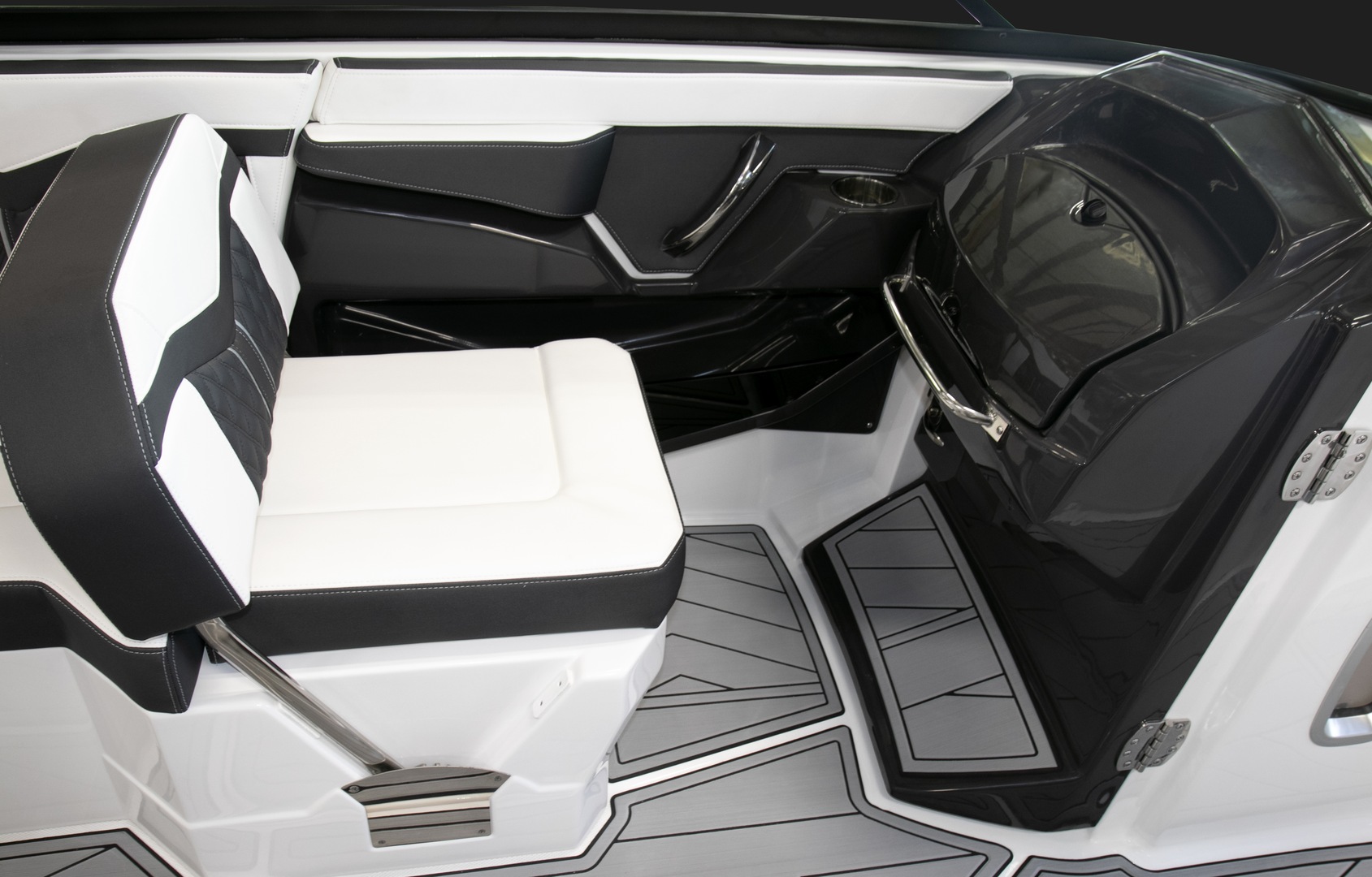

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Starboard StandardStandard
Portside Fwd./Aft Facing Lounger StandardStandard

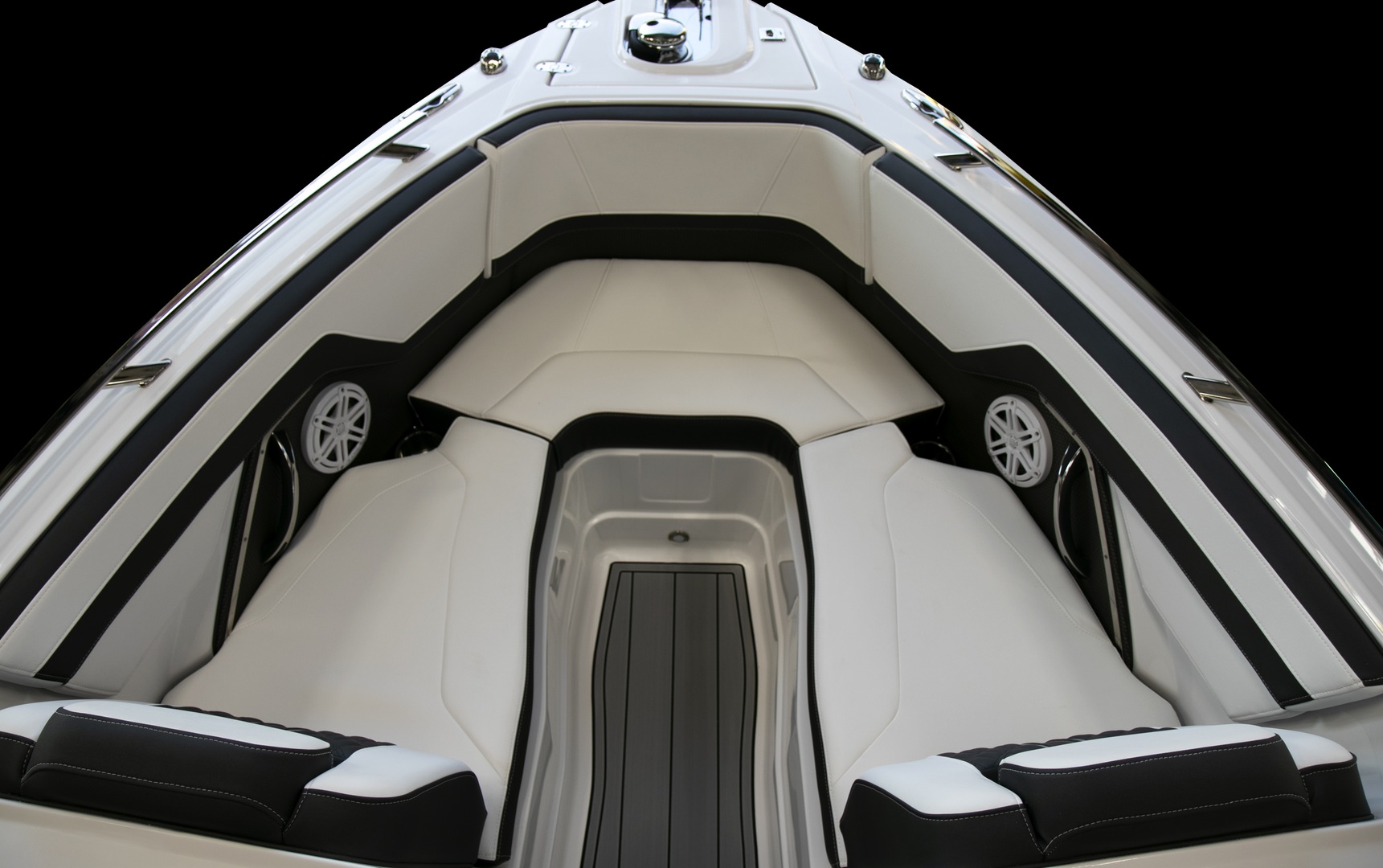

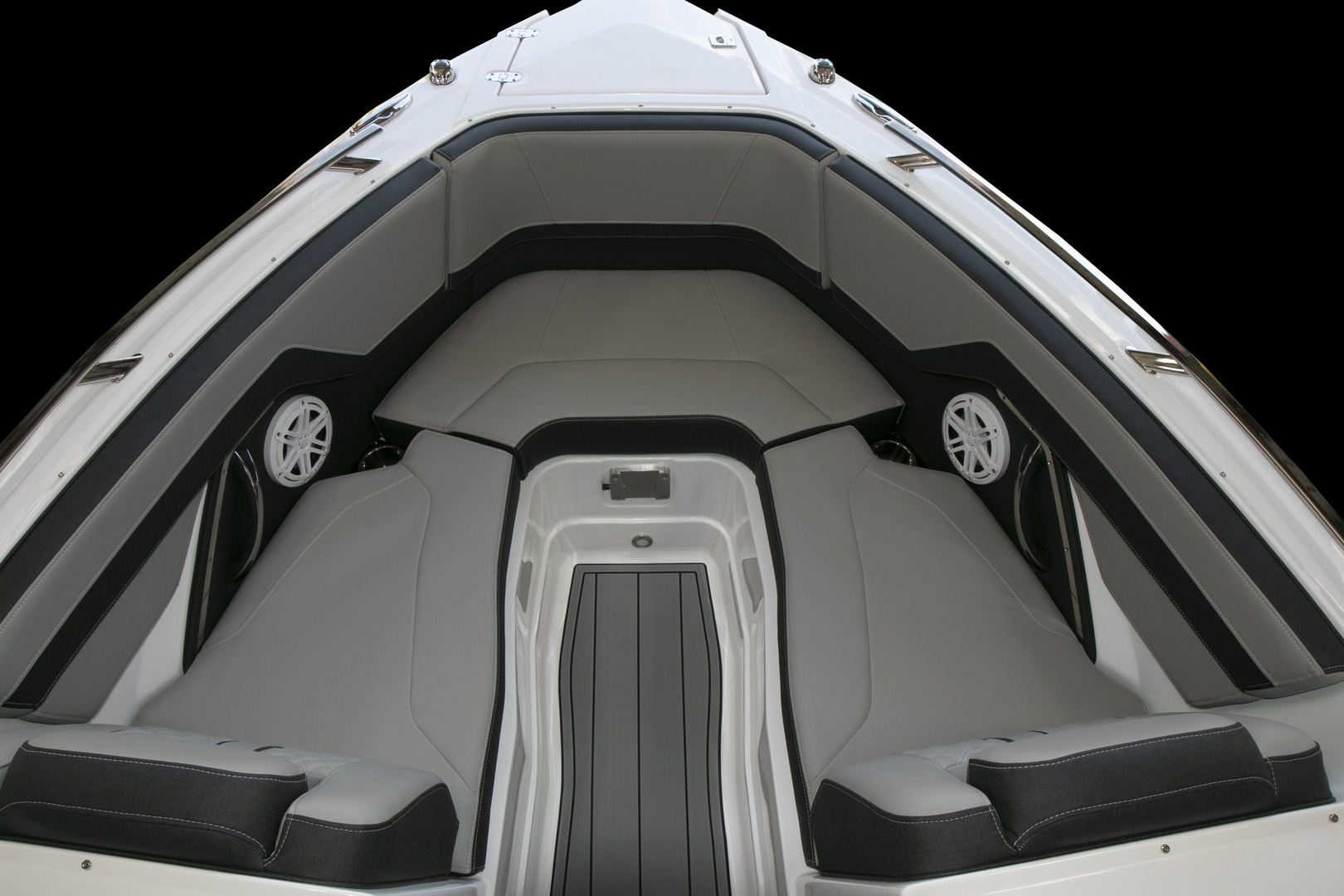

Seat Cushions w/Storage Compartments, Bow StandardStandard

Canvas

Bow & Cockpit Cover: Onyx Optional FeatureOptional
Bow & Cockpit Cover: Rio Optional FeatureOptional
Bow & Cockpit Cover: Royal Blue Optional FeatureOptional
Bow & Cockpit Cover: Sapphire Optional FeatureOptional
Bow & Cockpit Cover: Taupe Optional FeatureOptional

Cockpit

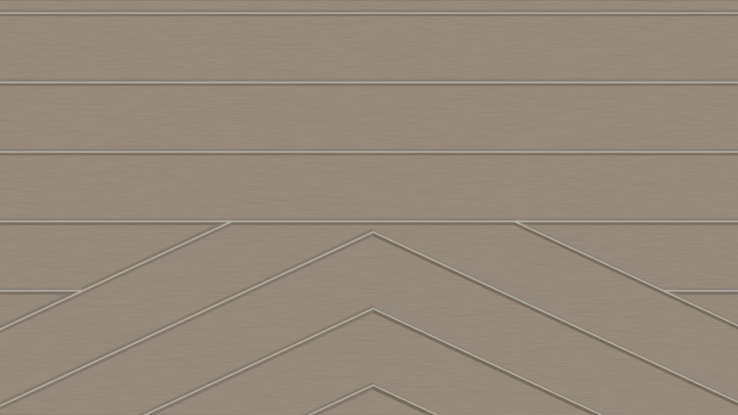

Cockpit Inlay (SeaDek) (Terra) (Requires Swim Platform Inlay Option) Cockpit Inlay (SeaDek) (Terra) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Inlay (SeaDek) (Gray) (Requires Swim Platform Inlay Option) Cockpit Inlay (SeaDek) (Gray) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Table, w/Pedestal and Vertical side Mount Bases Fwd. & Aft. Optional FeatureOptional
Stereo Upgrade Package Premium, Includes JL 5 Channel Amplifier & 10" JL Subwoofer Optional FeatureOptional
Stereo Remote, Stern Optional FeatureOptional
Tower Cone Speakers, JL with 4 Channel Amplifier (Requires Stereo Upgrade Package and Arch/Tower) Optional FeatureOptional
Transom Shower w/Pressurized Water (Cold Only) Optional FeatureOptional

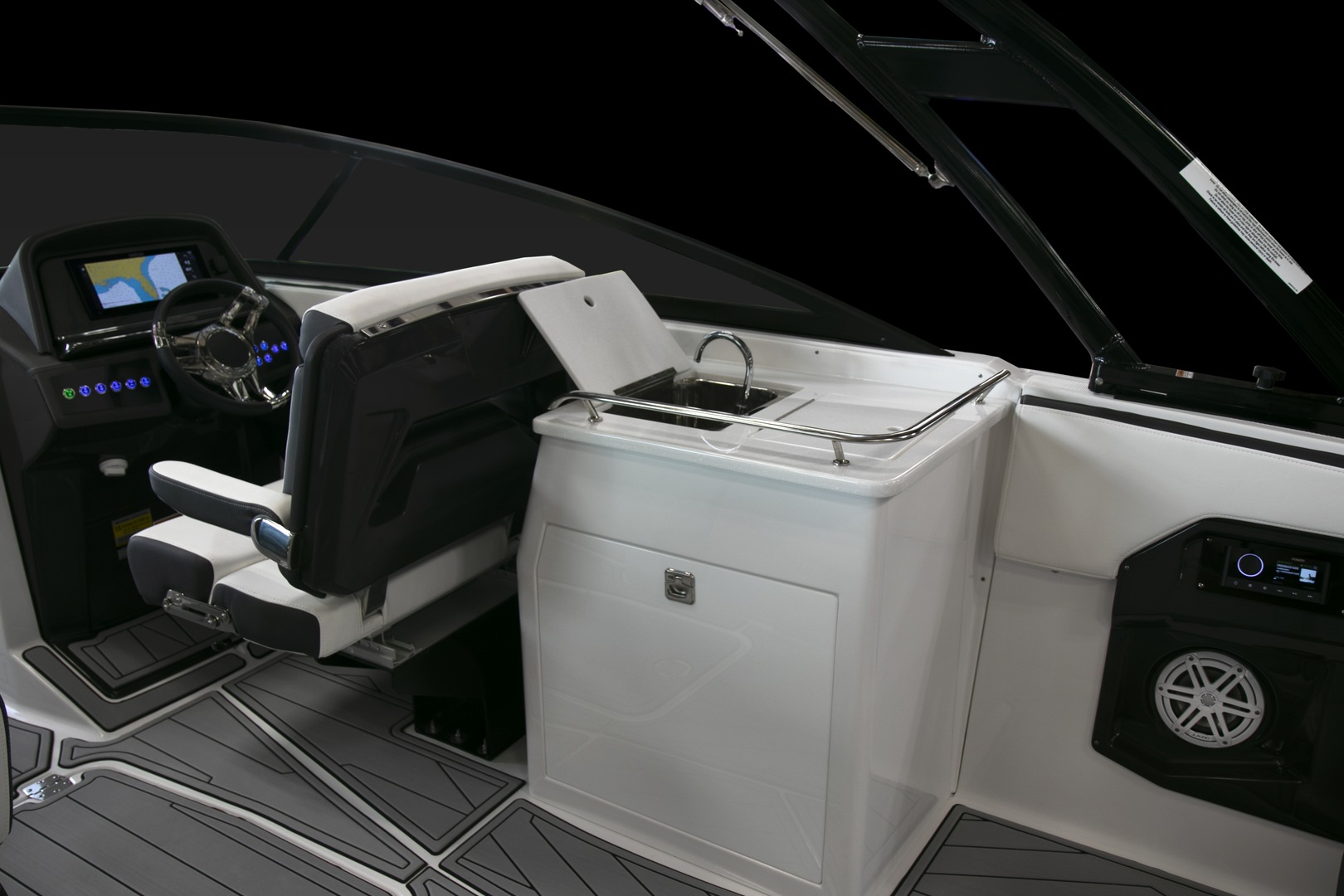

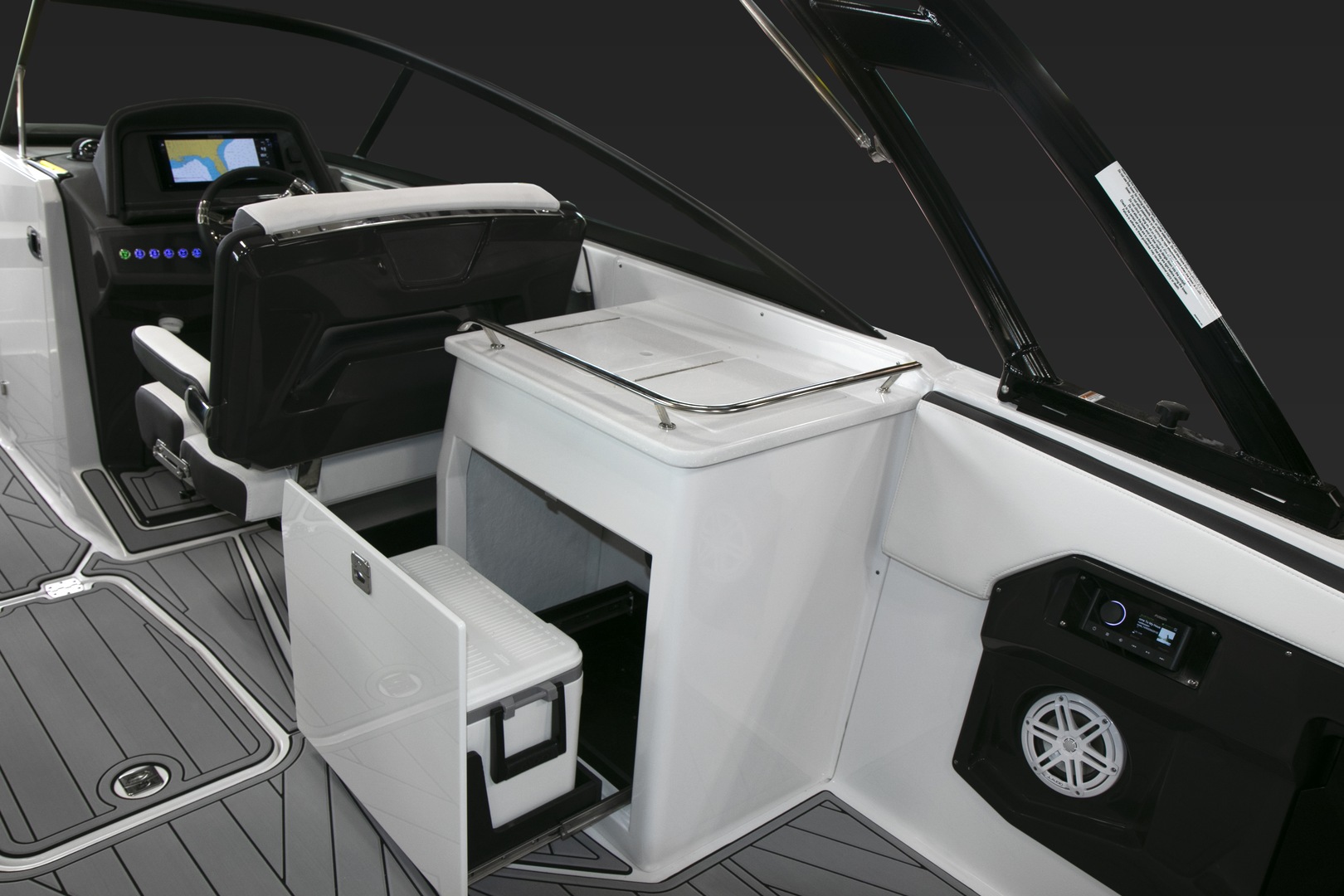

Wet Bar w/Solid Surface Insert, Sink, Faucet & Slide Out Cooler Optional FeatureOptional
Woven Flooring, Cockpit Optional FeatureOptional

Head

Toilet, Pump-out Deck Fitting Optional FeatureOptional
Electric Head System w/Holding Tank indicator & pump out deck fitting Optional FeatureOptional

Helm

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional

Hull & Deck

Anchor Windlass, Pre-Wire Optional FeatureOptional
Anchor Windlass w/Anchor Rope & Chain Optional FeatureOptional
Colored Hull Bottom (other than Arctic Ice) Optional FeatureOptional
Delete Graphics Optional FeatureOptional
Phender Pro Holders (4) Optional FeatureOptional
Portlight, In Head, w/Screen Optional FeatureOptional
Ski Tow Pylon, Removable Optional FeatureOptional
Swim Platform Inlay (SeaDek) (Terra) Swim Platform Inlay (SeaDek) (Terra) Optional FeatureOptional
Swim Platform Inlay (SeaDek) (Gray) Swim Platform Inlay (SeaDek) (Gray) Optional FeatureOptional
Underwater Lights, LED RGB Optional FeatureOptional
Wakeboard Tower Black, Hinged to Fold Down (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower White, Hinged to Fold Down (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower, Electric, Black (Includes Wakeboard Bimini) Optional FeatureOptional
Wakeboard Tower, Electric, White (Includes Wakeboard Bimini) Optional FeatureOptional

Seating

Bow Filler Cushions Optional FeatureOptional
Bucket Seat, Swivel w/Slider and Flip Up Bolster, Port Optional FeatureOptional

Under Water Gear

Trim Tabs W/Indicators & Auto Retract Optional FeatureOptional

Waste Systems

Grey Water System for Porta Potti (N/A With Macerator) Optional FeatureOptional
Macerator w/Overboard Discharge (requires Electric toilet option - Not Available w/Grey Water Option) Optional FeatureOptional
Grey Water System For Electric Head (N/A With Macerator) Optional FeatureOptional
Performance
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
300XXL DTS 300HP OB Enertia Eco-17-SS 44-48 9.9@30.8 Download
300XXL DTS (Cold Fusion White) 300HP OB Enertia Eco-17-SS 44-48 9.9@30.8 Download
350XL V10 DTS 350HP OB REV X-21-SS 52-56MPH 11.5@32E
350XL V10 DTS white 350HP OB REV X-21-SS 52-56MPH 11.5@32E

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
