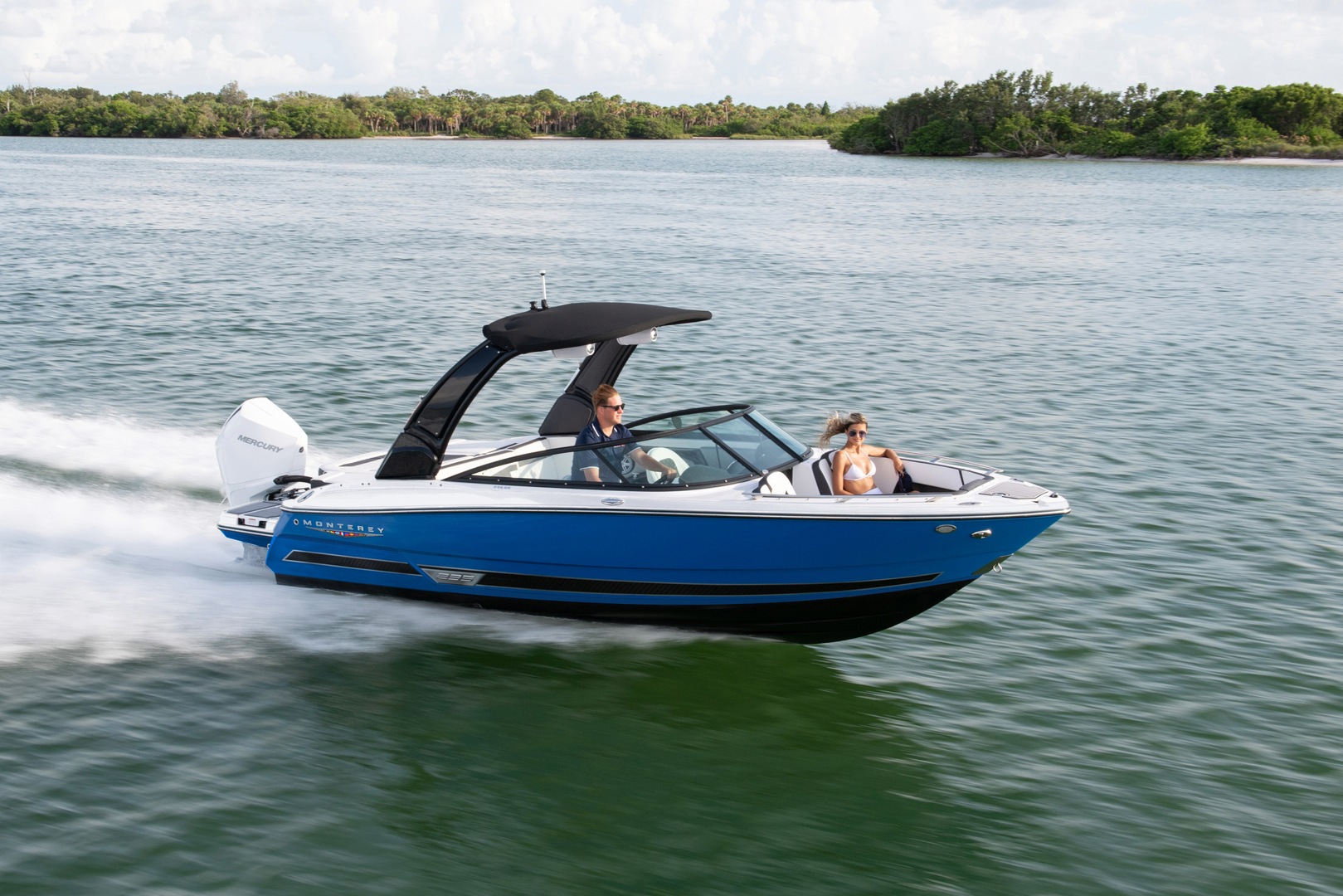

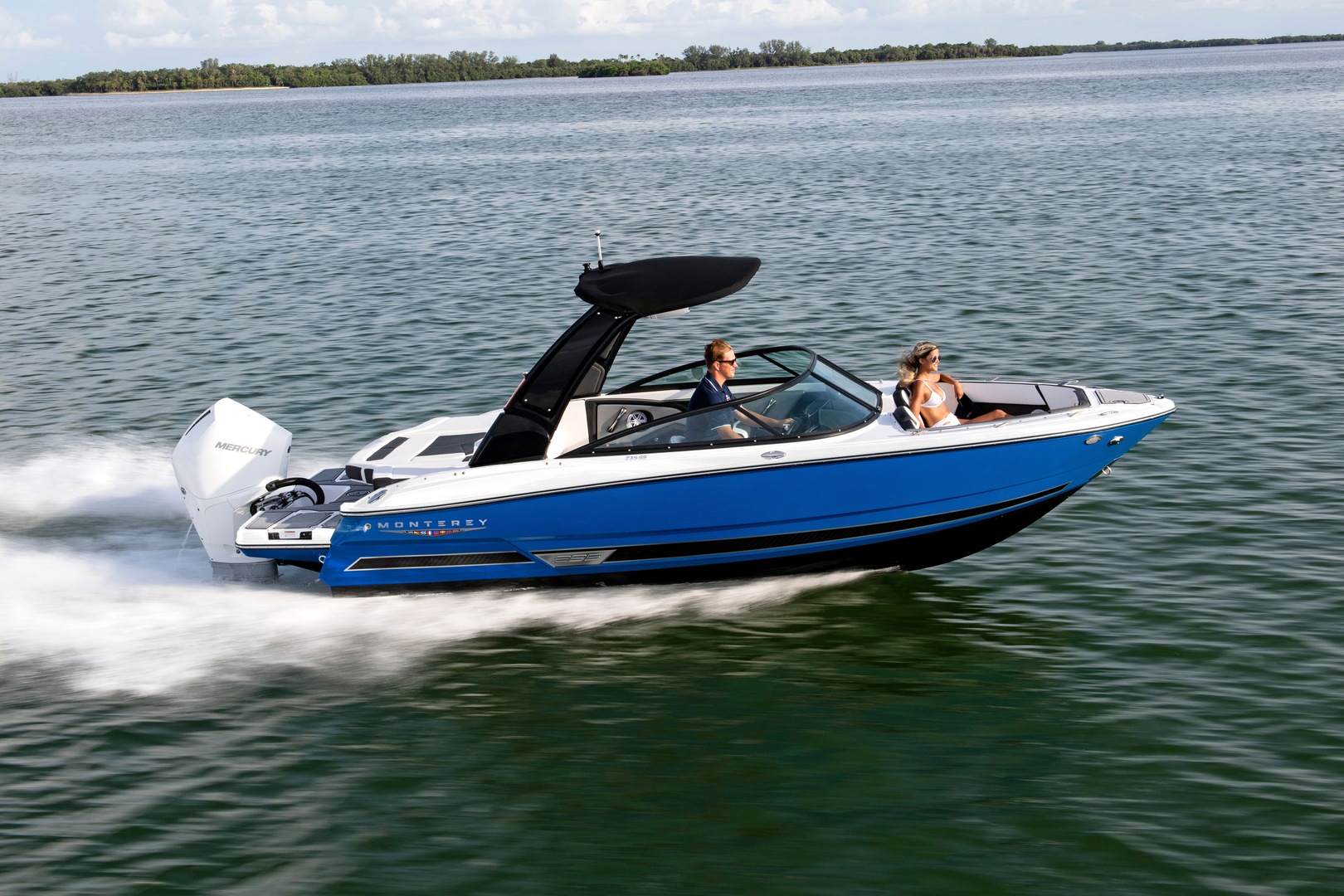

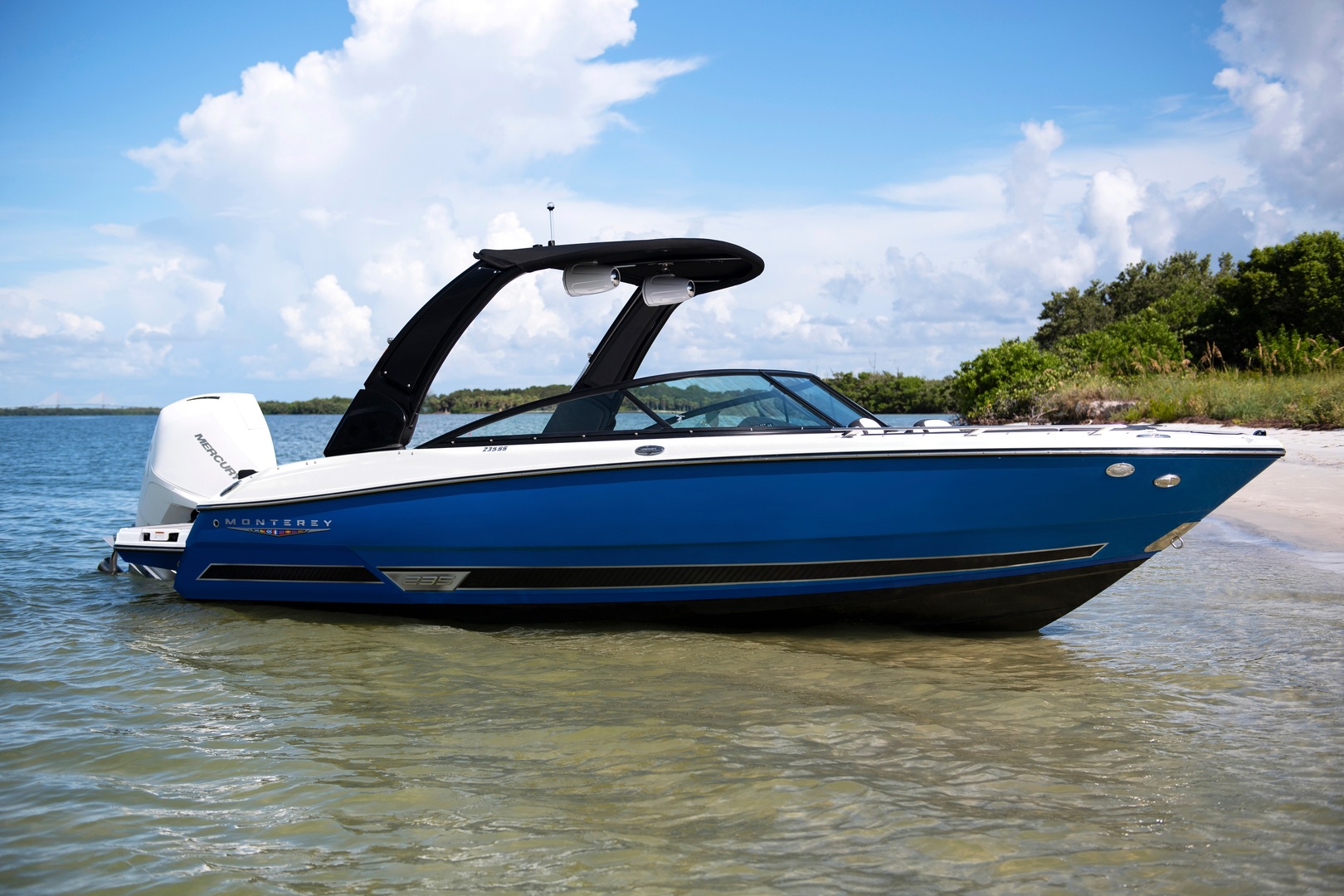

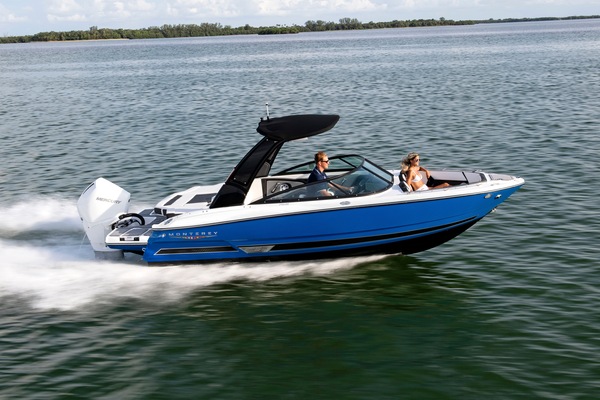

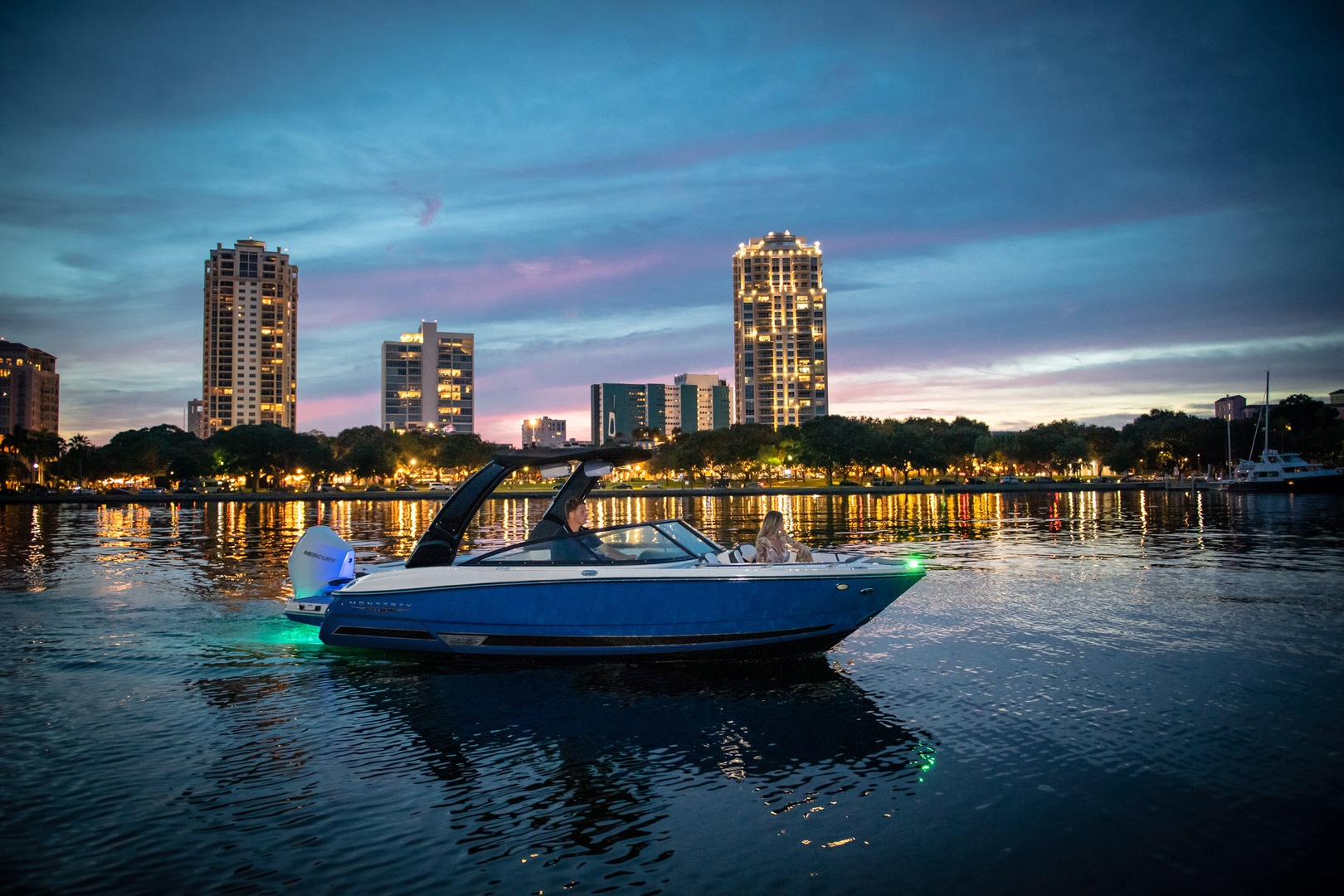

Sleek styling, powerful outboard performance, and luxurious seating options help make the Monterey 235SS the perfect choice. Equipped with luxurious aft sun-pad with aft facing flip-up bolster, the 235 is a sun worshiper’s delight! Standard features include an ergonomically designed helm station, multiple dedicated storage options, spacious seating accommodations, and telescoping and recessed boarding ladder. Add in the optional wakeboard tower, and you’ll have everything you need to enjoy your time out on the water to the fullest!
LOA W/ENGINE 26'3"
BEAM 8'6"
FUEL CAPACITY 52GAL
MAX HORSEPOWER 300HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 23'5" | 7.14M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| LOA W/Engines | 26'3" | 8.00M | Length Overall With Engines |
| Beam | 8'6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft -Engine Up | 16" | 40.6CM | Depth of hull to lowest point, Engine trimmed up |
| Draft - Engine Down | 32" | 81.3CM | Depth of hull to bottom of engine, trimmed down |
| Bridge Clearance W/Tower | 7'3" | 2.2M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 52GAL | 196.8L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 10GAL | 37.9L | Capacity of water tank in gallons/liters |
| Dry Weight | 3650LBS | 1655KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 12 (US) | 11 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 1980LBS | 825KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons W/ Gear Weight & Motor | 2897LBS | 1388KG | Maximum combined capacity of people and gear & Motor that can be safely carried in pounds/kilograms |
| Max Power | 300HP | 224KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Canvas |
Bimini Top w/Embroidered Boot |  |
Cockpit |
Cooler 48 qt Carry -On | |
| Cooler, Molded In | |
|
| Cooler, Port Console w/Overboard Drain | |
|
| Courtesy Lighting, Blue/White, LED 12v | |
|
| Drink Holders, Stainless Steel (10) | |
|
| Fiberglass Cockpit Liner w/Non-Skid & Drainage | |
|
| Glove Box, Port Side, Lockable | |
|
| Grab Handles, Black Urethane w/Stainless Steel Inserts | |
|
| Hatch, Bilge Compartment, Gas Assisted | |
|
| Outlet 12v | |
|
| Stereo Fusion Satellite Ready AM/FM/BLUETOOTH, w/Built in iPod Dock and 4 JL Audio 6.5" Speakers with LED Lights | |
|
| Storage In-Floor Ski w/Gas Assisted Hatch Cover and Dry Deck | |
|
| Storage Bow Bolsters | |
|
| Storage, Side Panels | |
|
Electrical Systems |
Battery Switch, Single On/Off | |
| Battery Tray | |
|
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
Engine Compartment |
Automatic Bilge Pump | |
| Gel Coated Bilge Compartment | |
|
Fuel System |
Double Clamped Fuel Lines | |
| Water Separating Fuel Filter | |
|

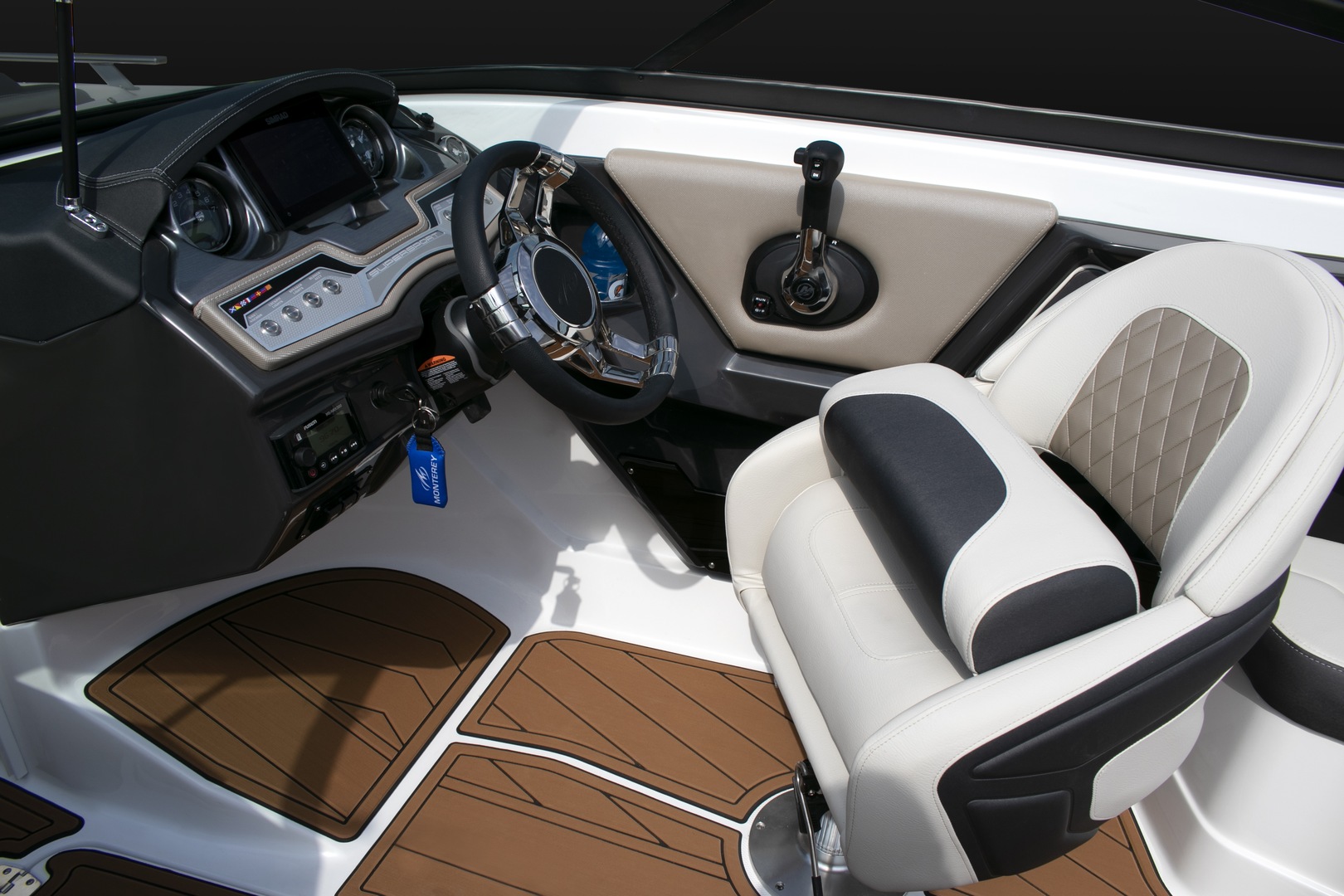

Helm |
Dual Simrad NSX 7 GPS/Chartplotter/Sonar w/Transducer and Engine Integration (Includes Depthsounder) | |
| Instrumentation w/Fog Resistant Gauges (Digital & Low Glare Night Lighting) | |
|
| MP3 Adapter | |
|
| Outlet 12v USB | |
|
| Steering, Hydraulic,Tilt | |
|
| Switches, Lighted Weatherproof | |
|
| Steering Wheel, Black w/Silver Insert | |
|
Hull & Deck |
Air Assist Chine | |
| Barrier Coat Vinylester | |
|
| Bow Hand Rails, Stainless Steel | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Cleats, Pull Up, Stainless Steel (6) | |
|
| Colored Hull | |
|
| Custom Hull Side Graphics | |
|
| Drain Plug, Brass Garboard | |
|
| Horn, Electric, Flush Mount | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Ski Tow, Stainless Steel | |
|
| Storage, Anchor w/Fiberglass Hatch | |
|
| Storage, Transom Wakeboard w/Gas Assisted Hatch Cover and Dry Deck | |
|
| Swim Ladder, Telescoping and Recessed, Stern w/Fiberglass Hatch | |
|
| Swim Platform, Integral | |
|
| Thru Hulls, Stainless Steel, Above Waterline | |
|
| Transhield Shipping Cover | |
|
| Walk-Thru at Transom | |
|
| Windshield Curved, Tempered Walk-Thru, Onyx Framed | |
|
Seating |

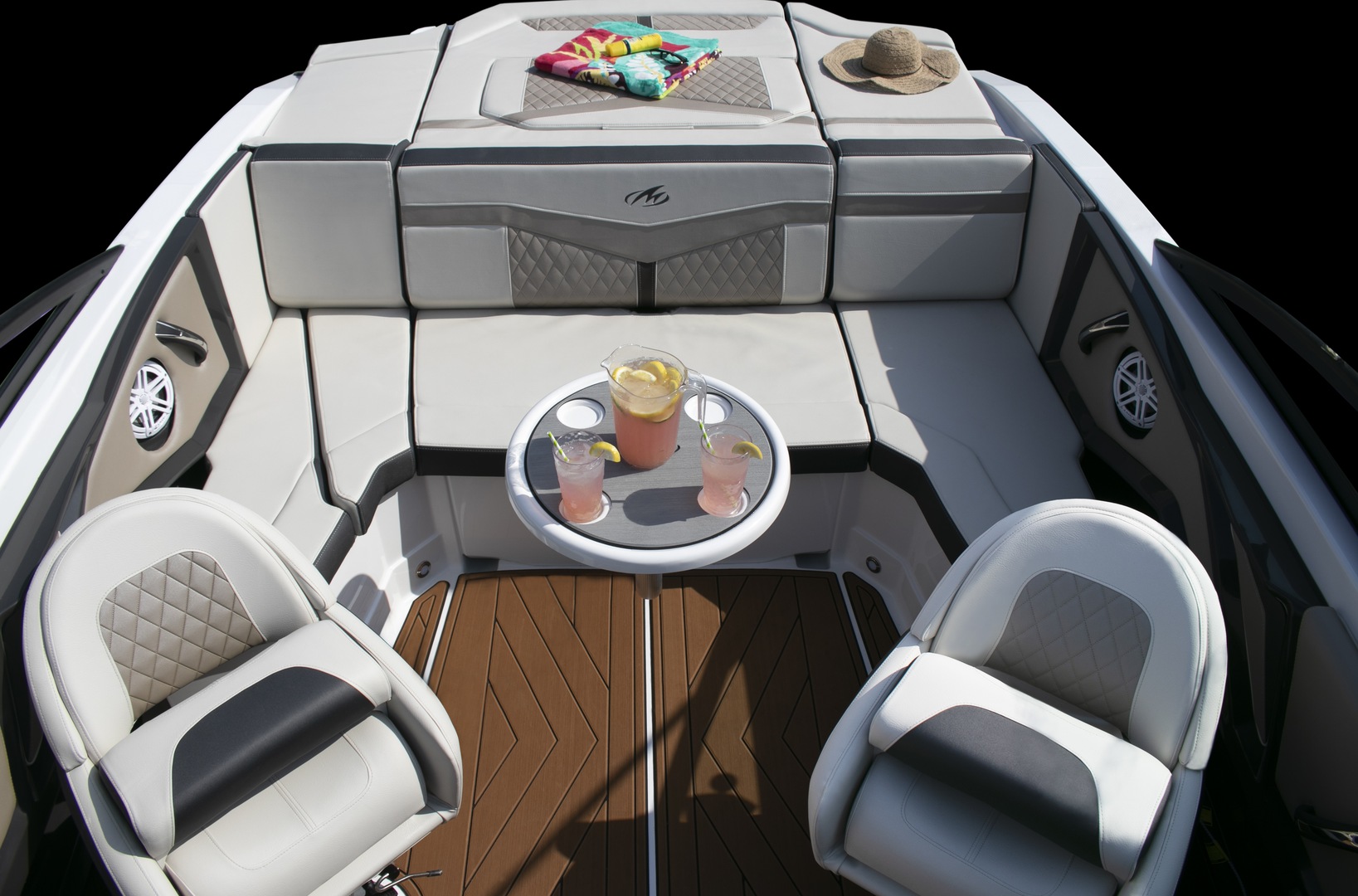

Aft U-Shaped Bench Seat and Storage | |

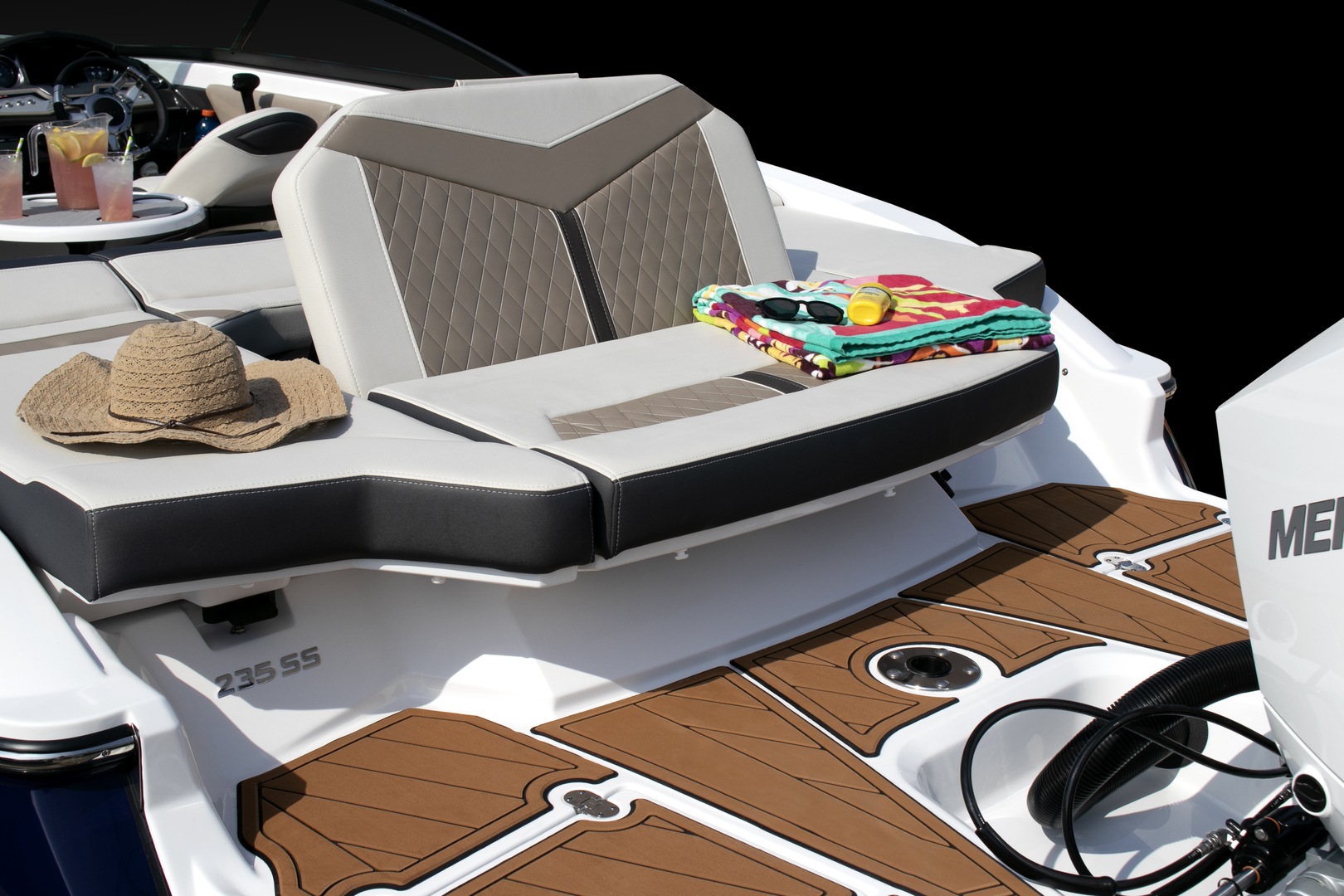

| Aft Sunpad w/Aft Facing Flip Up Bolster | |
|

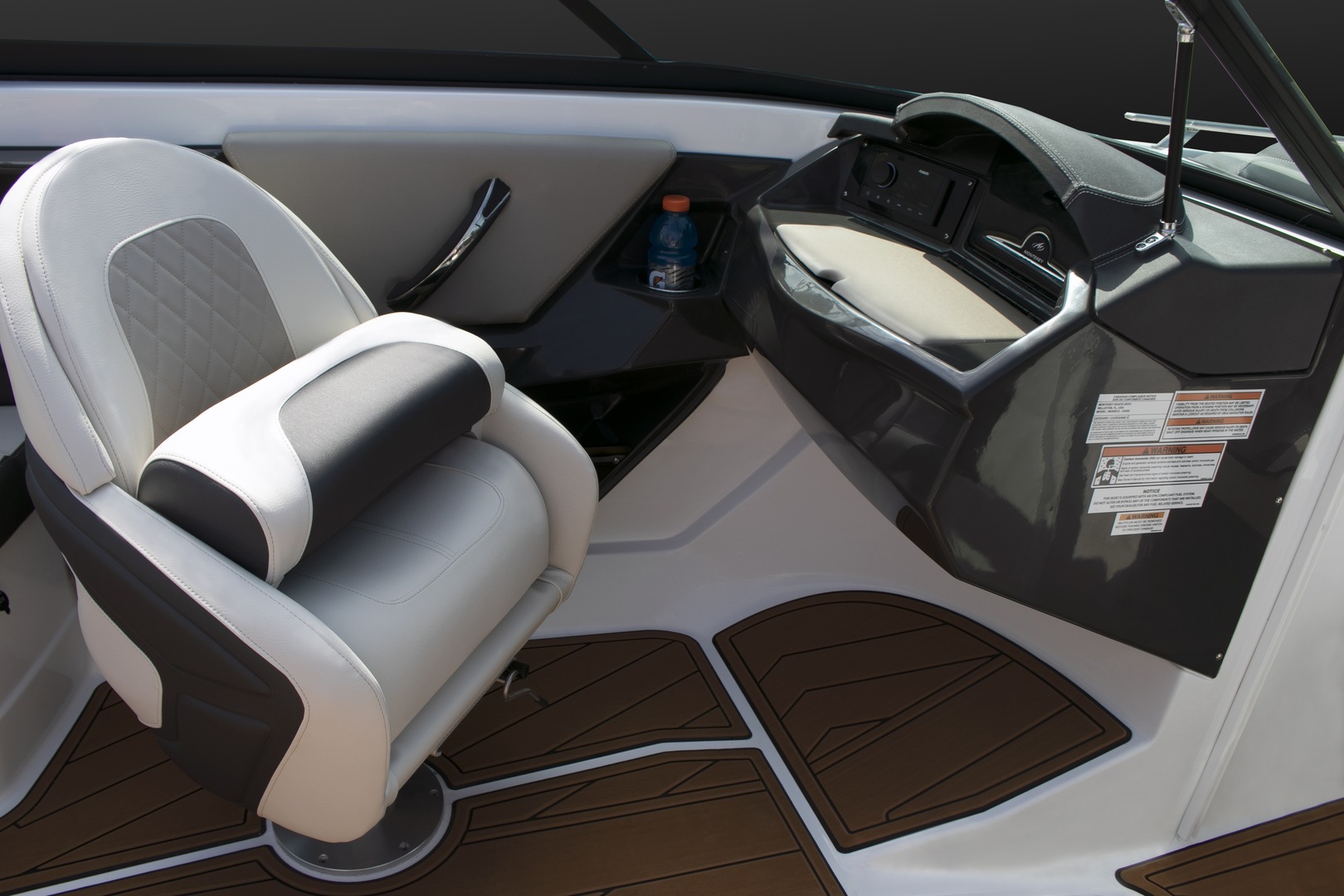

| Bucket Seat, Swivel w/Slider and Flip Up Bolster Starboard | |
|
| Portside Fwd./Aft Facing Lounger | |
|

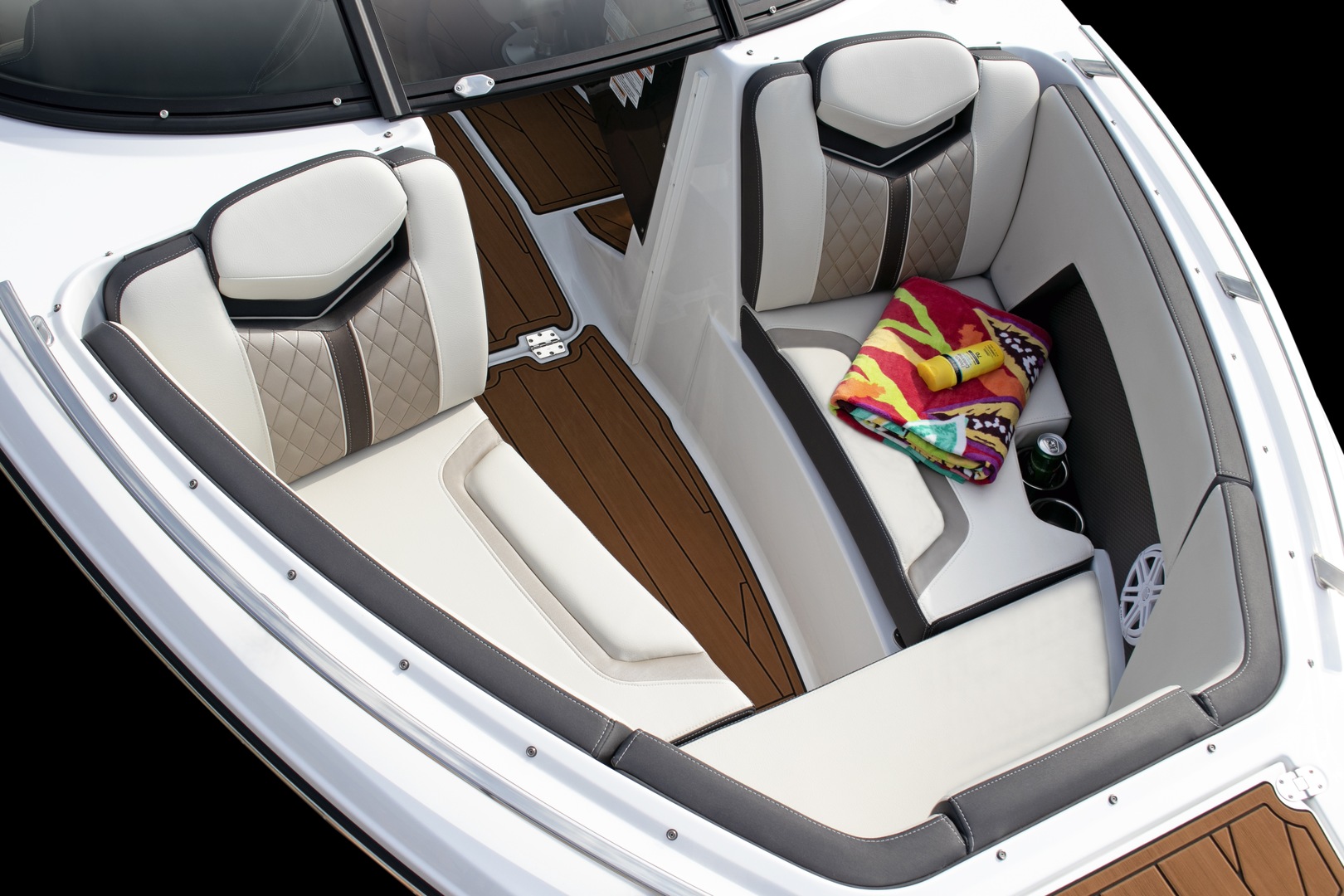

| Seat Cushions with Storage Compartments, Bow | |
|
Canvas |
Bow and Cockpit Cover-Onyx |  |
| Bow and Cockpit Cover-Rio | |
|
| Bow and Cockpit Cover-Royal Blue | |
|
| Bow and Cockpit Cover-Sapphire | |
|
| Bow and Cockpit Cover-Taupe | |
|
Cockpit |
Bow Block Off Door, Removable | |
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay)
|
|
|
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay)
|
|
|

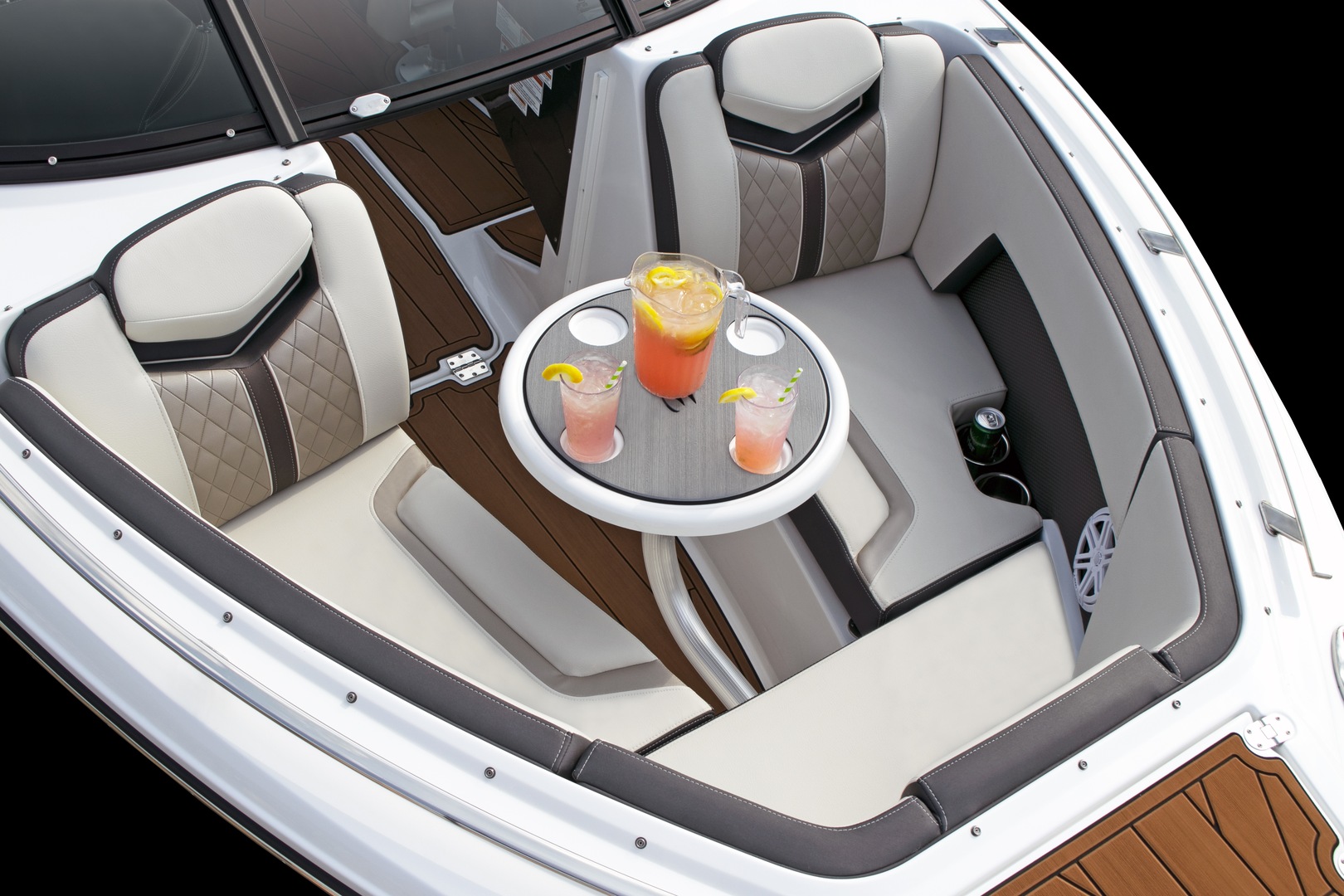

| Cockpit Table w/pedestal & Vertical Side Mount Bases, Fwd & Aft | |
|
Seadek Swim Platform Inlay (Terra)
|
|
|
Seadek Swim Platform Inlay (Gray)
|
|
|
| Steering Wheel, Leather Wrapped with Chrome Stainless Spokes | |
|
| Stereo Upgrade Package, Premium Includes 4 JL Audio Channel Amplifier (Requires Dual Battery Switch Option) | |
|
| Stereo Remotes (Stern) | |
|
| Cone Speaker For Tower, JL W/4 Channel Amp (Wakeboard Tower & Stereo Upgrade Required) | |
|
| Transom Shower w/Pressurized Water (Cold Only) | |
|
| Woven Cockpit Flooring | |
|
Engine Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Dual Battery Switch with Additional Battery Tray | |
|
Helm |
Compass | |
Hull/Deck Exterior |
Colored Hull Bottom (Other Than Arctic Ice) | |
| Delete Graphics | |
|
| Removable Ski Tow Pylon | |
|

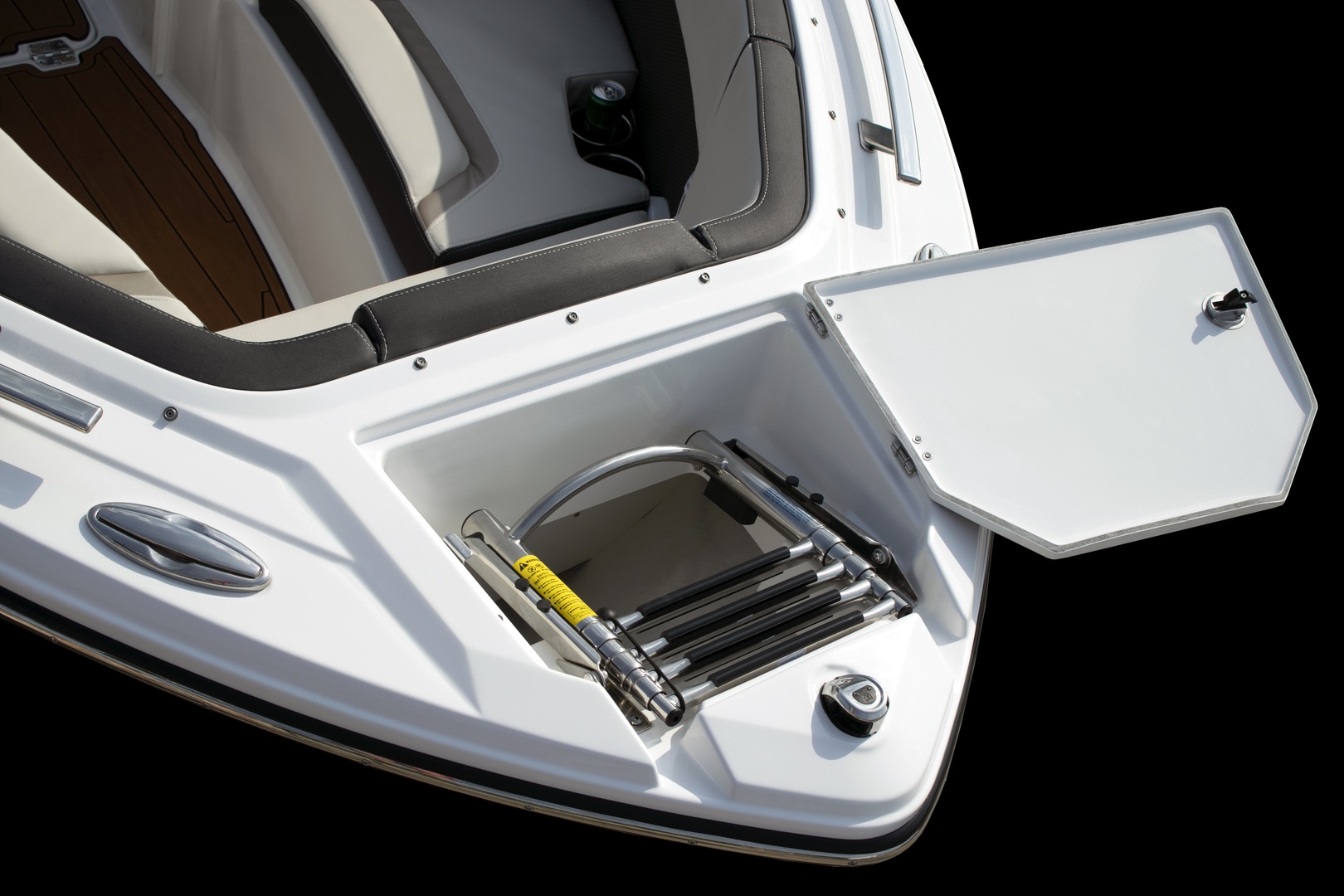

| Stainless Steel Package (Includes: Boarding Ladder, Telescoping & Recessed At Bow, Stainless Steel Bow Plate, Docking Lights) | |
|
| Underwater LED Lights, RGB | |
|
| Wakeboard Tower Black Hinged To Fold Down | |
|
| Wakeboard Tower White Hinged To Fold Down | |
|
| Wakeboard Tower, Black Electrically Articulating | |
|
| Wakeboard Tower, White Electrically Articulating | |
|
Seating |
Bow Filler Cushions | |
| Bucket Seat, Swivel w/Slider and Flip Up Bolster, Port | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| 250XL Fourstroke | 250HP | OB | Enertia-19-SS | 52-56 | 9.3@35 | Download | |
| 250XL Fourstroke White | 250HP | OB | Enertia-19-SS | 52-56 | 9.3@35 | Download | |
| 300XL Four Stroke RM | 300HP | OB | Enertia -21-SS | 55-59 | 10.0@40E | ||
| 300XL Four Stroke RM White | 300HP | OB | Enertia -21-SS | 55-59 | 10.0@40E |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
