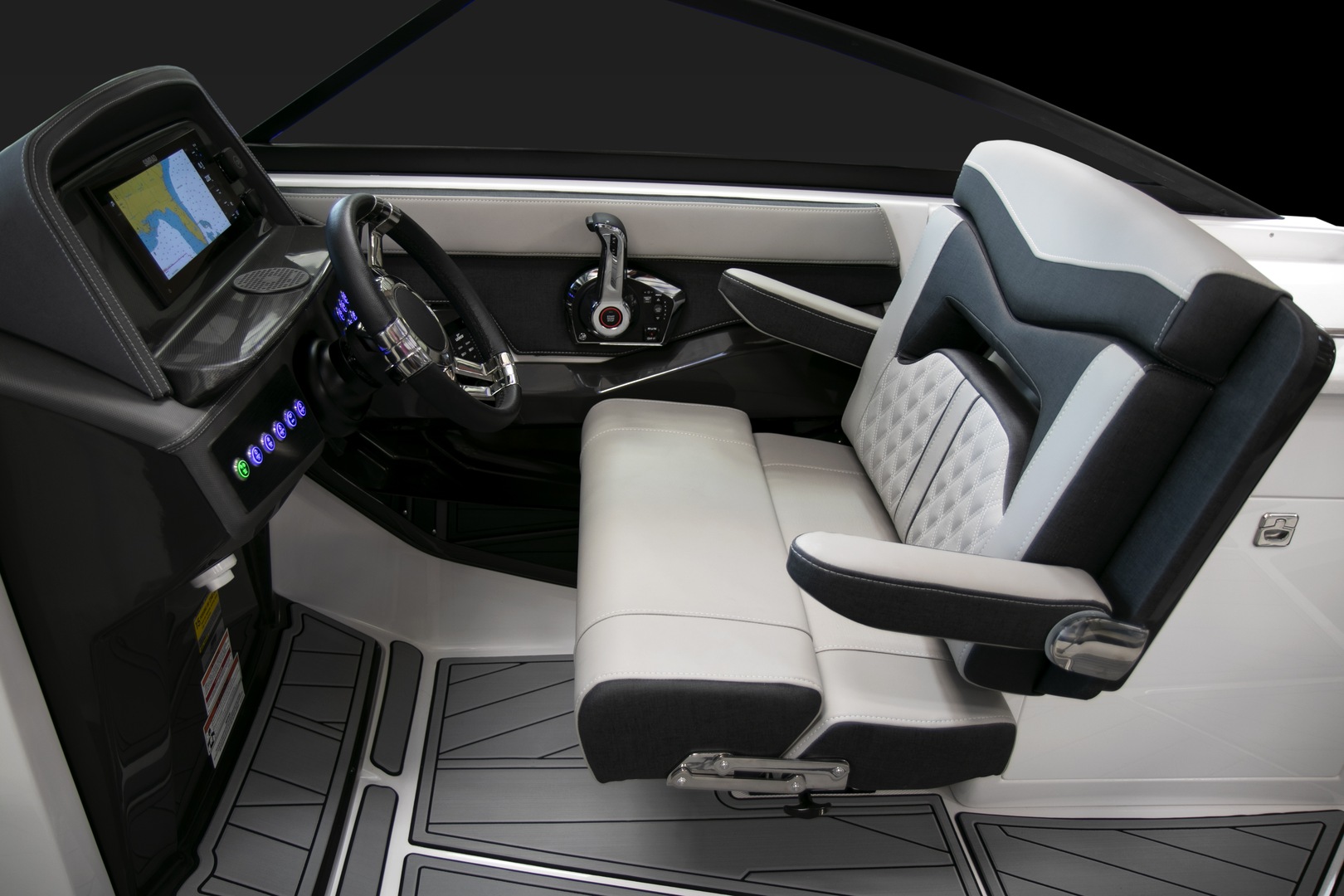

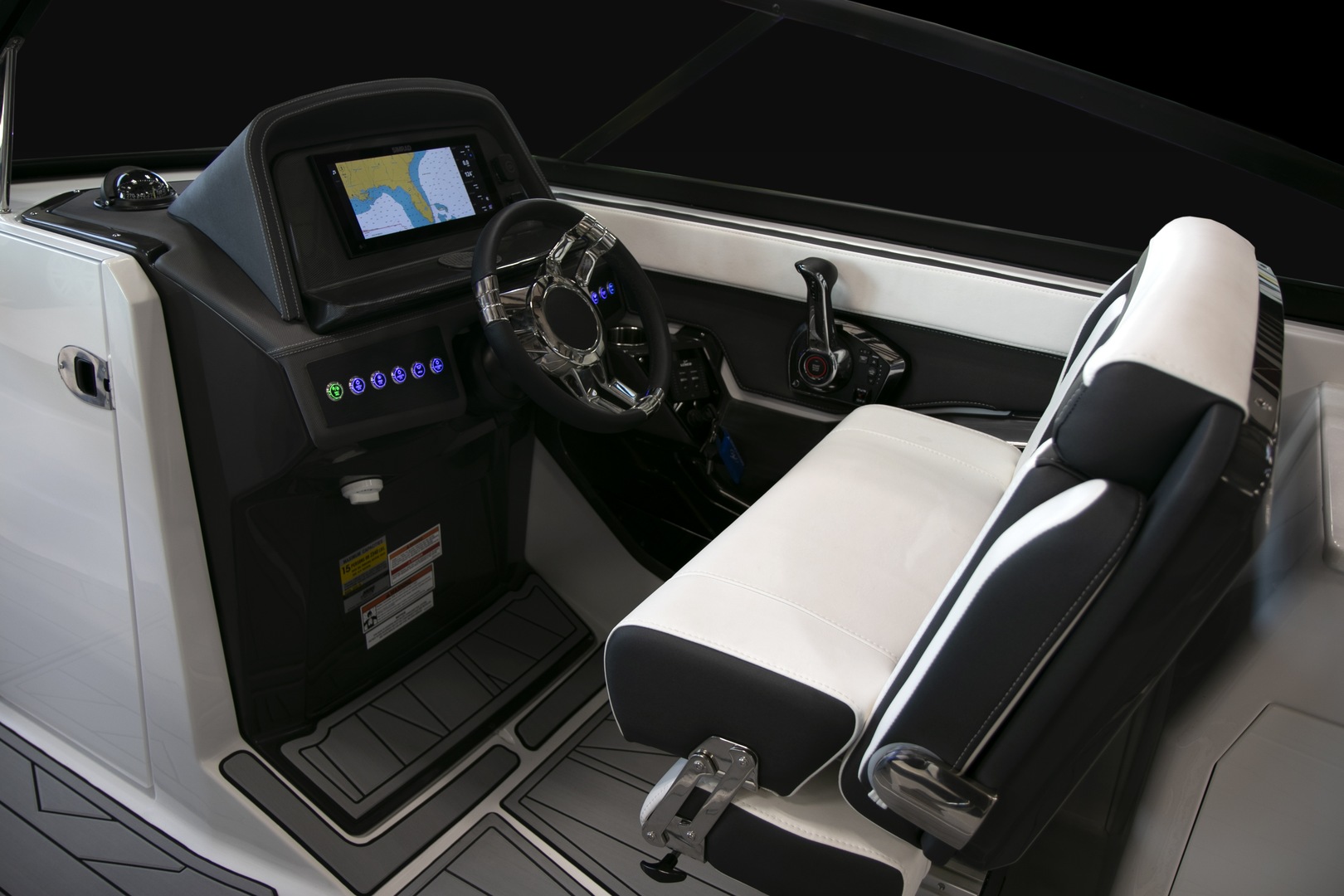

Loaded with an abundance of standard features and amenities, the 255SS features an ergonomically designed helm station with compass, depth sounder with shallow water alarm, digital GPS speedometer, instrumentation with fog resistant digital gauges and low glare night lighting, as well as power assisted tilt steering, making this a captain’s dream. A Fusion satellite ready AM/FM/Bluetooth stereo with built in iPod dock and 4 JL audio speakers, 8 stainless steel drink holders, 12V courtesy lighting, 48 court carry-on cooler, and telescoping and recessed swim ladder help to complete the package, making this the perfect vessel for all your on the water adventures
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
Spec | US Unit | Metric Unit | Description |
---|---|---|---|
LOA w/Swim Platform | 25'8" | 7.82M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
LOA w/Engines | 28'8" | 8.74M | Length Overall With Engines |
Beam | 8'6" | 2.59M | Width of hull at widest section including rubrail |
Deadrise | 20° | 20° | Angle of keel measured at transom |
Draft - Engine Up | 16" | 40.6CM | Depth of hull to lowest point, engine trimmed up |
Draft -Engine Down | 35" | 88.9CM | Depth of hull to bottom of engine, trimmed down |
Bridge Clearance w/Tower | 8'0" | 2.4M | Height from water to highest point on tower, normal load |
Fuel Capacity | 65GAL | 246.1L | Capacity of fuel tank in gallons/liters |
Dry Weight | 5500LBS | 2495KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
Max Persons | 13US | 13CE | Maximum Rated Persons Capacity |
Max Persons W/ Gear Weight & Motor | 3432LBS | 1557KG | Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms |
Max Persons Weight | 2340LBS | 975KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
Max Power | 350HP | 261KG | Maximum horsepower for safe operation |
Max Power | 350HP | 261KW | Maximum horsepower for safe operation |
Engine | Option | Standards and Options |
---|---|---|
Canvas |
Bimini Top w/Embroidered Boot | ![]() |
Cockpit |
Cooler, 50 Qt Carry-On | ![]() |
Courtesy Lighting, Blue/White, LED 12 V | ![]() |
|
Dock Line Straps (2) & Dry Deck | ![]() |
|
Drink Holders, Stainless Steel (8) | ![]() |
|
Fiberglass Cockpit Liner w/Non-Skid and Drainage | ![]() |
|
Grab Handles, Black Urethane w/Stainless Steel Inserts | ![]() |
|
Hatch, Engine Compartment, Gas Assisted | ![]() |
|
Outlet, 12 V | ![]() |
|

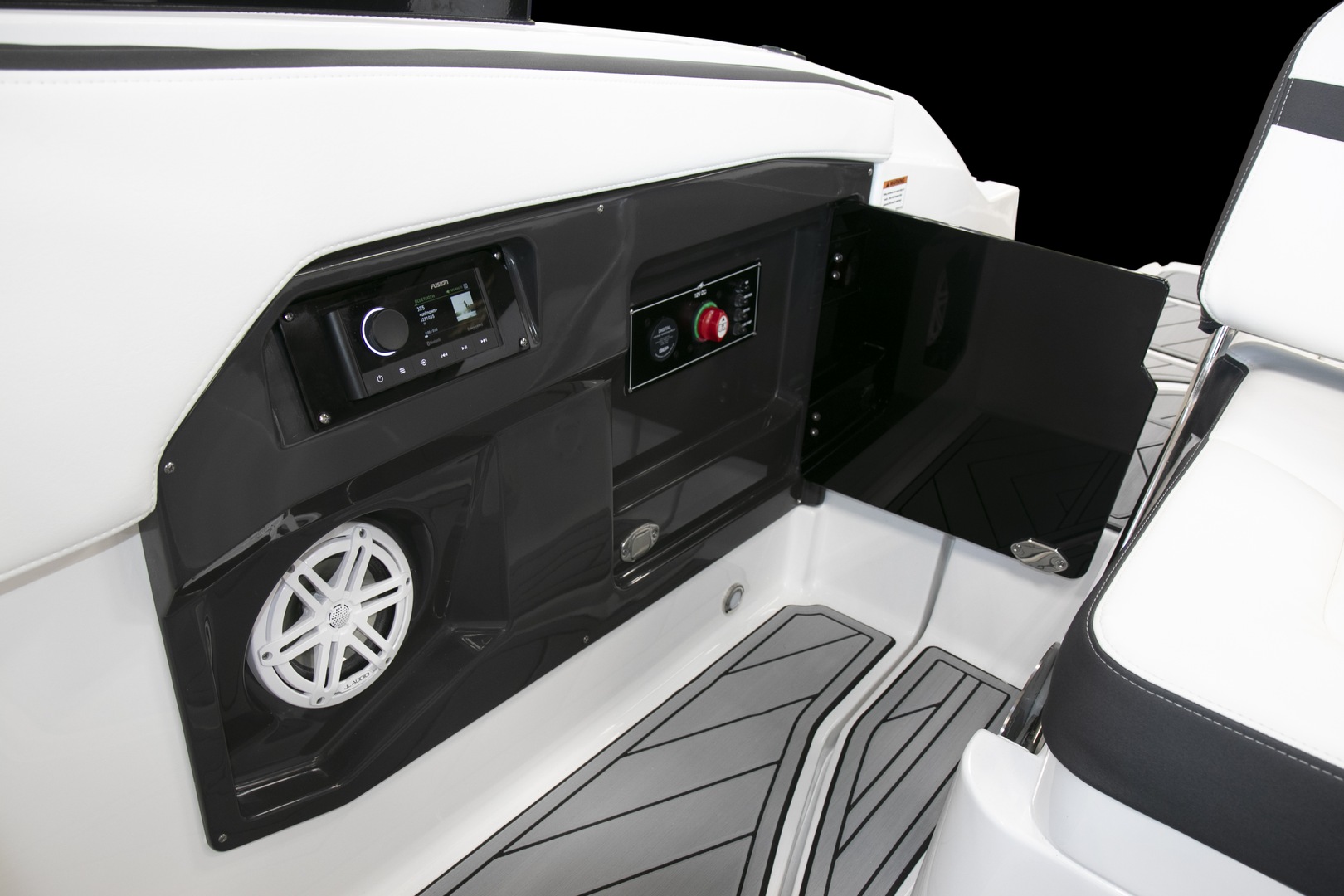

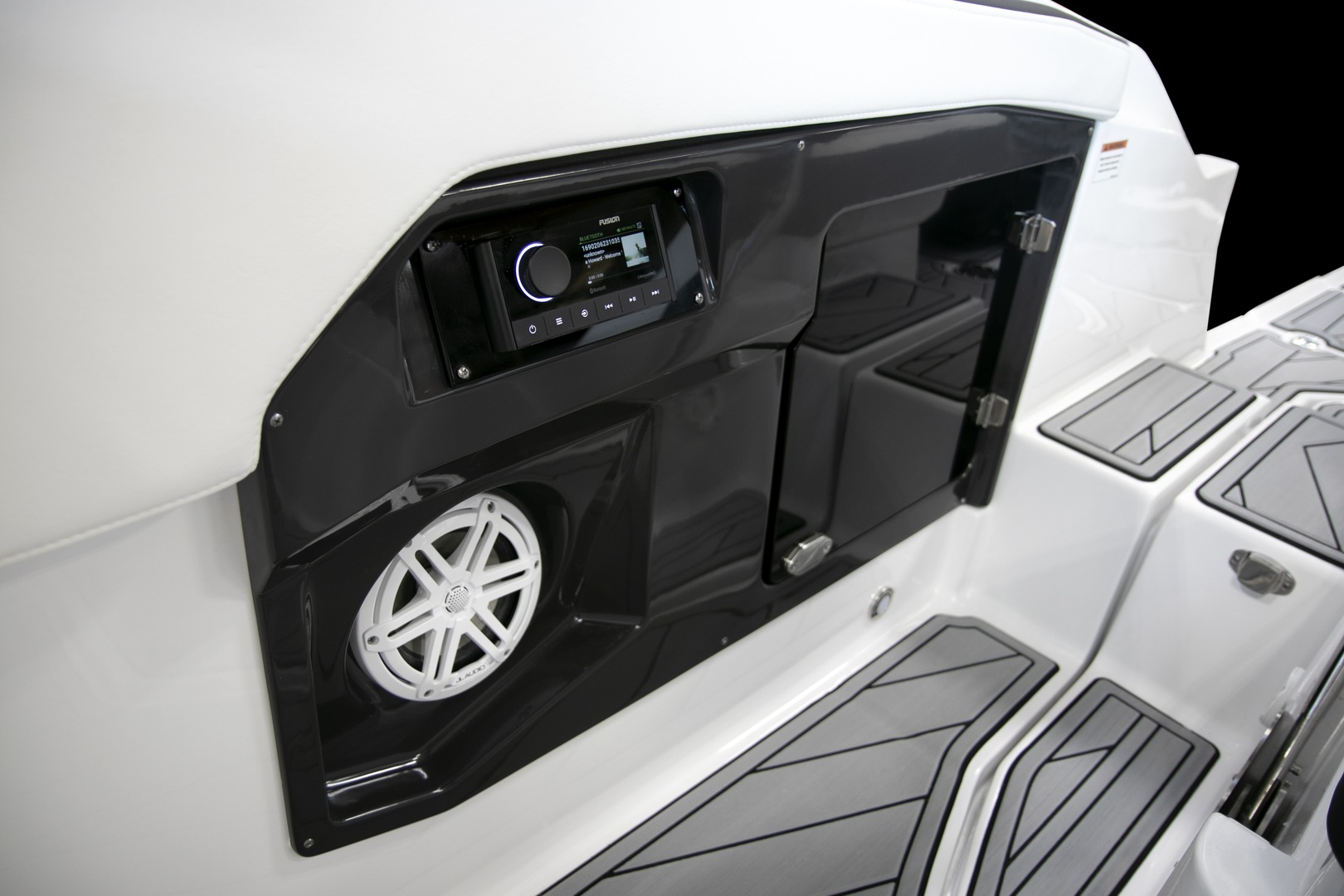

Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & 4 JL Audio 6.5" Speakers with LED Lights & Dash Remote | ![]() |
|
Storage, In-Floor Ski w/Gas Assisted Hatch Cover, & Dry Deck | ![]() |
|
Storage, Side Panels | ![]() |
|
Storage, Starboard Helm w/Hanging Rod, Trash Receptacle | ![]() |
|
Electrical Systems |
Battery Switch, Dual w/Additional Battery Tray | ![]() |
Weatherproof Electrical System w/Individual Circuit Protection | ![]() |
|
Engine Compartment |
Automatic Bilge Pump | ![]() |
Gelcoated Bilge Compartment | ![]() |
|
Fuel Systems |
Double Clamped Fuel Lines | ![]() |
Water Separating Fuel Filter | ![]() |
|

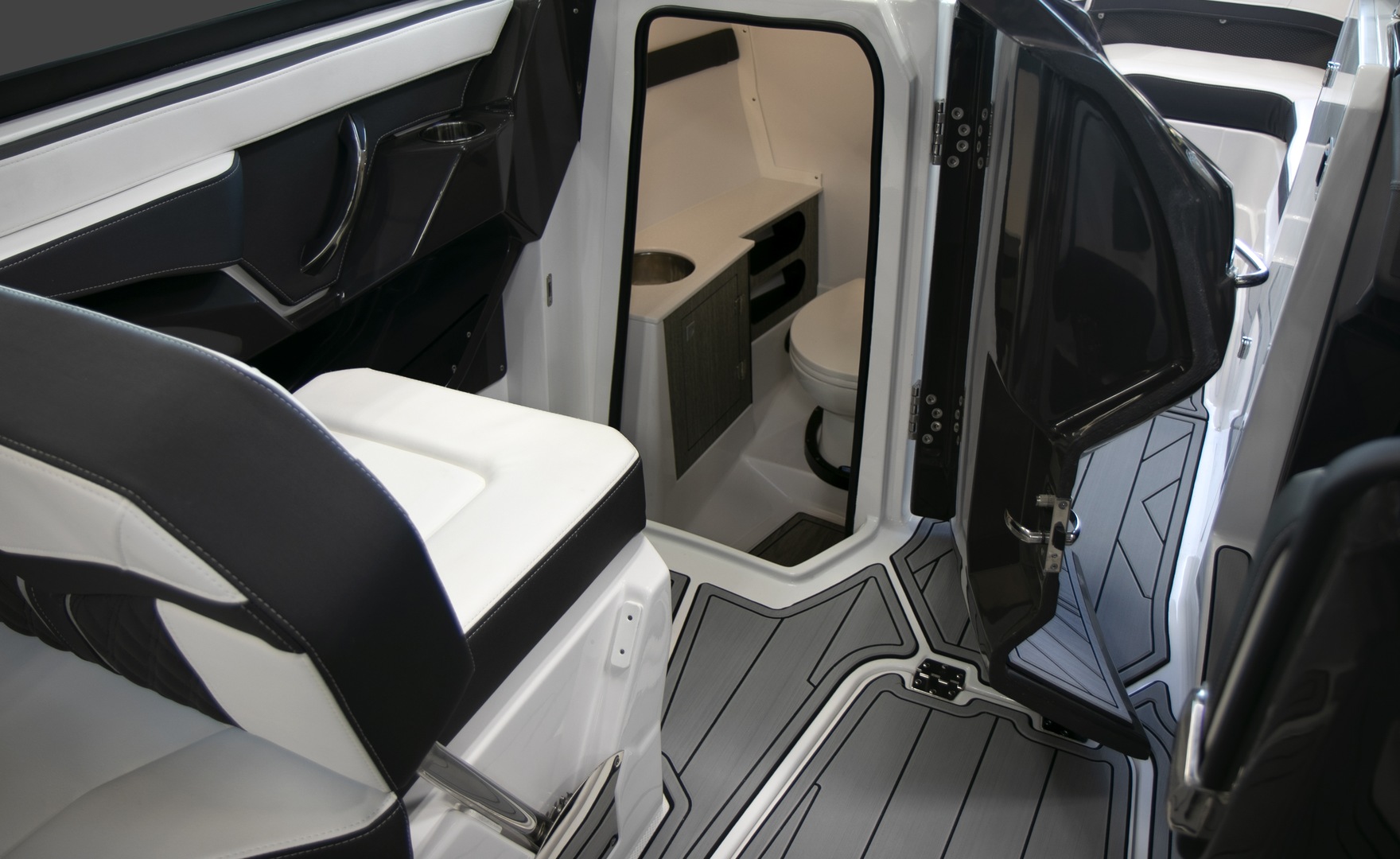

Head |
Counter Top w/Solid Surface Inlay | ![]() |
Flooring, EVA Foam | ![]() |
|
Toilet (Porta-Potti) | ![]() |
|
Vanity w/Sink & Pullout Sprayer | ![]() |
|

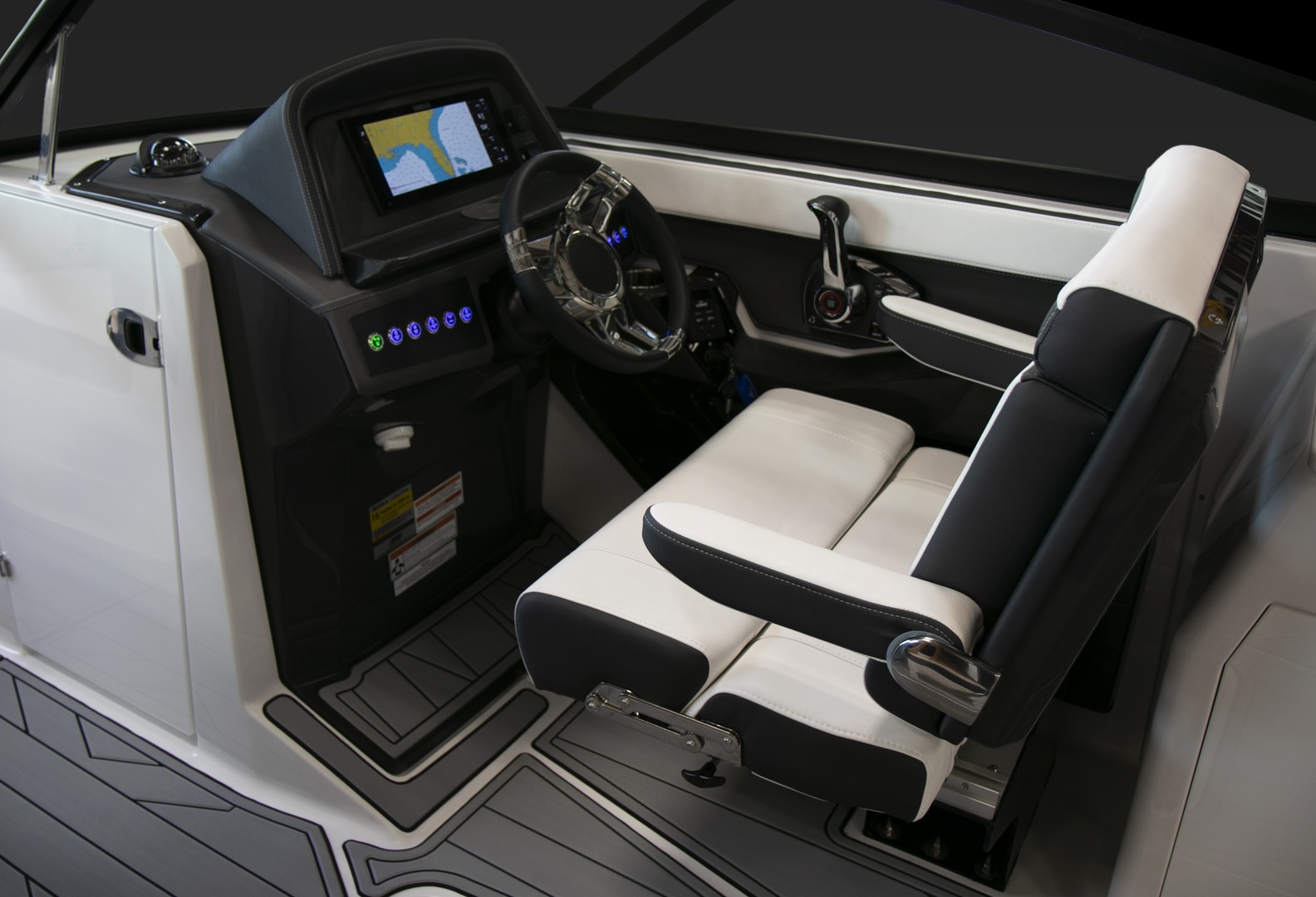

Helm |
Compass | ![]() |
Outlet, 12 V | ![]() |
|

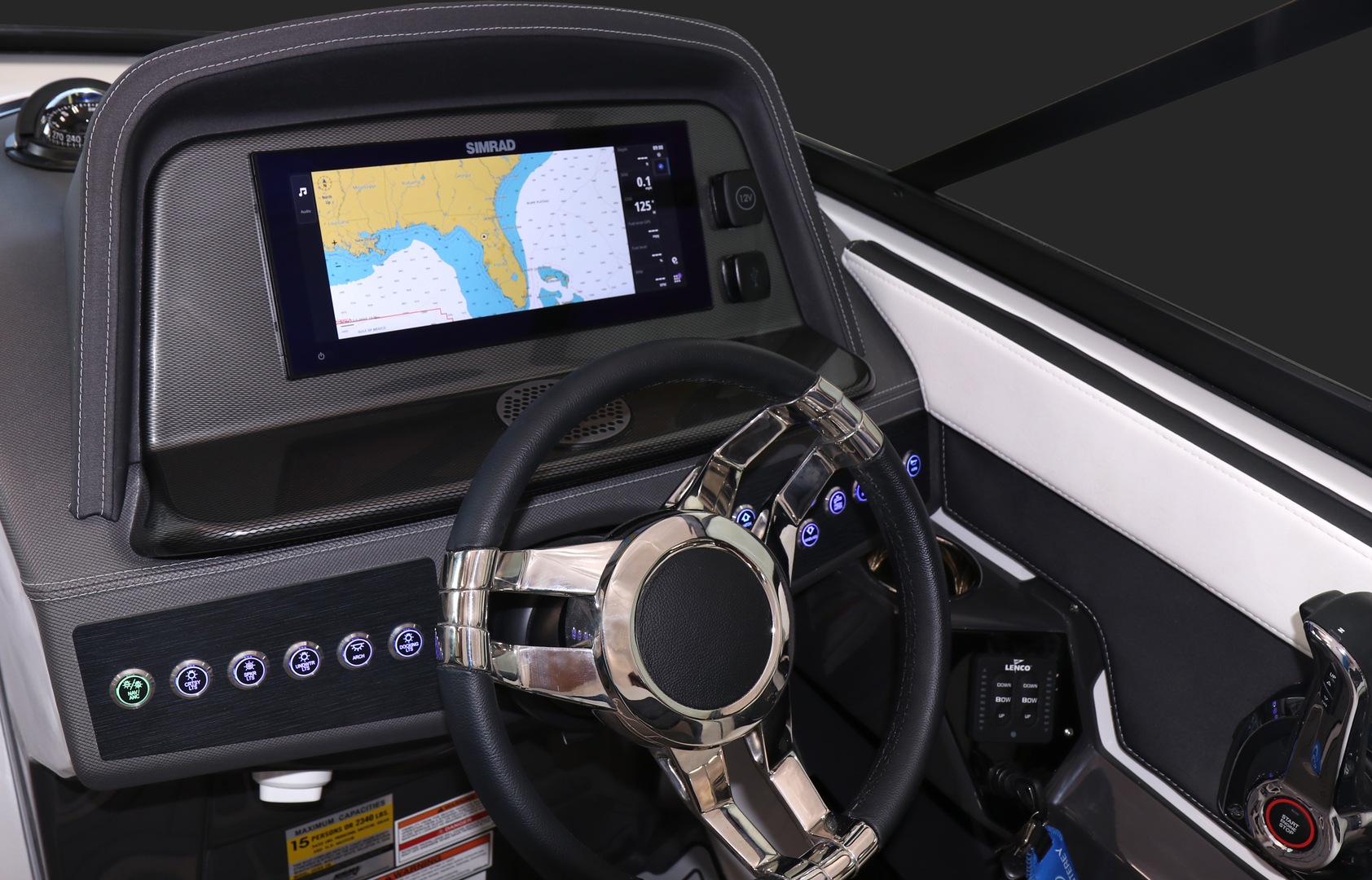

Simrad 12" Ultra Wide GPS/Chartplotter/Sonar w/Transducer w/Integrated Engine Functions and Depthsounder | ![]() |
|
Steering Wheel, Leather Wrapped w/Chromed Stainless Spokes | ![]() |
|
Steering, Power Assisted | ![]() |
|
Steering, Tilt | ![]() |
|
Switches, Lighted Weatherproof | ![]() |
|
Hull & Deck |
Air Assist Chine | ![]() |
Barrier Coat, Vinylester | ![]() |
|
Boarding Ladder, Telescoping & Recessed, Bow | ![]() |
|
Bow Hand Rails, SS | ![]() |
|
Bow & Stern Eyes, Stainless Steel, with Stainless Steel Backing Plate | ![]() |
|
Bow Plate, Stainless Steel | ![]() |
|
Cleats, Pull-Up, Stainless Steel (6) | ![]() |
|
Colored Hull Sides | ![]() |
|
Cooler Molded In, Bow | ![]() |
|
Custom Hull Side Super Sport Graphics | ![]() |
|
Door, Walk-Thru at Helm | ![]() |
|
Door, Walk-Thru at Transom | ![]() |
|
Drain Plug, Brass Garboard | ![]() |
|
Horn, Electric Flush Mount | ![]() |
|
Lights, Docking | ![]() |
|
Lights, Navigation LED | ![]() |
|
NMMA Certified | ![]() |
|
Rub Rail, Heavy Duty w/Stainless Steel Insert | ![]() |
|
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | ![]() |
|
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch | ![]() |
|
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | ![]() |
|
Swim Platform, Integral with Ski Rope Storage | ![]() |
|
Thru Hulls, Stainless Steel Above Waterline | ![]() |
|
Transhield Cover | ![]() |
|
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | ![]() |
|

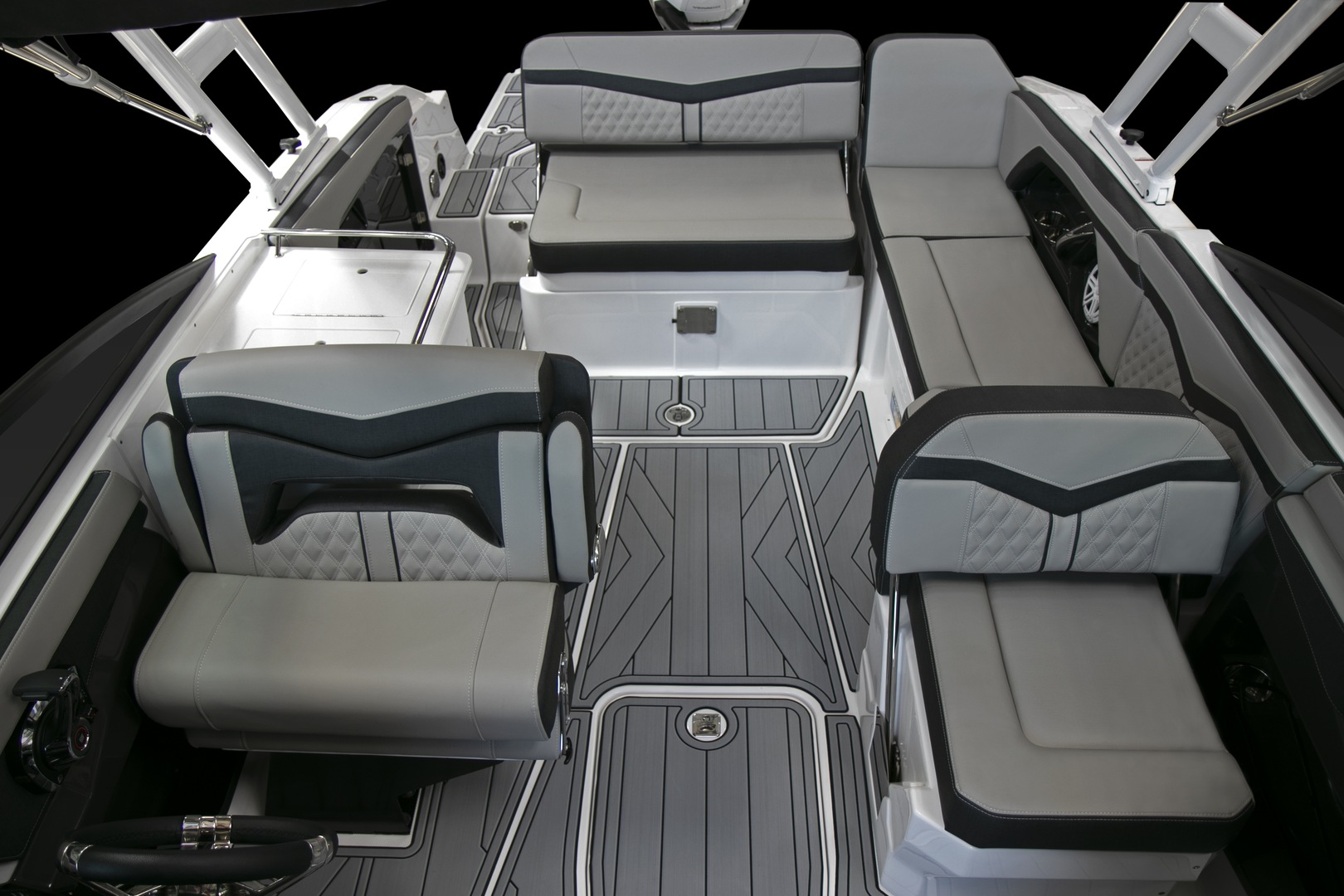

Seating |

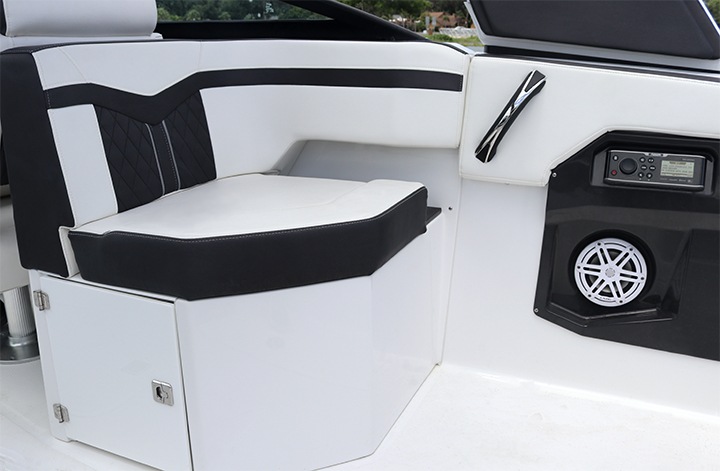

Aft Facing Seat, Starboard w/Carry-on Slide-Out Cooler | ![]() |

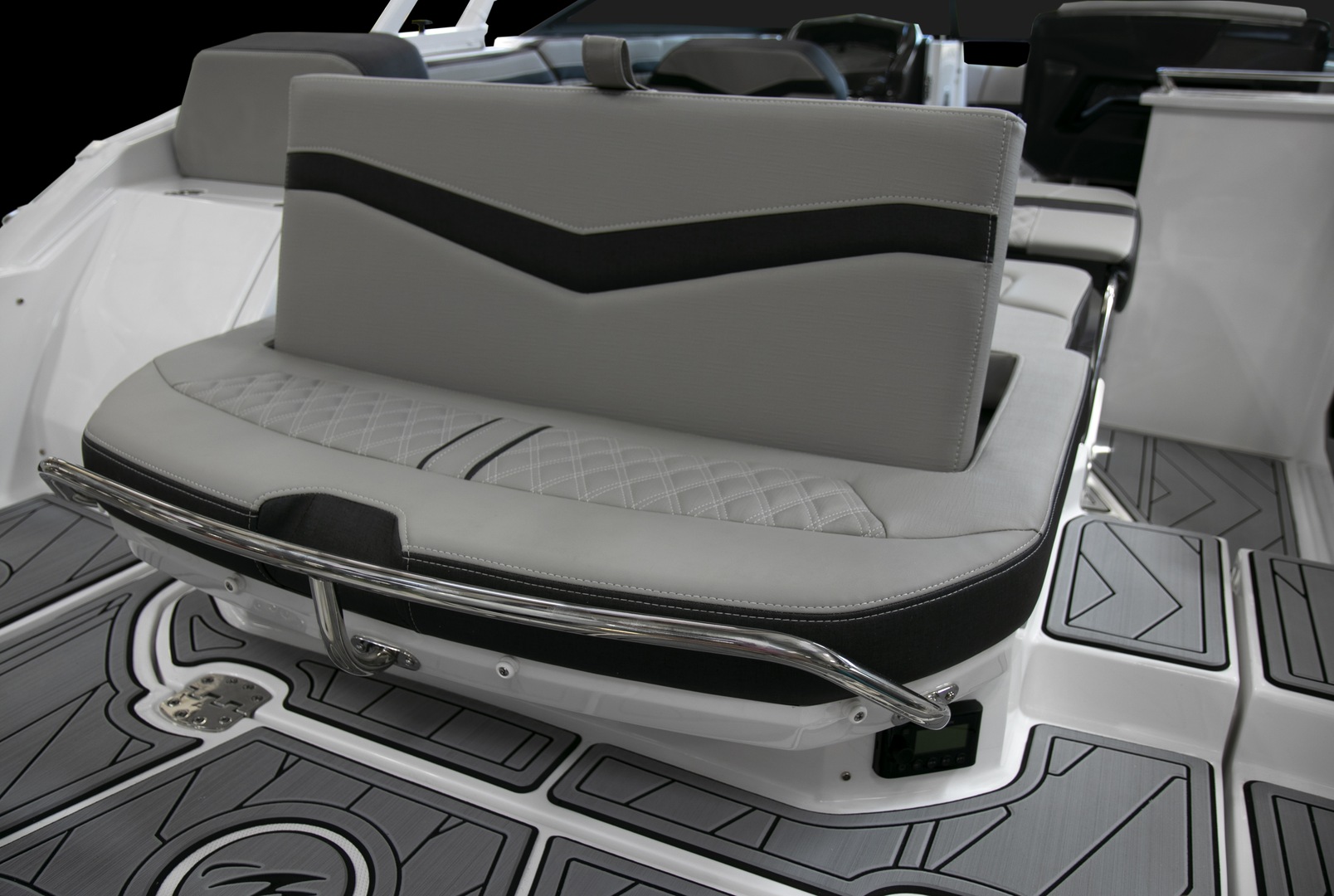

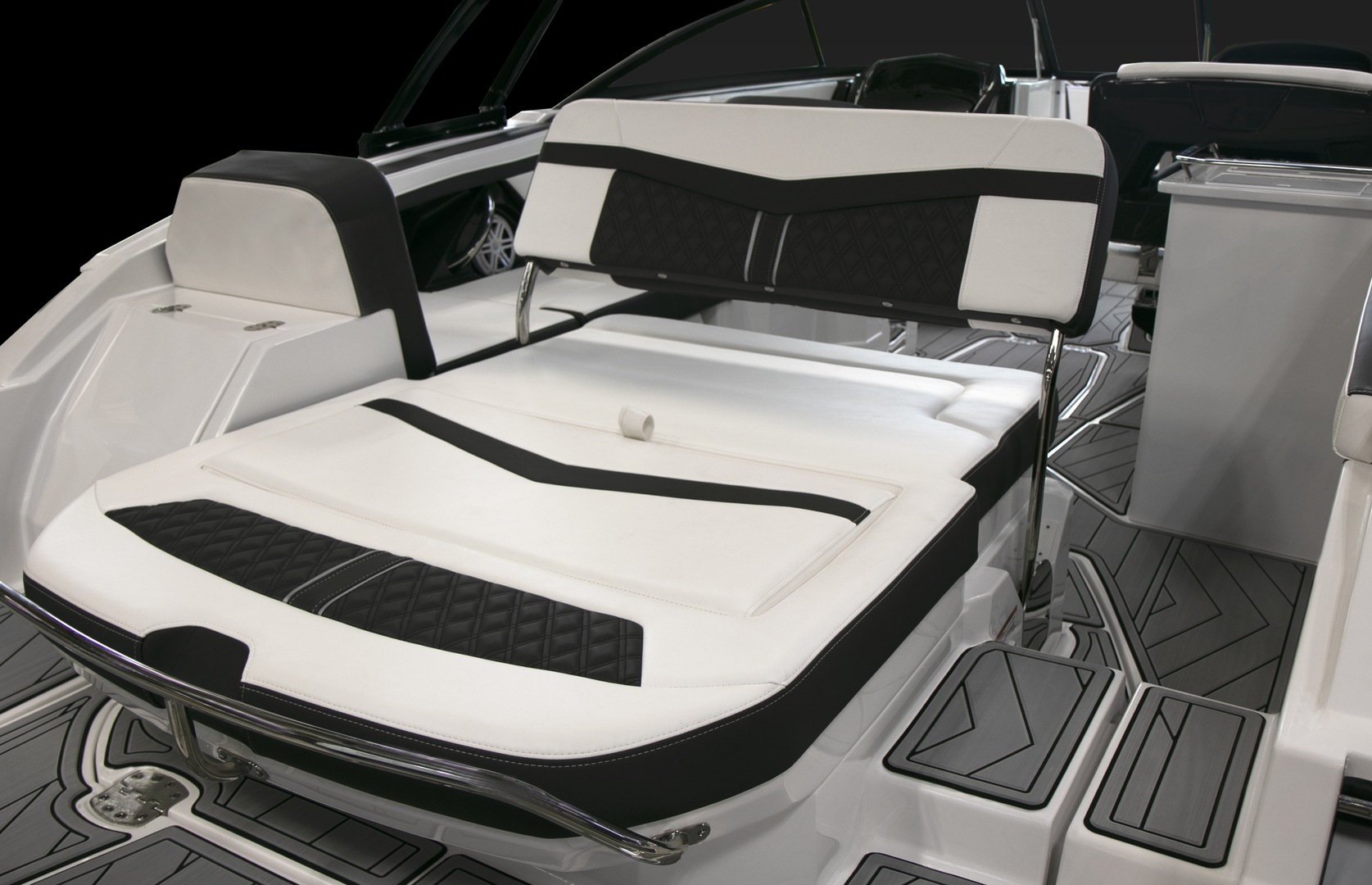

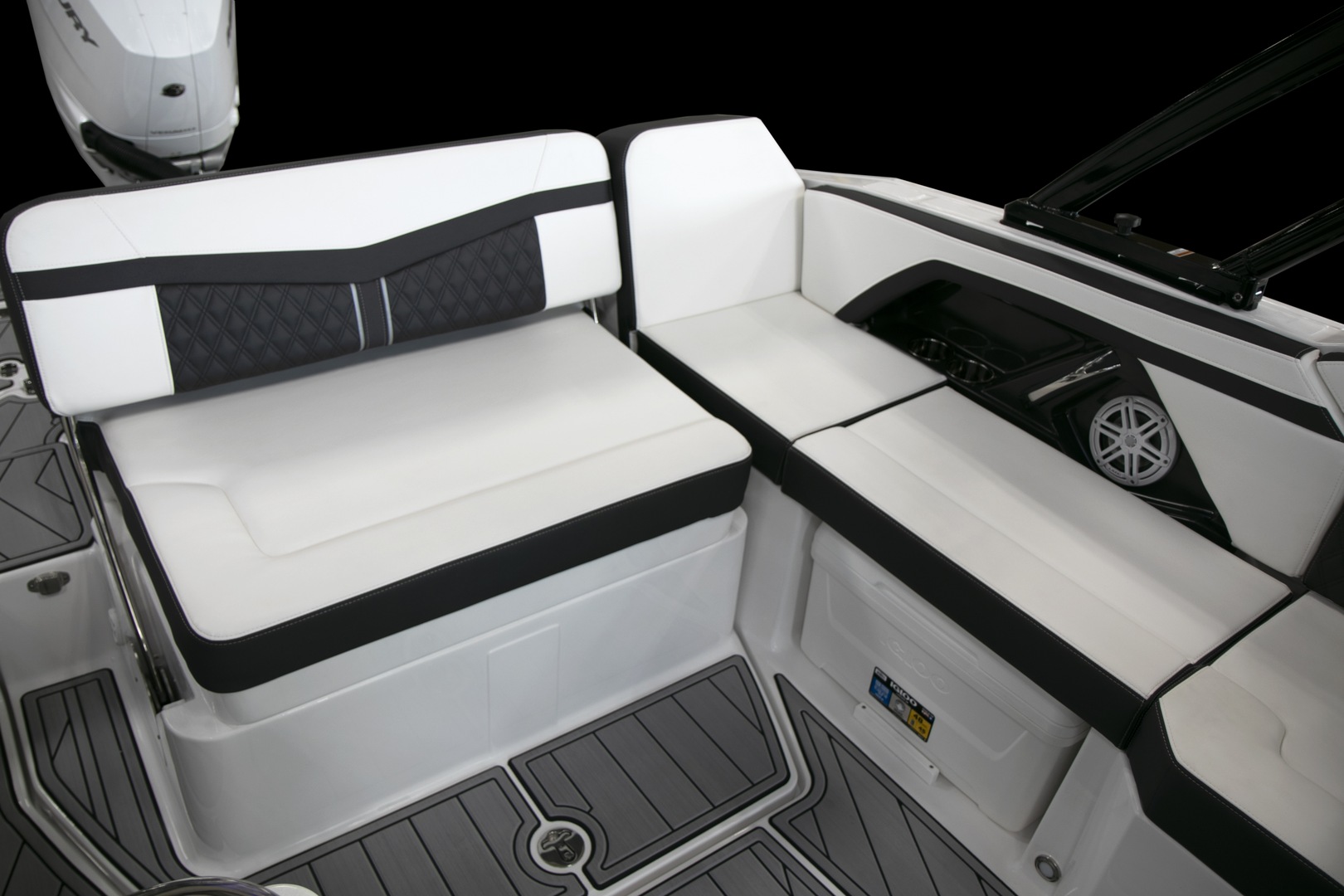

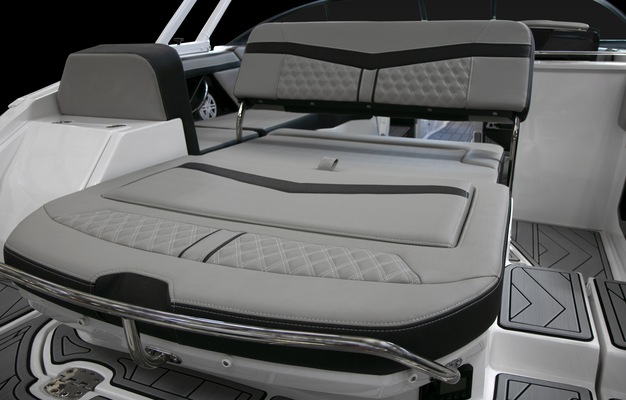

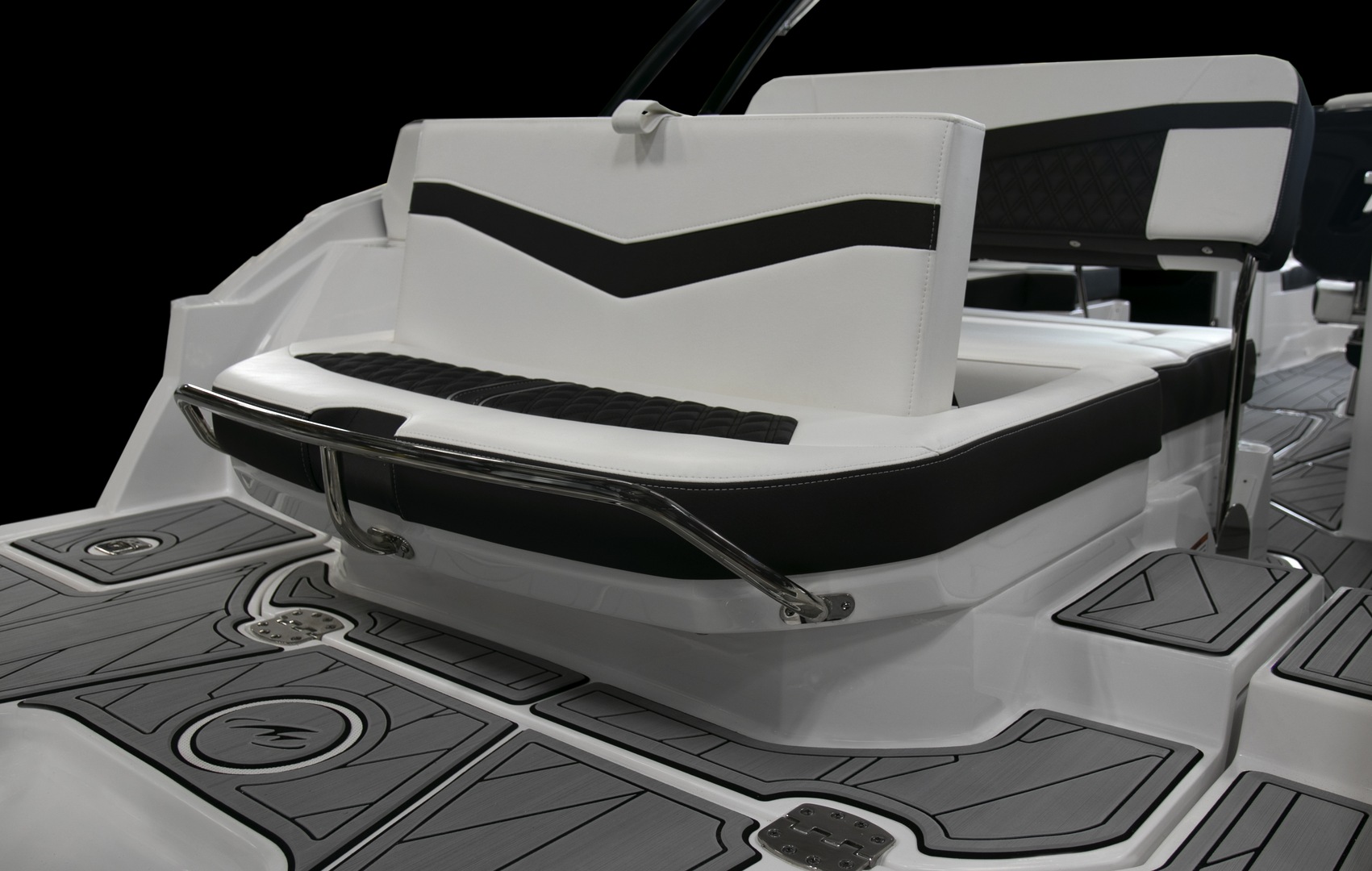

Aft L-Lounge w/Fiberglass Bases, Sun Island Feature, Stainless Steel Stern Rail | ![]() |
|
Bow Bolsters | ![]() |
|
Helm Seat, Premium | ![]() |
|

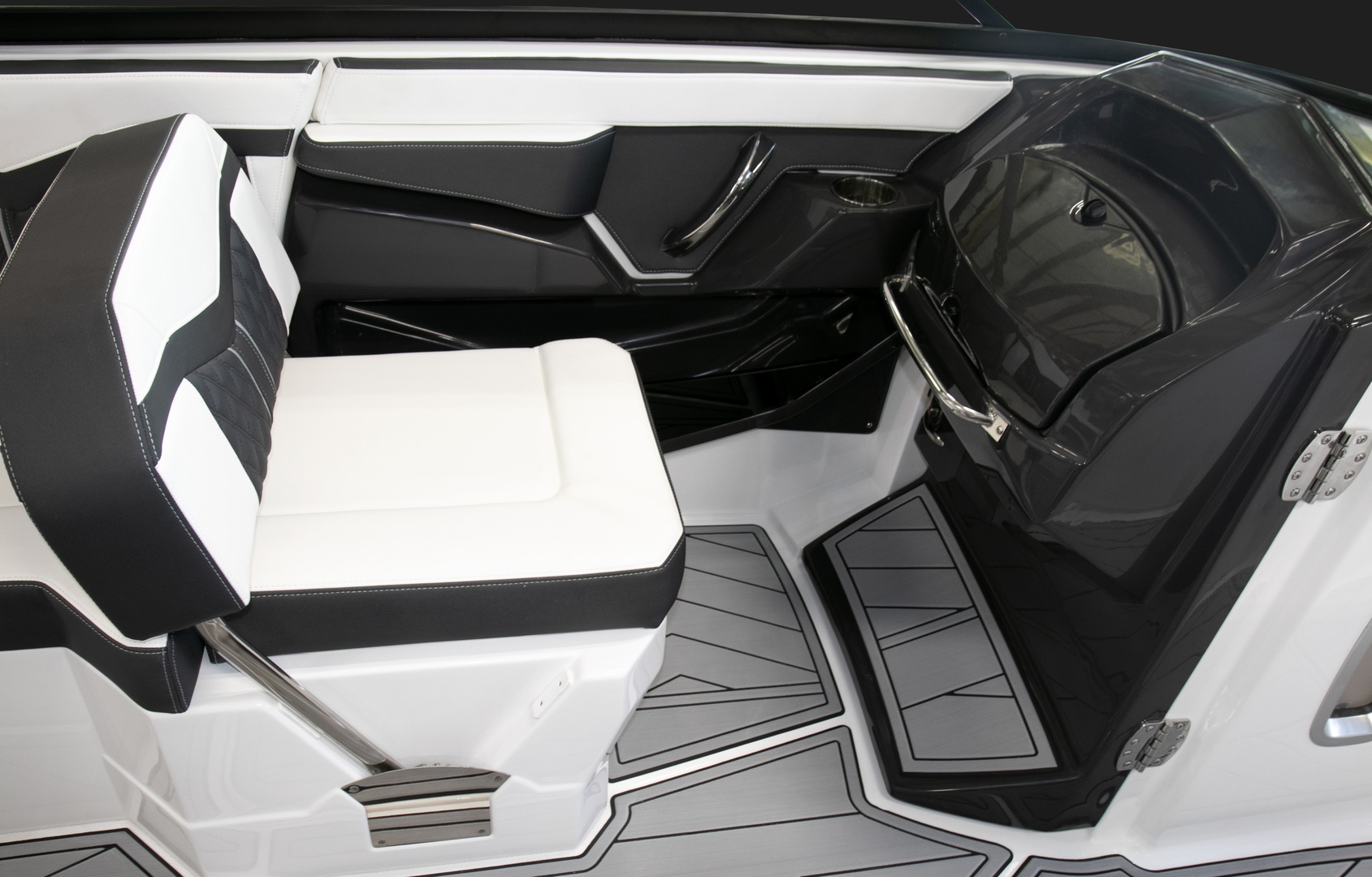

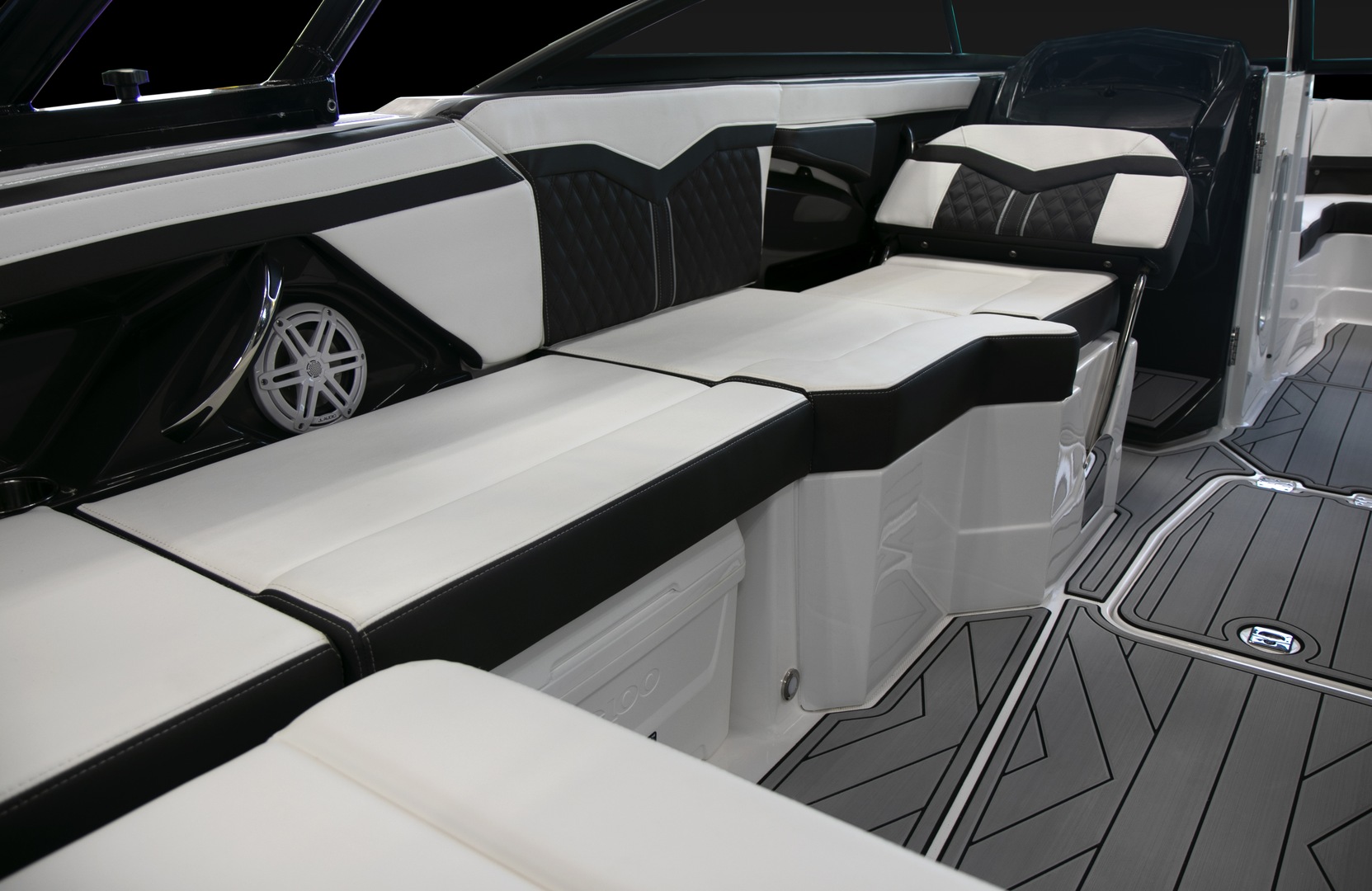

Portside Fwd./Aft Facing Lounger | ![]() |
|

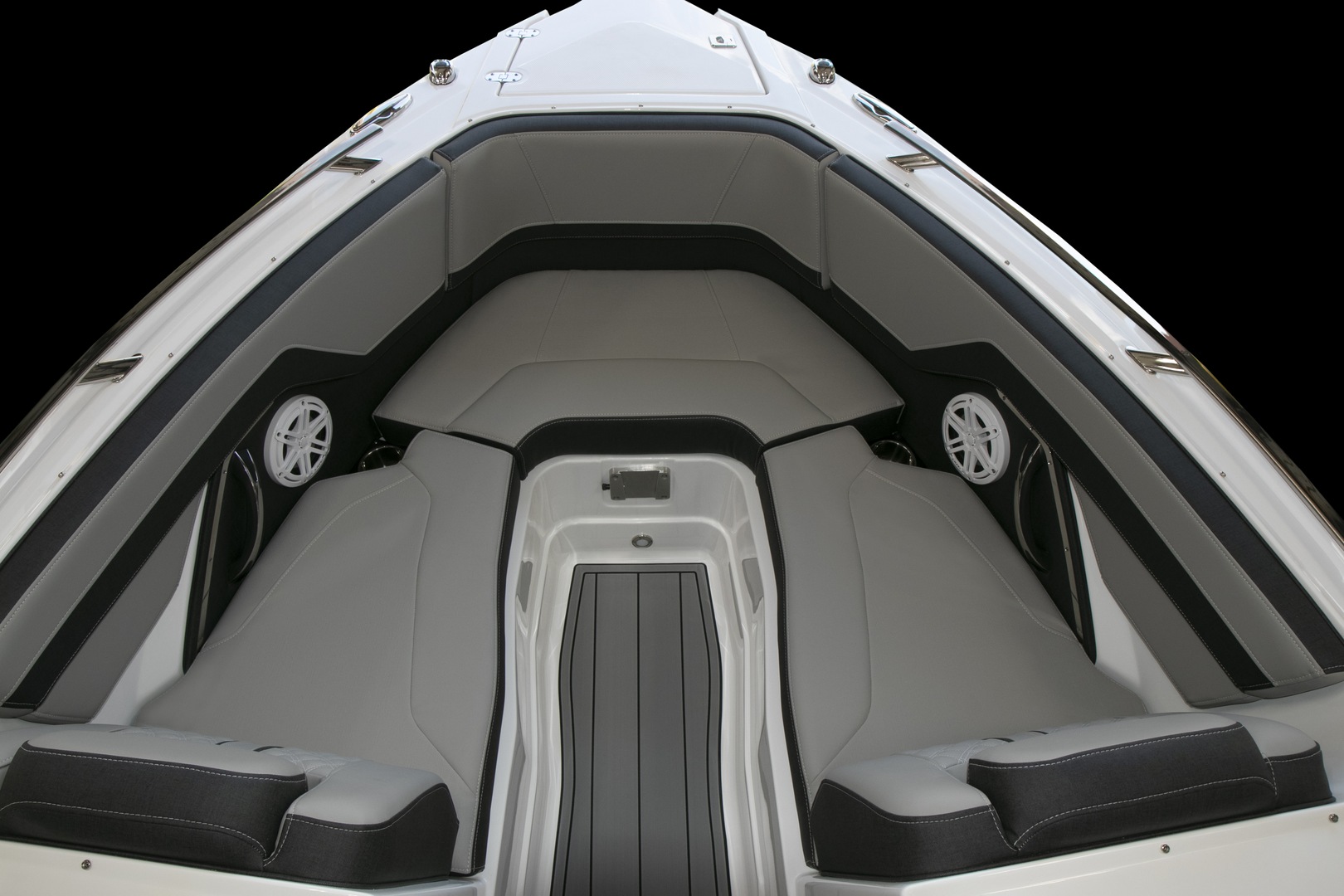

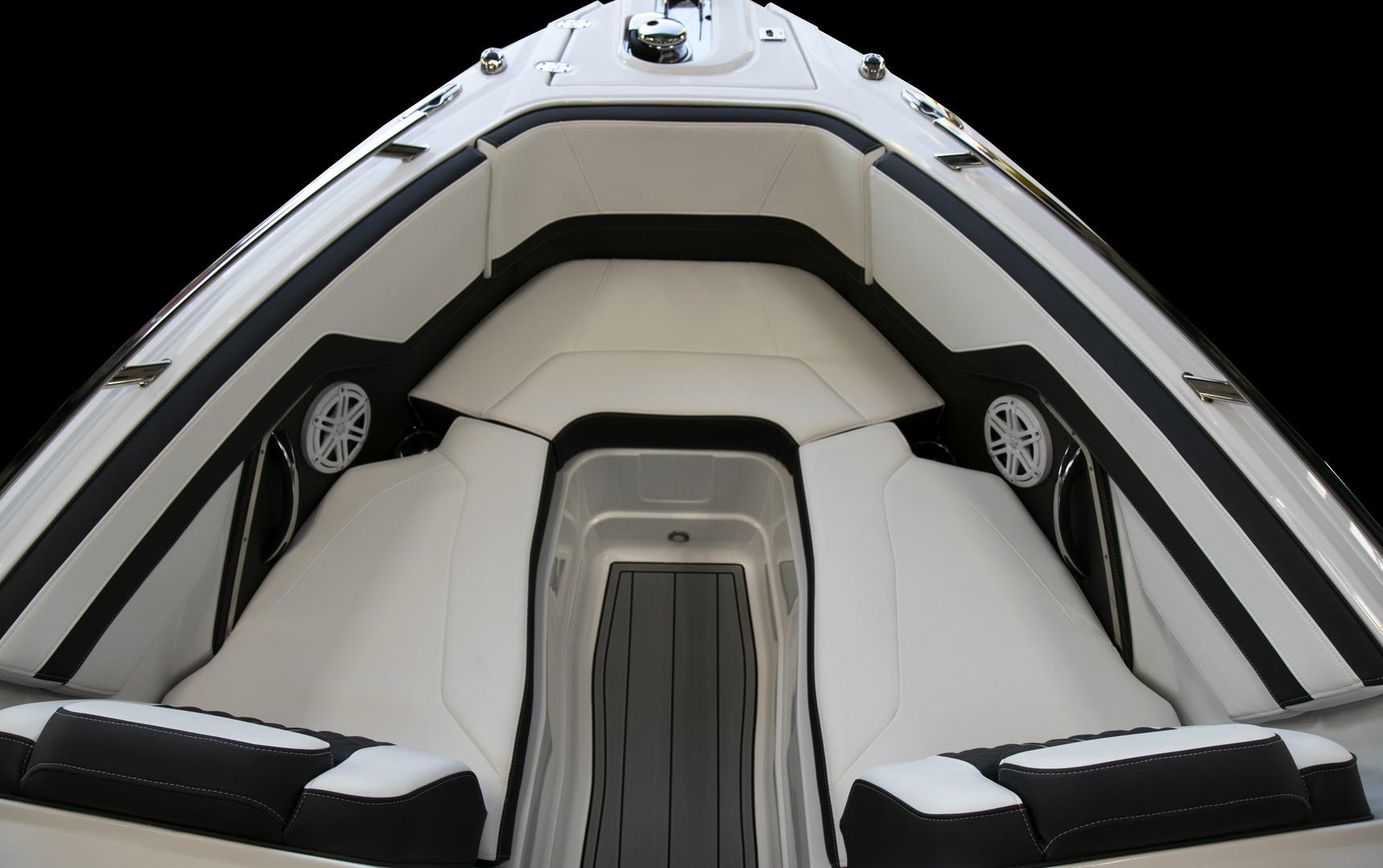

Seat Cushions w/Storage Compartments, Bow | ![]() |
|
Canvas |
Bow & Cockpit Cover: Onyx | ![]() |
Bow & Cockpit Cover: Rio | ![]() |
|
Bow & Cockpit Cover: Royal Blue | ![]() |
|
Bow & Cockpit Cover: Sapphire | ![]() |
|
Bow & Cockpit Cover: Taupe | ![]() |
|
Cockpit |
Battery Charger w/Deck Plug (Standard in Australia) | ![]() |
Bow Filler Cushions | ![]() |
|
Bucket Seat, Swivel w/Slider and Flip Up Bolster, Port | ![]() |
|
Cockpit Inlay (SeaDek) (Requires Swim Platform Inlay Option) | ![]() |
|
Cockpit Table, w/Pedestal and Vertical side Mount Bases Fwd. & Aft. | ![]() |
|
Stereo Upgrade Package Premium, Includes JL 5 Channel Amplifier & 10" JL Subwoofer | ![]() |
|
Stereo Remote, Stern | ![]() |
|
Tower Cone Speakers, JL with 4 Channel Amplifier (Requires Stereo Upgrade Package and Arch/Tower) | ![]() |
|
Transom Shower w/Pressurized Water (Cold Only) | ![]() |
|

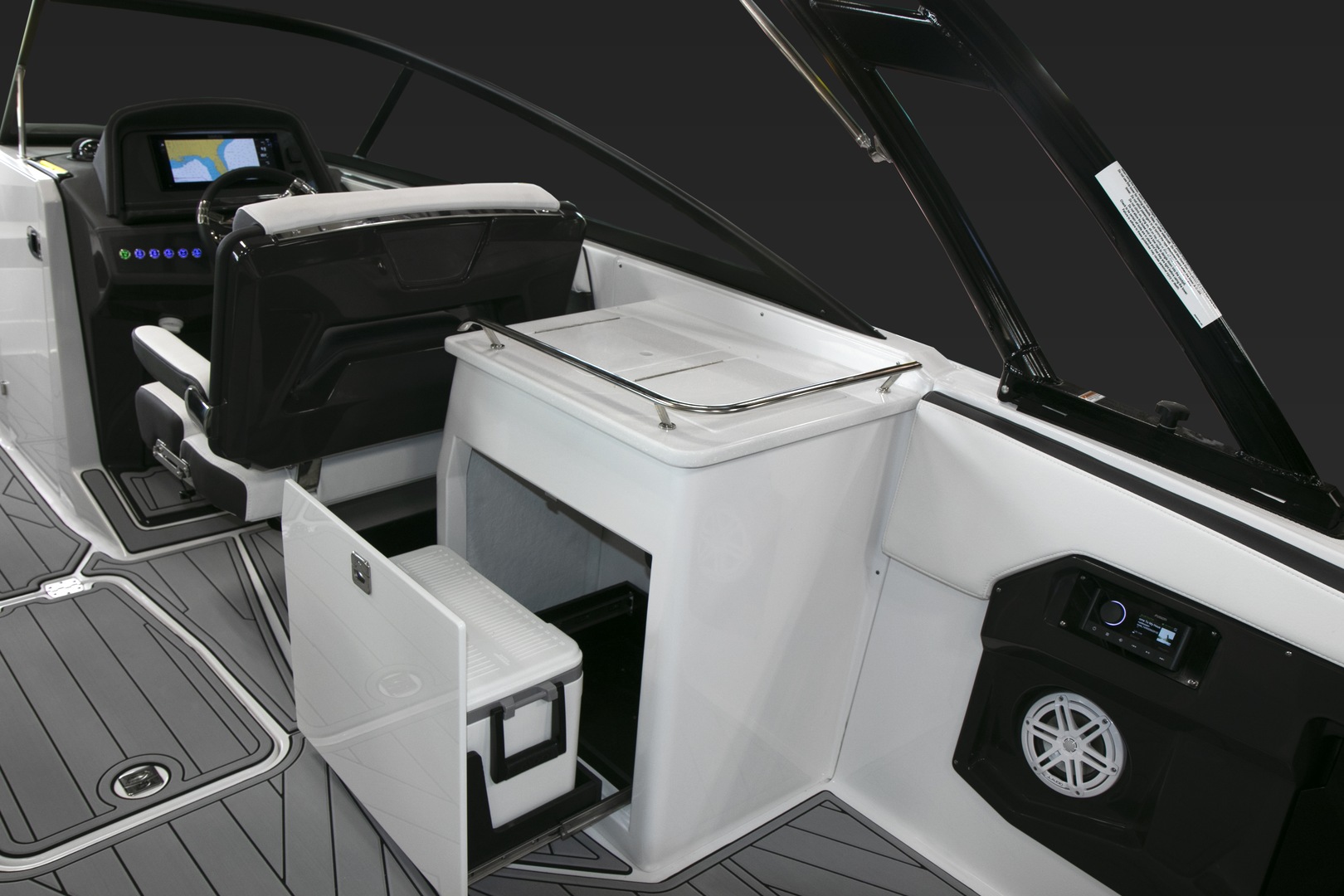

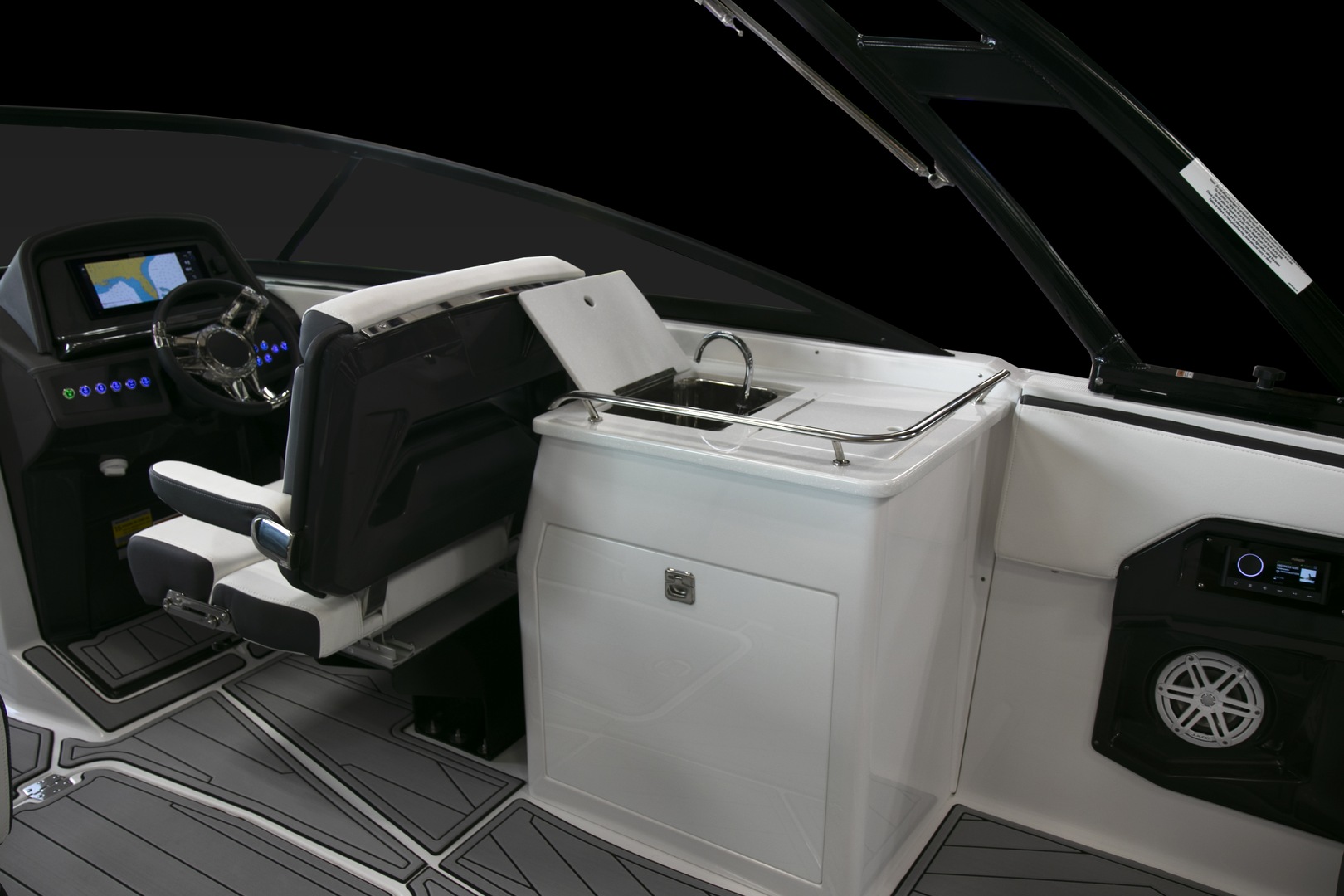

Wet Bar w/Solid Surface Insert, Sink, Faucet & Slide Out Cooler | ![]() |
|
Woven Flooring, Cockpit | ![]() |
|
Head |
Toilet, Pump-out Deck Fitting | ![]() |
Electric Head System w/Holding Tank indicator & pump out deck fitting | ![]() |
|
Hull & Deck |
Anchor Windlass, Pre-Wire | ![]() |
Anchor Windlass w/Anchor Rope & Chain | ![]() |
|
Colored Hull Bottom (other than Arctic Ice) | ![]() |
|
Delete Graphics | ![]() |
|
Phender Pro Holders (4) | ![]() |
|
Portlight, In Head, w/Screen | ![]() |
|
Ski Tow Pylon, Removable | ![]() |
|
Swim Platform Inlay (SeaDek) | ![]() |
|
Underwater Lights, LED RGB | ![]() |
|
Wakeboard Tower Black, Hinged to Fold Down (Includes Wakeboard Bimini) | ![]() |
|
Wakeboard Tower White, Hinged to Fold Down (Includes Wakeboard Bimini) | ![]() |
|
Wakeboard Tower, Electric, Black (Includes Wakeboard Bimini) | ![]() |
|
Wakeboard Tower, Electric, White (Includes Wakeboard Bimini) | ![]() |
|
Under Water Gear |
Trim Tabs W/Indicators & Auto Retract | ![]() |
Waste Systems |
Grey Water System for Porta Potti (N/A With Macerator) | ![]() |
Macerator w/Overboard Discharge (requires Electric toilet option - Not Available w/Grey Water Option) | ![]() |
|
Grey Water System For Electric Head (N/A With Macerator) | ![]() |
Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
---|---|---|---|---|---|---|---|
300XXL DTS | 300HP | OB | Enertia Eco-17-SS | 44-48 | 9.9@30.8 | ||
300XXL DTS (Cold Fusion White) | 300HP | OB | Enertia Eco-17-SS | 44-48 | 9.9@30.8 | ||
350XL V10 DTS | 350HP | OB | REV X-21-SS | 52-56MPH | 11.5@32E | ||
350XL V10 DTS white | 350HP | OB | REV X-21-SS | 52-56MPH | 11.5@32E |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
