224FS
NAP PRICE STARTING AT $59,708.00
Setting A New Standard
NAP PRICE STARTING AT $59,708.00
Speedy and Sleek

The high performance ride you’ve been waiting for, the 224FS’s luxurious features include back-lit Faria gauges with stainless steel bezels in the helm, spacious seating, ample storage, and a large sun deck.  Plus, sporty features like our exclusive air assist chine makes fast handling a breeze while the optional factory installed wakeboard tower makes catching big air an out of the world experience.

LOA W/SWIM PLATFORM
22'9"
BEAM
8'6"
FUEL CAPACITY
55GAL
MAX HORSEPOWER
300HP
Build Your Custom Monterey 224FS

Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.

Begin My Build
224FS
Photo Gallery
A Study In Luxury

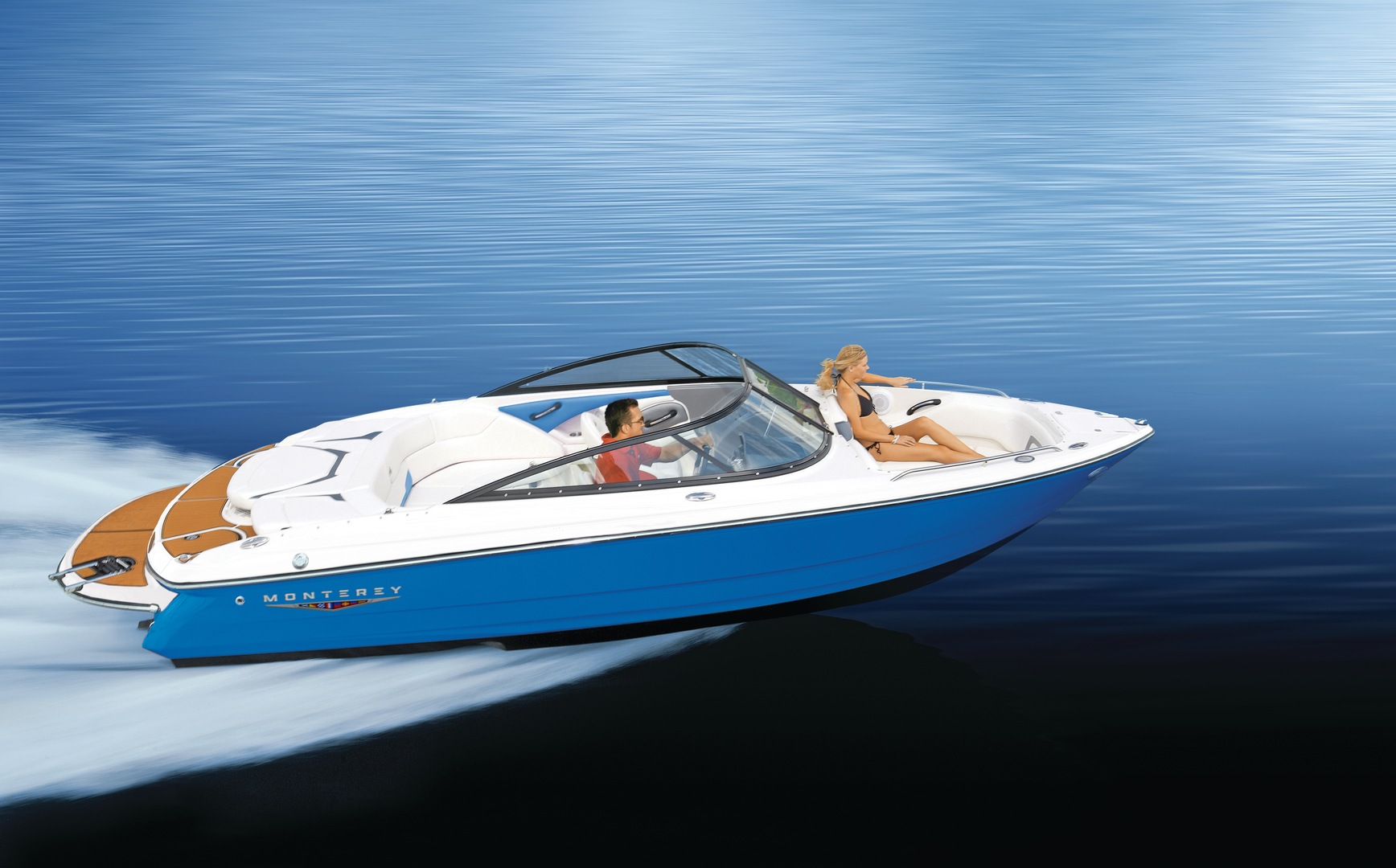

Monterey In Motion
Capturing Performance, Speed, And Luxury
A Work Of Art Is Best Viewed In Person
Specifications Review
Specifications
Spec US Unit Metric Unit Description
LOA W/Swim Platform 22' 9" 6.93M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Beam 8'6" 2.59M Width of hull at widest section including rubrail
Deadrise 20° 20° Angle of keel measured at transom
Draft - Stern Drive Up 23" 58.4CM Depth of hull to lowest point, stern drive trimmed up
Draft - Stern Drive Down 36" 91.4CM Depth of hull to bottom of stern drive, trimmed down
Bridge Clearance W/Tower 7'5" 2.3M Height from water to highest point on arch, normal load
Fuel Capacity 55GAL 208.2L Capacity of fuel tank in gallons/liters
Water Capacity 10GAL 37.9L Capacity of water tank in gallons/liters
Dry Weight 3,500LBS 1,588KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Max Persons 12 (US) 10 (CE) Maximum Rated Persons Capacity
Max Persons Weight 1980LBS 750KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons W/ Gear Weight 2115LBS 900KG Maximum combined capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 300HP 224KW Maximum horsepower for safe operation
Standards & Options
Engine Option Standards and Options

Canvas

Bimini Top w/Embroidered Boot StandardStandard

Cockpit

Cooler, 25 Qt. Carry-On StandardStandard
Cooler, Molded-In StandardStandard
Cooler, Port Console w/Overboard Drain StandardStandard
Courtesy Lighting, Blue/White, LED 12 V StandardStandard
Drink Holders, Stainless Steel (10) StandardStandard
Fiberglass Cockpit Liner w/Non-Skid & Drainage StandardStandard
Glove Box, Port Side, Lockable StandardStandard
Grab Handles, Black Urethane w/Stainless Steel Inserts StandardStandard
Outlet, 12 V StandardStandard
Stereo, Fusion Satellite Ready AM/FM USB w/Bluetooth & (4) Rockford Fosgate 6.5" Speakers StandardStandard
Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck StandardStandard
Storage, Side Panels StandardStandard

Electrical System

Battery Switch, Single, On/Off StandardStandard
Battery Tray StandardStandard
Weatherproof Electrical System w/Individual Circuit Protection StandardStandard

Engine Compartment

Automatic Bilge Pump StandardStandard
Fire Port StandardStandard
Forced Air Ventilation w/Concealed Vents StandardStandard
Gel Coated Bilge & Engine Compartment StandardStandard

Fuel Systems

Double Clamped Fuel Lines StandardStandard

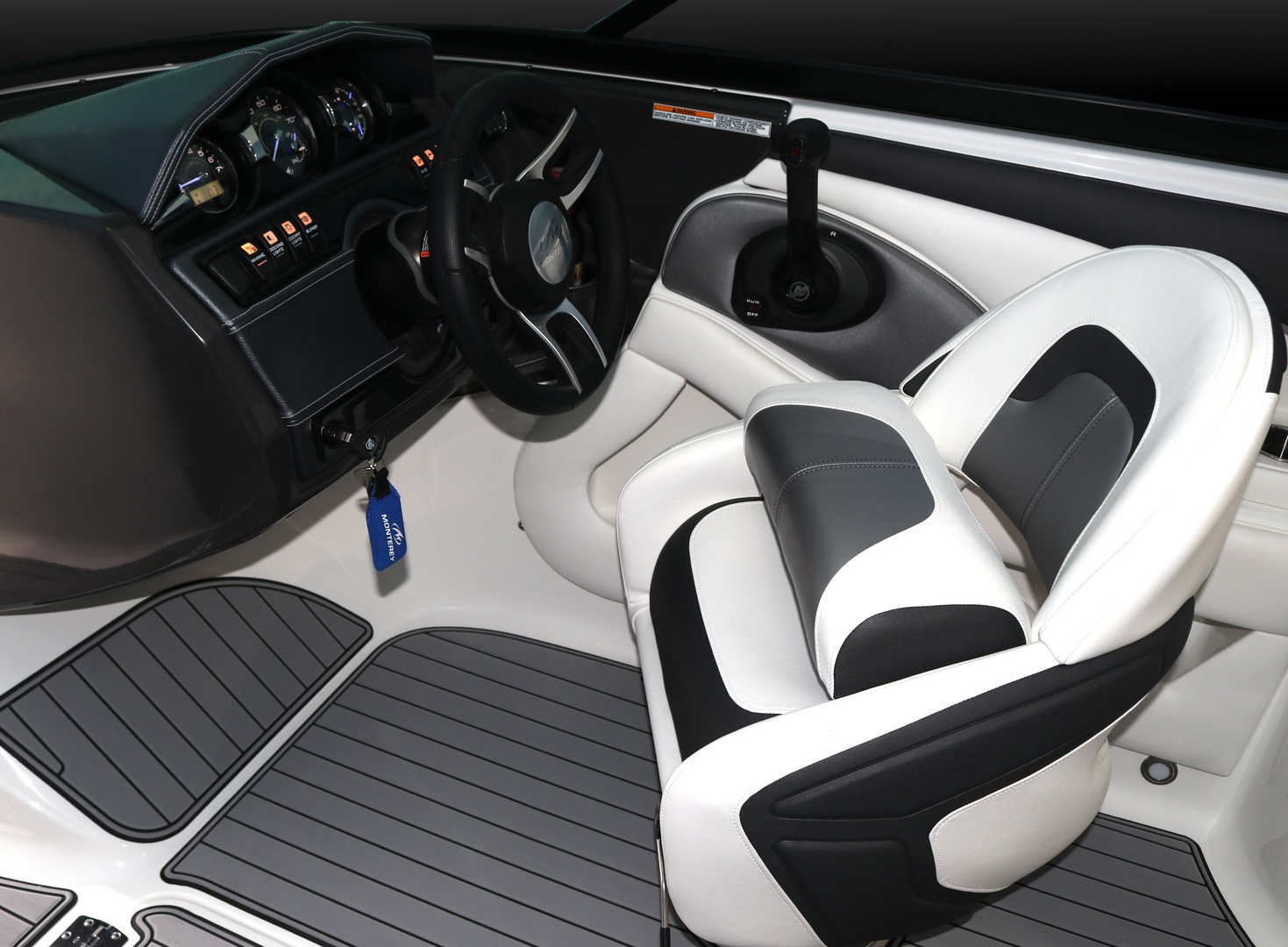

Helm

Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting StandardStandard
MP3 Adapter StandardStandard
Outlet, 12 V USB StandardStandard
Steering Wheel, Black w/Silver Insert StandardStandard
Steering, Power Assisted, tilt StandardStandard
Switches, Lighted Weatherproof StandardStandard

Hull & Deck

Air Assist Chine StandardStandard
Barrier Coat, Vinylester StandardStandard
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate StandardStandard
Cleats, Pull Up, Stainless Steel (6) StandardStandard
Colored Hull Sides StandardStandard
Custom Hull Side Graphics StandardStandard
Drain Plug, Brass Garboard StandardStandard
Horn, Electric, Flush Mount StandardStandard
Lights, Navigation StandardStandard
NMMA Certified StandardStandard
Rub Rail, Heavy Duty w/Stainless Steel Insert StandardStandard
Ski Tow, Stainless Steel StandardStandard
Storage, Anchor w/Fiberglass Hatch StandardStandard

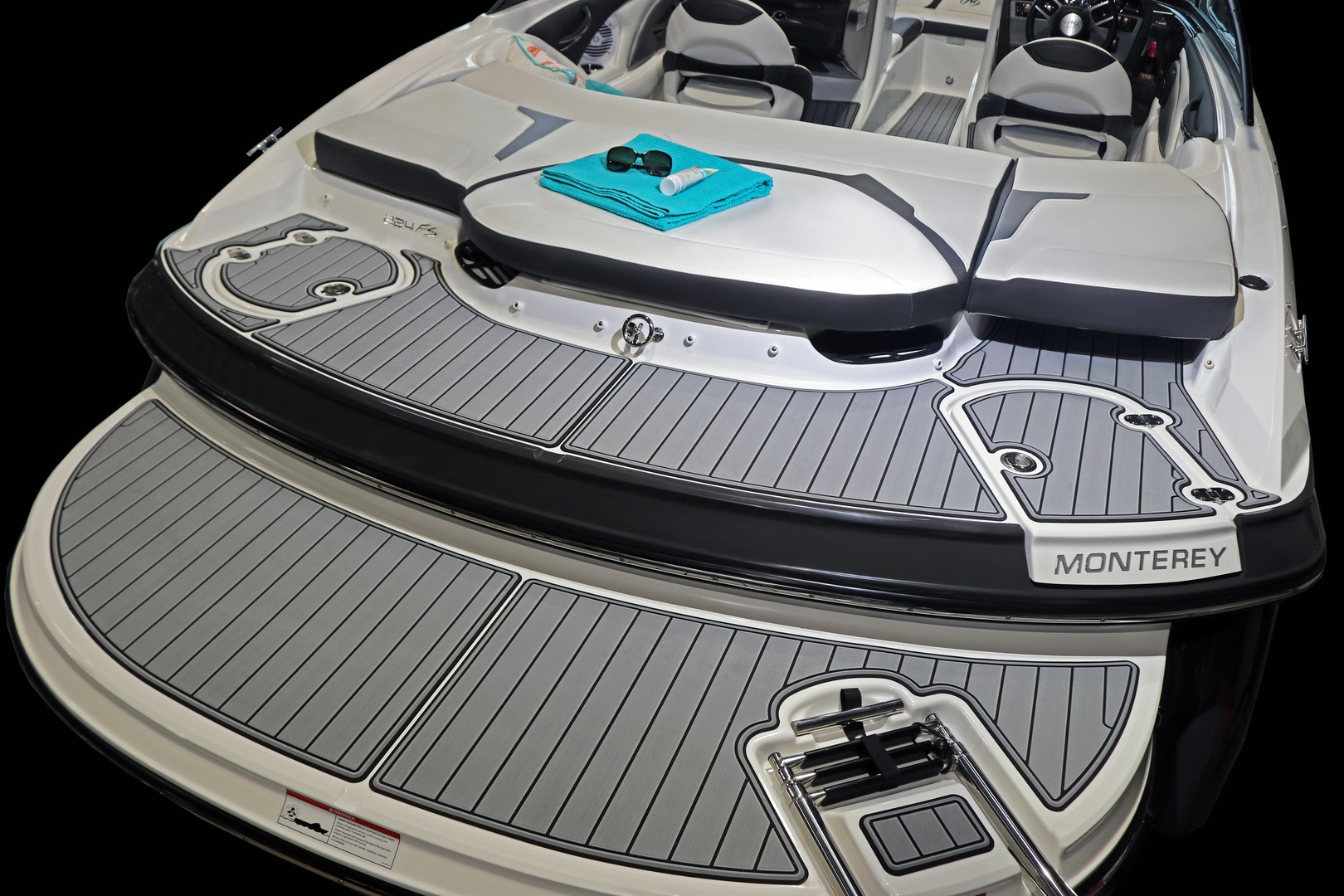

Swim Platform, Extended w/Telescoping Recessed Ladder StandardStandard
Swim Platform, Integral w/Ski Rope Storage StandardStandard
Thru Hulls, Stainless Steel, Above Waterline StandardStandard
Transhield Shipping Cover StandardStandard
Windshield, Onyx, Curved Tempered w/Walk-Thru StandardStandard

Seating

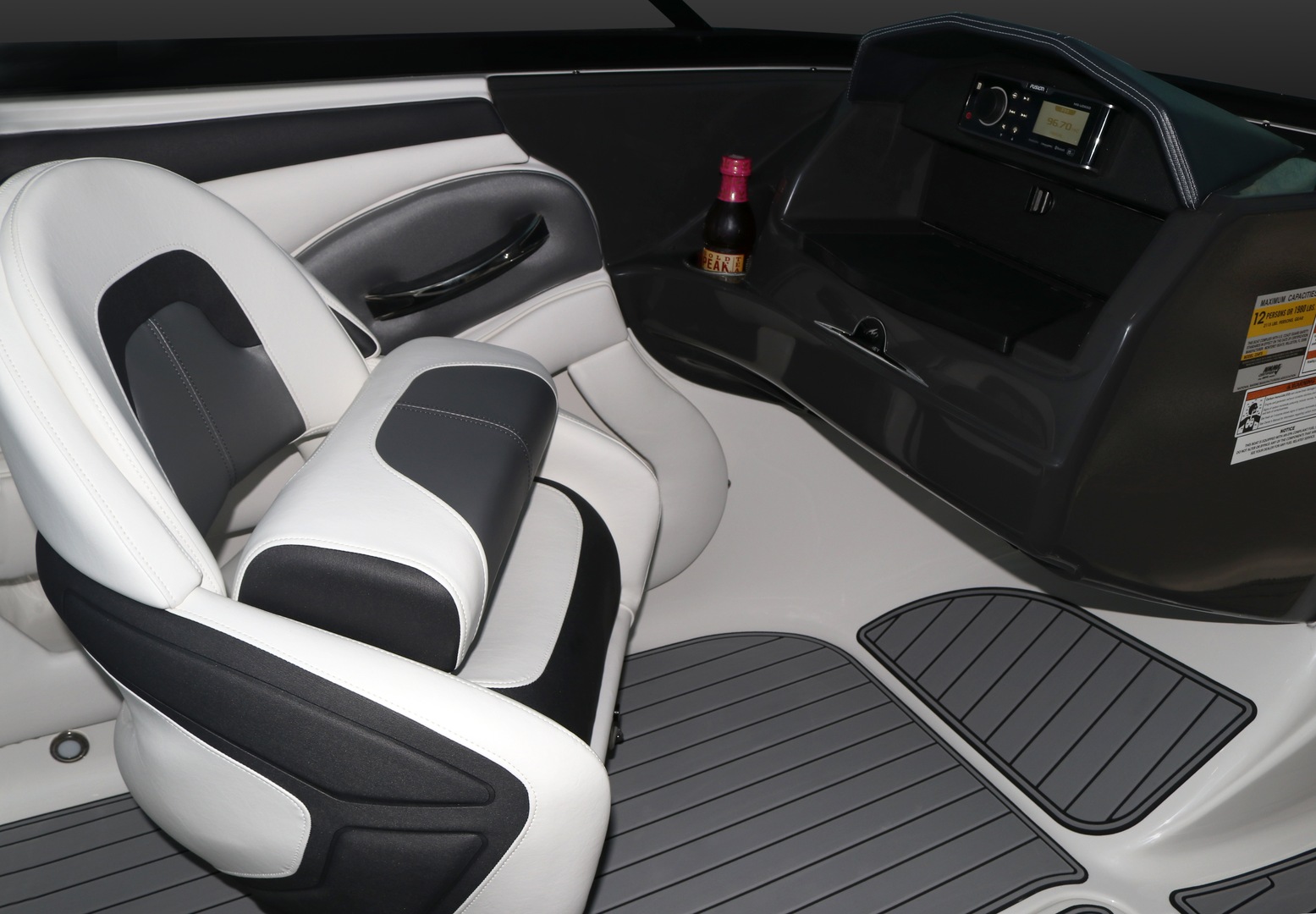

Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard StandardStandard

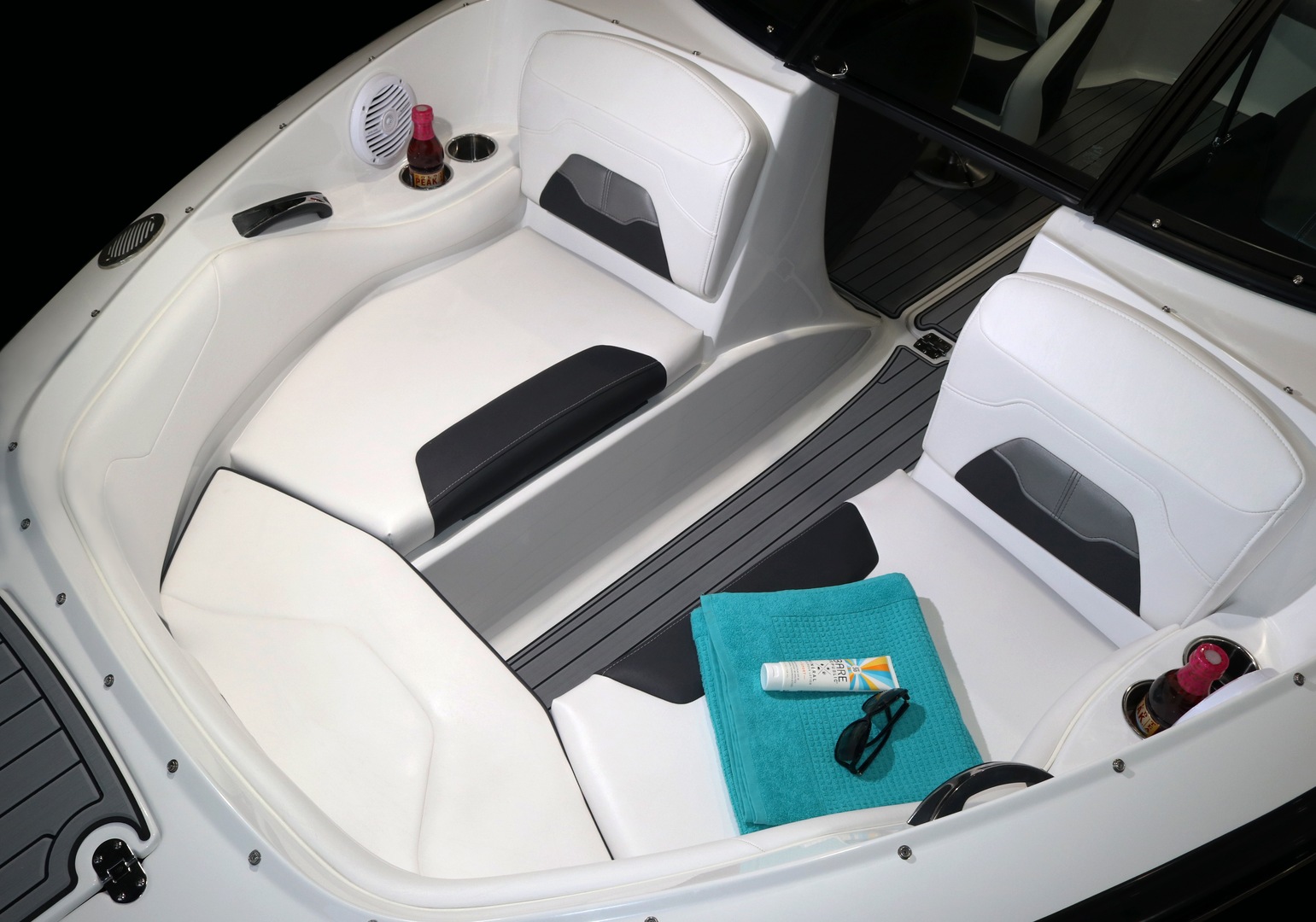

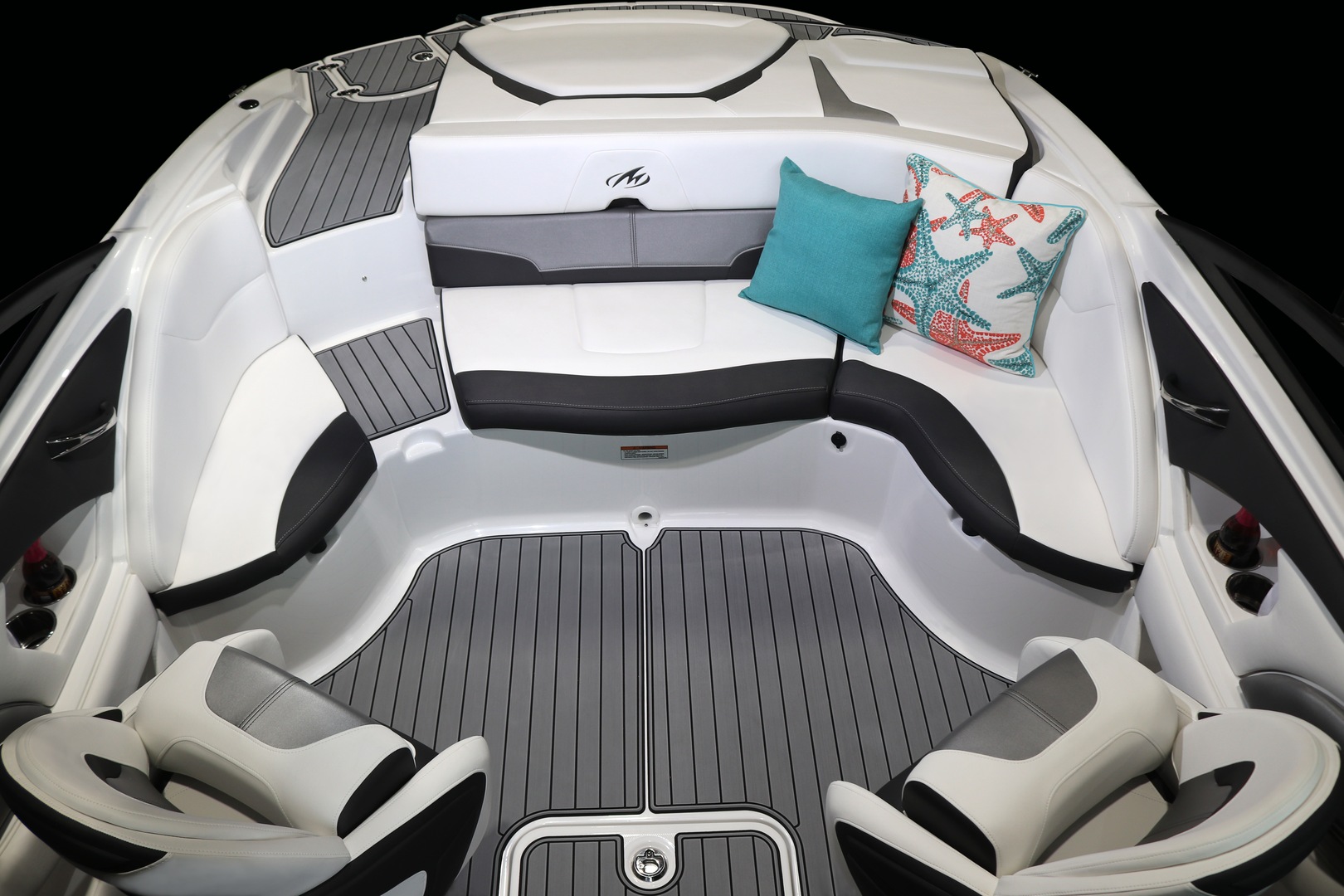

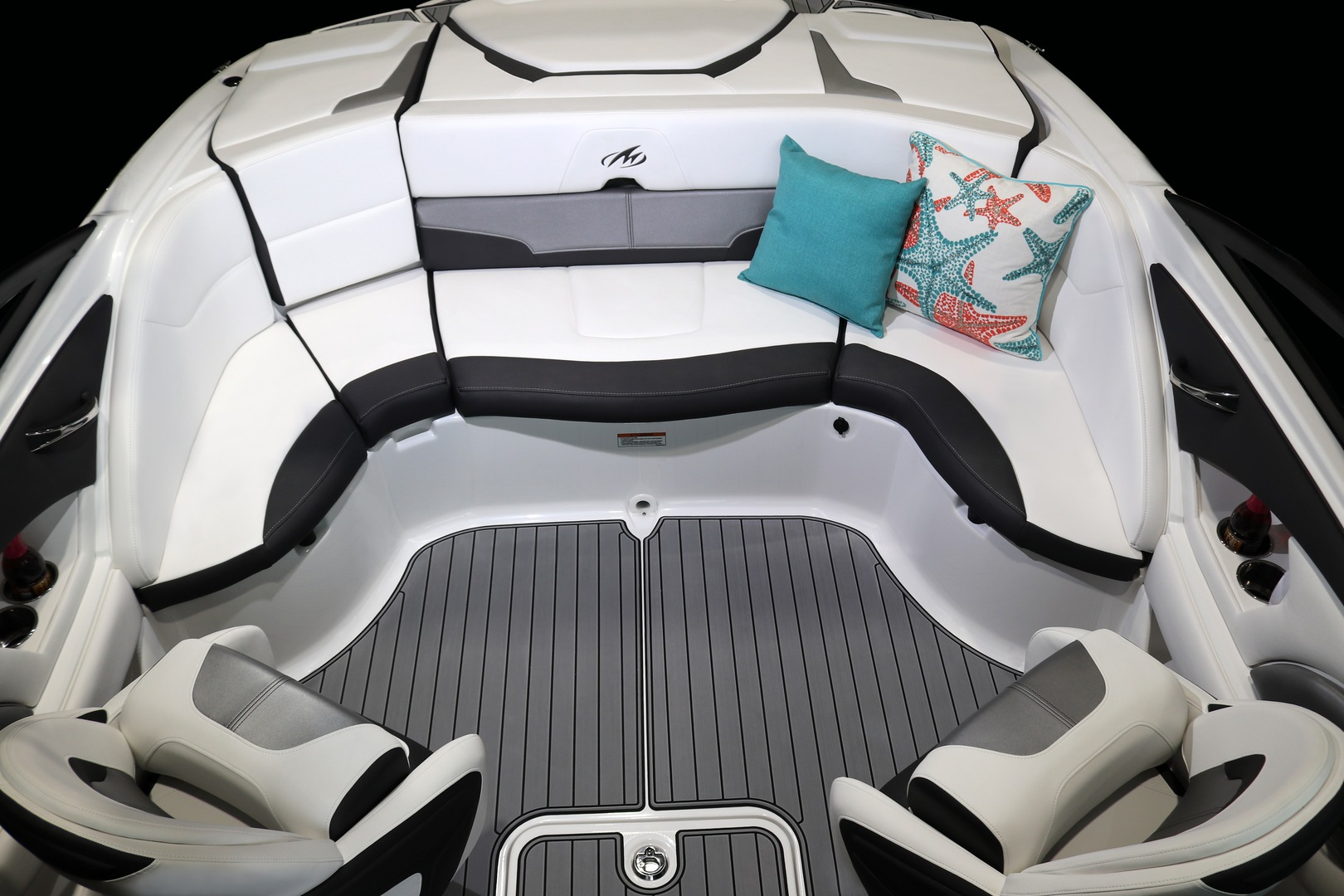

Seat Cushions w/Storage Compartments, Bow StandardStandard

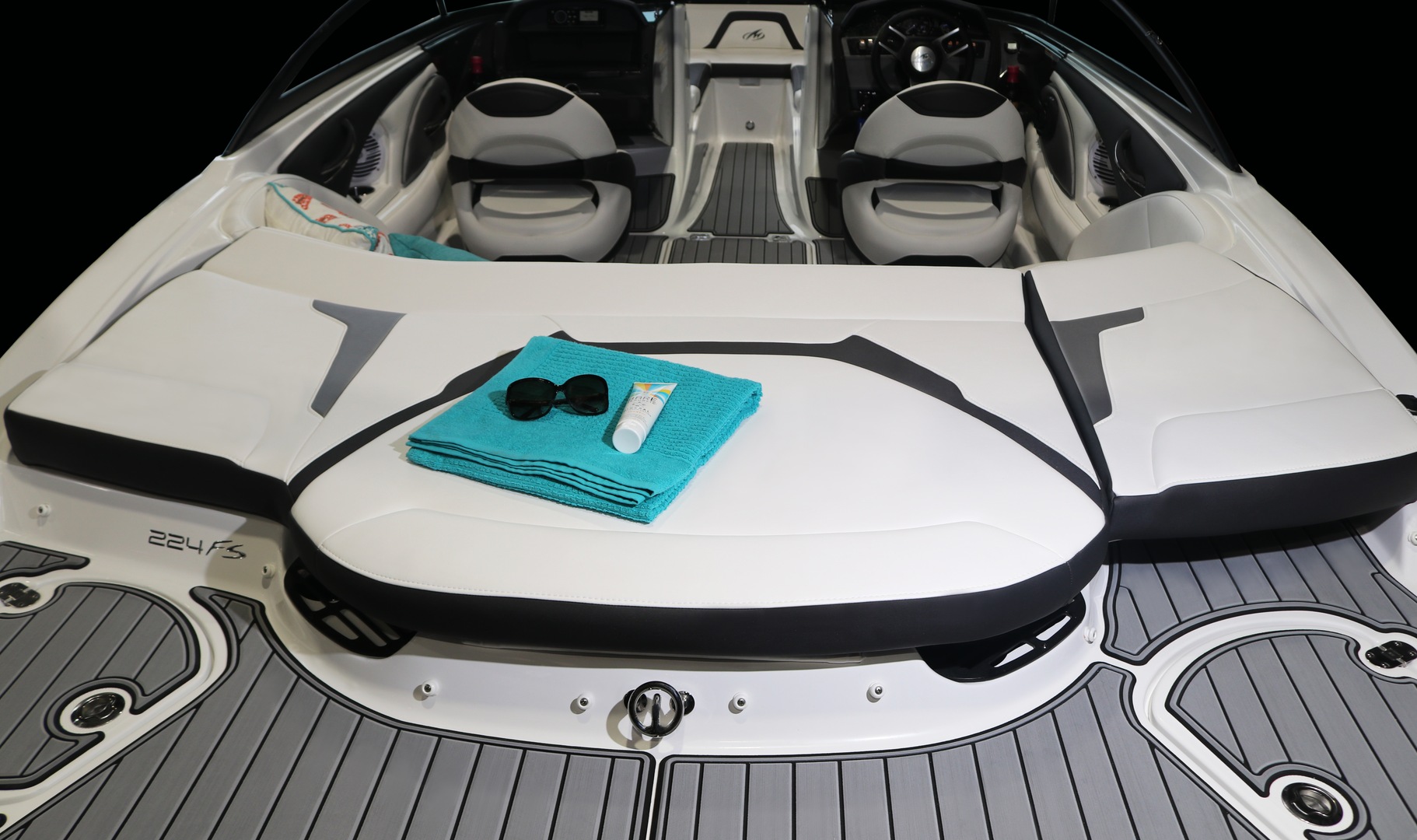

Sundeck w/Bench Seat & Storage StandardStandard

Canvas

Bow and Cockpit Cover-Onyx Optional FeatureOptional
Bow and Cockpit Cover-Rio Optional FeatureOptional
Bow and Cockpit Cover-Royal Blue Optional FeatureOptional
Bow and Cockpit Cover-Sapphire Optional FeatureOptional
Bow and Cockpit Cover-Taupe Optional FeatureOptional

Cockpit

Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option) Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option) Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option) Optional FeatureOptional
Cockpit Table w/Pedestal & Vertical Side Mount Base Optional FeatureOptional
Premium Stereo Upgrade Package: Includes (4) Rockford Fosgate M2 Speakers w/Integrated LED Lights & 4 Channel Amplifier (Requires Dual Battery Switch Option) Optional FeatureOptional
Stereo Remotes (Helm and Stern) Optional FeatureOptional
Swim Platform Inlay (SeaDek: Terra) Swim Platform Inlay (SeaDek: Terra) Optional FeatureOptional
Swim Platform Inlay (SeaDek: Gray) Swim Platform Inlay (SeaDek: Gray) Optional FeatureOptional
Transom Shower w/pressurized water (Cold Only) Optional FeatureOptional
Woven Cockpit Flooring Optional FeatureOptional

Engine Compartment

Battery Charger w/Deck Plug (Standard in Australia) Optional FeatureOptional
Dual Battery Switch with Additional Battery Tray Optional FeatureOptional
Fire Extinguishing System (Domestic Only, Std. In EU Countries & Australia) Optional FeatureOptional

Helm

Compass Optional FeatureOptional
Depthsounder w/shallow water alarm (N/A W/A67 Option) Optional FeatureOptional
Transom Tilt Switch Optional FeatureOptional
Simrad NSX Series/Chartplotter/Sonar W/Transducer (Includes Depthsounder) Optional FeatureOptional

Hull & Deck

Colored Hull Bottom (Other Than Arctic Ice) Optional FeatureOptional
Ski-Tow Pylon, Removable Optional FeatureOptional
Stainless Steel Package Includes: Telescoping & Recessed Boarding Ladder At Bow, Bow Hand Rails, Docking Lights Optional FeatureOptional
Wakeboard Tower, Black (Hinged To Fold Down) Optional FeatureOptional
Wakeboard Tower, White (Hinged To Fold Down) Optional FeatureOptional

Seating

Arena Seating Optional FeatureOptional
Bow Filler Cushions Optional FeatureOptional
Performance
Engine Total HP Ratio Drive Prop Max MPH Range GPH @ Cruise MPH PDF
*4.5L 250 250HP 1.62 Merc Alpha BM-19-AL 45-49 8.3@32
4.5L 250 CAT 250HP 1.62 Merc Alpha BM-19-AL 45-49 8.3@32
*4.5L 250 DTS 250HP 2.20 BR III B3-24-SS 45-49 8.3@32
4.5L 250 DTS CAT 250HP 2.20 BR III B3-24-SS 45-49 8.3@32

Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
