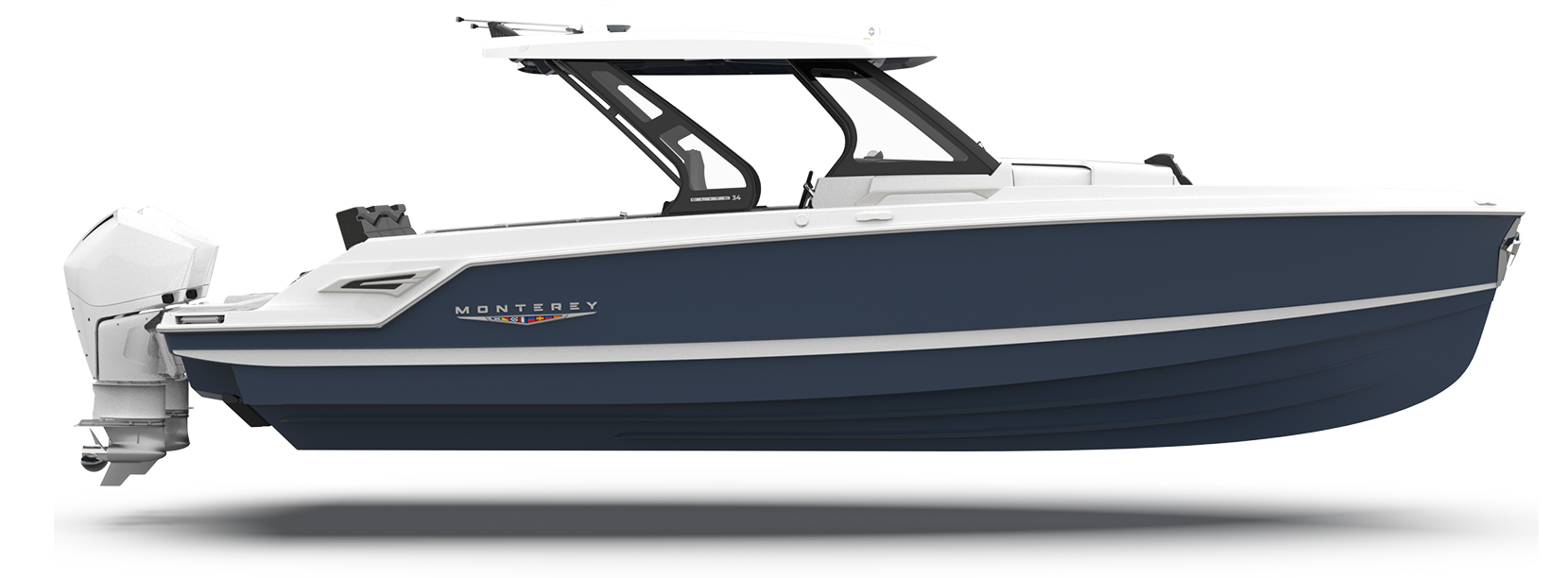

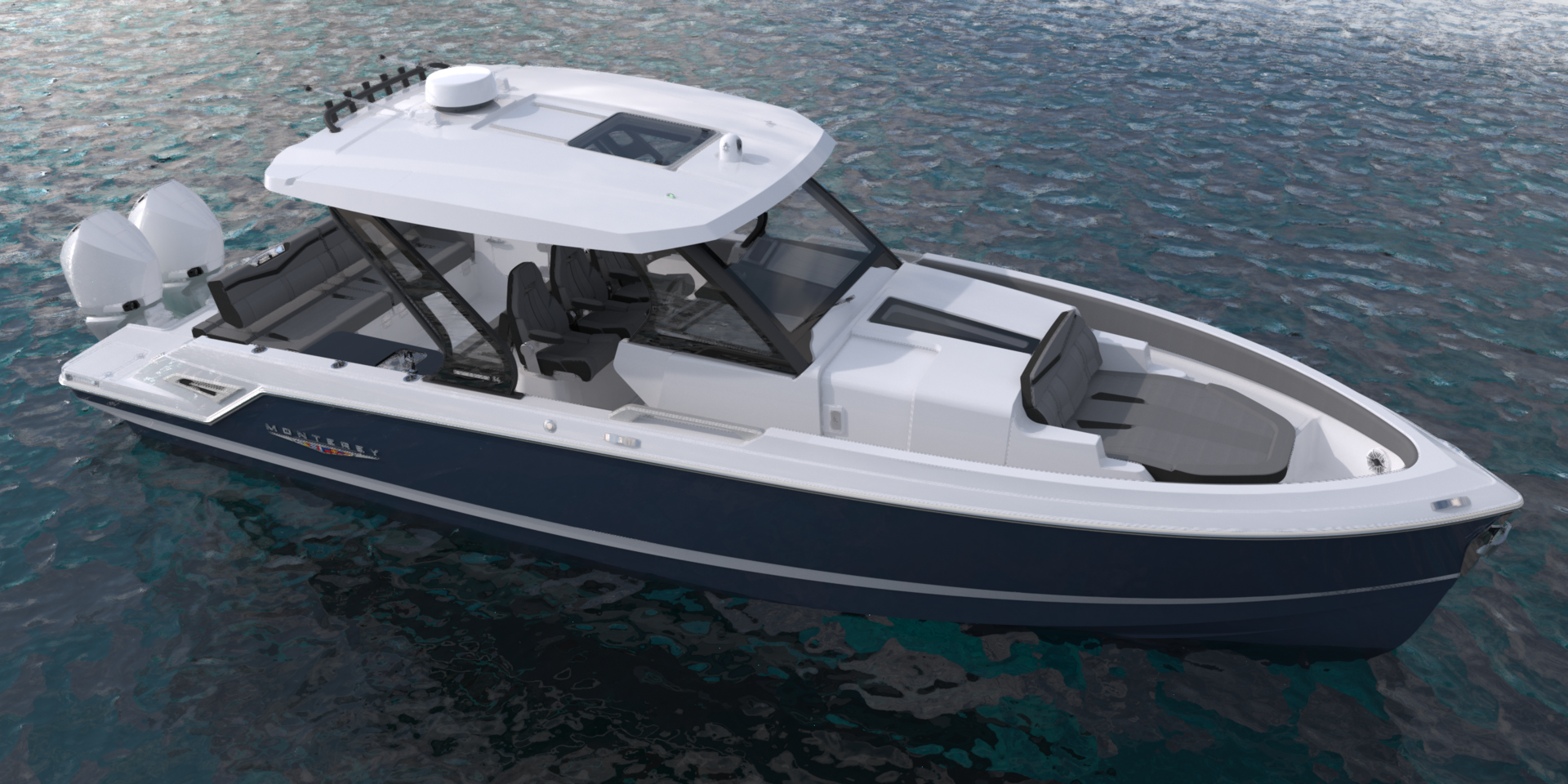

The Elite 34 marks the next evolution of Monterey’s award-winning Elite Series, expanding the lineup into the upper premium segment with greater scale, enhanced luxury appointments, and extended offshore capability. Designed to deliver commanding presence and confident performance, the 34 builds on the proven Elite foundation while introducing expanded entertaining space, elevated helm ergonomics, and refined detailing throughout.
LOA W/ENGINE 34'0"
BEAM 10'6"
FUEL CAPACITY 320GAL
MAX HORSEPOWER 850HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 34'0" | 10.36M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| LOA w/Engines | 37'0" | 11.28M | Length Overall With Engines |
| Beam | 10'6" | 3.20M | Width of hull at widest section including rubrail |
| Deadrise | 21° | 21° | Angle of keel measured at transom |
| Draft - Engine Up | TBD | TBD | Depth of hull to lowest point, Engine trimmed up |
| Draft - Engine Down | TBD | TBD | Depth of hull to bottom of engine, trimmed down |
| Fuel Capacity | 320GAL | 1211L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 35GAL | 132.5L | Capacity of water tank in gallons/liters |
| Waste Capacity | 28GAL | 106L | Capacity of waste tank in gallons/liters |
| Bridge Clearance W/Hardtop | TBD | TBD | Height from water to highest point on tower, normal load |
| Max Persons | Yacht Certified | TBD | Maximum Rated Persons Capacity |
| Dry Weight | TBD | TBD | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Power | 850HP | 634KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Head |
Flooring, Sleek Teak |  |
| Toilet, Electric w/Holding Tank, Indicator & Pump Out Deck Fitting | |
|
| Vanity w/Solid Surface Top, Sink and Pullout Sprayer | |
|

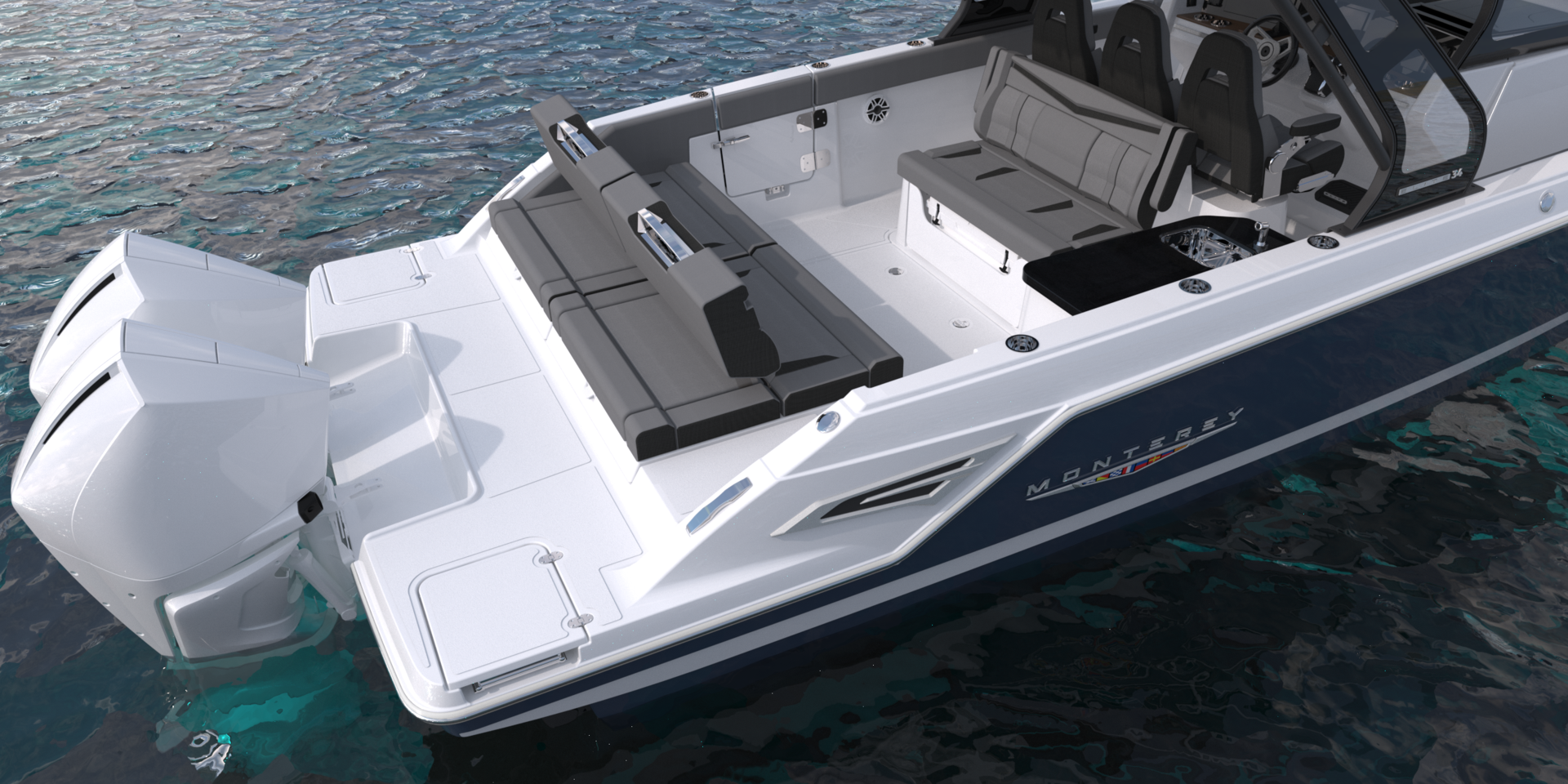

Cockpit |
Courtesy Lighting, Blue/White, LED RGB | |
| Cockpit Table w/Pedestal & Vertical Side Mount Bases, Fwd & Aft | |
|
| Drink Holders, Stainless Steel (11) | |
|
| Fiberglass Cockpit Liner with Non-Skid & Overboard Drainage | |
|
| Hardtop, Fiberglass w/Overhead RGB Lighting, Electrically Folding All-Around Light | |
|
| Outlets 12v/USB | |
|
| Stereo, Fusion Apollo RA770, (6) JL 7.7" Speakers, (2) 10" Subwoofers w/LED Lights, JL 600/6 Amp & 600/1 Amp | |
|
| Stereo Remotes, Bow & Stern | |
|
| Storage, In Floor | |
|
| Transom Shower (Cold Only) | |
|
| Wetbar w/Solid Surface Insert, Sink, Faucet, Trash Receptacle & Storage | |
|
| Yeti Cooler, 75Qt. Carry-On | |
|
Electrical System |
3 Bank Battery Charger w/Deck Plug | |
| Battery Trays, Group 31 (4) | |
|
| Panel, Battery Switch w/Emergency Parallel, Remote Controled, Dual | |
|
Engine Compartment |
Automatic Bilge Pumps | |
| Bilge Compartment Lighting | |
|
| Bilge Hatch, Fiberglass | |
|
| Gel Coated Bilge Compartment | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
| Water Separating Fuel Filters | |
|
Helm |
Compass | |
| Cup Holders (4) | |
|
| GPS/Chart Plotter, Simrad 15" Ultra Wide B60 Transducer Intergraded Switching and Stereo Controls | |
|
| Outlet 12v, USB (2) | |
|
| Steering Wheel, Leather Wrapped with Chromed Stainless Spokes | |
|
| Steering, Power Assisted | |
|
| Steering Tilt | |
|
| Wireless Chargers (6) | |
|
Hull & Deck |
Barrier Coat, Vinylester | |
| Bow and Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Bow Grab Handles | |
|
| Bow Plate, Stainless Steel | |
|
| Cleats, Stainless Steel, Pull-Up (6) | |
|
| Colored Hull | |
|
| Door Walk-Thru At Transom | |
|
| Drain Plug Brass Garboard | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Navigation, LED (Hardtop Mounted) | |
|
| NMMA Certified | |
|
| Portlight, Opening in Head w/Screen | |
|
| Portlight, Opening in Cabin w/Screen | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|

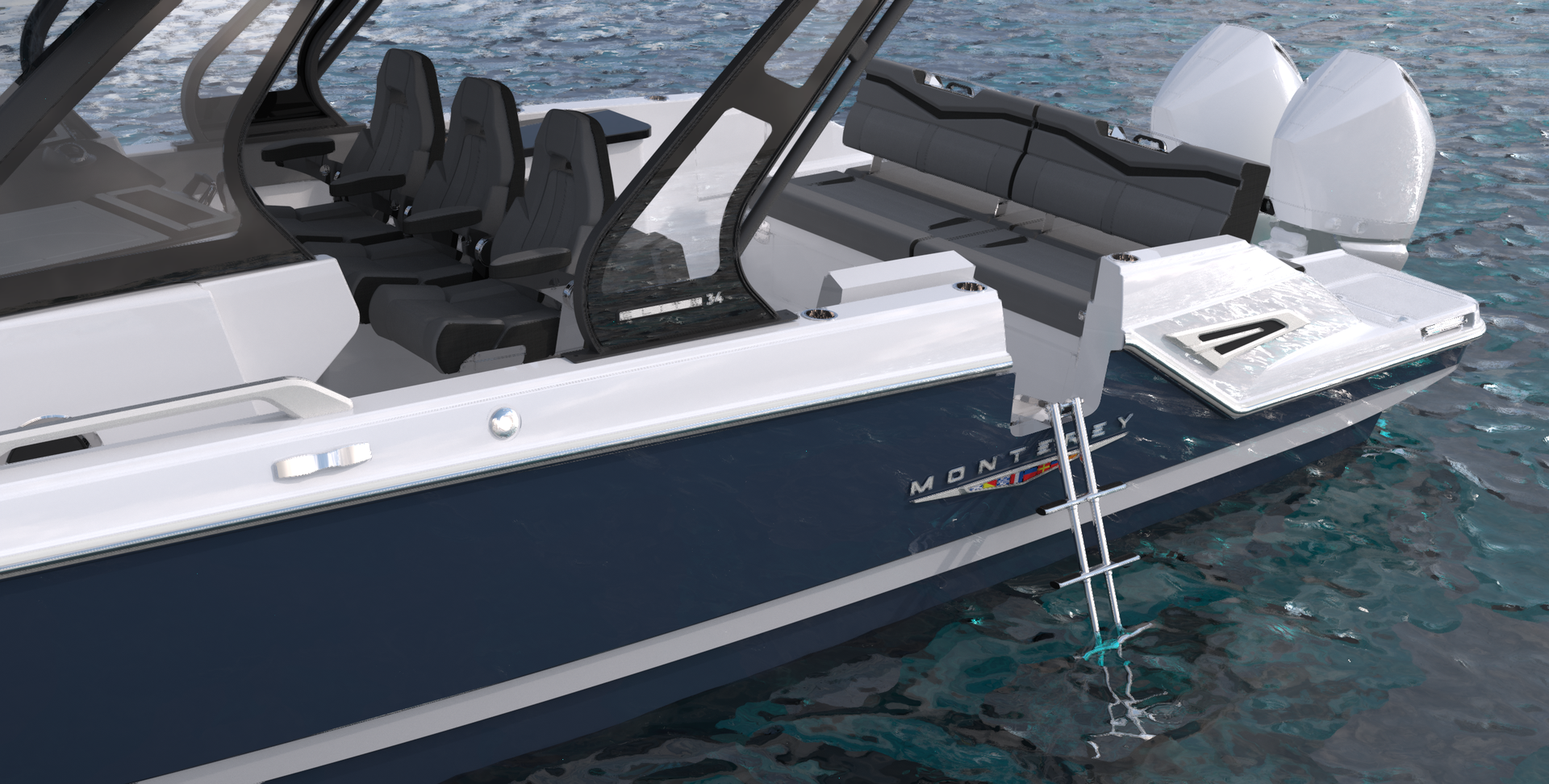

| Swim Platform, Molded in w/Telescoping Recessed Ladder and Hatch (2) | |
|
| Thru-Hulls, Stainless Steel Above Waterline | |
|
| Transhield Shipping Cover | |
|
| Underwater Lights, RGB LED (3) | |
|
| Universal BurneWin Mounts (2) | |
|
Seating |
Aft Facing Seat | |

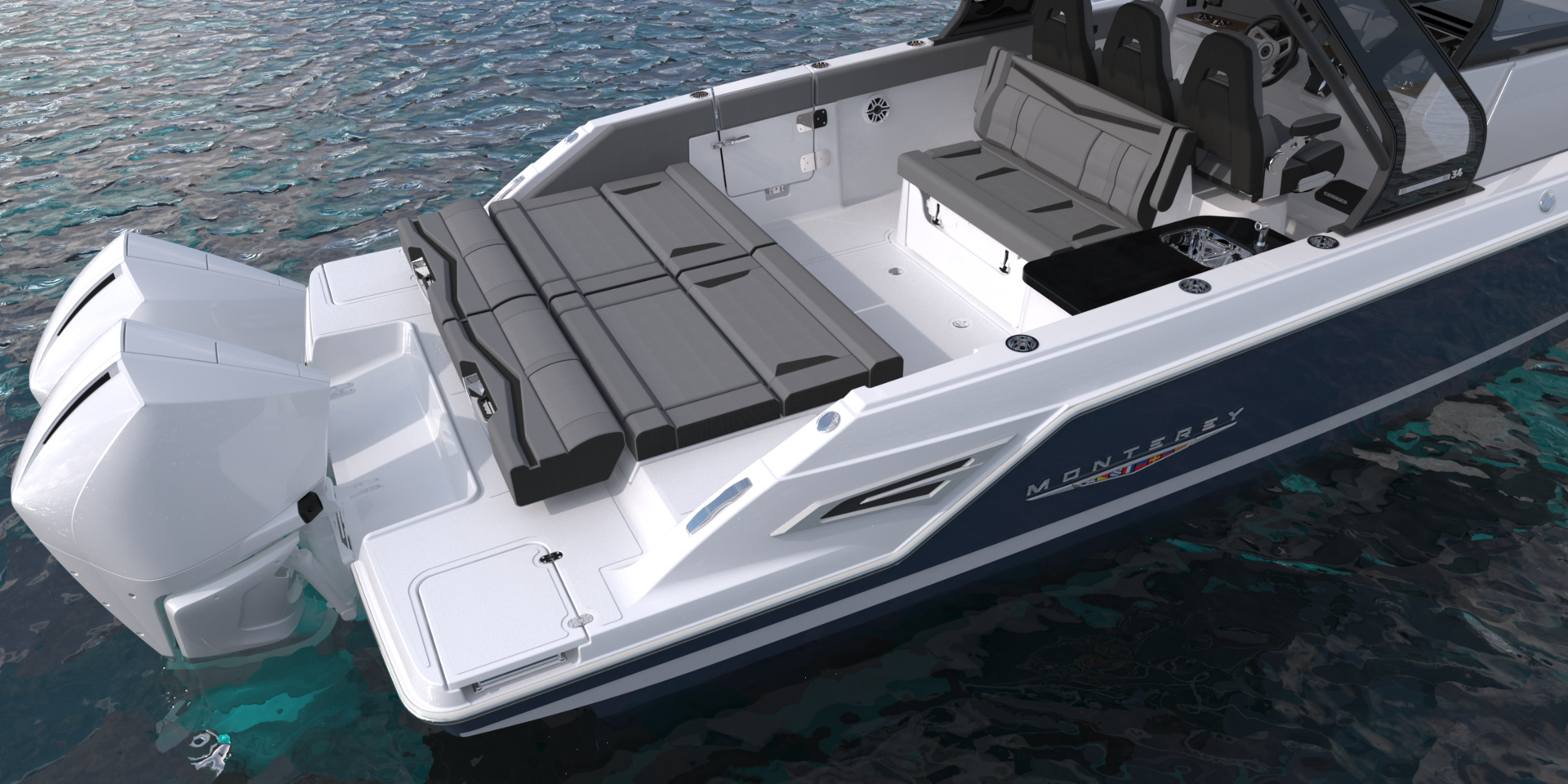

| Aft Sunpad, with (2) Articulating Backrests, & Storage Compartments | |
|
| Bow Lounge w/USB Chargers and Magnetic Cup Holders | |
|
| Helm Seats, (3) w/Flip-Up Thigh Rise, Fold Down Armrests, and Fore/Aft Sliders | |
|
Under Water Gear |
Trim Tabs, Seakeeper Ride 600 | |

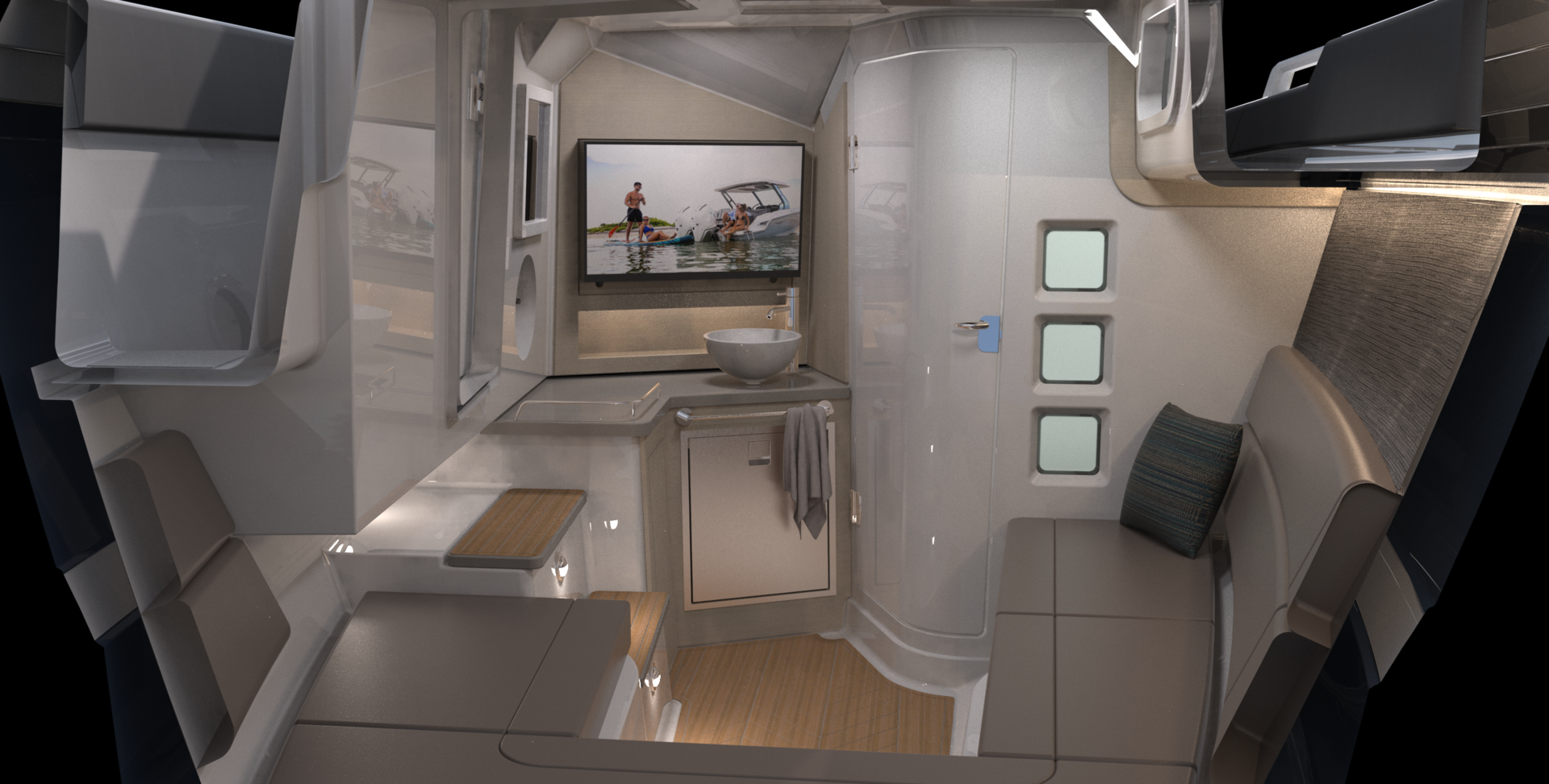

Cabin |
Refrigerator, 12V |  |
| TV, 32" Smart TV | |
|
Canvas |
Aft Shade | |
| Aft Seat Cover | |
|
| Bow Cover | |
|
| Bow Shade-Gray | |
|
| Console Cover | |
|
| Console Side Weather Curtains | |
|
| Helm Seat Cover | |
|
| Mooring Cover | |
|
Cockpit |
Air Inflator | |
| Cockpit Inlay (SeaDek), Requires Seadek Swim Platform Inlay | |
|
| Cockpit Refrigerator, 12V | |
|
| TV, 32" Smart TV | |
|
| Grill, Gas Marine Kettle BBQ w/Table | |
|
| Rod Holders for Hardtop | |
|
| Rack for Hardtop Roof | |
|
| Woven Cockpit Flooring | |
|
Hull and Deck |
Anchor Windlass w/SS Anchor, Rope and Chain | |
| Bow Thruster (Integrates with Joystick when selected) | |
|
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Phender Pro Holders (6) | |
|
| Seadek Swim Platform Inlay | |
|
| Seakeeper 2 Gyro Stabilizer | |
|
| Generator 3.5KW Gas w/16K BTU AC Unit and 120V Outlets (2) | |
|
Technical |
VHF, Simrad RS100 | |
| GPS/Chartplotter, Simrad Ultrawide 15", 2 additional | |
|
| FLIR Infrared Camera, M232 | |
|
| Radome, Simrad | |
|
Waste Systems |
Grey Water System | |
| Macerator With Overboard Discharge N//A w/Grey Water Option | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| Twin 250XXL DTS | 500HP | Twin 250XXL OB | Enertia Eco-19-S | 54 | 14@32E | Download | |
| Twin 250XXL DTS | 500HP | Twin 250XXL OB | Enertia Eco-19-S | 54 | 14@32E | Download | |
| Twin 250XXL DTS JPO | 500HP | Twin 250XXL OB | Enertia Eco-19-S | 54 | 14@32E | Download | |
| Twin 250XXL DTS JPO | 500HP | Twin 250XXL OB | Enertia Eco-19-S | 54 | 14@32E | Download | |
| Twin 300XXL DTS | 600HP | Twin 300XXL OB | Enertia Eco-19-S | 57 | 16@34 | Download | |
| Twin 300XXL DTS | 600HP | Twin 300XXL OB | Enertia Eco-19-S | 57 | 16@34 | Download | |
| Twin 300XXL DTS JPO | 600HP | Twin 300XXL OB | Enertia Eco-19-S | 57 | 16@34 | Download | |
| Twin 300XXL DTS JPO | 600HP | Twin 300XXL OB | Enertia Eco-19-S | 57 | 16@34 | Download |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
