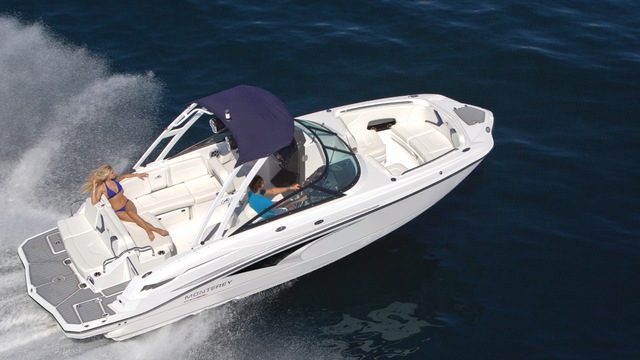

The M6 has everything you’ll need to enjoy a full day of cruising, skiing, wakeboarding and tubing. Featuring spacious seating and storage options, a head compartment, two recessed and telescoping boarding ladders located in the bow and stern, and a Fusion satellite ready AM/FM stereo, you'll have everything you need to enjoy your time out on the water. With the standard signature graphics and colored hull, you’re sure to have one of the sharpest boats on the water. The M6 is style, luxury and performance personified!
LOA W/SWIM PLATFORM 25'10"
BEAM 8'6"
FUEL CAPACITY 80GAL
MAX HORSEPOWER 430HP
Design a Monterey vessel that’s truly a one-of-a-kind masterpiece and know there will never be someone out on the water like you.
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA W/Swim Platform | 25' 10" | 7.87M | Length Overall, including add-on swim platform, not including bow rail or anchor roller |
| Beam | 8' 6" | 2.59M | Width of hull at widest section including rubrail |
| Deadrise | 20° | 20° | Angle of keel measured at transom |
| Draft - Stern Drive Up | 22" | 55.9CM | Depth of hull to lowest point, stern drive trimmed up |
| Draft - Stern Drive Down | 36" | 91.4CM | Depth of hull to bottom of stern drive, trimmed down |
| Bridge Clearance W/Tower | 8' | 2.4M | Height from water to highest point on tower, normal load |
| Fuel Capacity | 80GAL | 302.8L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 15GAL | 56.8L | Capacity of water tank in gallons/liters |
| Waste Capacity | 11GAL | 41.6L | Capacity of waste tank in gallons/liters |
| Dry Weight | 5,200LBS | 2,359KG | Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | 15 (US) | 13 (CE) | Maximum Rated Persons Capacity |
| Max Persons Weight | 2475LBS | 975KG | Maximum capacity of people that can be safely carried in pounds/kilograms |
| Max Persons/Gear Weight | 2715LBS | 1030KG | Maximum capacity of people and gear that can be safely carried in pounds/kilograms |
| Max Power | 430HP | 321KW | Maximum horsepower for safe operation |
| Engine | Option | Standards and Options |
|---|---|---|
Canvas |
Bimini Top w/Embroidered Boot |  |
Cockpit |
Cockpit Table w/ Pedestal & Vertical Side Mount Bases, Fwd & Aft | |
| Cooler, 48 Qt Carry-On | |
|
| Courtesy Lighting, Blue/White, LED 12 V | |
|
| Drink Holders, Stainless Steel (13) | |
|
| Fiberglass Cockpit Liner w/Non-Skid & Drainage | |
|
| Grab Rails | |
|
| Outlet, 12 V | |
|
| Stereo, Fusion Satellite Ready AM/FM/BLUETOOTH w/built-in iPod Dock & (4) Rockford Fosgate 6.5" Speakers & Dash Remote | |
|
| Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck | |
|
| Storage, Starboard Helm | |
|
| Transom Shower w/Pressurized Water (Cold Only) | |
|
Electrical Systems |
Battery Switch, Dual w/2 Battery Trays | |
| Weatherproof Electrical System w/Individual Circuit Protection | |
|
| Transom Tilt Switch | |
|
Engine Compartment |
Automatic Bilge Pump | |
| Bilge Blower | |
|
| Engine Hatch, Electrically Actuated | |
|
| Fire Port | |
|
| Forced Air Ventilation w/Concealed Vents | |
|
| Gel Coated Bilge & Engine Compartment | |
|
Fuel Systems |
Double Clamped Fuel Lines | |
Head |
Toilet (Porta-Potti) | |
| Vanity w/Solid Surface Top, Sink & Pullout Sprayer | |
|
| Flooring, Synthetic Wood | |
|

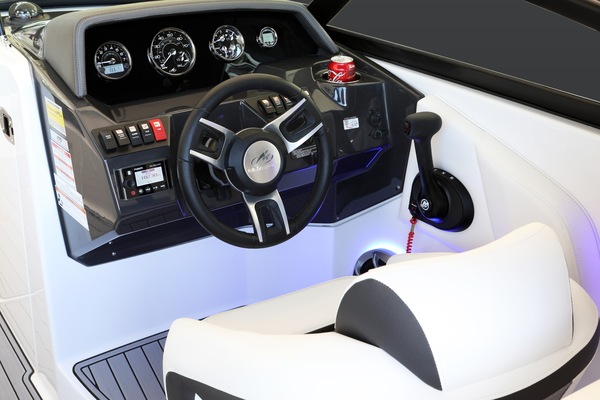

Helm |
Compass | |
| Digital GPS Speedometer | |
|
| Instrumentation w/Fog Resistant Gauges (Digital) & Low Glare Night Lighting | |
|
| MP3 Adapter | |
|
| Outlet, 12 V USB | |
|
| Steering Wheel, Black w/Silver Insert | |
|
| Steering, Power Assisted | |
|
| Steering, Tilt | |
|
| Switches, Lighted Weatherproof | |
|
Hull & Deck |
Air Assist Chine | |
| Barrier Coat, Vinylester | |
|
| Boarding Ladder, Telescoping & Recessed, Bow | |
|
| Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate | |
|
| Bow Hand Rails, Stainless Steel | |
|
| Bow Plate, Stainless Steel | |
|
| Cleats, Pull-up, Stainless Steel (6) | |
|
| Colored Hull | |
|
| Cooler Molded In, Bow | |
|
| Custom Hull Side Graphics | |
|
| Door, Walk-Thru at Helm | |
|
| Door, Walk-Thru at Transom | |
|
| Drain Plug, Brass Garboard | |
|
| Horn, Electric Flush Mount | |
|
| Lights, Docking | |
|
| Lights, Navigation, LED | |
|
| NMMA Certified | |
|
| Rub Rail, Heavy Duty w/Stainless Steel Insert | |
|
| Ski Tow, Stainless Steel | |
|
| Storage, Anchor w/Fiberglass Hatch (Drains Overboard) | |
|
| Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck | |
|
| Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch | |
|
| Swim Platform, Integral | |
|
| Thru Hulls, Stainless Steel Above Waterline | |
|
| Transhield Cover | |
|
| Windshield, Curved Tempered w/Walk-Thru, Onyx Framed | |
|
Seating |
Aft Back To Back L-Lounge w/ Fiberglass Bases & Sun Pad Conversion w/Recliner, Electrically Actuated | |
| Aft Facing Seat, Starboard W/Carry-on Slide-Out Cooler | |
|
| Aft Transom Seating | |
|
| Bow Seating w/Fold Down Arm Rest | |
|
| Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard | |
|
| Seat Cushions w/Storage Compartments, Bow | |
|
Canvas |
Bow and Cockpit Cover-Onyx |  |
| Bow and Cockpit Cover-Rio | |
|
| Bow and Cockpit Cover-Royal Blue | |
|
| Bow and Cockpit Cover-Sapphire | |
|
| Bow and Cockpit Cover-Taupe | |
|
Cockpit |
Cockpit Inlay, Terra (SeaDek) (Requires Swim Platform Inlay Option)
|
|
Cockpit Inlay, Gray (SeaDek) (Requires Swim Platform Inlay Option)
|
|
|
| Forward Shower w/Pressurized Water (Cold Only) | |
|
| Premium Stereo Upgrade Includes (4) 6.5" Rockford Fosgate M2 Speakers w/integrated LED Lights,10" Punch Subwoofer & 5 Channel Amplifier (Requires Dual Battery Switch) | |
|
| Stern Mounted Stereo Remote | |
|
Swim Platform Inlay, Terra (SeaDek)
|
|
|
Swim Platform Inlay, Gray (SeaDek)
|
|
|
| Tower Cone Speakers, Rockford Fosgate, w/ 2 Channel Amp (Requires Stereo Upgrade Package and Wakeboard Tower) | |
|
| Wet Bar w/Solid Surface Insert, Sink, Faucet, Slide-Out Carry-On Cooler & Storage (In Lieu of Standard Aft Seat) | |
|
| Woven Cockpit Flooring | |
|
Engine Compartment |
Battery Charger w/Deck Plug (Standard in Australia) | |
| Fire Extinguishing System (Domestic Only) (Standard in EU Countries & Australia) | |
|
Head |
Toilet, Pump-out Deck Fitting | |
| Electric Head System w/Holding Tank | |
|
Helm |
Simrad GO7XSE GPS/Chartplotter/Sonar w/Transducer/Integrated Engine Functions & Depthsounder | |
Hull & Deck |
Anchor Windlass Pre-Wire | |
| Anchor Windlass w/Anchor Rope & Chain (Requires Dual Battery Switch) | |
|
| Colored Hull Bottom (Other Than Arctic Ice) | |
|
| Delete Graphics | |
|
| Phender Pro (4) | |
|
| Portlight, In Head, w/Screen | |
|
| Removable Ski Tow Pylon | |
|
| Underwater Lights, RGB LED | |
|
| Wakeboard Tower, Black (Includes Wakeboard Bimini) | |
|
| Wakeboard Tower, White (Includes Wakeboard Bimini) | |
|
Seating |
Filler Cushion, Bow | |
| Portside Forward/Aft Facing Lounger | |
|
Under Water Gear |
Trim Tabs W/Indicators & Auto Retract | |
Waste Systems |
Grey Water System for Porta Potti (N/A With Macerator) | |
| Macerator w/Overboard Discharge (requires Electric Head Option) | |
|
| Grey Water System For Electric Head (N/A With Macerator) | |
| Engine | Total HP | Ratio | Drive | Prop | Max MPH Range | GPH @ Cruise MPH | |
|---|---|---|---|---|---|---|---|
| *6.2L 300 DTS | 300HP | 2.20 | BR III | B3-24-SS | 43-47 | 14@35E | |
| 6.2L 300 CAT DTS | 300HP | 2.20 | BR III | B3-24-SS | 43-47 | 14@35E | |
| *6.2L 350 DTS | 350HP | 2.20 | BR III | B3-26-SS | 50-54 | 10.4@32 | Download |
| 6.2L 350 CAT DTS | 350HP | 2.20 | BR III | B3-26-SS | 50-54 | 10.4@32 | Download |
| 8.2L CAT DTS | 380HP | 2.0 | BR IIIX | B3-28-SS | 48-52 | 15.0@36 |
Showing 1 to 4 of 4 entries
*Consult your local dealer for catalyst engine requirements for your region.
